1993 Sabre 38 Magic Bus
Get More Info
Magic Bus
38' Sabre 1993
Sabre 38 1993 For Sale in Annapolis, Maryland
$125,000
Annapolis, Maryland
Dimensions
- Length Overall: 38'
- Beam: 12' 3"
- Maximum Draft: 6' 5"
- Dry Weight: 16,900 lbs
Tank Capacities
- Fuel: 45.00 gal
- Water: 106.00 gal
- Holding: —
Engine Information
- Engine 1 : Westerbeke 38B - 37hp
General Description

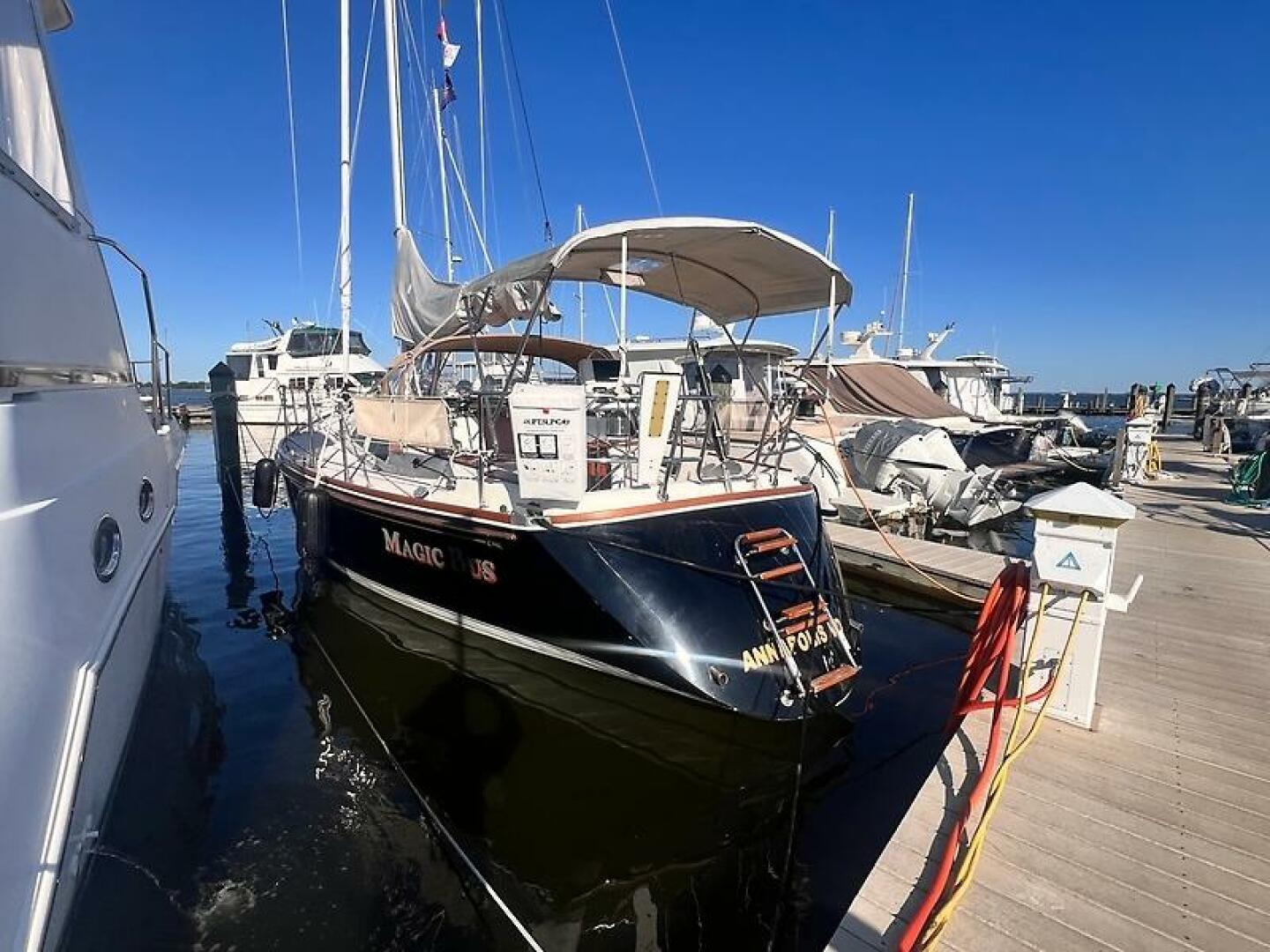

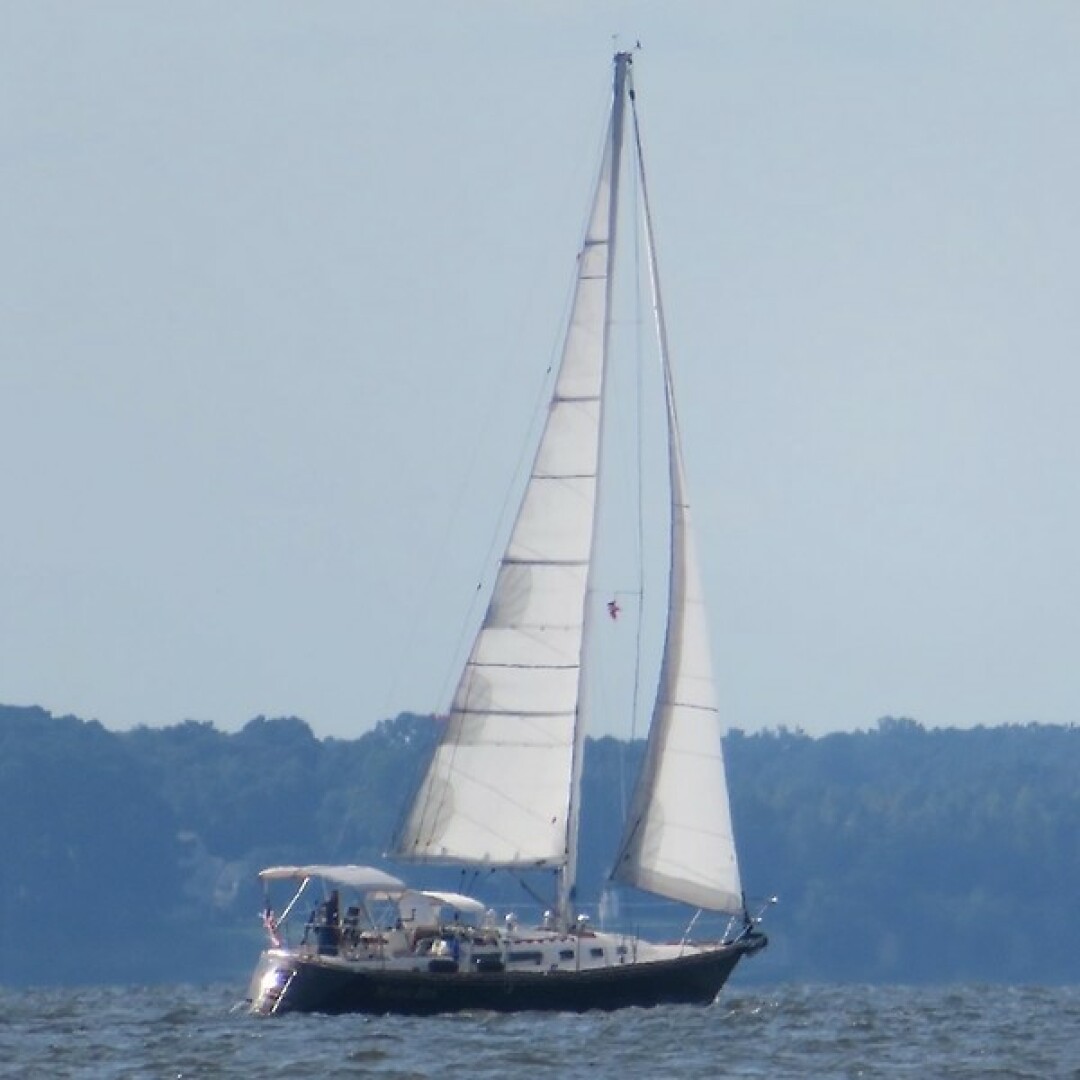

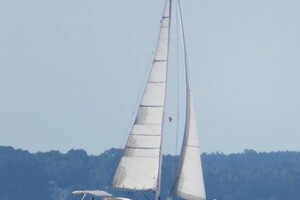

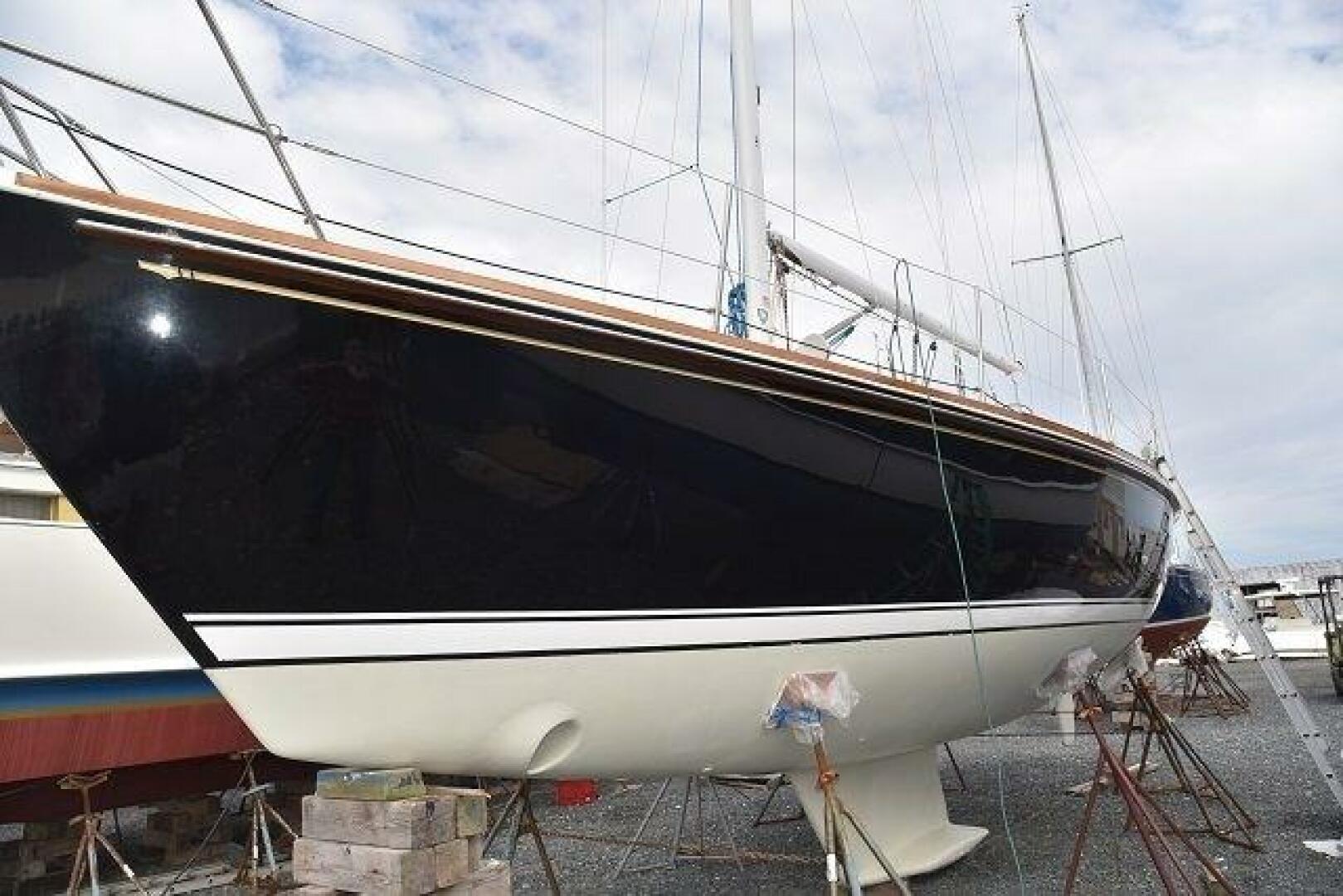

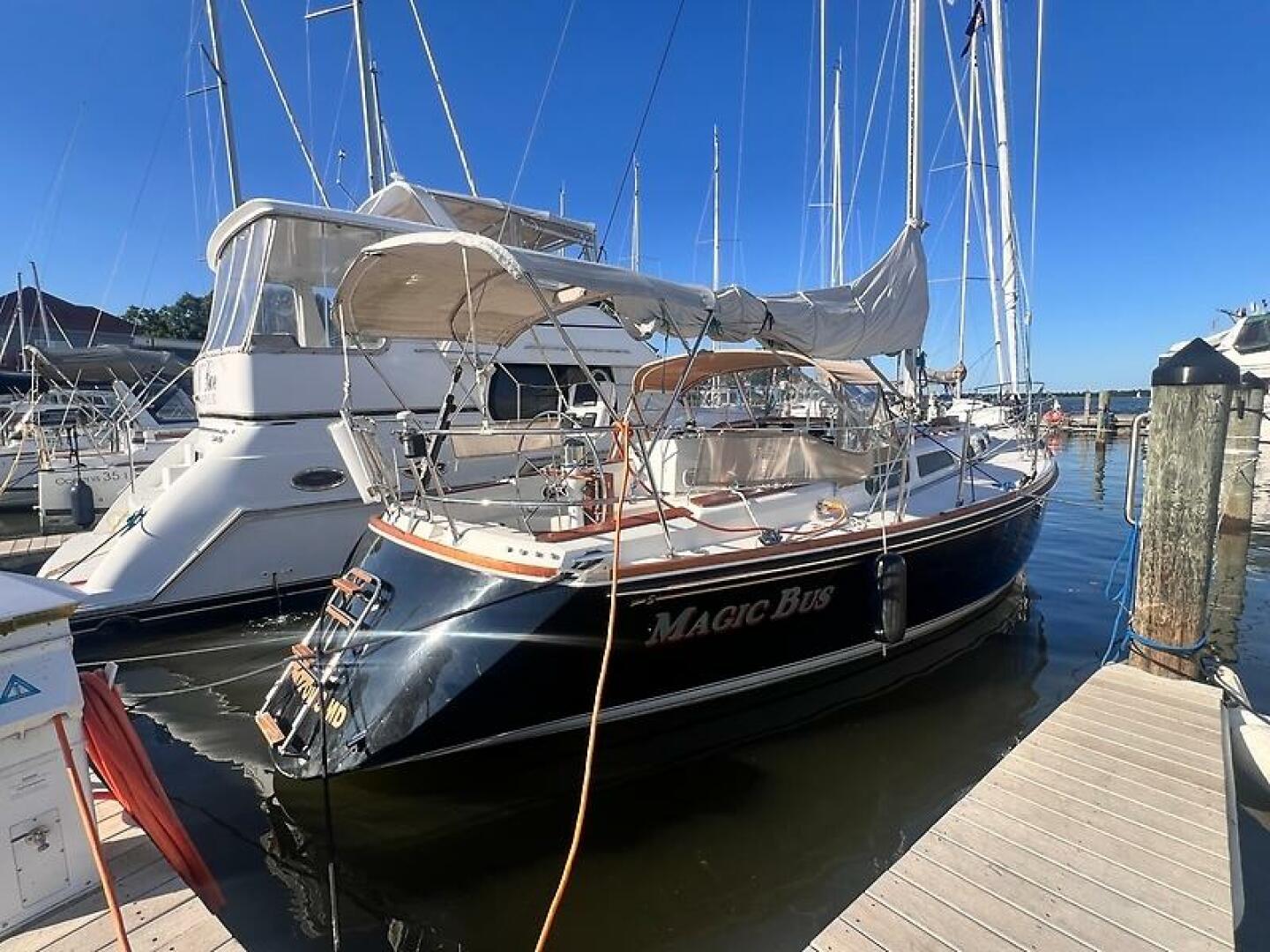

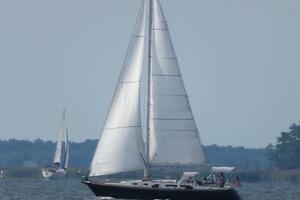

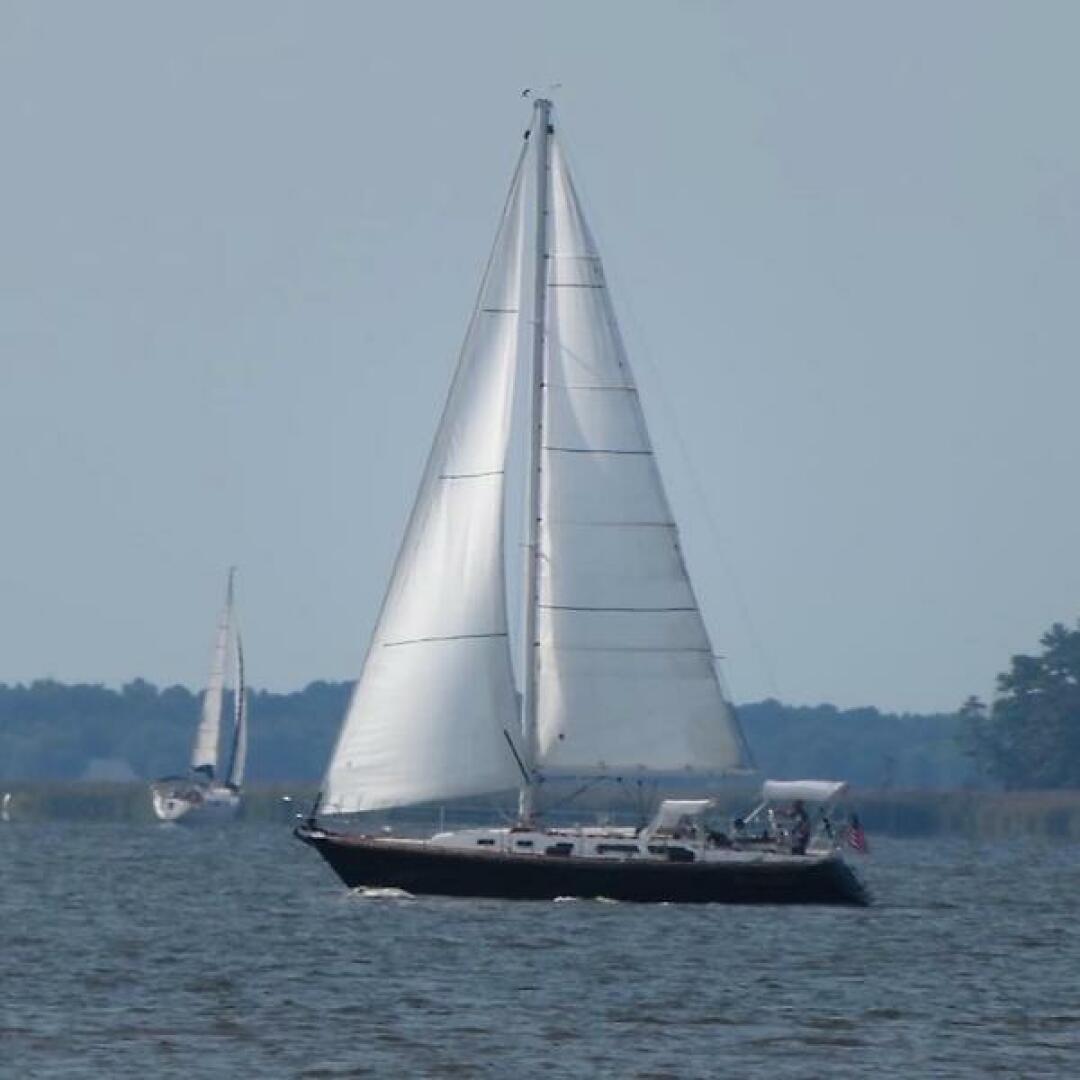

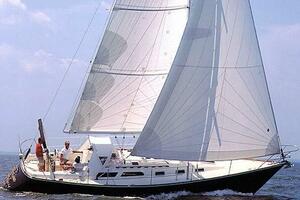

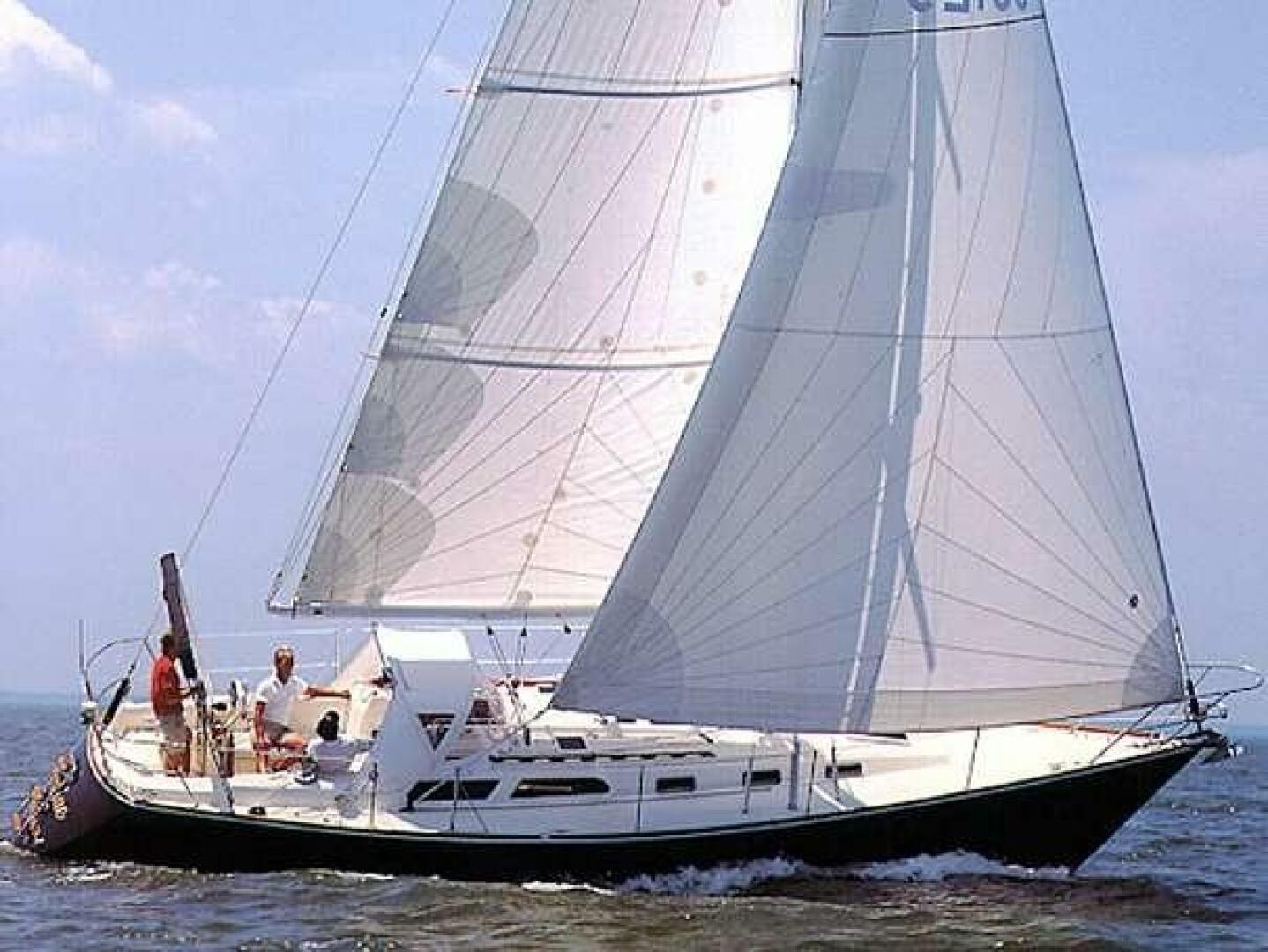

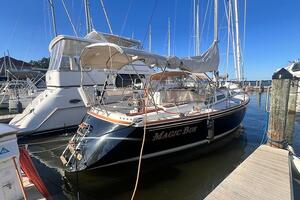

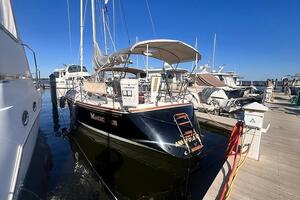

Magic Bus is a gorgeous turn-key 1993 Sabre 38 MK II, with her gleaming black hull and the polished cherry interior, this boat is sure to impress. One of Sabre's most popular designs, the 38 MK II is a beautiful aft cockpit masthead sloop with room below to sleep six. Her spacious interior accommodations include satin finished cabinets and teak and holly sole. You will find that the Sabre 38 MK II was built with the storage, tankage, comfort, sailing qualities and inventory to cruise both nearby & far away. Magic Bus with her winged keel, sails the Chesapeake extremely well. She has been very well maintained by her loving owners. Equipment includes: Lewmar 40 st main sheet, two Lewmar 30 st reefs, Lewmar 30 jib halyard, Harken roller furling, MarineAir AC - she features a winged keel. This boat is a sailor's dream at a great price. Ready to show in her Easport-Annapolis slip!

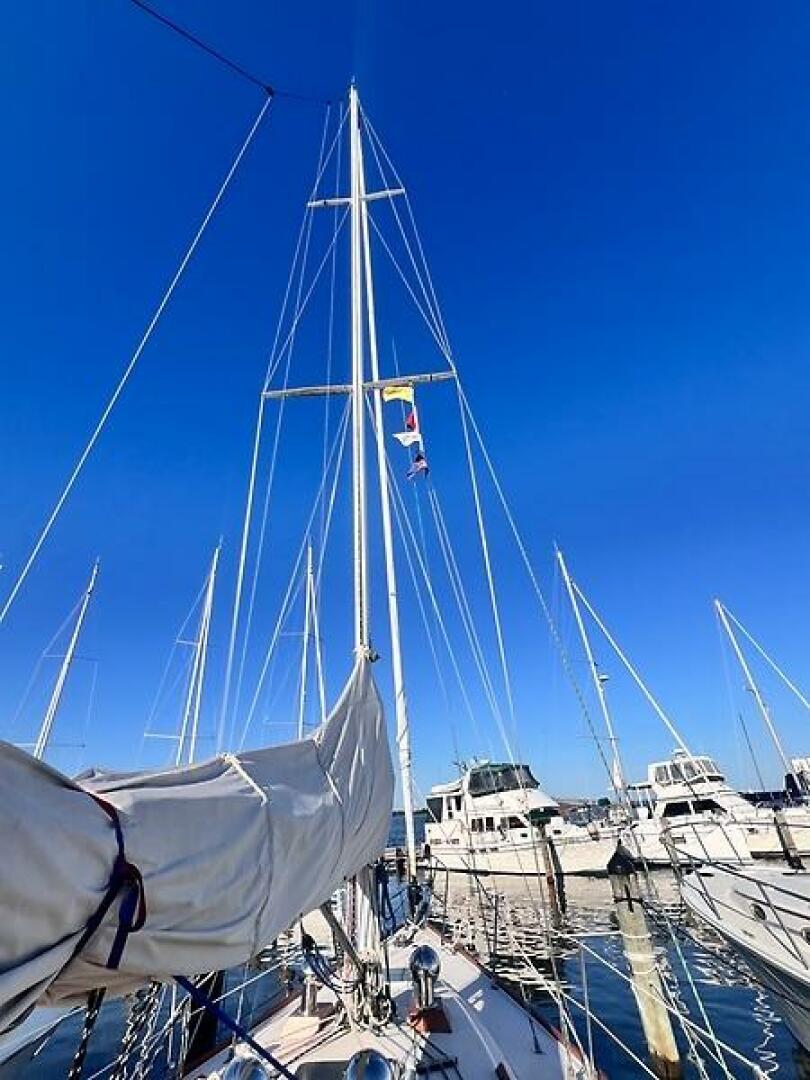

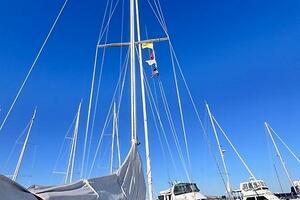

Manufacturers Description "The Sabre 38 achieves high performance levels through a unique combination of power and handling characteristics. Whether bluewater sailing or cruising, the Sabre 38 gives the control needed while providing comfort and convenience. She has a high aspect rig with double airfoil spreaders and rod rigging. The boom is equipped with an internal clew outhaul, topping lift and two sets of jiffy reefing. The jib halyard is led to a mid-cabintop Lewmar winch. Main halyard and reefing lines are led aft to Lewmar winches on the cabintop within easy reach of the cockpit. Sabre offers as an option a furling system that combines a roller furling headstay and Hood Stoway mast. Her ergonomically designed cockpit measures 8 feet 3 inches long and is fitted with top quality hardware. With a separate cabin fore and aft and a spacious main salon, the Sabre 38 can easily accommodate three couples with privacy. Elegantly finished in varnished teak or cherry, she makes entertaining at the dock or at sea a pleasure. Below, the Sabre 38 has 6-feet 4-inches of headroom, two private cabins, seven berths, an expansive galley, head and navigation station. The aft cabin is another delightful retreat, with a comfortable double berth, a wide settee and hanging locker, and plenty of shelf space. The forward cabin has a wide V-berth, hanging closet and an elegant vanity with sink and settee. The main salon features a large dining area with contoured seating and a handsome teak or cherry table. The table folds away and the port settee converts to a double berth. The starboard settee serves as another berth. The Sabre 38's hull is designed to be easily driven while carrying the weight of a moderate displacement yacht. It's a powerful hull shape that yields speed, stability and sail-carrying ability. The rudder, a semi-elliptical foil section, adds to the yacht's performance abilities. Her skeg gives the directional stability of a full-keel boat with much less drag. With over 1,500 meticulously hand-crafted, varnished wood components, the Sabre 38 is built to custom boat builder's standards. In keeping with the Sabre heritage of quality, we select the finest materials for every yacht we build. You'll find names such as Edson, Hall Spars, Harken, Lewmar and Westerbeke to name a few - a few more reasons why Sabre has come to stand for superior quality and craftsmanship for over two decades. The hull and deck are made of hand-laminated fiberglass mat and knitted roving with balsa core as a stiffener. Sabre increases hull durability by incorporating vinylester resin and ISO NPG gelcoat into the DuraLam protection system. PHRF Handicap (average) 108."
Equipment List

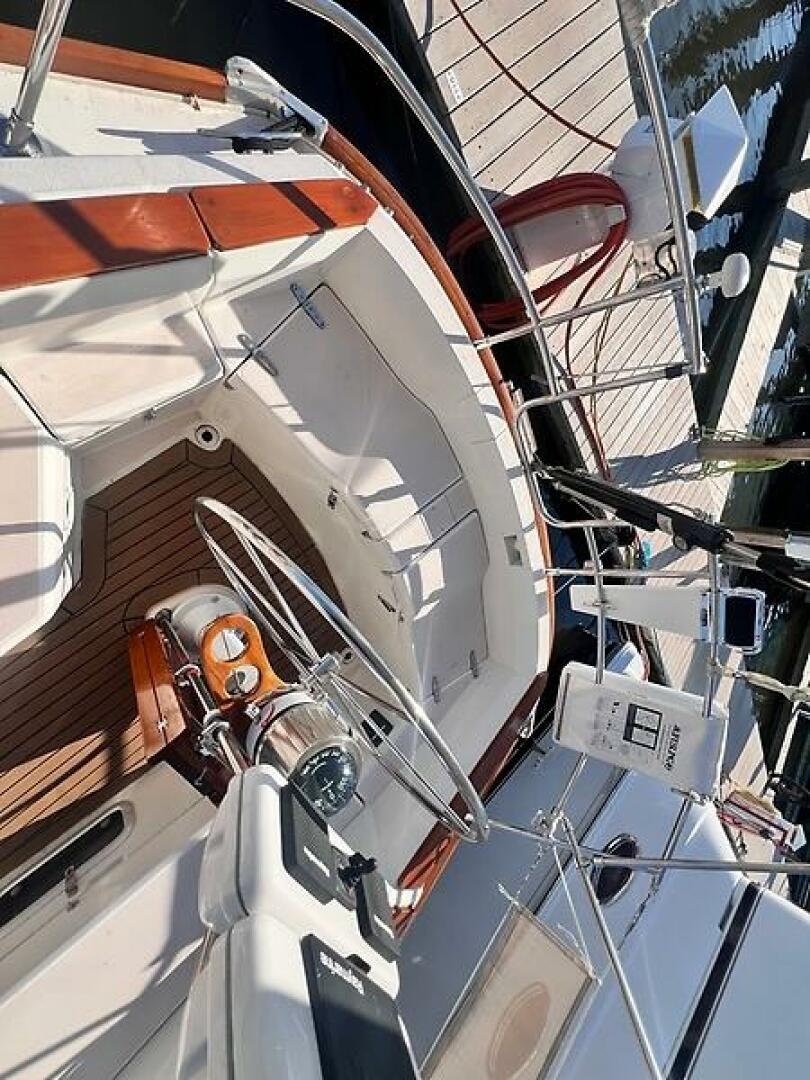

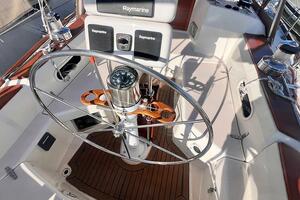

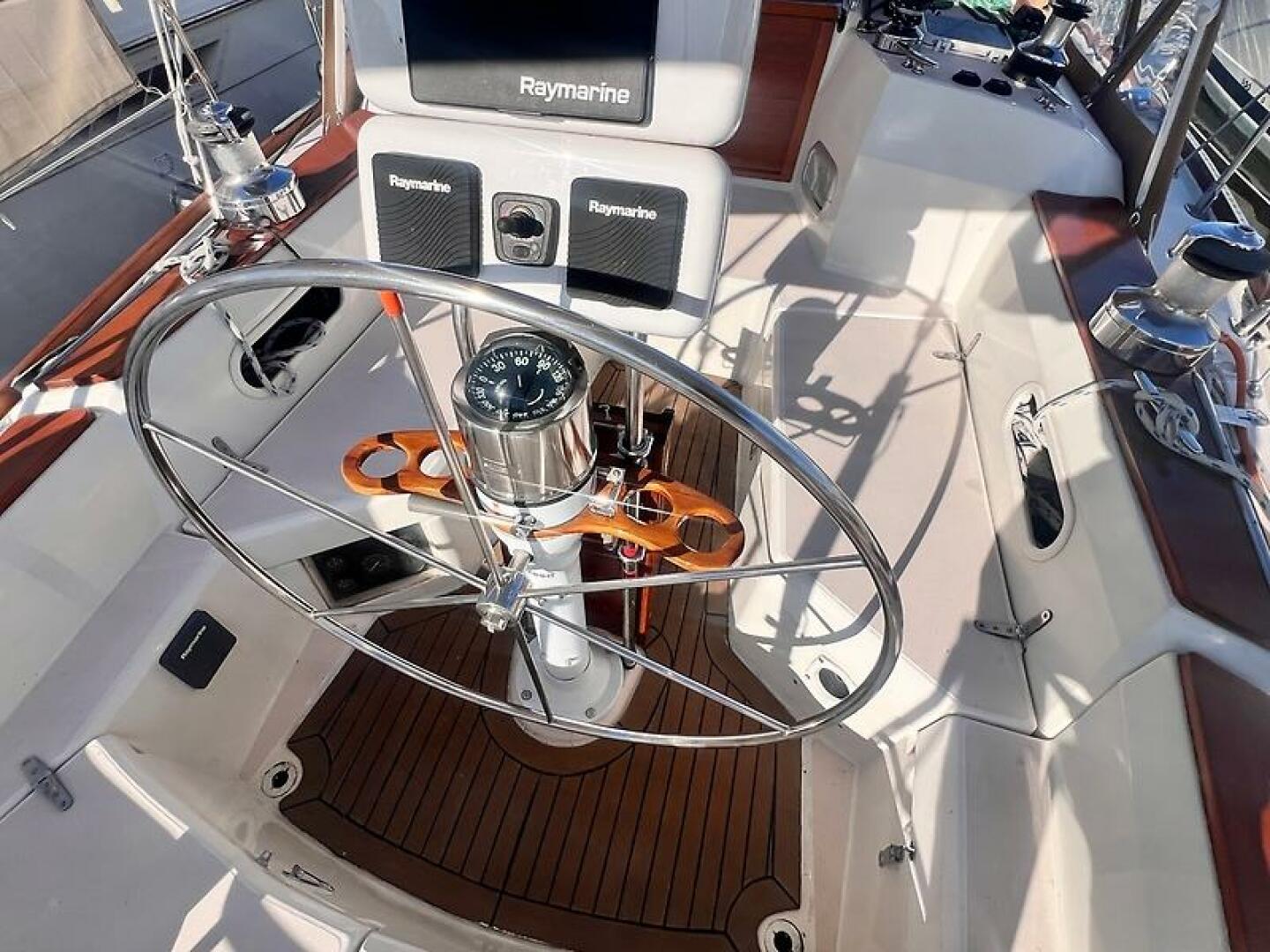

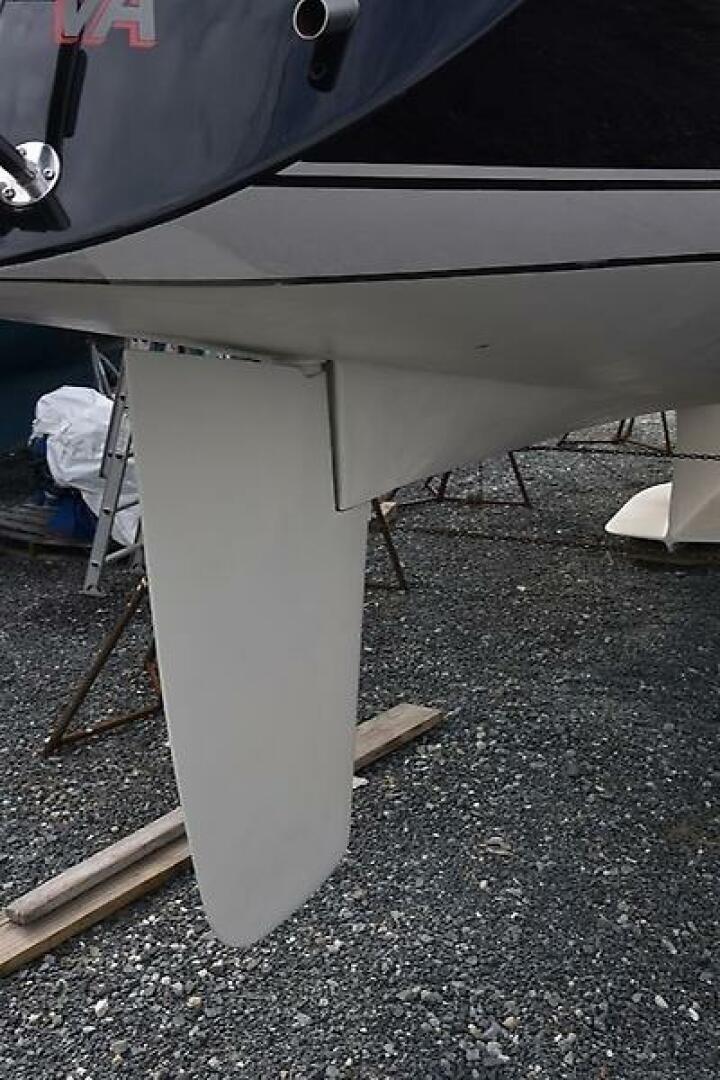

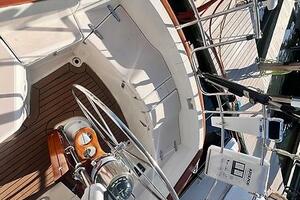

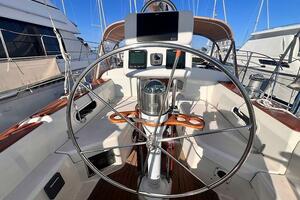

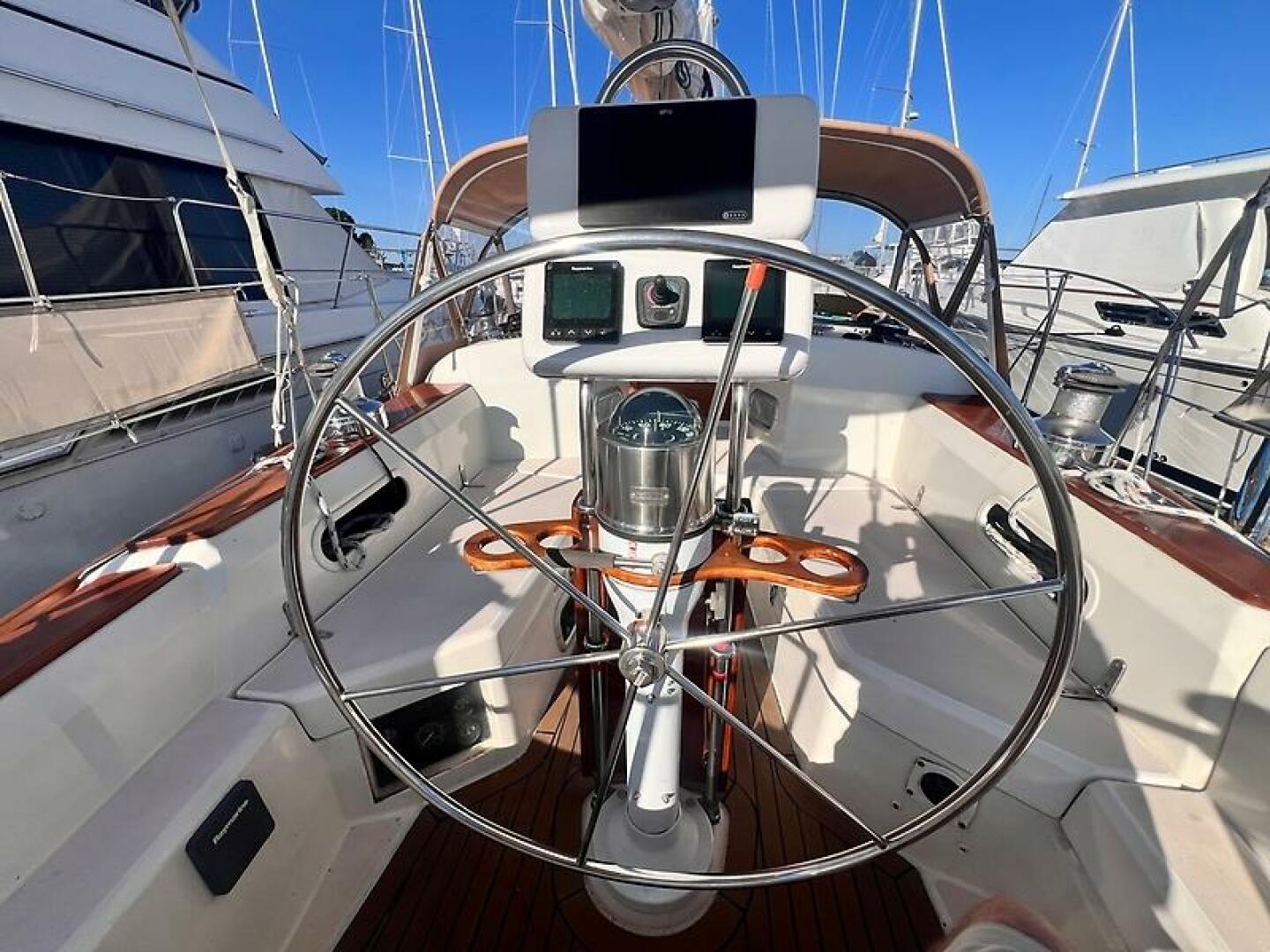

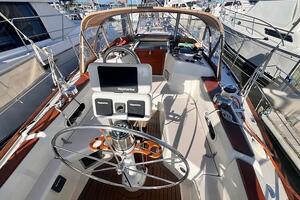

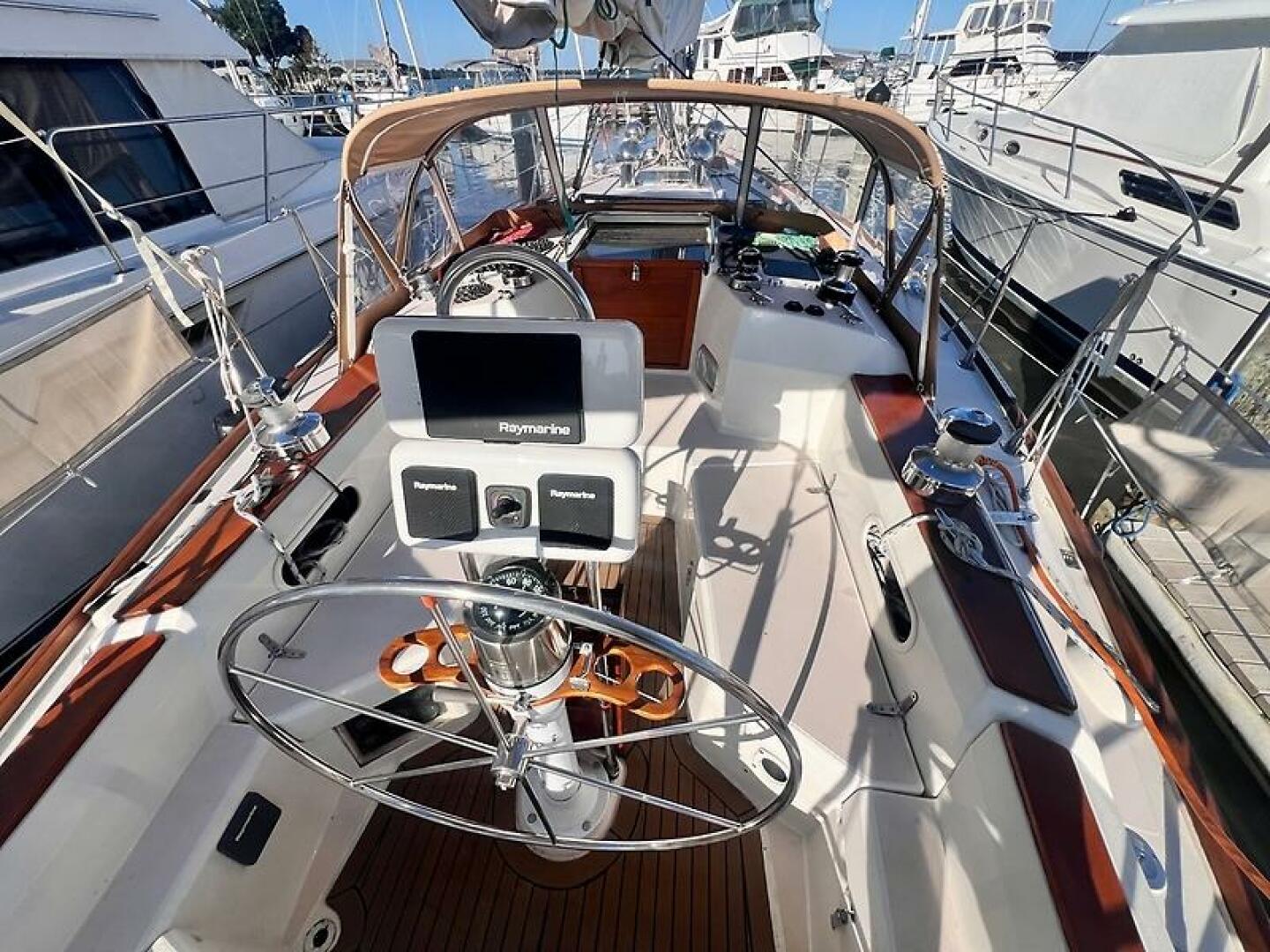

Sabre 38 Specifications - Standard Equipment Hull Construction - Single unit, balsa cored, hand-laminated fiberglass of alternate layers of mat knitted biaxial roving. - Isophthalic gelcoat above waterline. - Below waterline, Sabre technology is used, consisting of chopped strand glass and vinylester resin as a back-up for ISO NPG gelcoat. - Internal deck-to-hull joint with molded-in sealant groove. - Molded-in double boot and single cove stripes. - Bulkheads, berth faces, shelves and floor stringers laminated to hull providing integral, structural strength. - Choice of step or traditional transom. Deck Construction - Single unit, hand-laminated fiberglass with balsa core for stiffness and marine mahogany plywood in lieu of balsa in high stress areas. - The deck is bonded to the hull using stainless steel thru-bolts every 6" with aircraft style locknuts . - Butyl tape and caulking fills the molded sealant groove at the deck to hull joint. Steering System - Edson wheel steering with 40" Destroyer wheel, wheel guard, and brake. - Ritchie SP-5 compass mounted in stainless steel binnacle. - Emergency tiller stored in cockpit locker. - Balanced rudder is molded fiberglass bonded to a 3" IPS schedule 80 rudder stock that passes through a removable fiberglass bearing and bronze stuffing box securely laminated to the hull. Stem Head - Custom cast alloy stem head and anchor roller. Auxiliary Power - Westerbeke 38B - 4 cylinder fresh water cooled diesel with 2.47:1 reduction gear. - 12-volt 50 amp alternator. - 45 gallon custom aluminum fuel tank, deck filled, shutoff valve, vented and grounded. - Racor fuel filter - water separator. - Raw water intake strainer with wrench. - Four point engine mount system optimized to reduce vibration and noise. - Engine compartment exhaust blower. - Aqua-Drive constant velocity universal joint and thrust bearing connecting the shaft to the engine to reduce engine vibration. - Engine compartment light. - Complete engine access provided by sound and heat insulated removable panels. - Tachometer, hour meter, volt, oil, and temperature are recessed in cockpit face. - Fuel gauge mounted at the nav station. - 1" Aquamet prop shaft passes through a glassed-in PYI shaft seal with bronze strut and 16 x 12, R.H., two blade sailor propeller. - Remote oil sump drain. Keel - A modern NACA section fin keel cast in lead with antimony added for strength. - Thru-bolted to a reinforced hull keel sump with stainless steel bolts. Electrical System - Two 12-volt 100 amp group 31 deep cycle marine batteries with sealed four position battery switch. - 110 V shore power system with GFI protection in the galley and head. - 50' shore power cord. - Master AC-DC Bass 6000 marine circuit breaker panels (black) located at the chart table, include AC-DC volt and ammeters, and polarity indicator. Space is provided for additional breakers and electronic gear. - Teak panels access cockpit mounted instrumentation. - All wiring is color coded and meets USCG standards. Deck Hardware - Inboard and outboard genoa tracks are 1 1-4" x 3-16" x 12' aluminum T-track. - Inboard tracks are recessed into the deck tooling. - Outboard tracks supplied with end stops and Lewmar lead blocks. - Inboard tracks supplied with end stops and Lewmar lead blocks. - Custom cast mid-rail chock fitted into each toerail. - Five part main sheet with Schaefer SS blocks led to Harken recirculating ball bearing cabin top traveler, and to a Lewmar #30 CST two-speed winch. - Custom cast mast collar with provision for halyard and turning block attachments. - (2) 9" 4-bolt cleats forward, (2) mid deck and (2) aft. - Self-draining foredeck anchor locker with drain and padeye for anchor rode. - Pulpit, stern rail and stanchions are custom fabricated of stainless steel and thru-bolted with aluminum backing plates. - Double lifelines of vinyl coated stainless steel cable with port and starboard boarding gates with braced stanchions. - All lifeline terminals and turnbuckles are swaged stainless steel. - Solid teak handrails and toerails. - Stainless companionway hand rail. - Main Halyard led aft. Winches - All winches are Lewmar "Ocean Series." - Main sheet - genoa halyard - led to Lewmar #30 CST two-speed. - Main halyard - Lewmar #30 CST two-speed. - Jiffy reefing - two lines led through a double stopper to a Lewmar #30 CST two-speed winch, mounted on aft cabin top. - Primaries - two Lewmar #54 CST self-tailing winches. - Two 10" chrome winch handles; one 10" chrome lock-in. Cockpit - Two deep storage lockers and one storage bin. - Dividers in shallow cockpit locker for small gear. - Molded-in winch handle pockets. - Coamings angled for comfort. - Solid teak cup holder on pedestal. - Two cockpit scuppers to bronze seavalves. - Stove fuel storage locker. - Transom boarding ladder with teak treads. Boom - Aluminum, white Awlgrip finish. - Internal clew outhaul. - External topping lift. - Two sets of internal jiffy reefing. - Lugs for boom vang. Mast - One piece aluminum, keel stepped, Hall Spar mast with double airfoil spreader, masthead rig with white Awlgrip finish. - Masthead with three halyard sheaves and double spinnaker crane. - Internal main and genoa halyards. - Prewired with radio cable. - Spare halyard exits. Standing Rigging - Headstay: wire size 5-16", turnbuckle size 5-8", optional rod size 12. - Backstay: standard rod size 12, optional wire size 5-16", turnbuckle size 5-8" - Upper shrouds: standard rod size 12, optional wire size 5-16", turnbuckle size 5-8" - Intermediate shrouds: standard rod size 10, optional wire size 9-32", turnbuckle size l-2" - Lower shrouds: standard rod size 8, optional wire size 1-4", turnbuckle size l-2" - Spreader boots, shroud covers, and turnbuckle covers. Chainplates - Stainless steel, thru-bolted to chainplate bulkheads bonded to the hull. - Grounded to the keel. - Mounted well inboard for optimum sheeting angles. Running Rigging - Color coded - Main halyard 3-8" ULS with headboard shackle. - Genoa halyard 3-8" ULS with snap shackle. - 7-16" Dacron braid main sheet. - 9-16" Dacron braid genoa sheets. - 3-8" traveler control lines. - 7-16" jiffy reefing lines. Accommodations - Scandvik polished SS double galley sink. - 6' 4" standing headroom. - Forward cabin has two 6' 6" V-berths. - Main cabin has two 6' 6" settee berths, port berth converts to a double. - Aft cabin with double berth. - Aft head with shower. - Forward cabin equipped with vanity sink, mirror, storage lockers, and upholstered seat. - All berths provided with 4" foam cushions (main cabin berths have 4 1-2") covered with a durable fabric, zippered for ease of removal. - Raritan PHII head. - Light in hanging locker. Ventilation & Light - 6 Lewmar polished Ocean Series hatches with interior trim, and provisions for screens. - 4 chrome dorade vents. - 4 main cabin fixed port lights of Marguard Lexan. - 4 opening ports in main salon, 4 in aft cabin, 2 in forward cabin, and 1 in aft head. - Acrylic sliding companionway hatch with fiberglass spray hood and solid teak hatch boards. - Screened hatch boards. - Custom stainless ports in main and forward cabins. Sabre Features - Fully equipped tool drawer. - Activated carbon water filter. - 3 type ABC fire extinguishers. - Louvered teak in main cabin doors. - Cockpit locker light. - Bronze recessed thru-hulls with bronze seavalves. - Hoses greater than 1" in diameter are double clamped. - Inlaid cypress wood accents in interior teak trim. - Cypress hull ceilings. - Propane 4 burner stove with oven and gas sniffer. - Hot and cold pressure water. - Varnished interior teak or cherry finish. - One automatic electric and one manual bilge pump

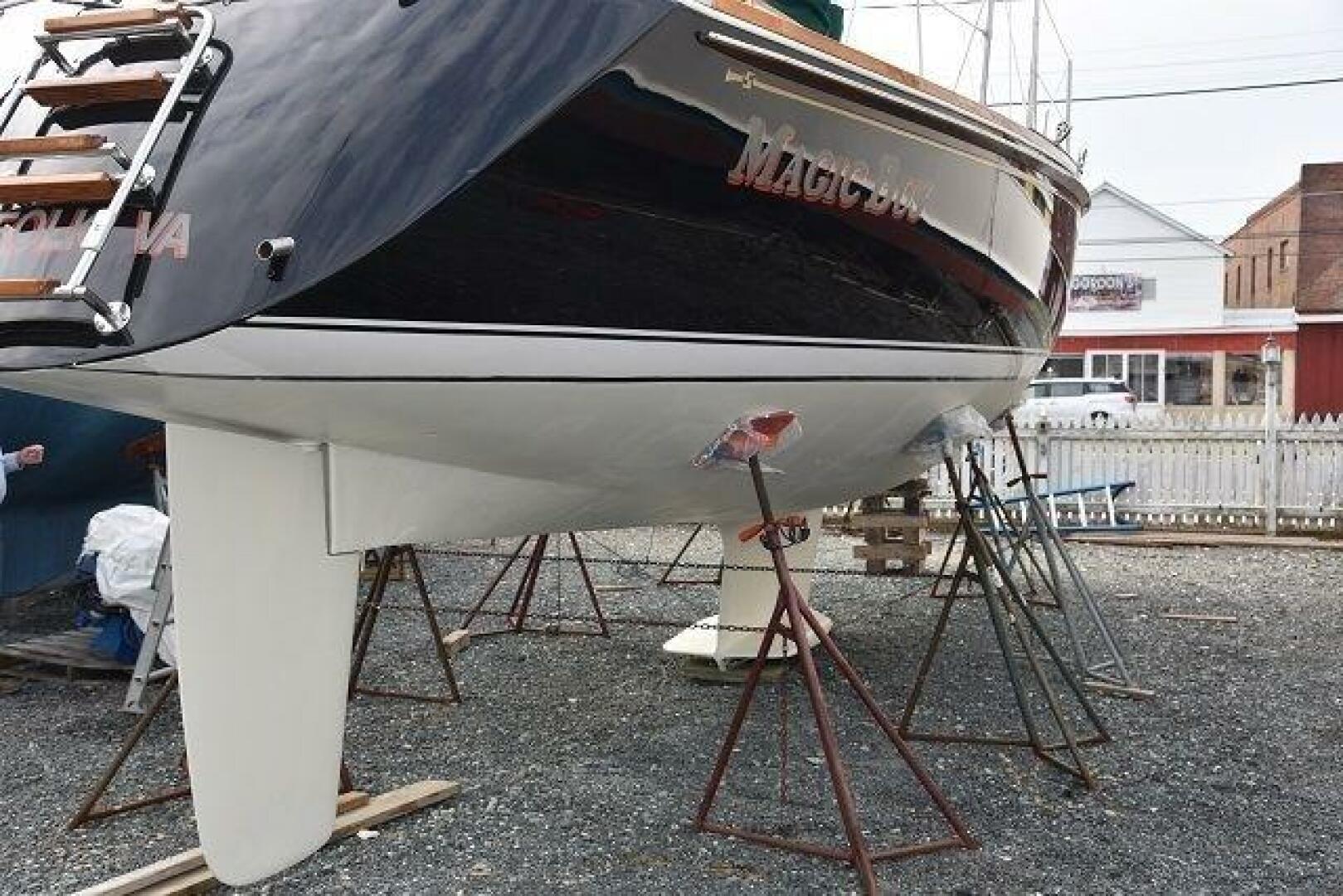

Keel Details

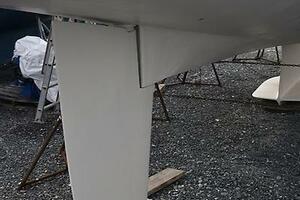

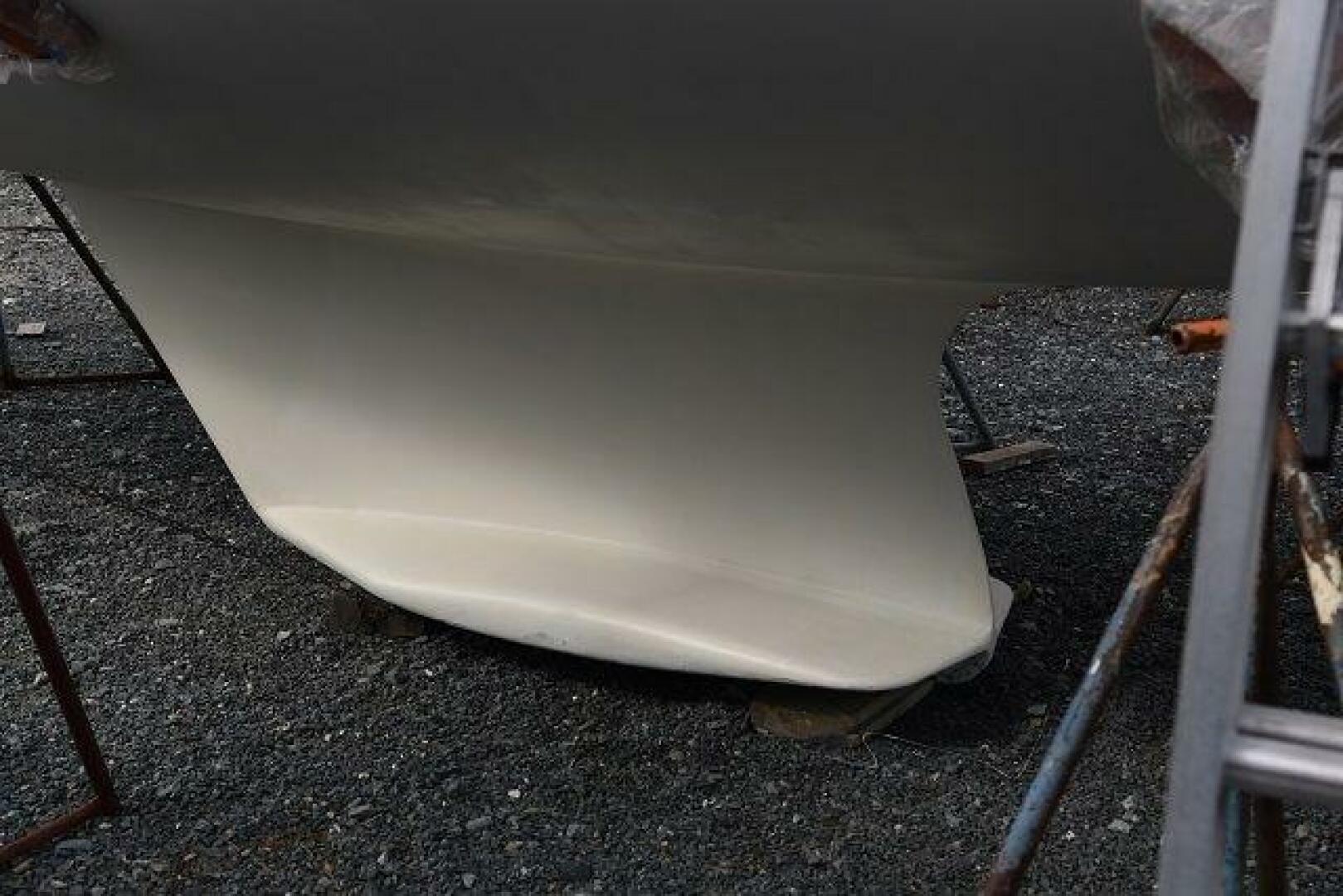

Keel Type: Wing
Ballast: 7000 lb.
Displacement: 17300 sq ft
Max Draft: 4.92 ft
Sail Area
IJPE : 689.75 sq ft
I : 49.75 ft
J : 14.50 ft
P : 43.50 ft
E : 15.08 ft
Working Sail Area : 689.00 sq ft
Features

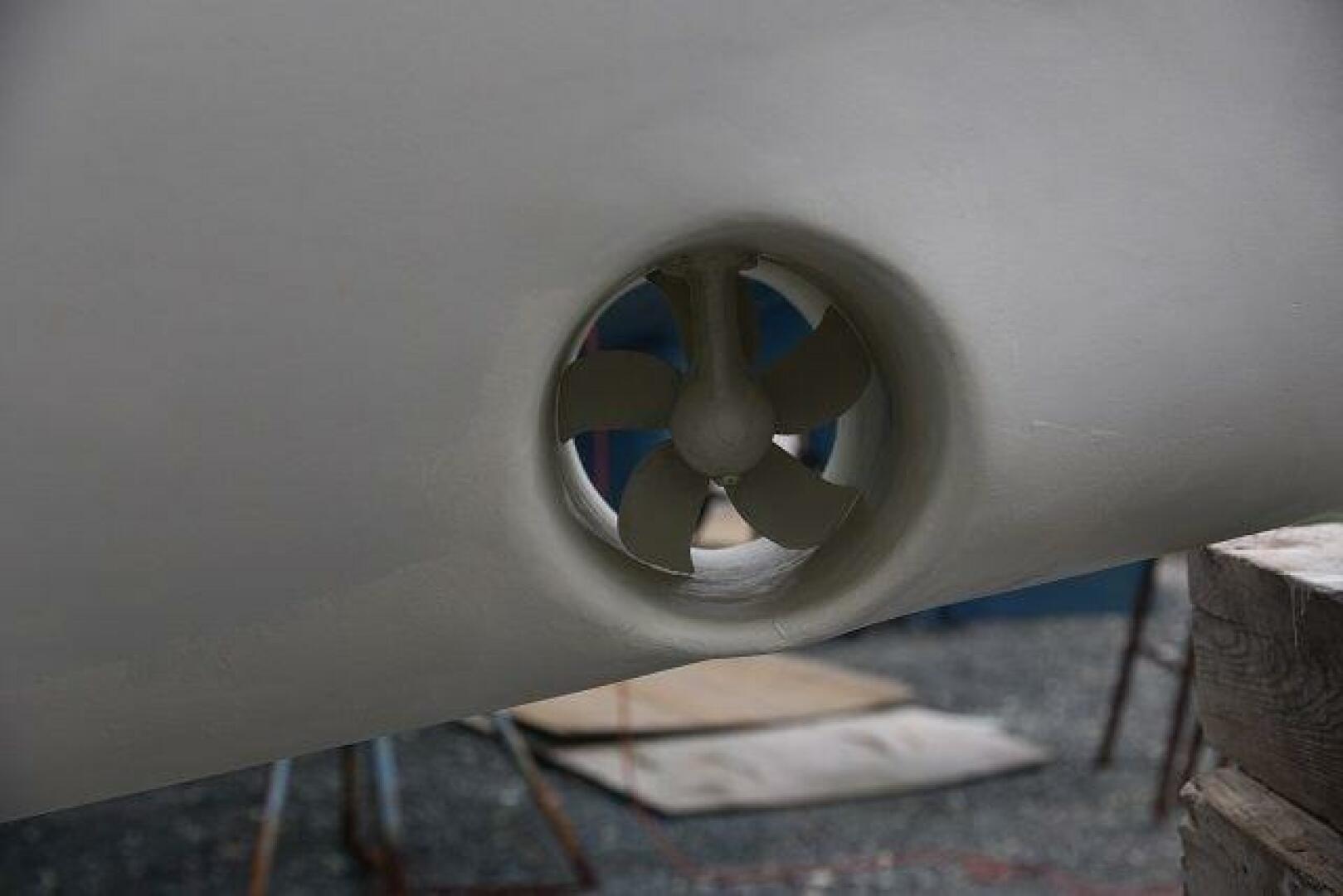

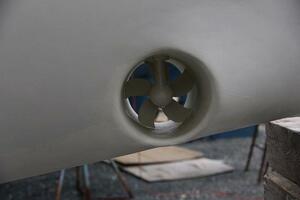

- Lewmar 185 bow thruster/dedicated agm battery joy stick control and remote

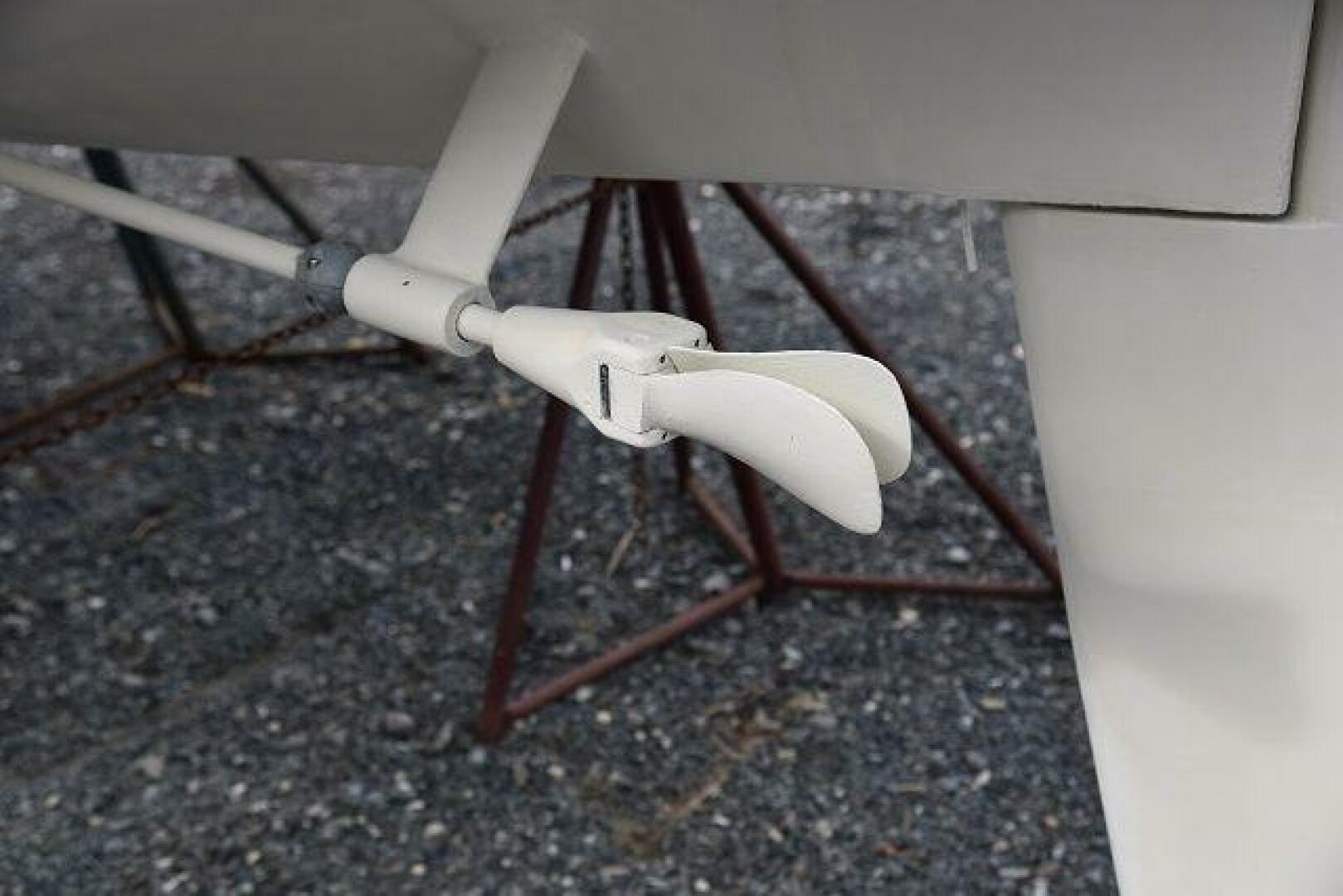

- Stainless steel folding prop

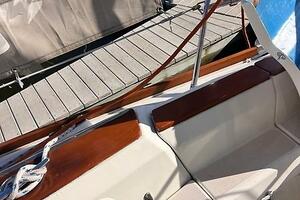

- Teak rub rail with s.s. cap

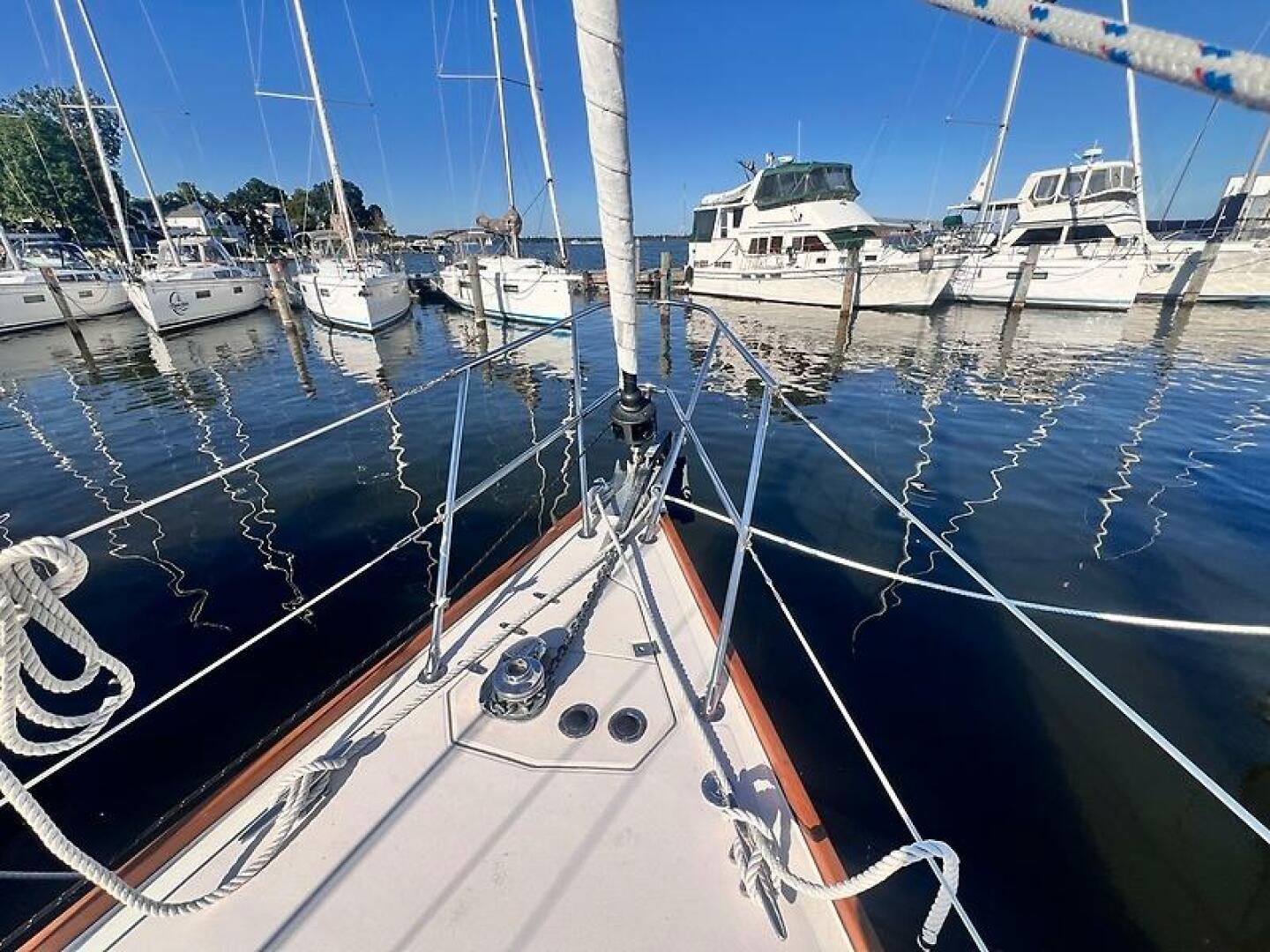

- Ideal chain/rope windless
- 30' ht chain/150' rode

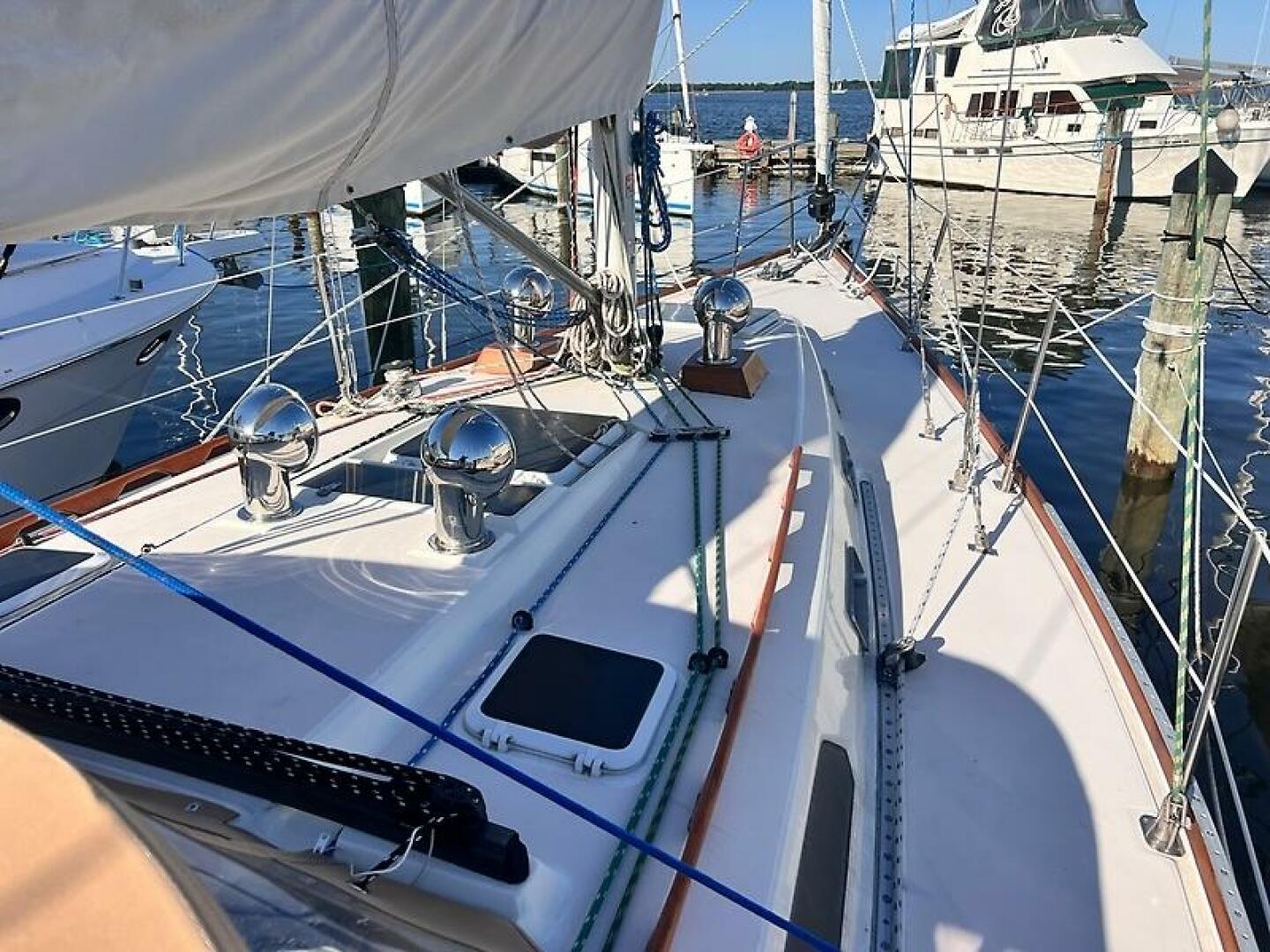

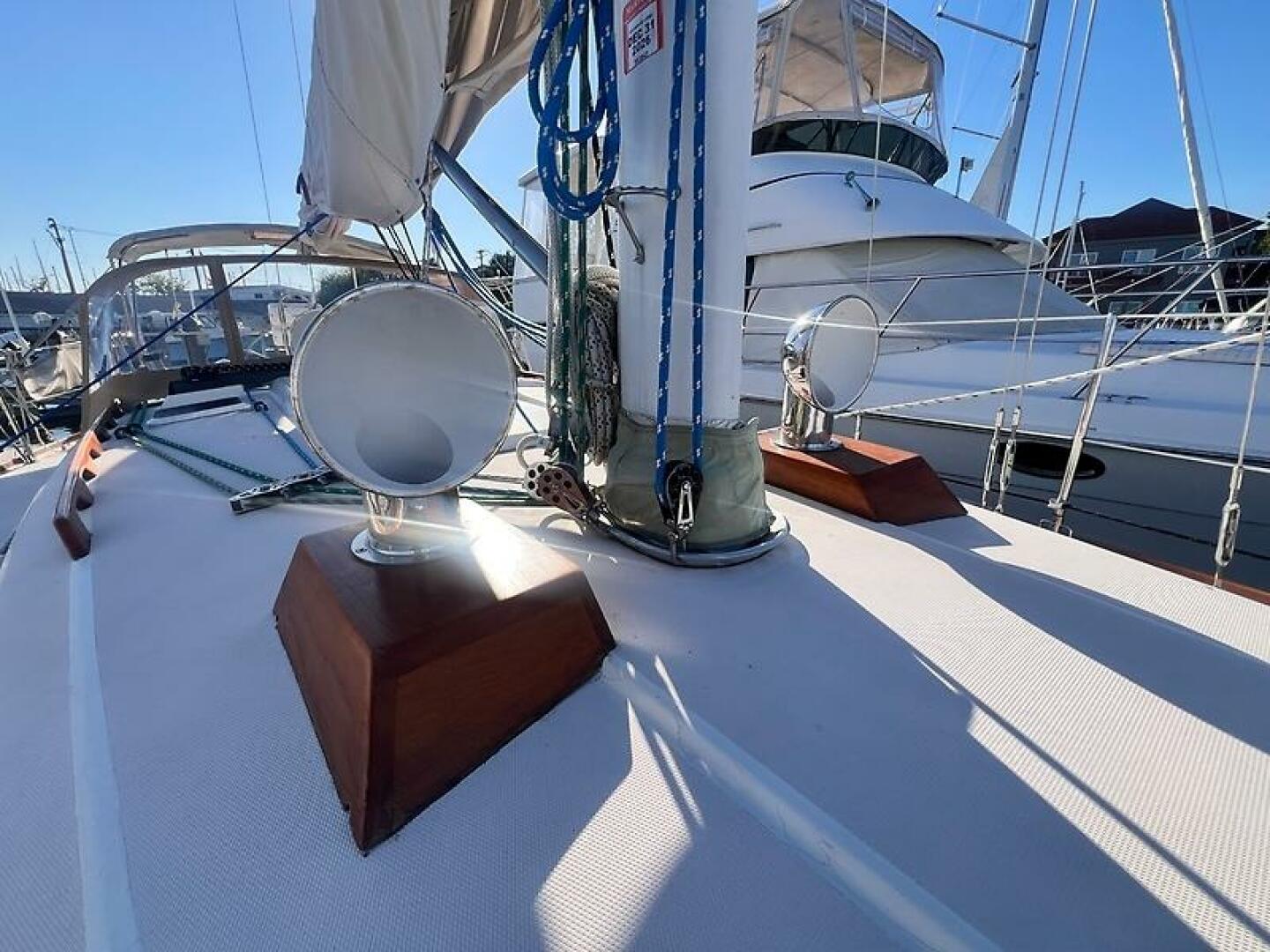

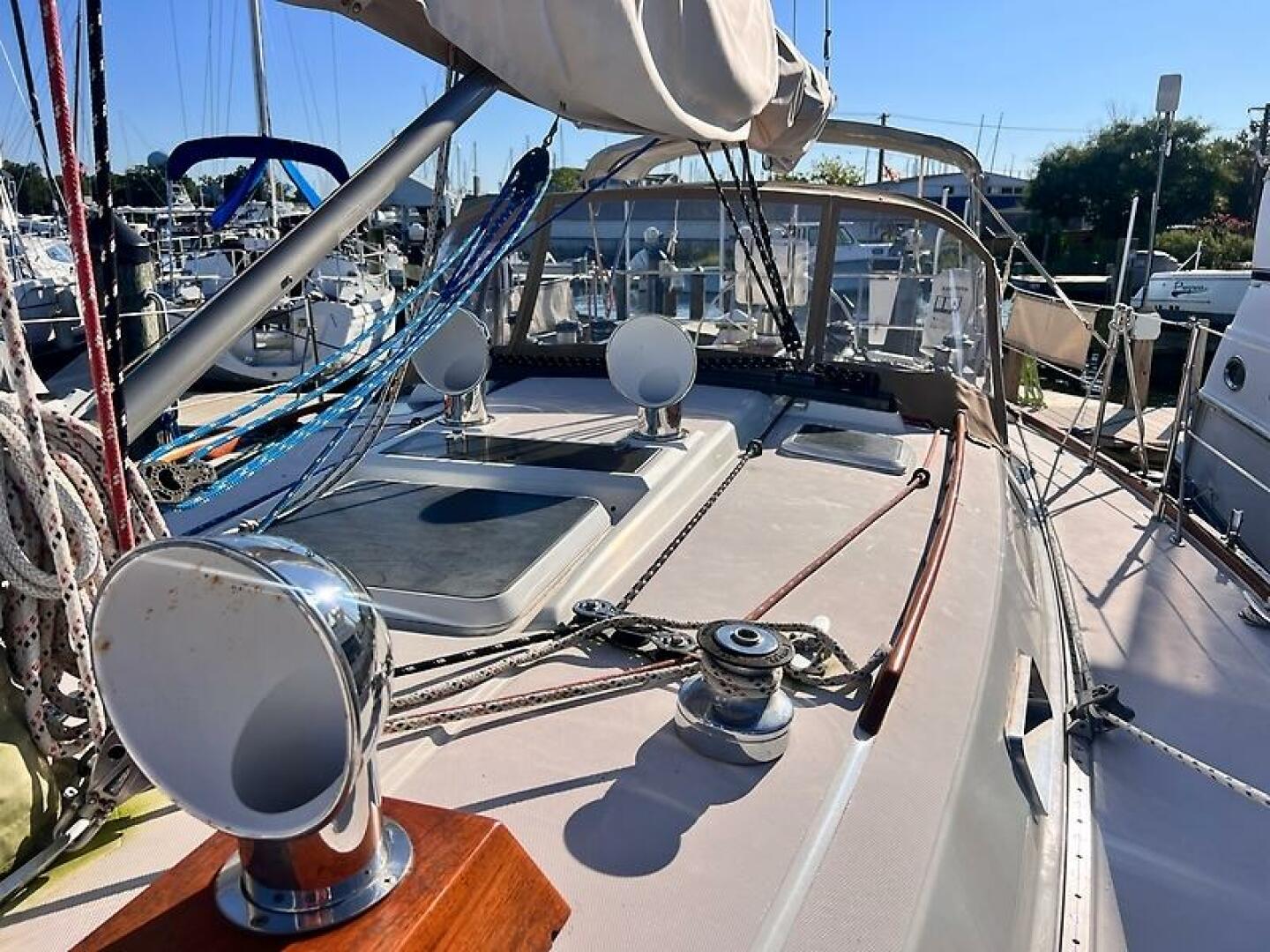

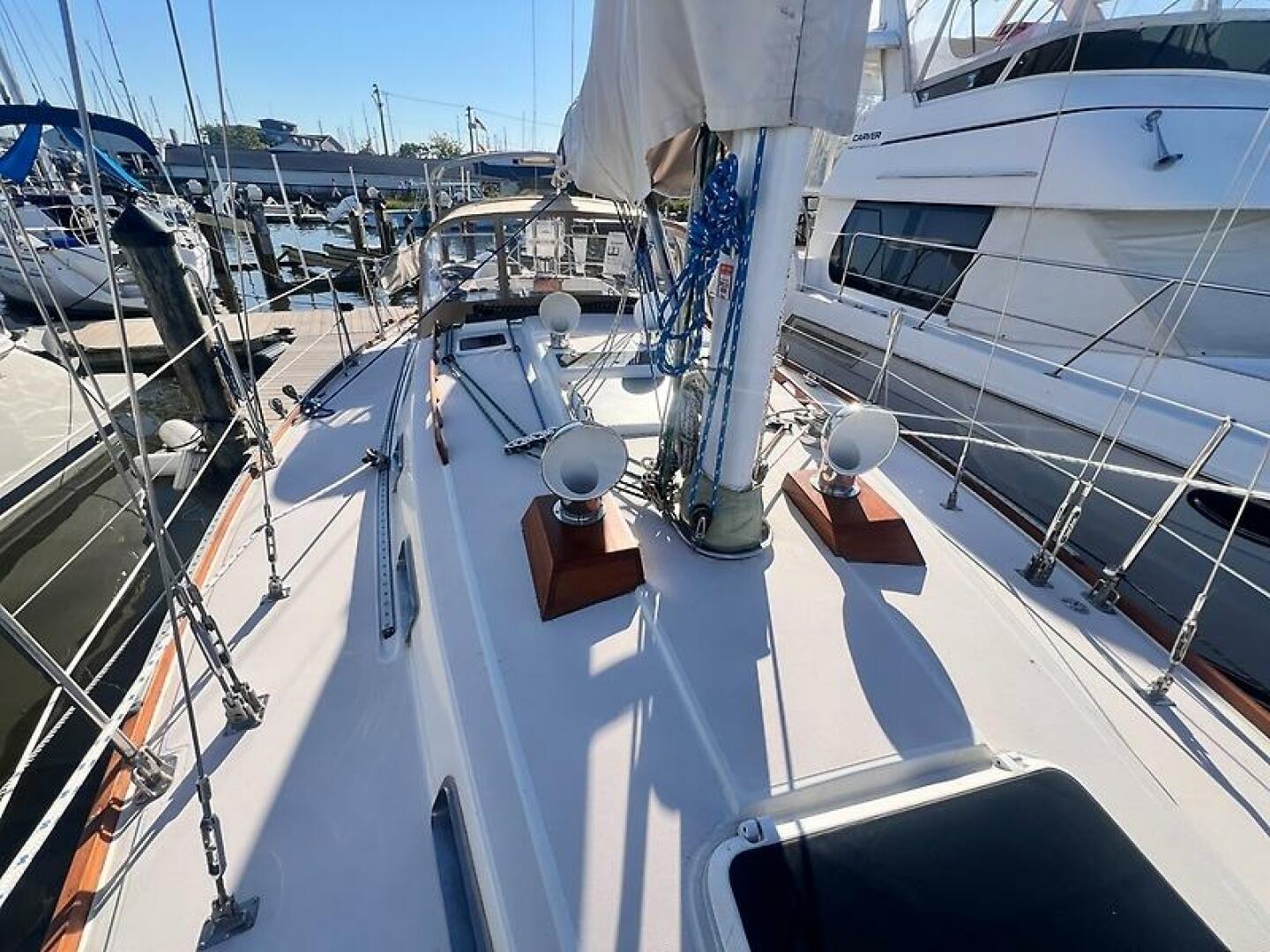

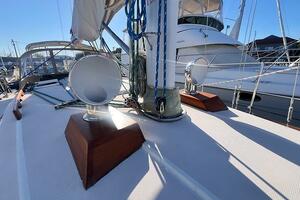

- Custom teak dorade boxes
- Hall boom vang
- Upgraded halyards

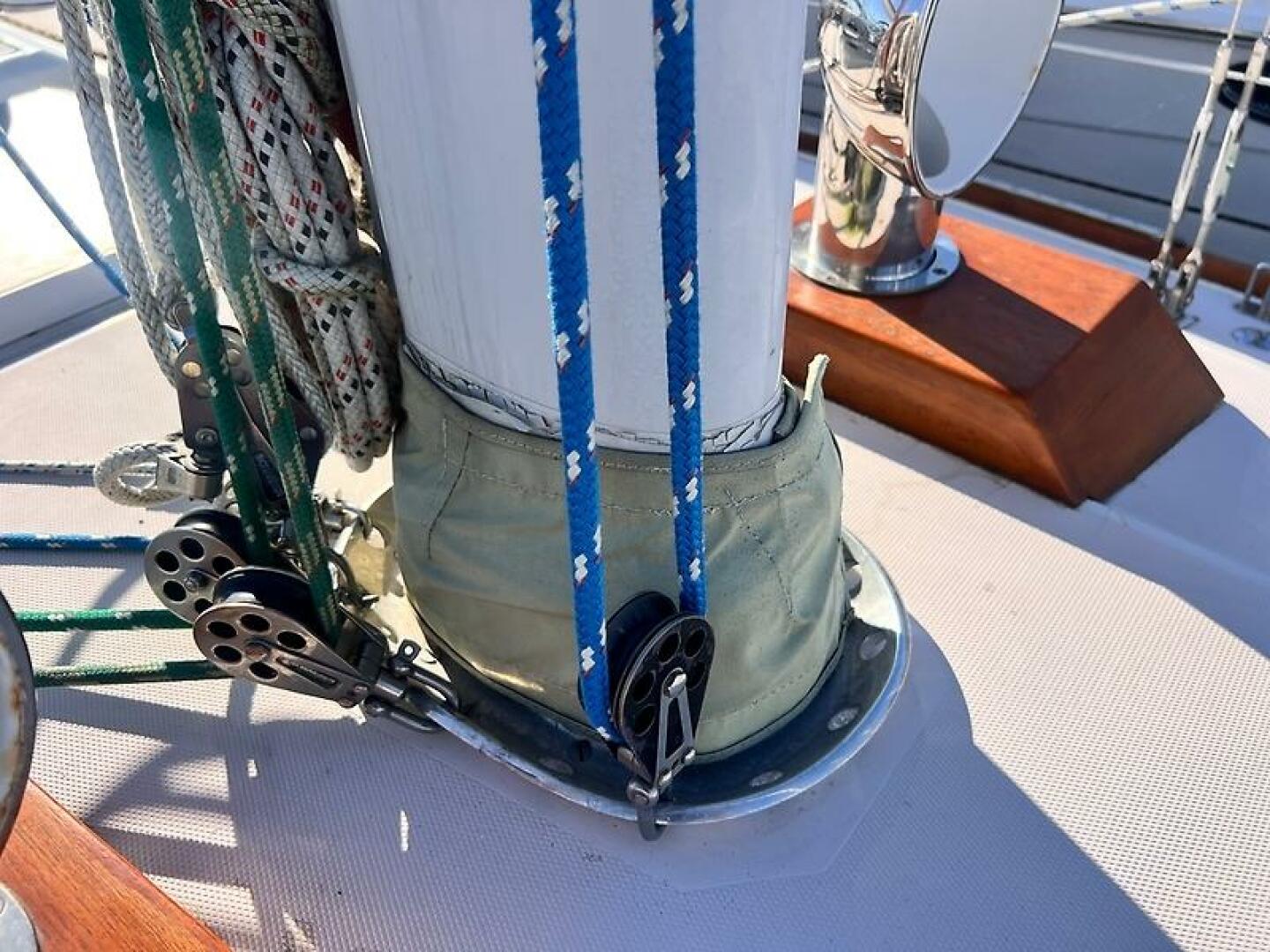

- All lines led to cockpit/lewmar stoppers
- Winches include harken electric 40 for main halyard
- New lewmar 40 st main sheet
- 2 Lewmar 30 st reef
- Lewmar 30 jib halyard
- 2 Lewmar 54 st primary winches
- Hydraulic back stay adjuster

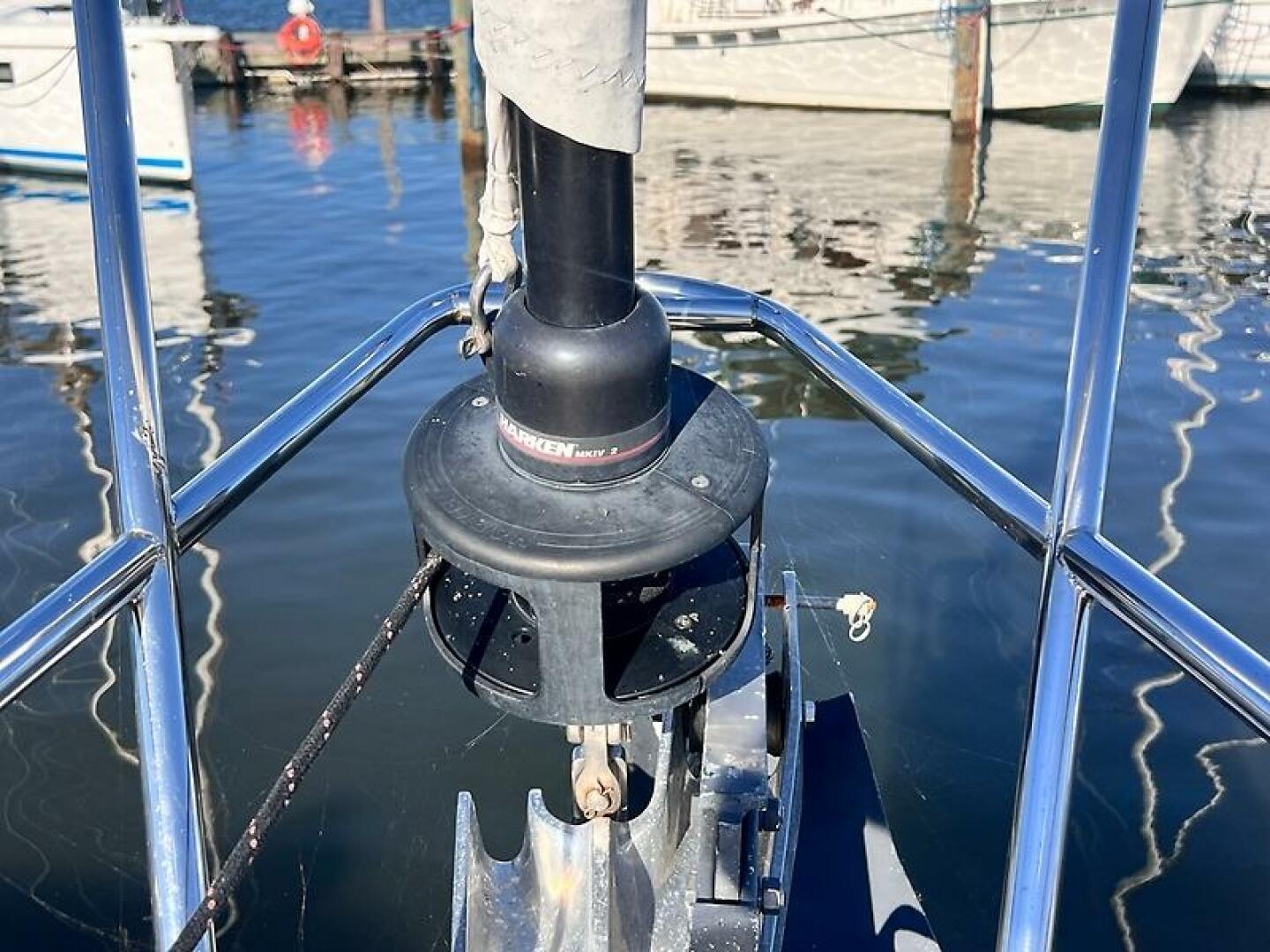

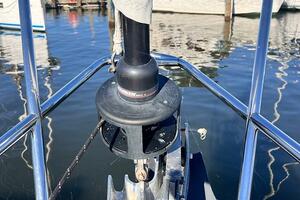

- New harken roller furling
- New Ullman main/full battens/Dutchman system
- Harken batt cars rebuilt 2020
- Traveler/new end cars/main car rebuilt 2020

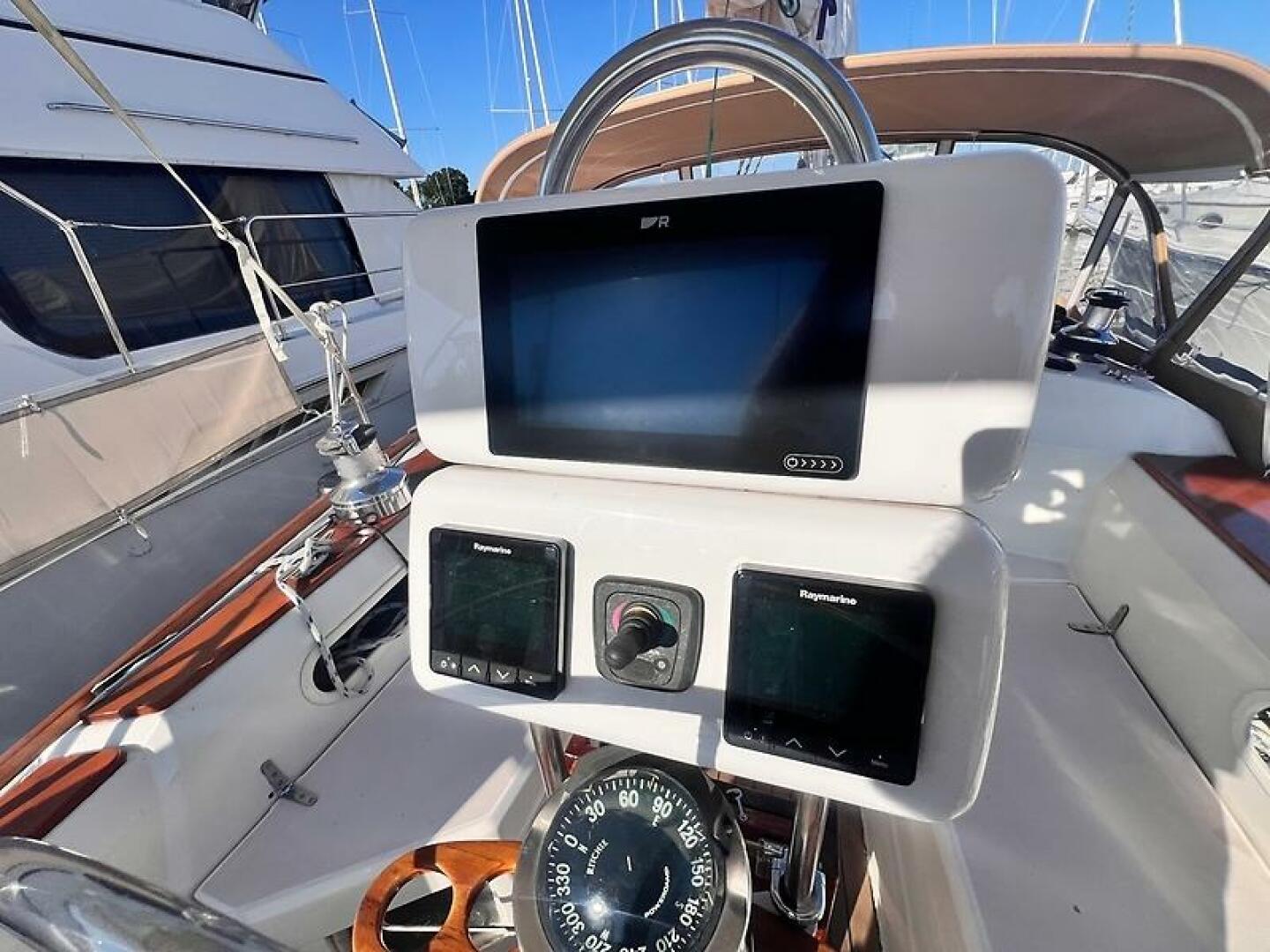

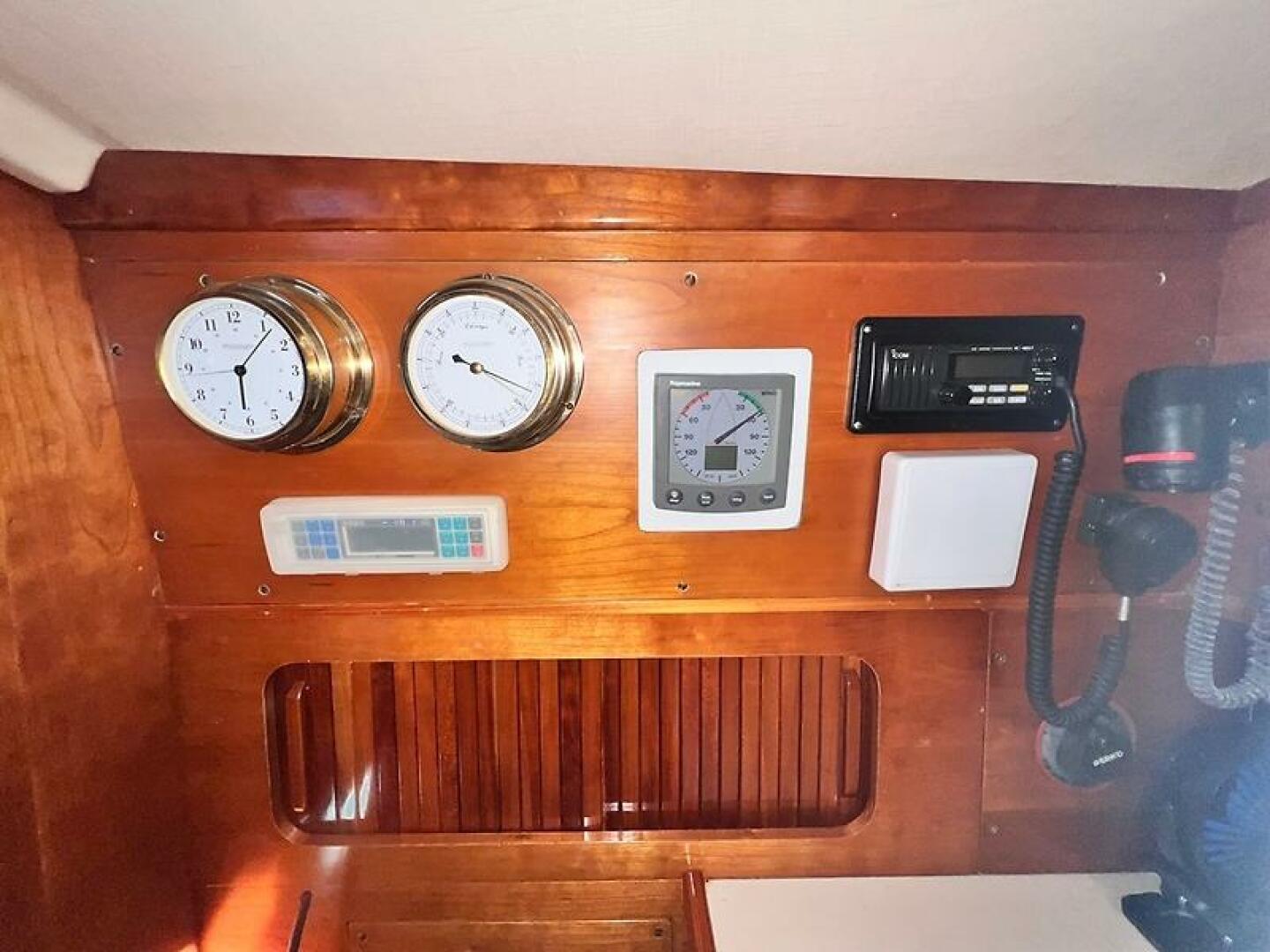

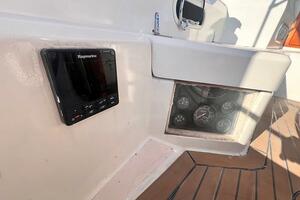

- Raymarine 60+ wind,speed,depth plus repeater

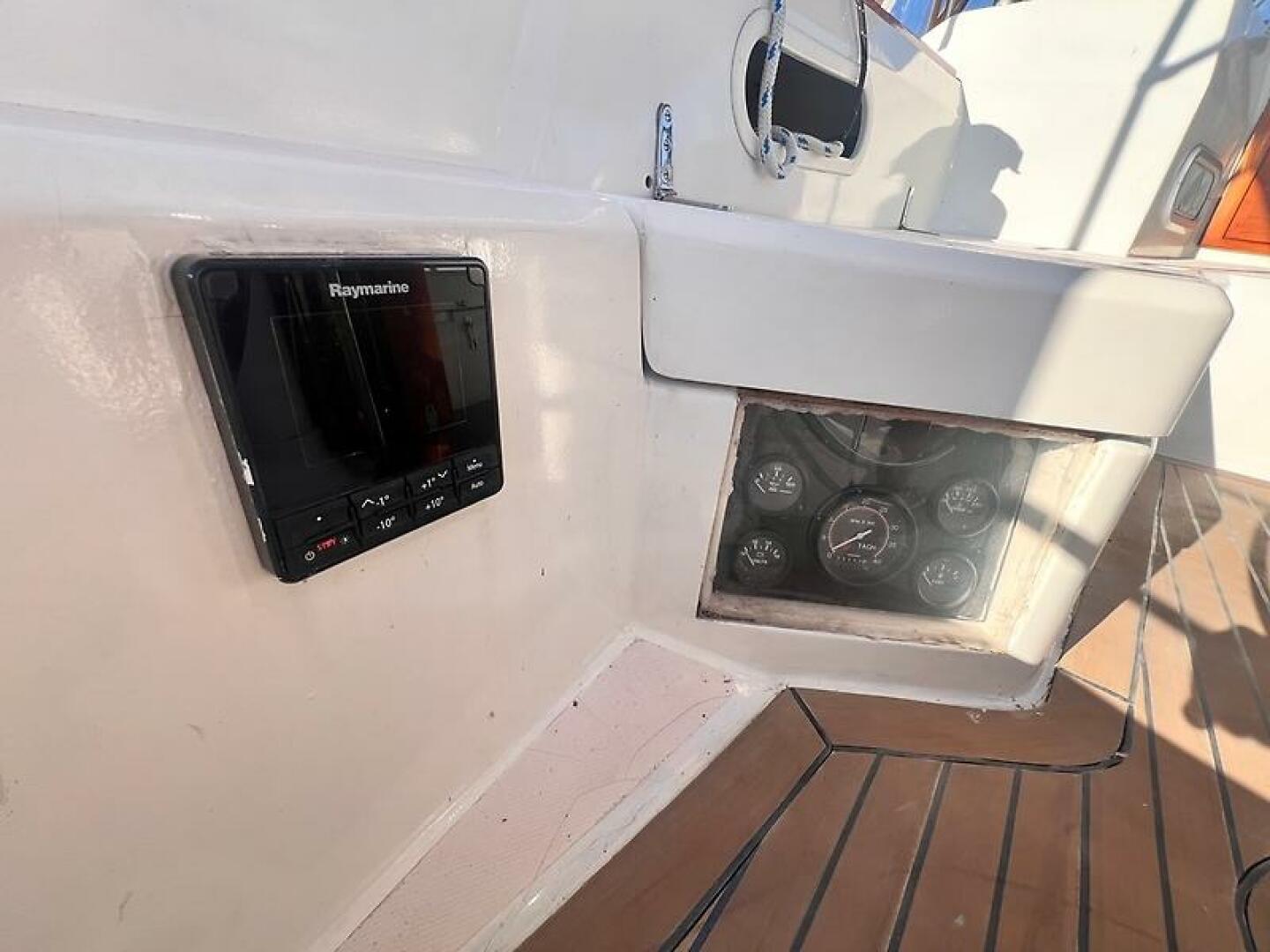

- Raymarine below deck autopilot

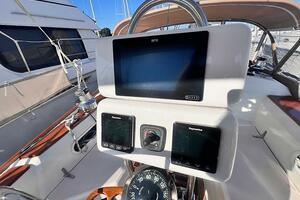

- Raymarine chart plotter

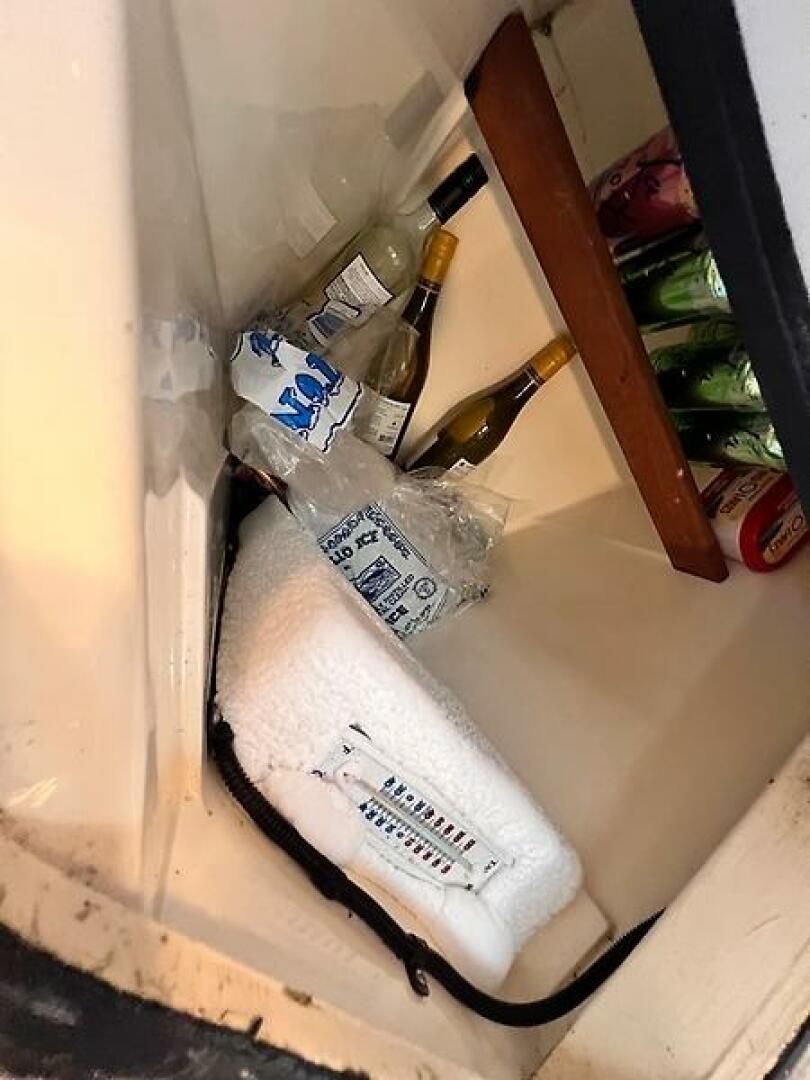

- Seafrost engine driver and 110v refrigeration
- Charles ind. 40amp smart charger
- 2 group 31 deep cell batteries
- Marineair a/c
- Ultra leather salon cushions
- V berth, quarter berth cushions new 2016
- Bottom sandplasted and epoxied 2017
- 17 kg super max anchor on roller
- 50' smart plug power cord
- Varnished cherry interior
- Cockpit cushions

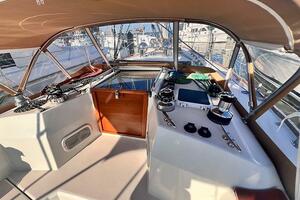

- Dodger with helmsman fly

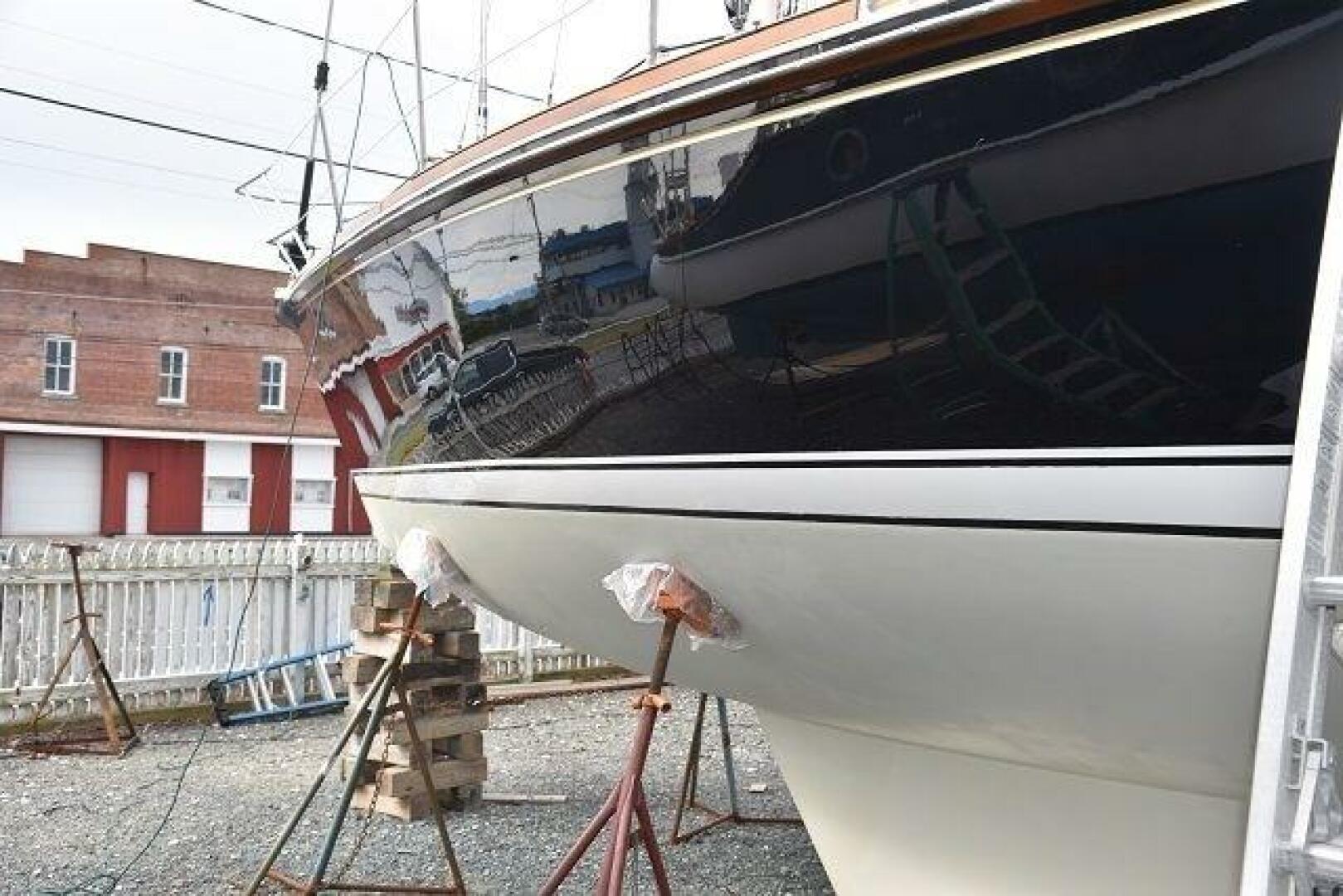

- Hull skirt new 2019

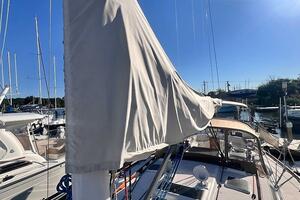

- Fairclough boom tent cover 2020
- Edson steering cables replaced 2018
- All dock lines, fenders, other items included

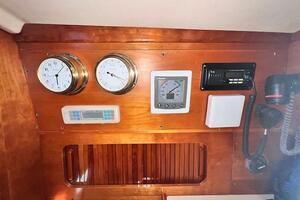

- Icom vhf

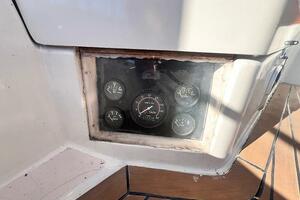

Engine and Mechanical

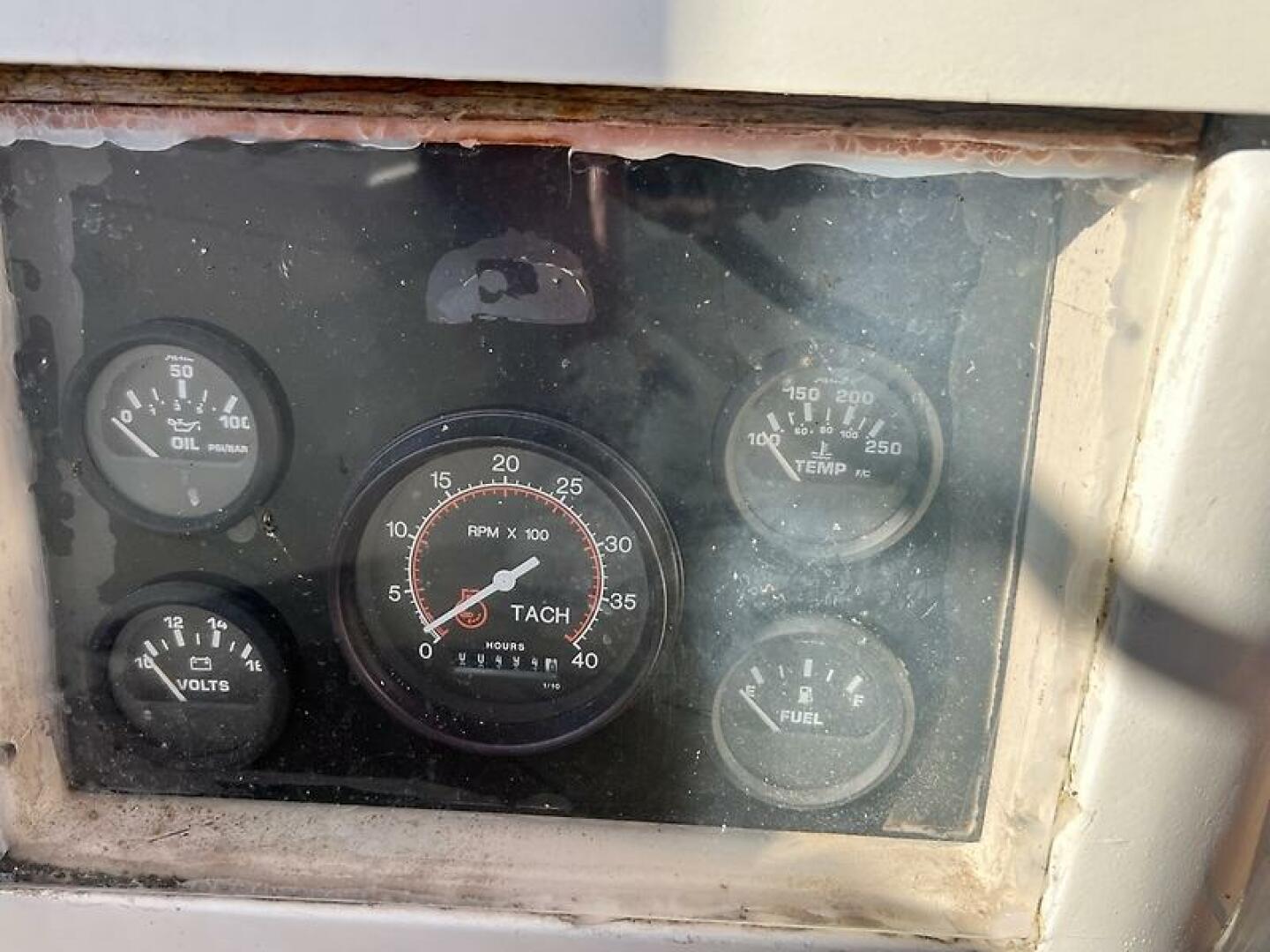

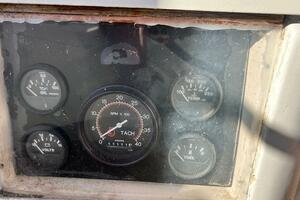

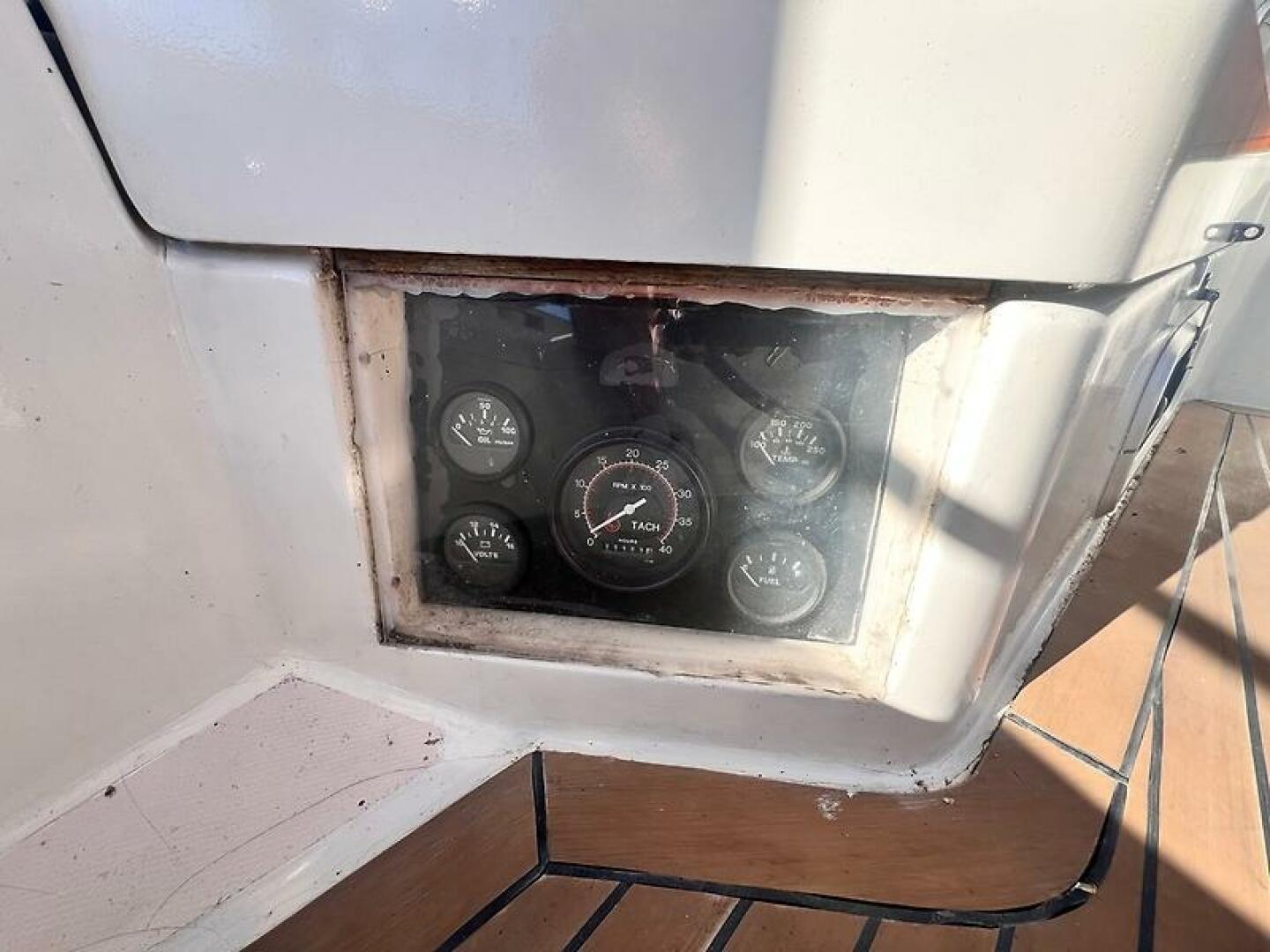

483.0 hours according to meter (1150 reported on
previous tachometer) 1,633 total hours approximately
Accommodations

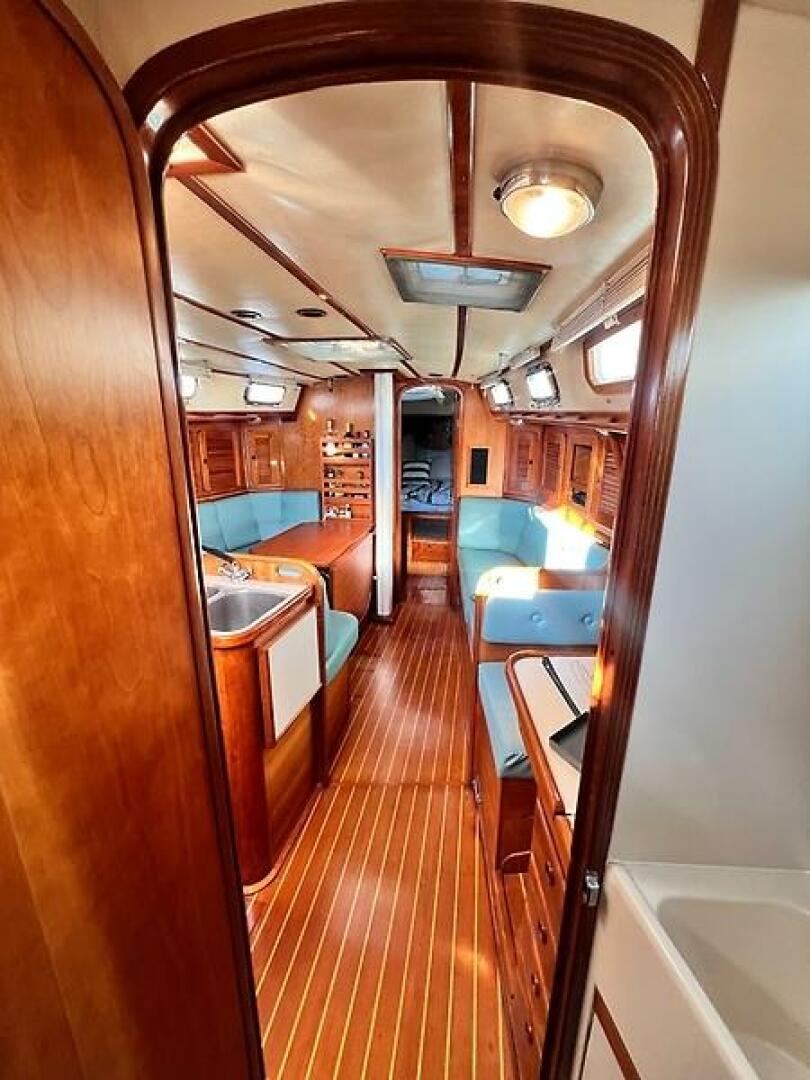

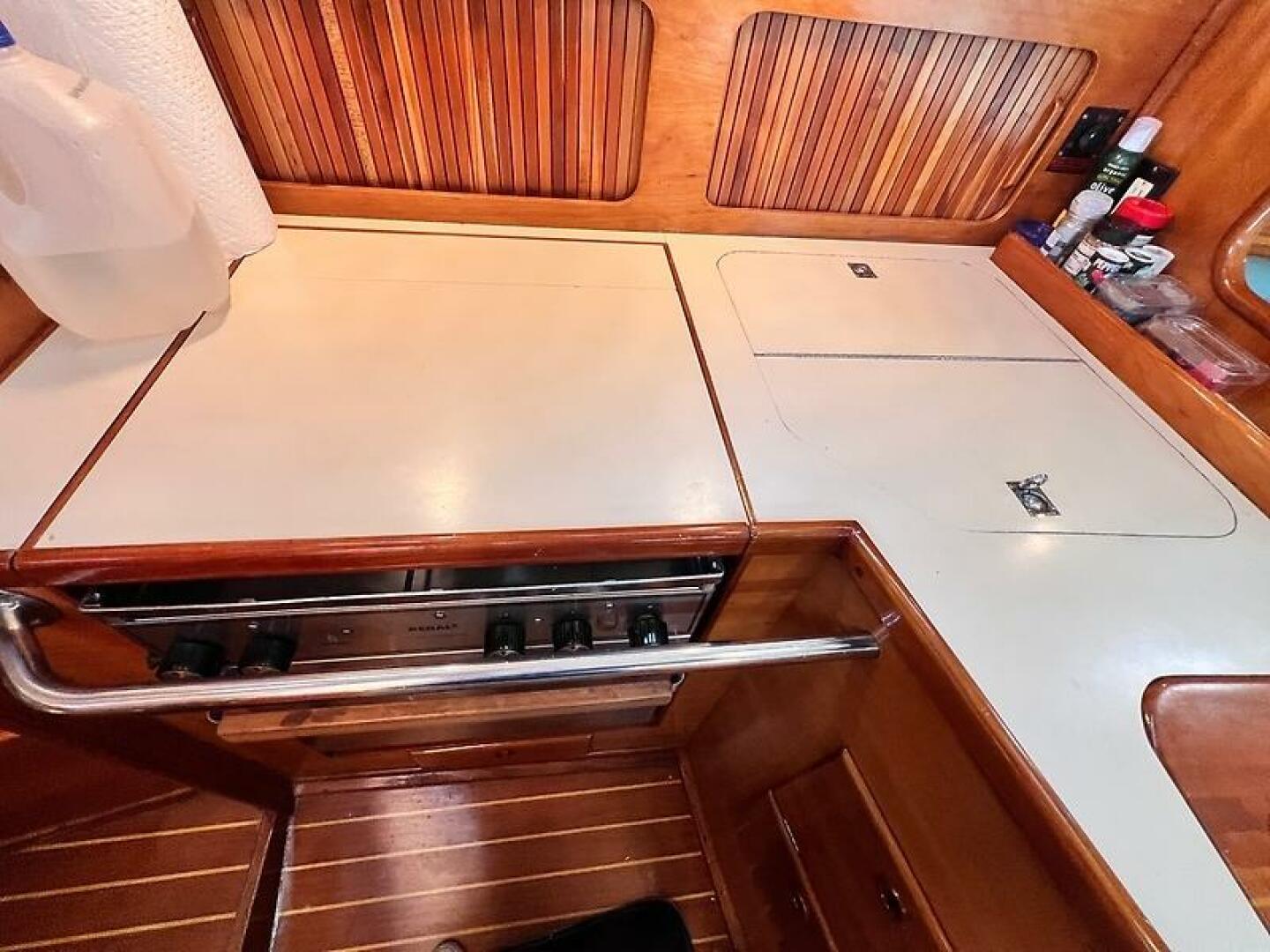

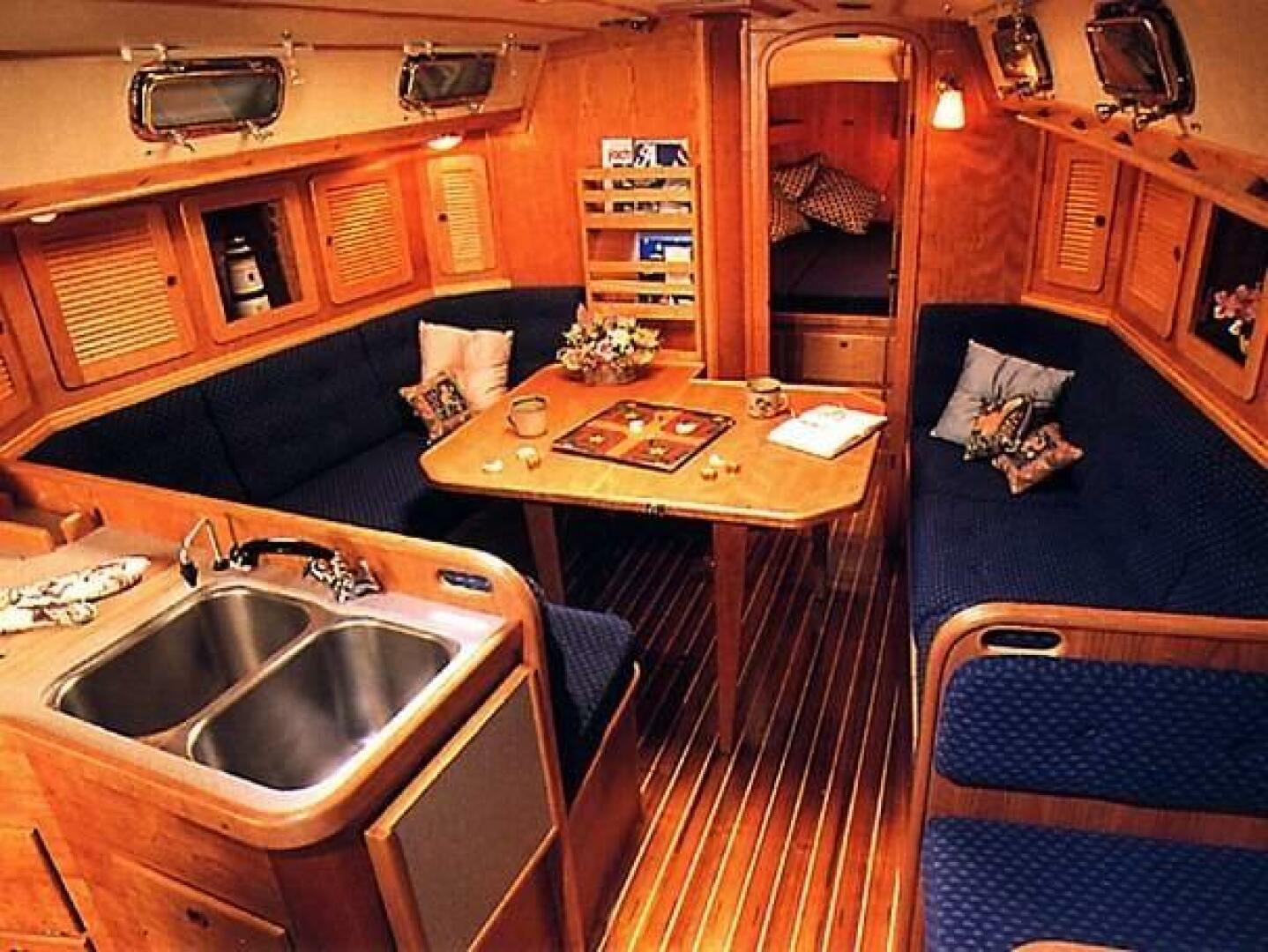

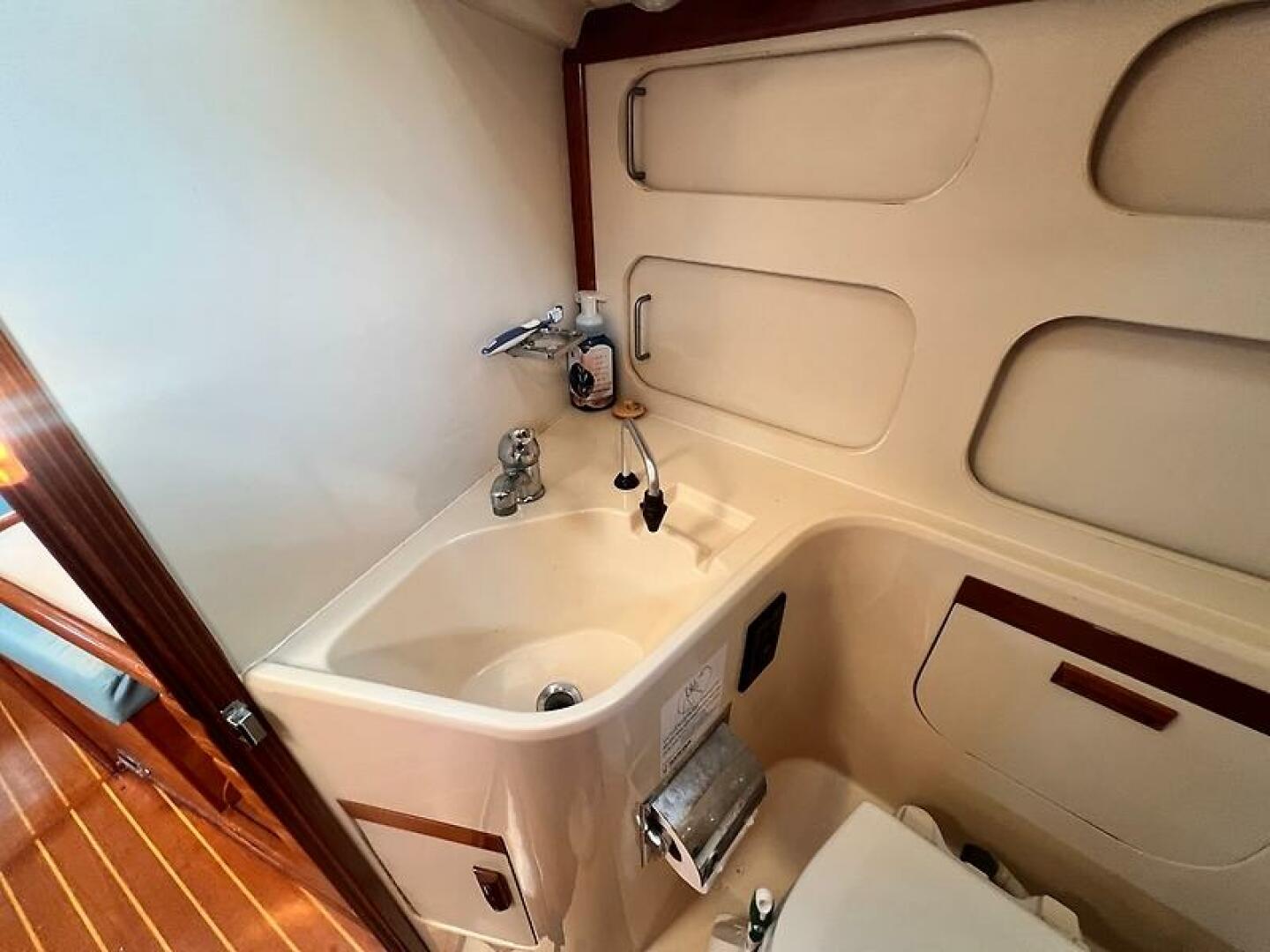

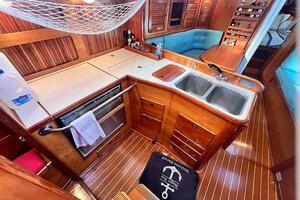

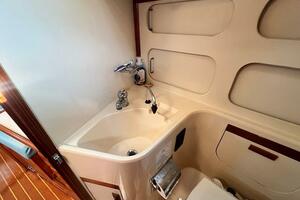

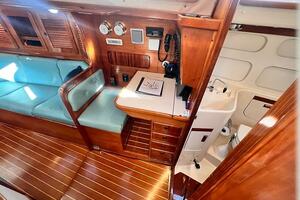

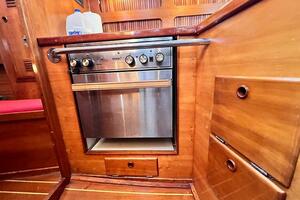

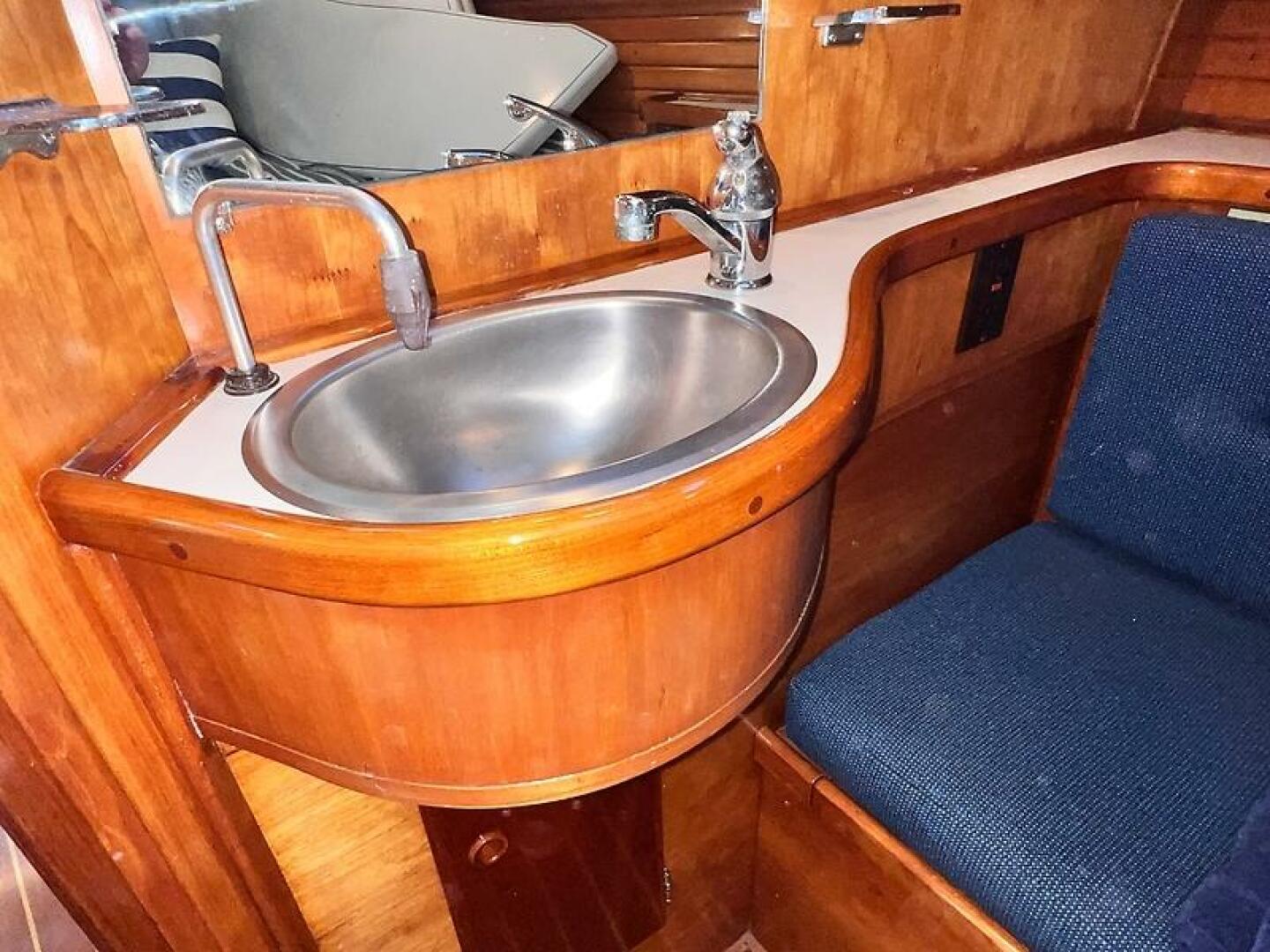

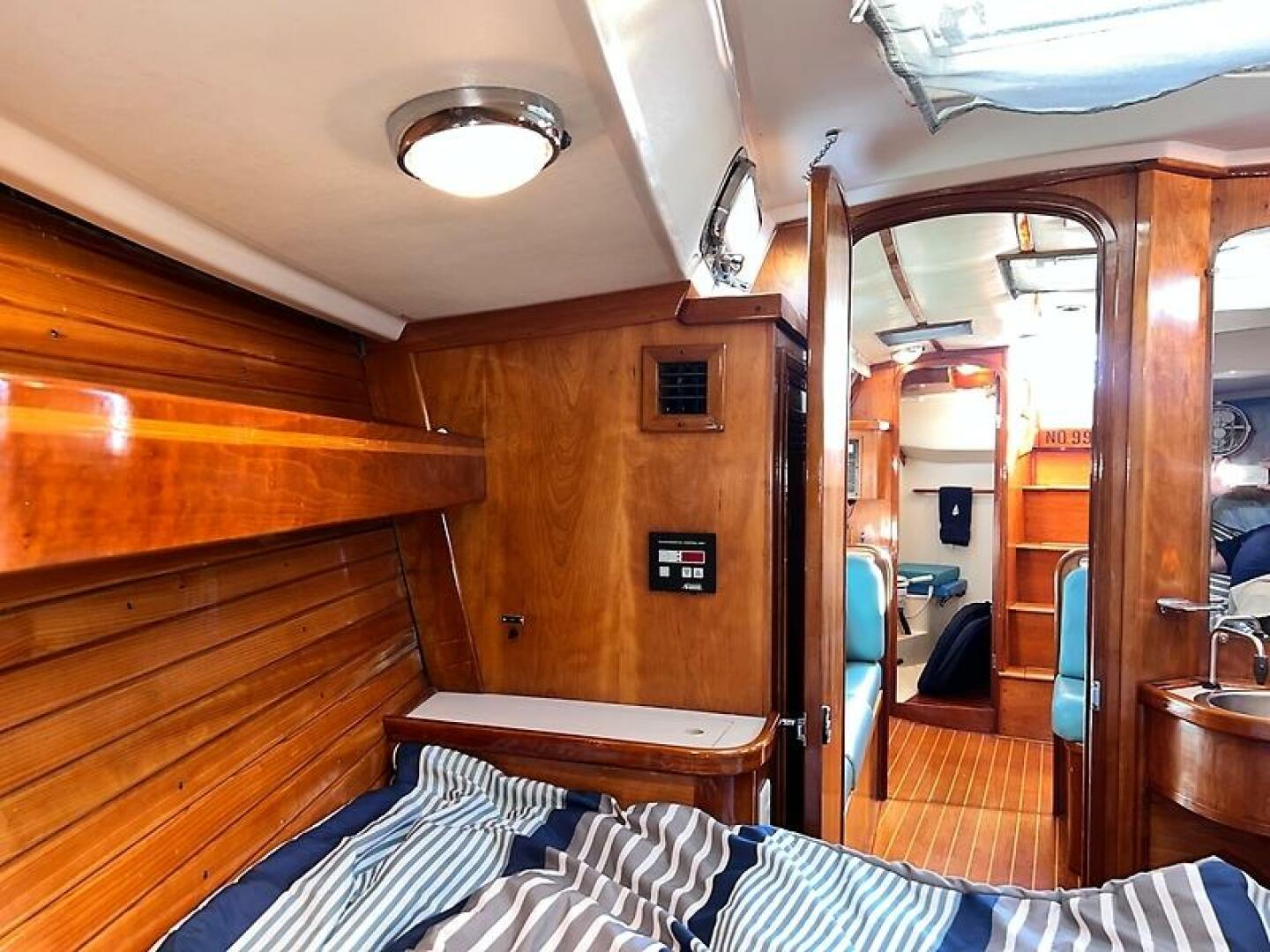

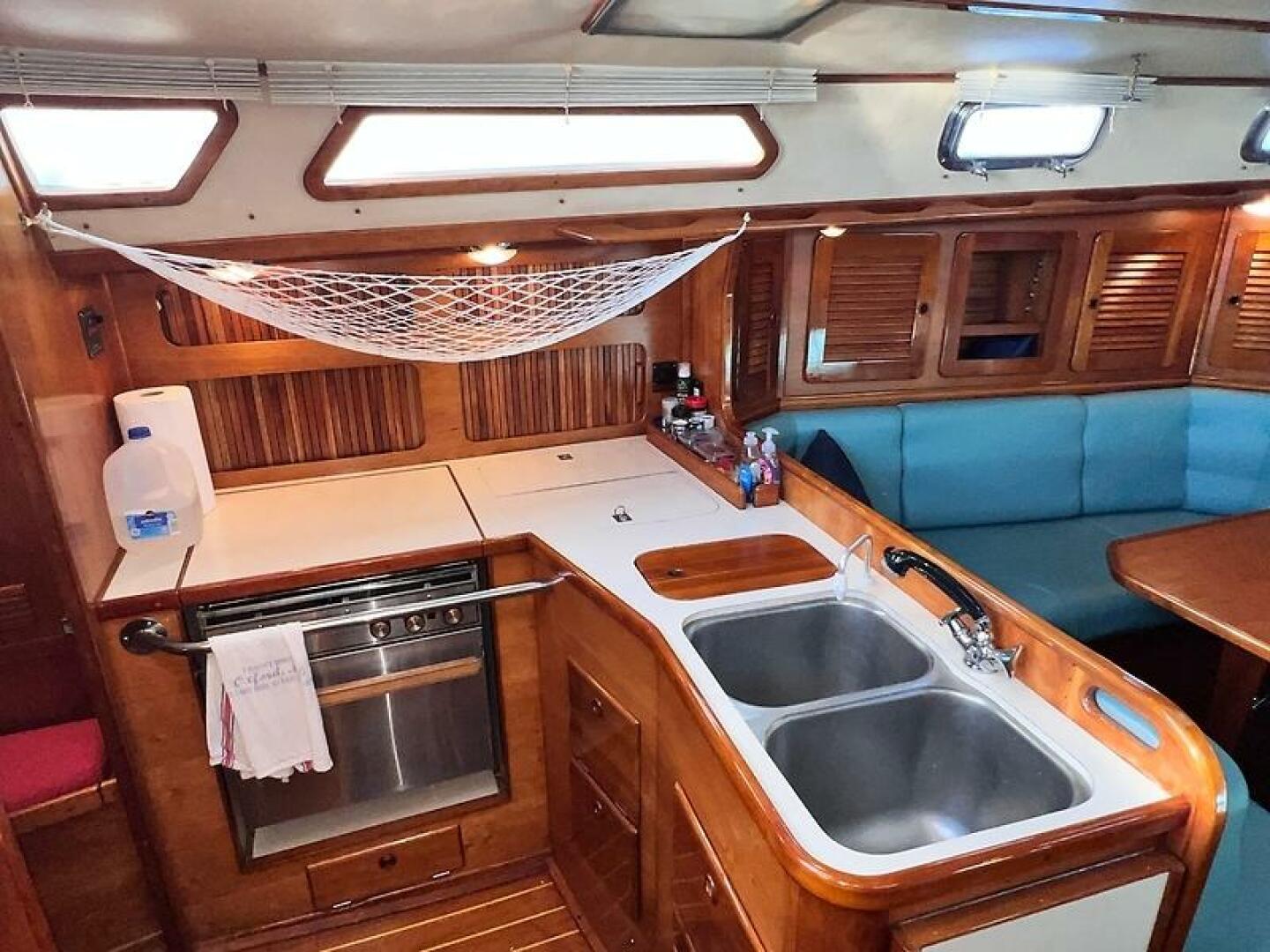

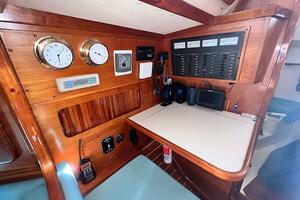

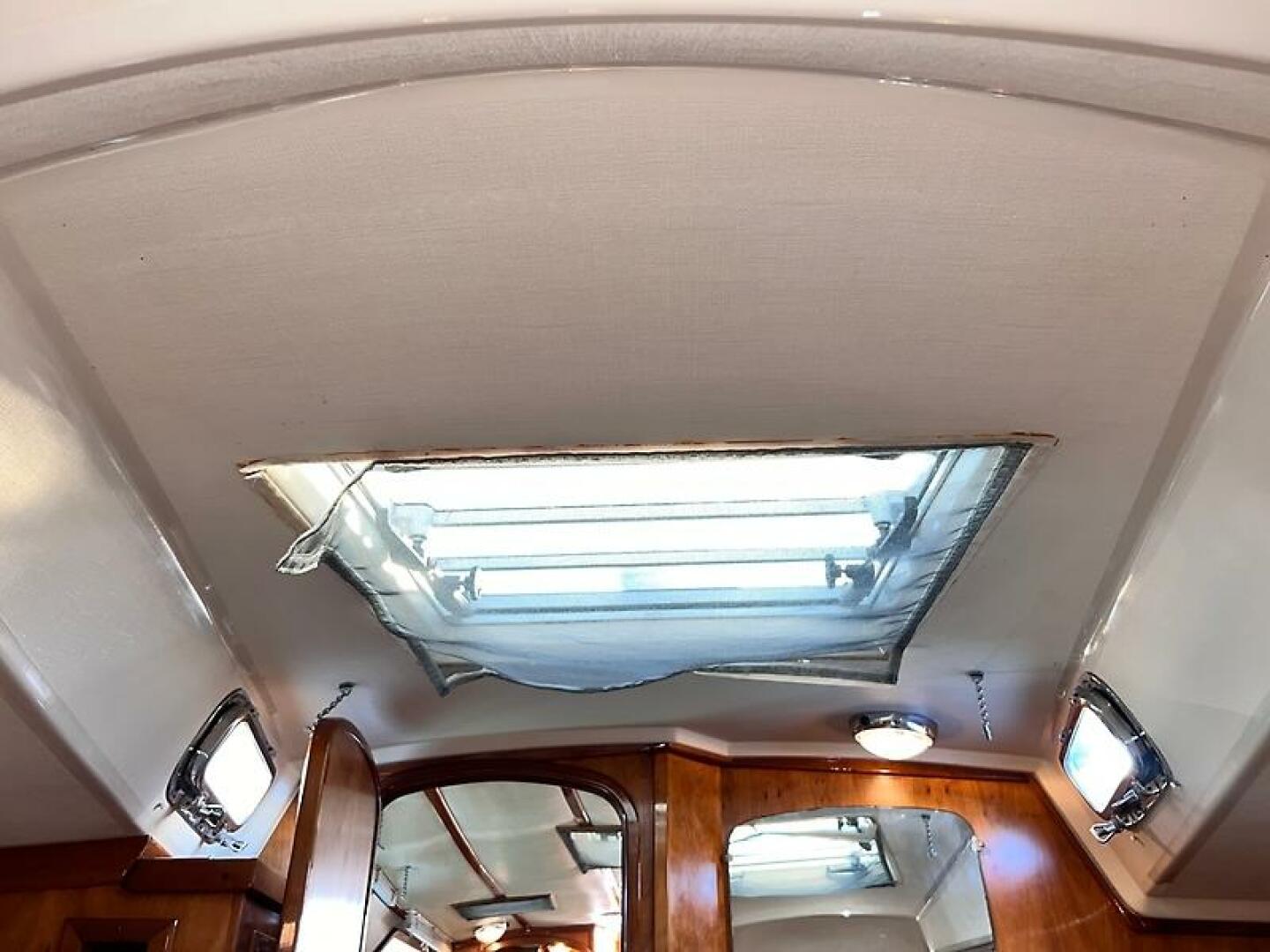

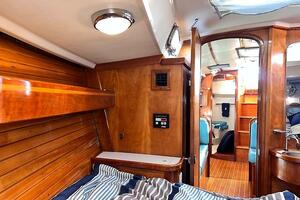

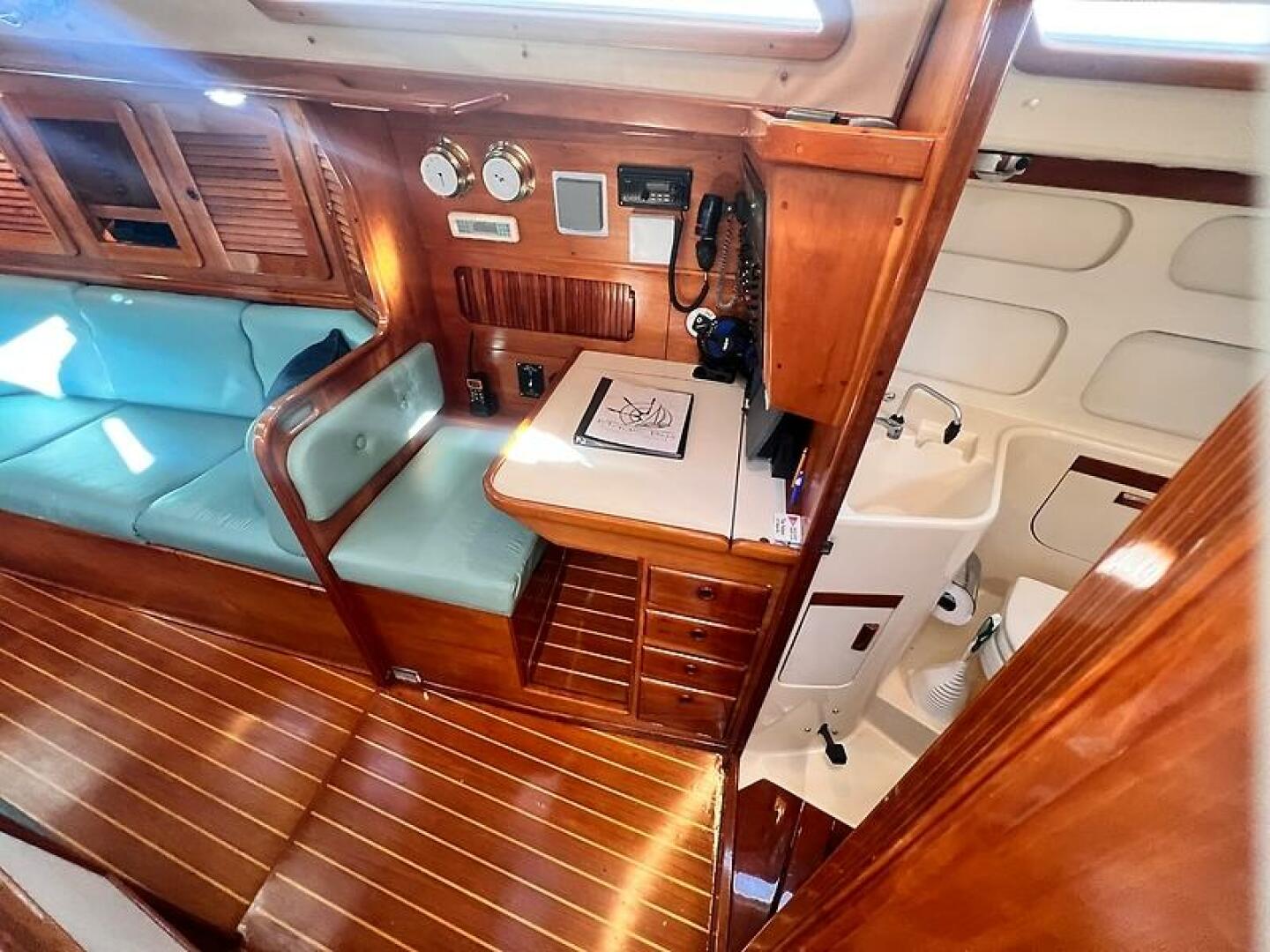

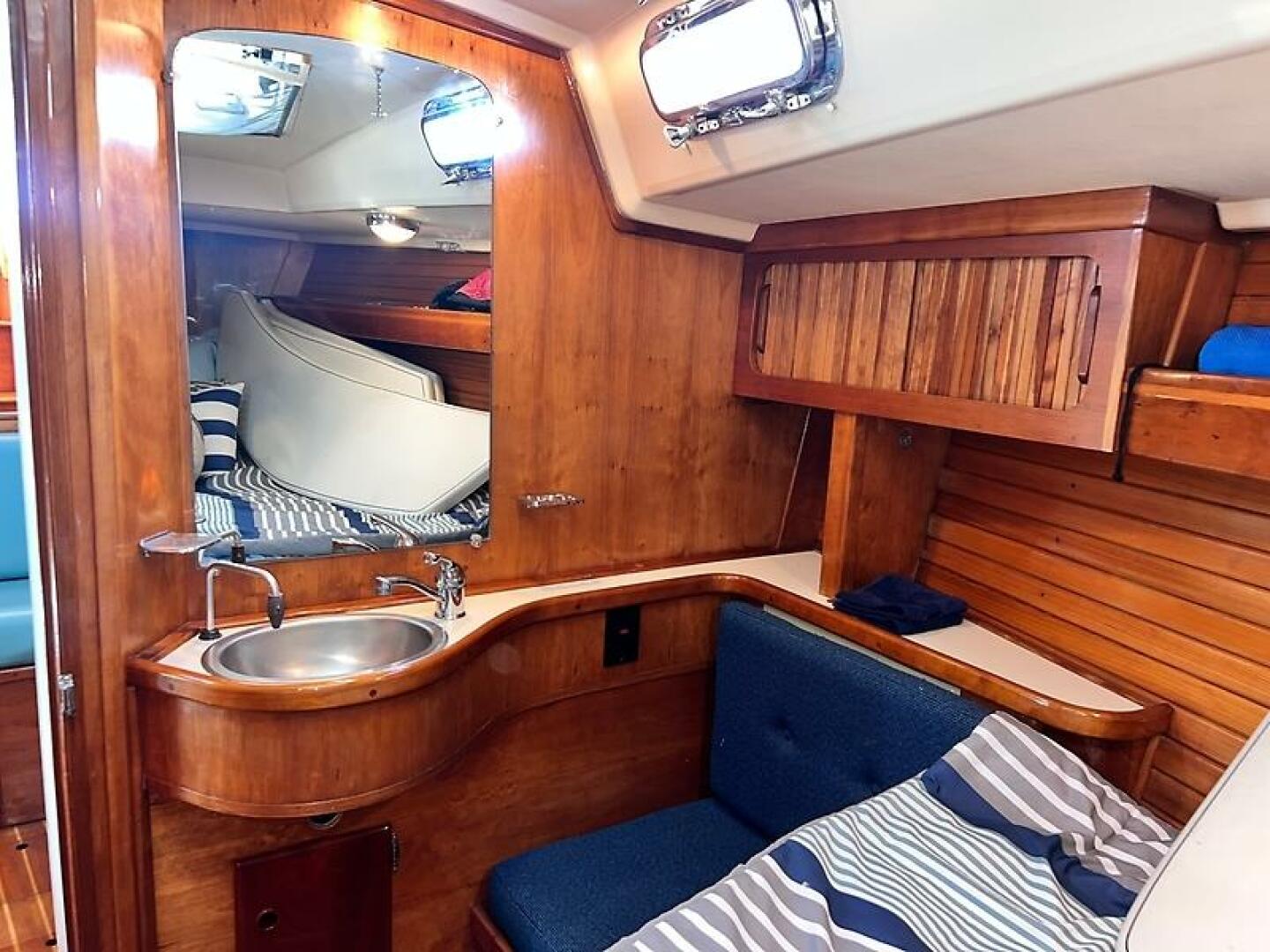

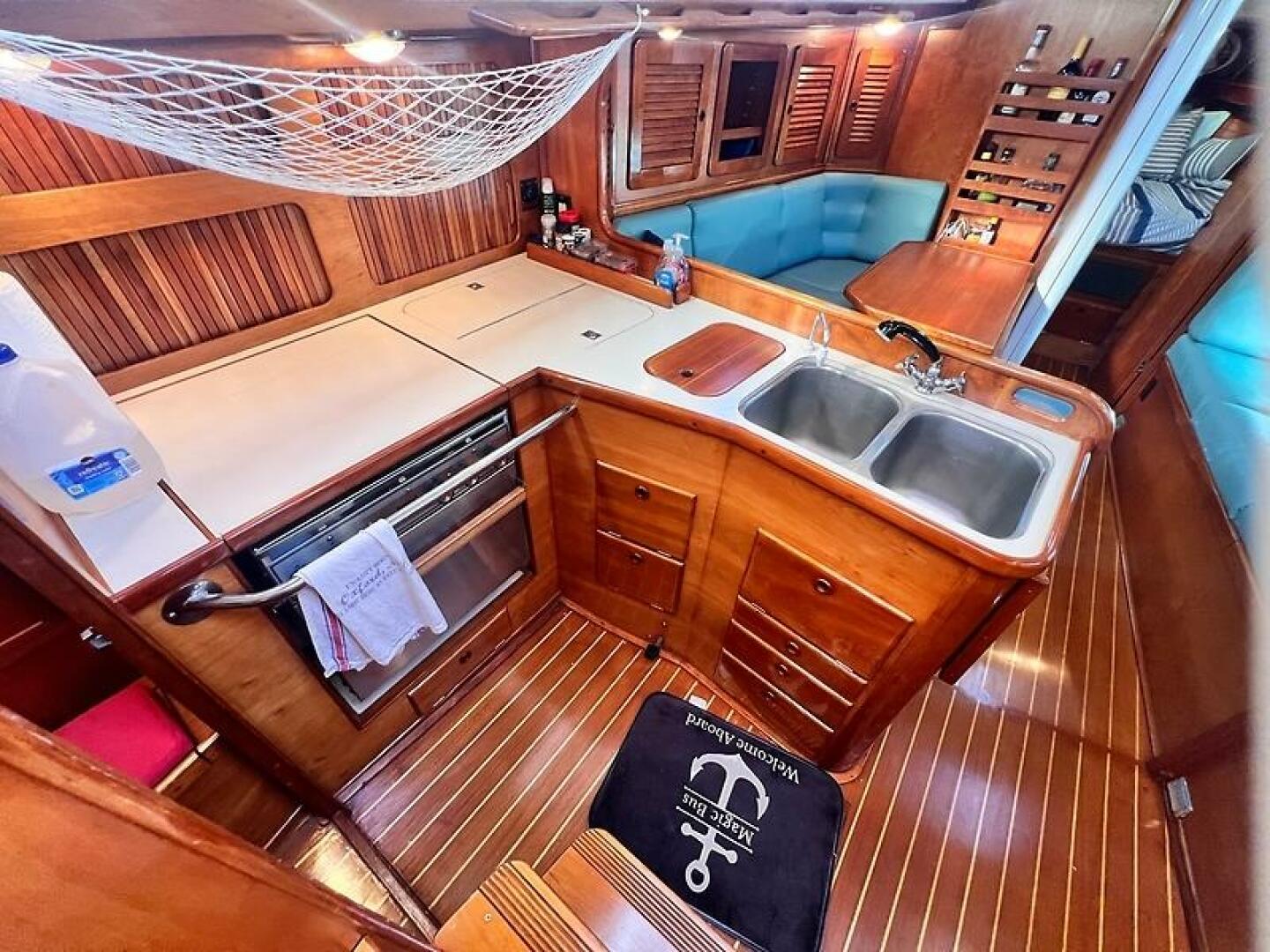

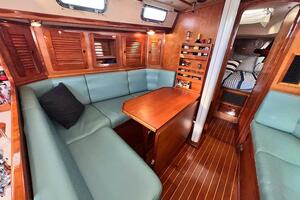

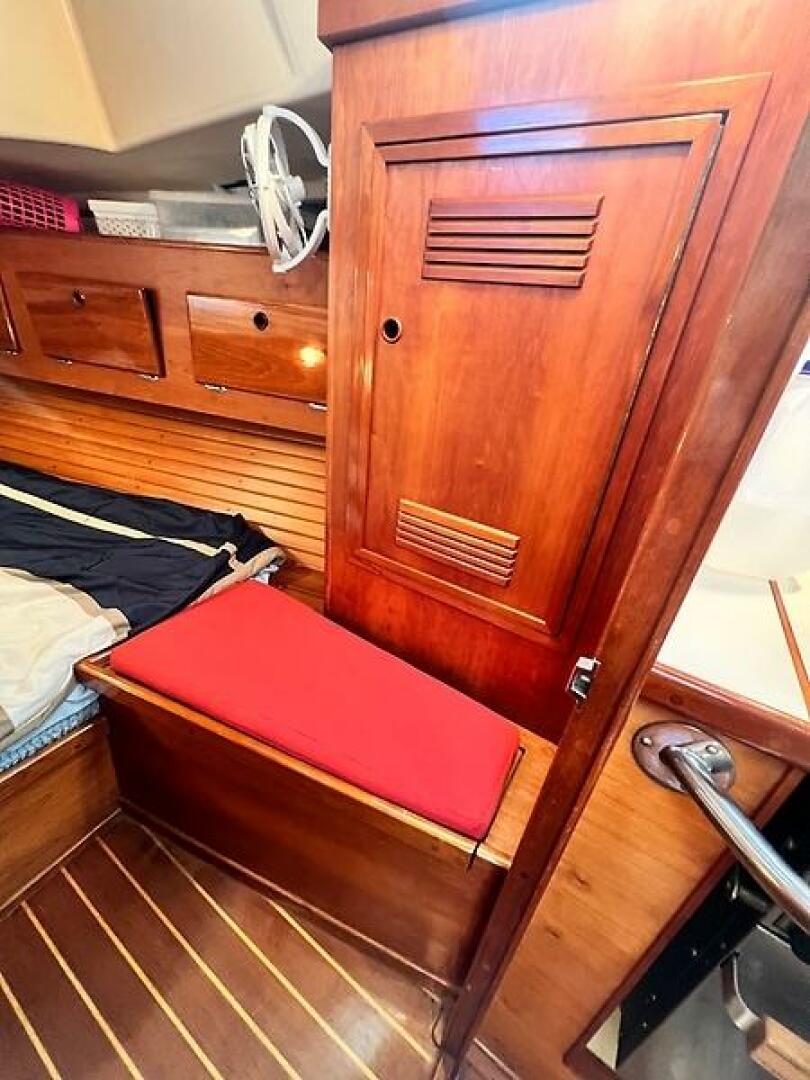

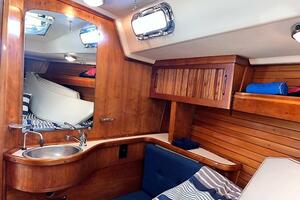

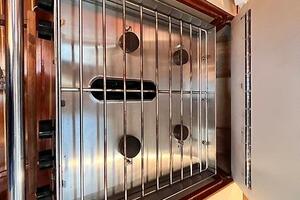

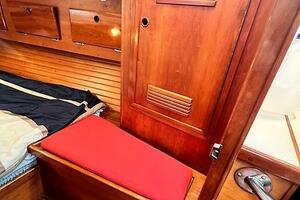

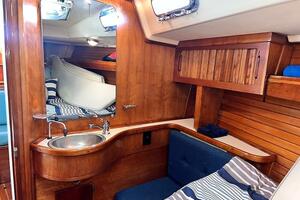

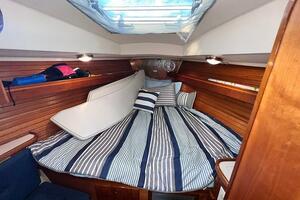

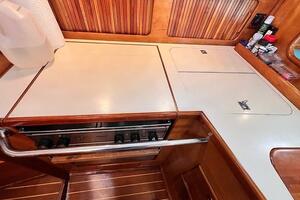

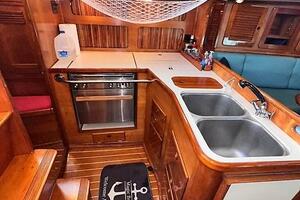

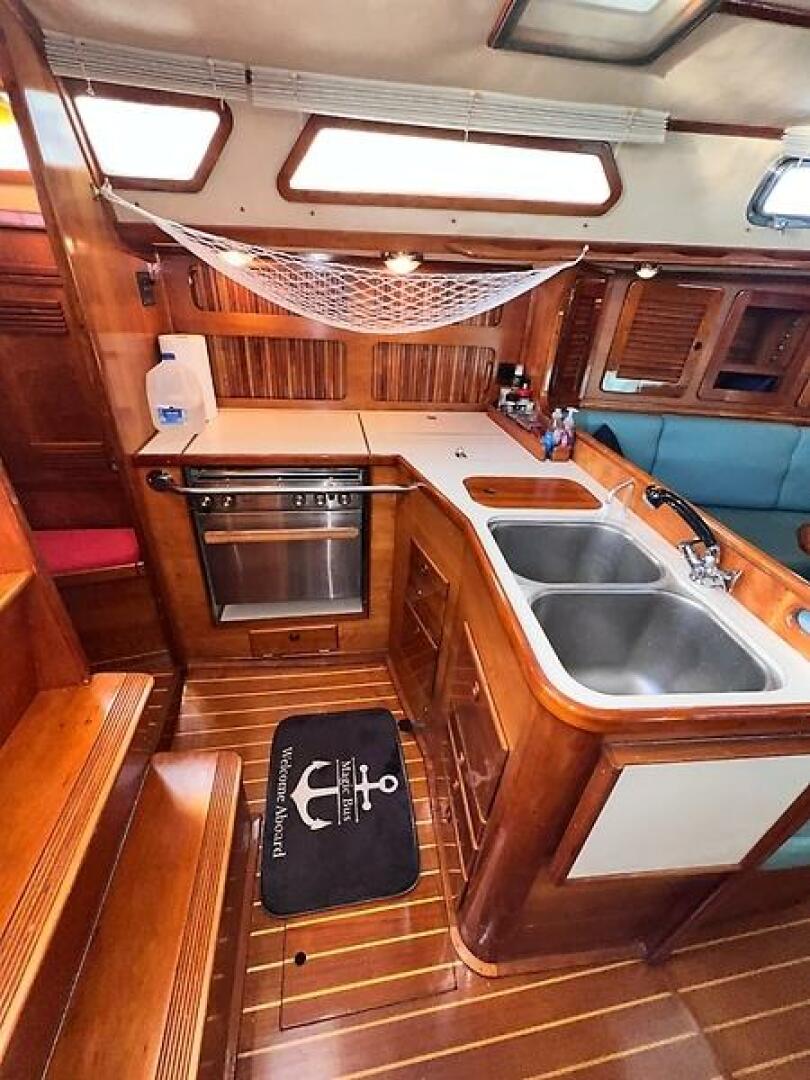

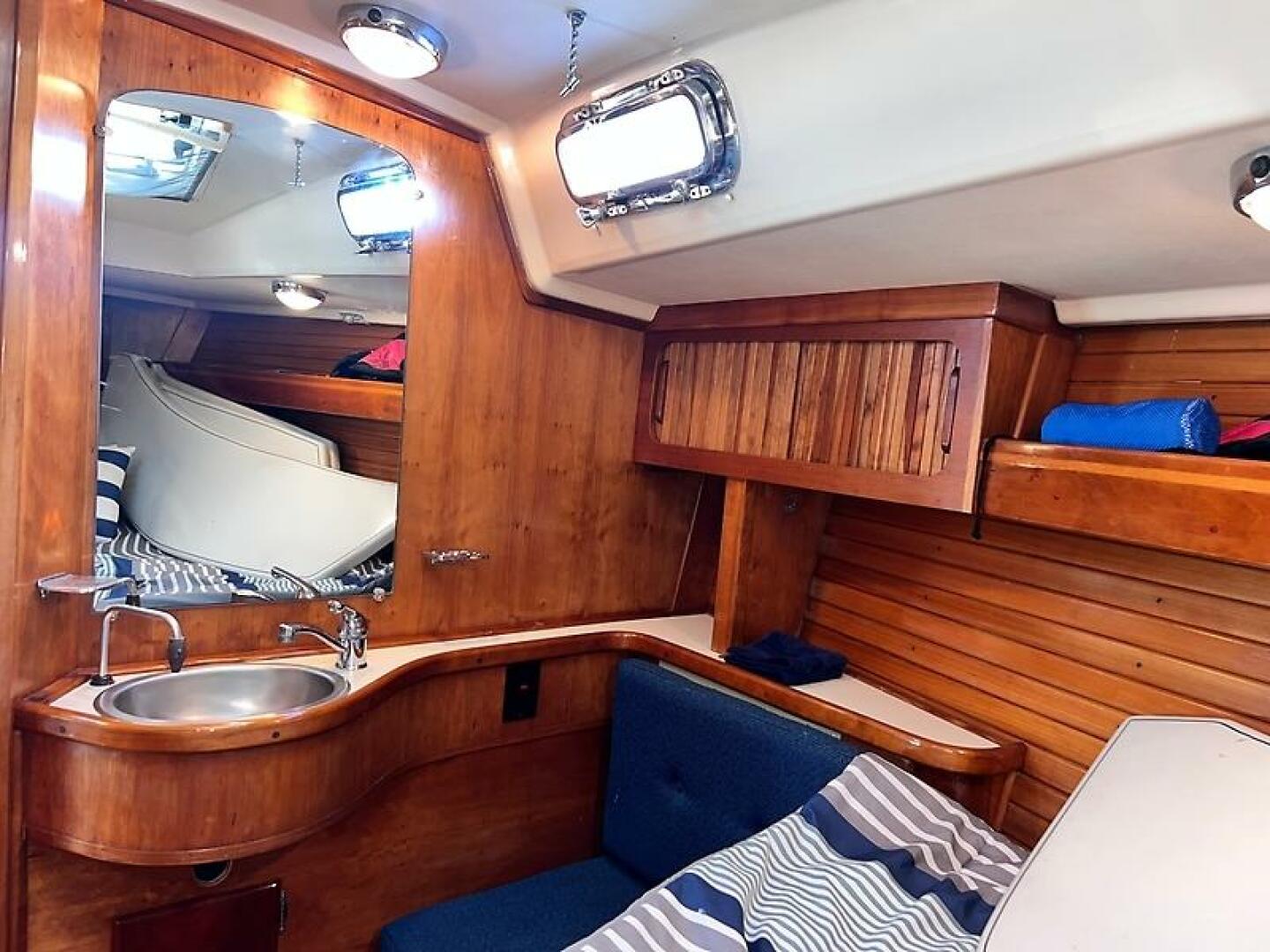

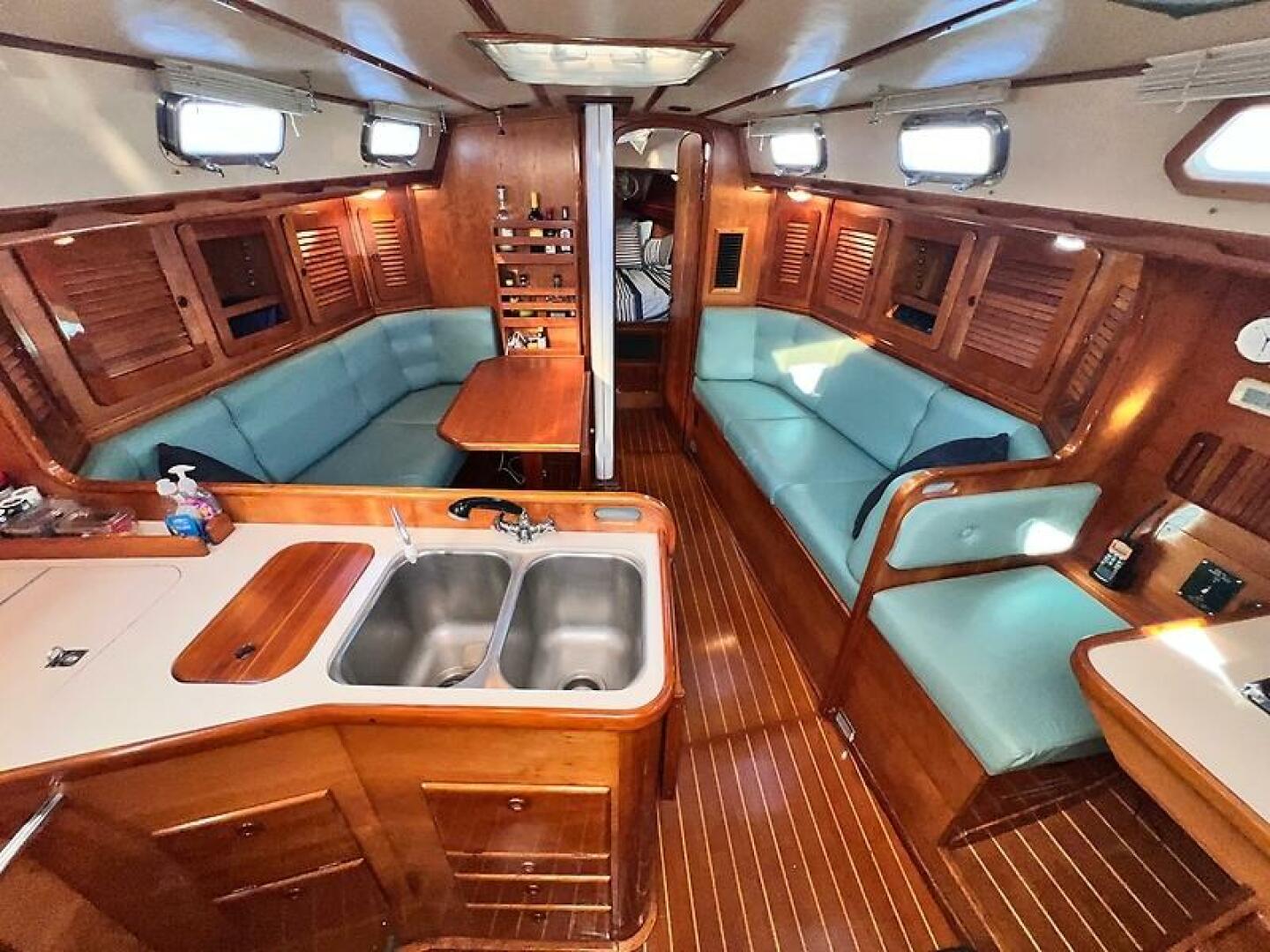

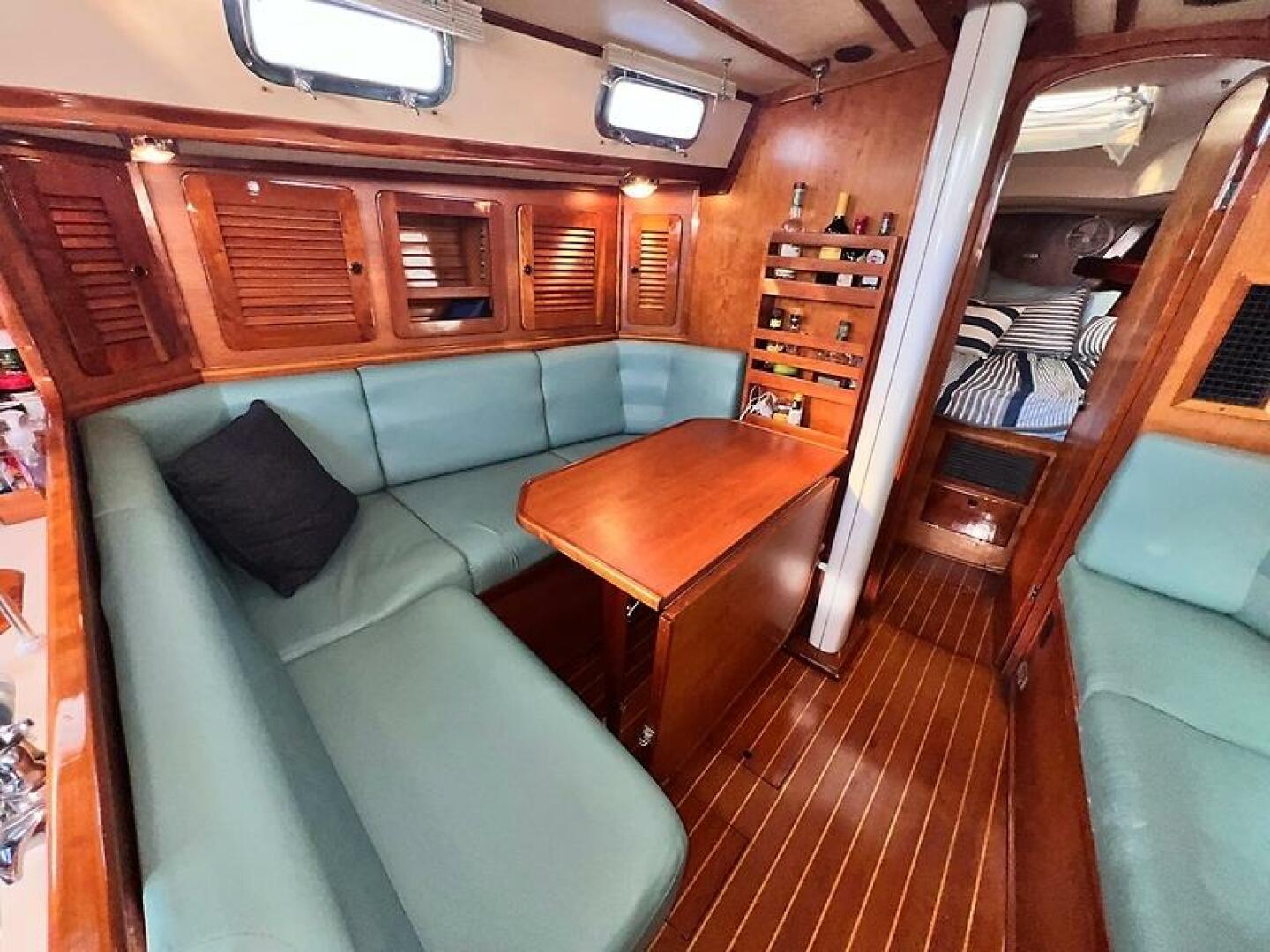

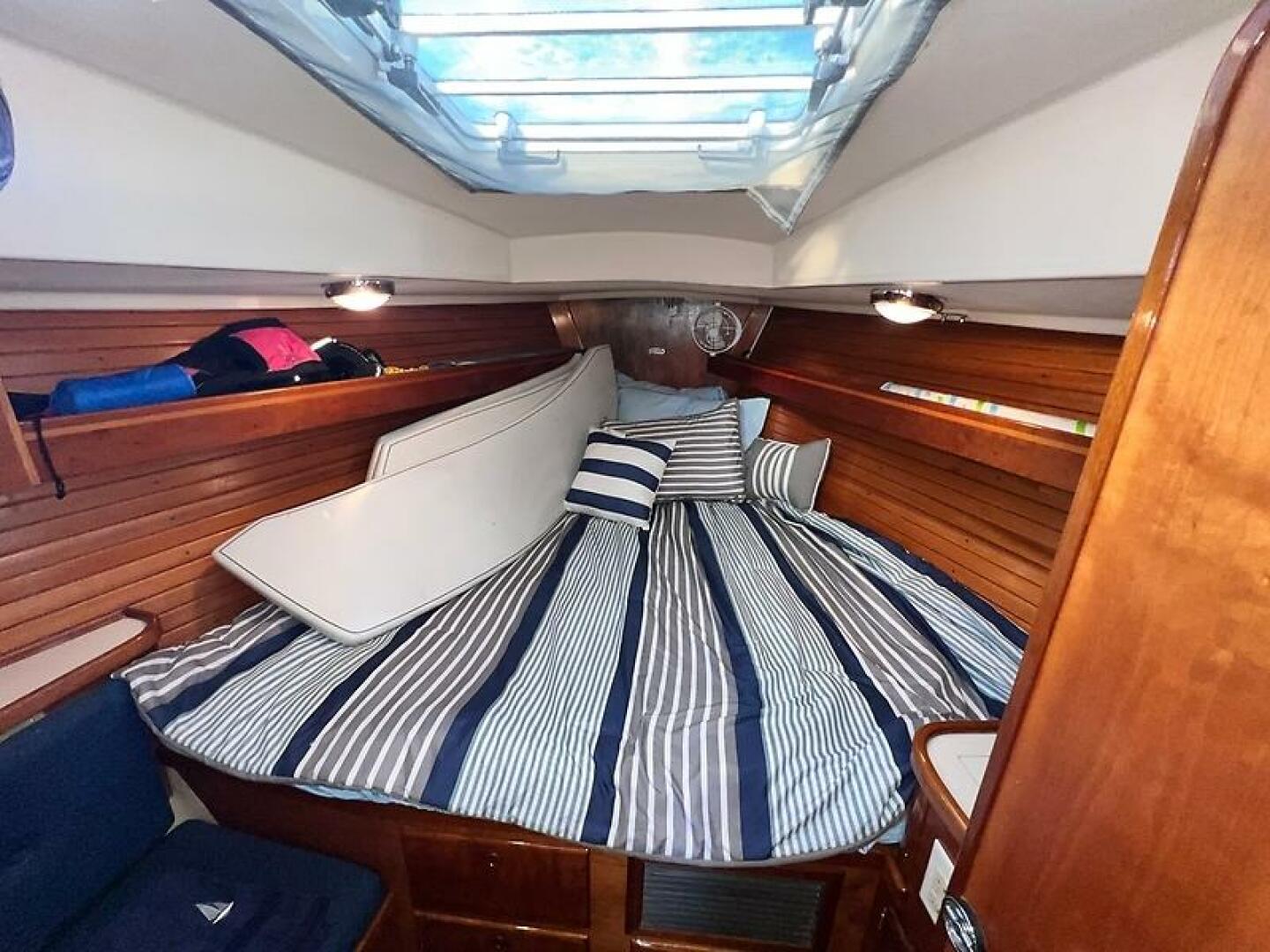

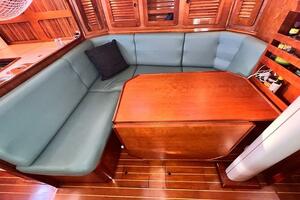

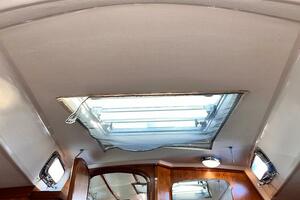

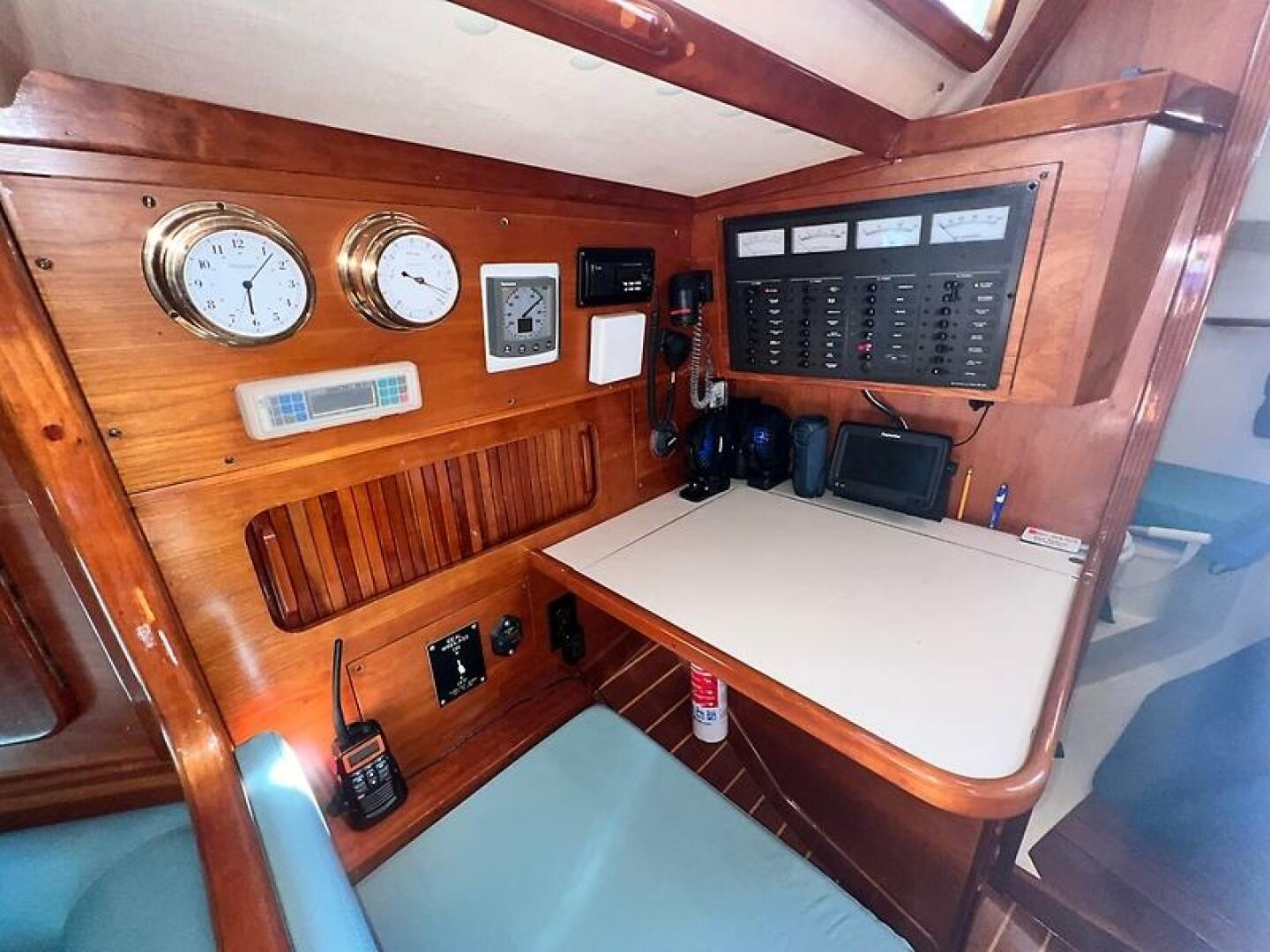

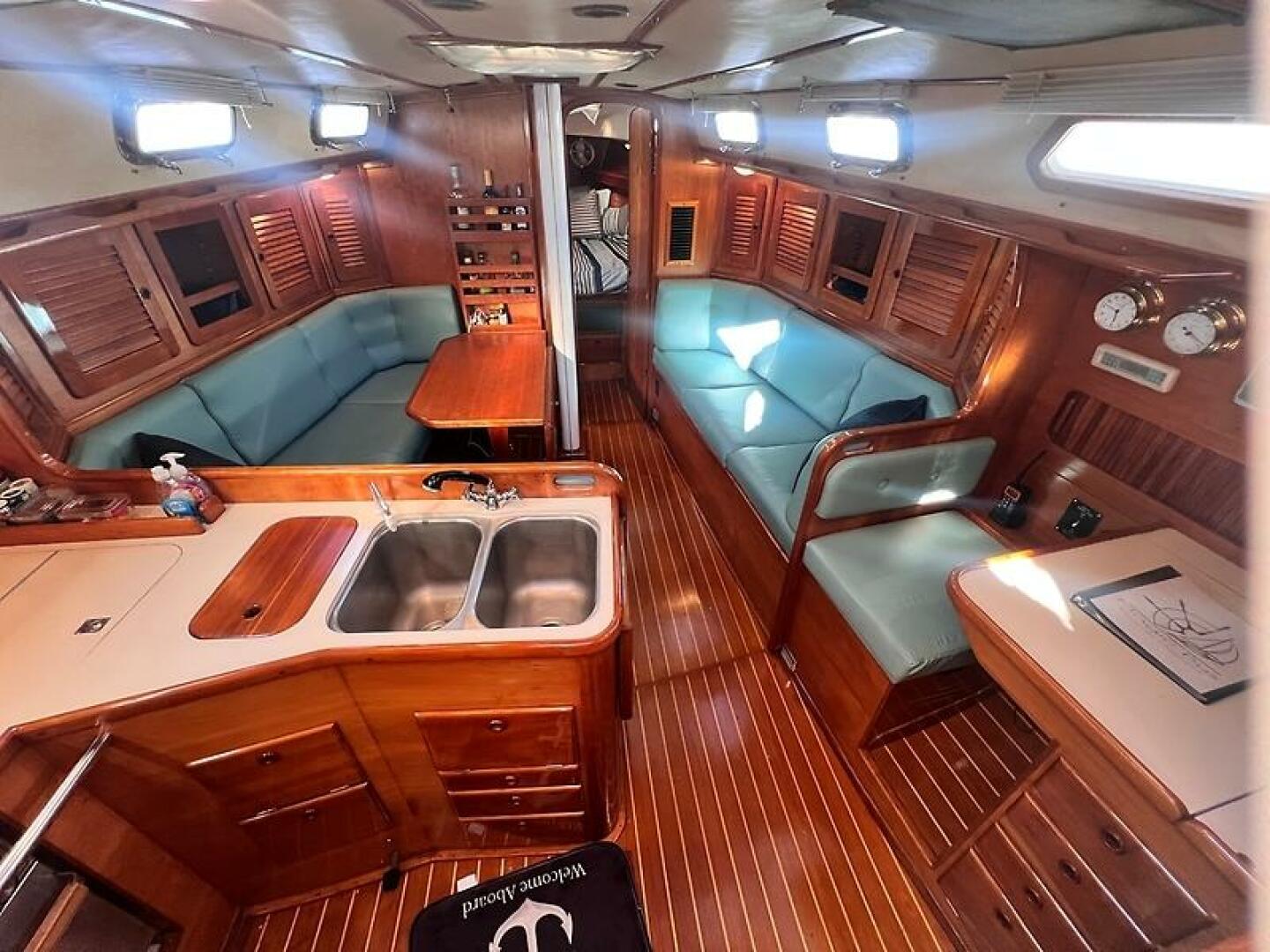

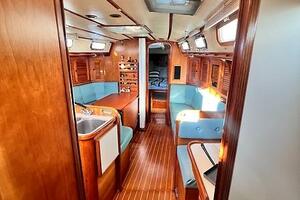

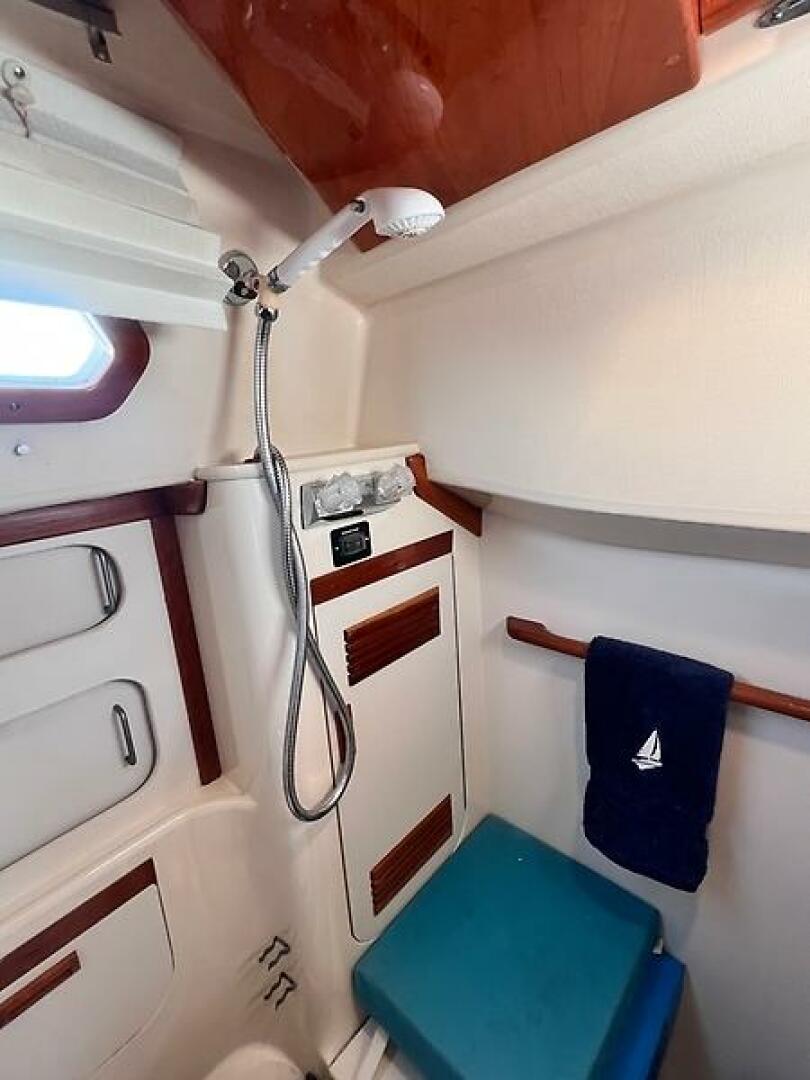

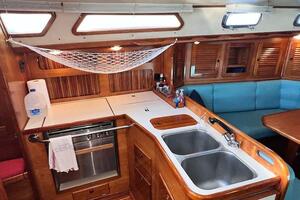

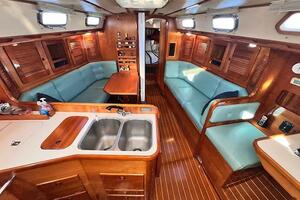

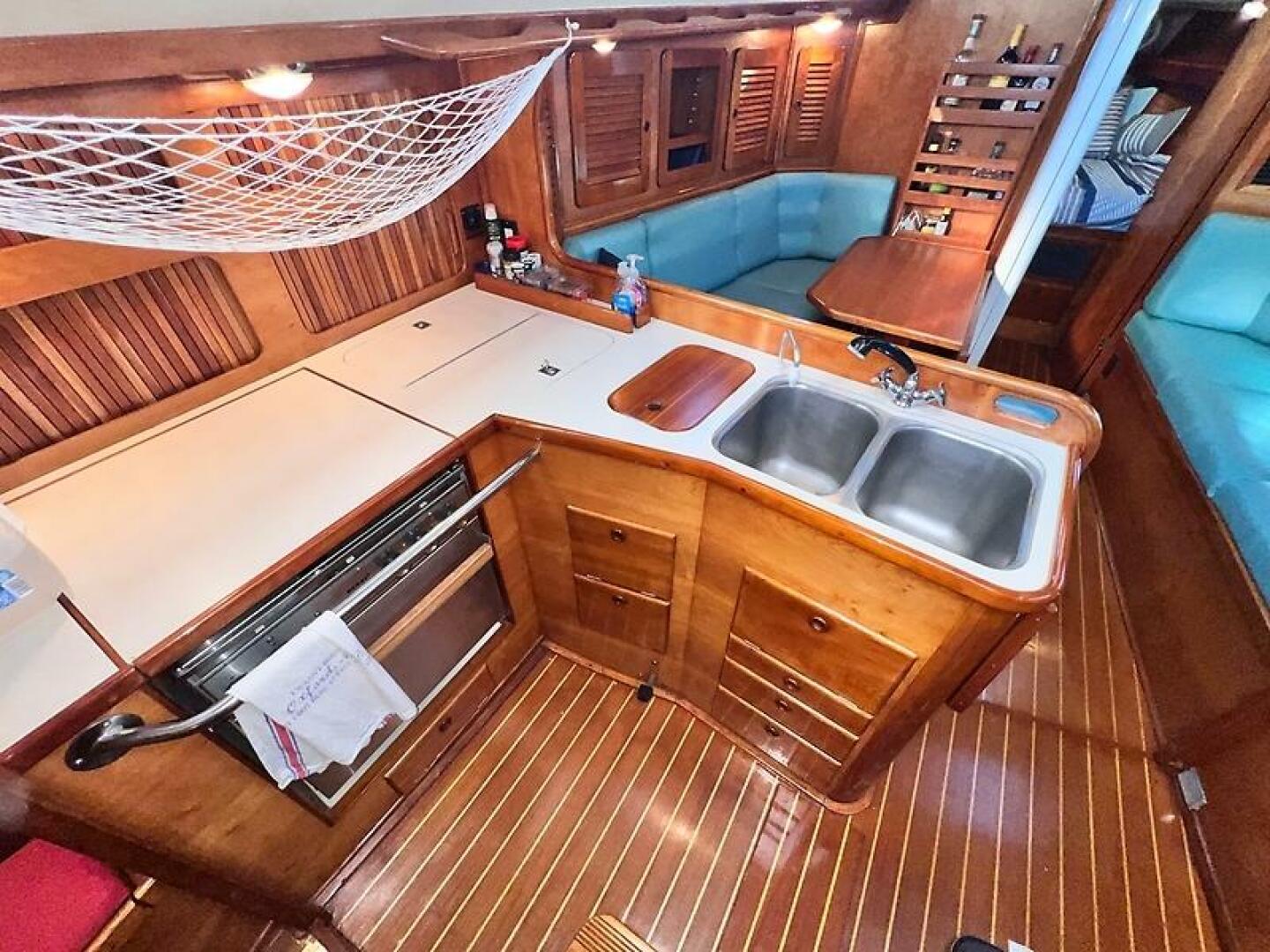

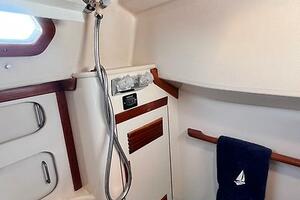

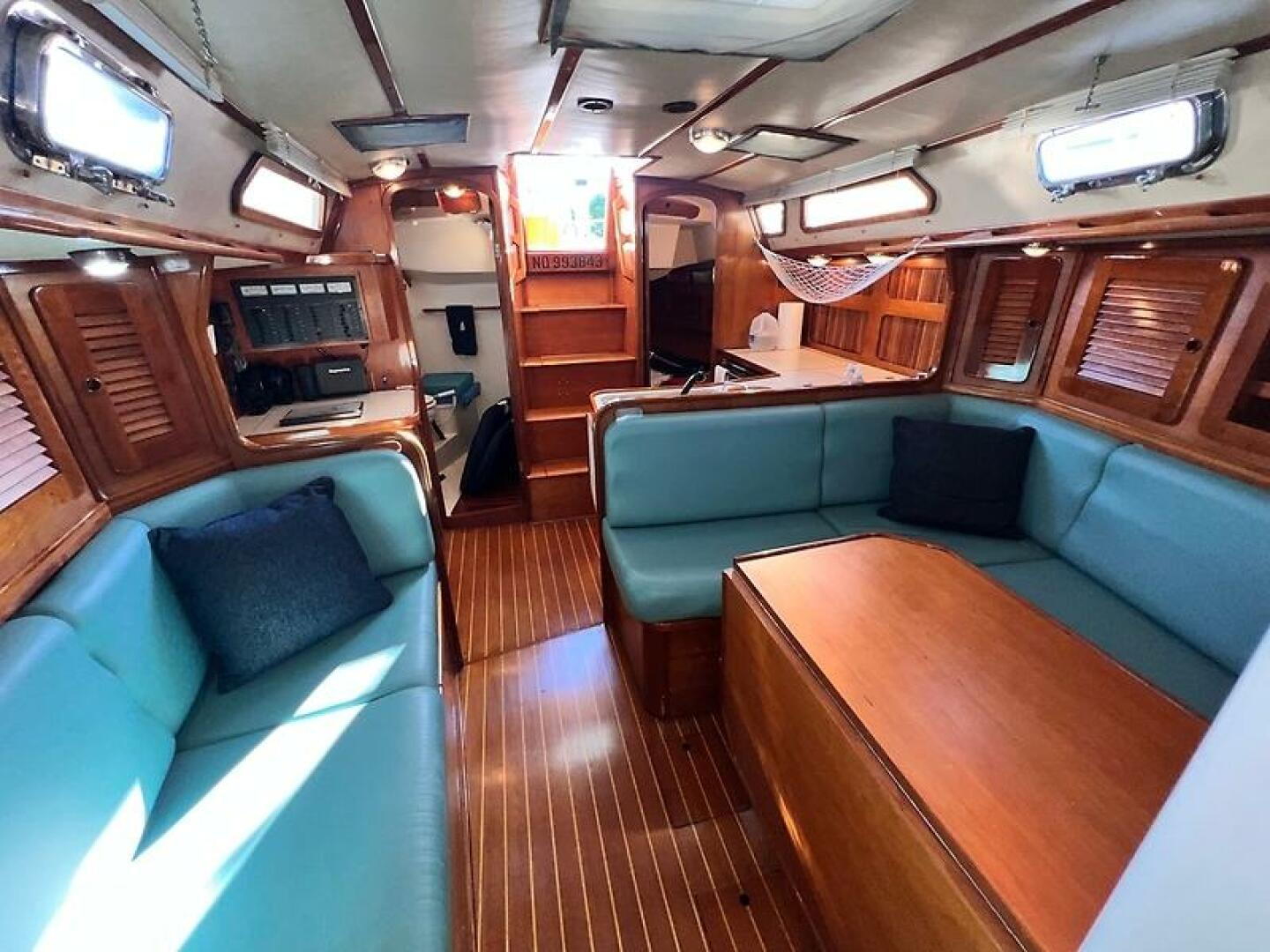

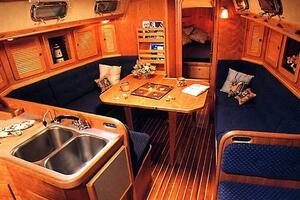

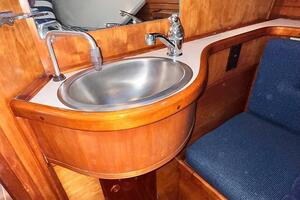

The forward private vee-berth includes a large double sleeping berth, sink, hanging locker and a large overhead hatch for ventilation and lighting. Leaving the vee-berth facing aft the spacious salon includes a straight settee to starboard and an L-shaped settee to port. The dinette table folds up to the bulkhead leaving plenty of space for entertaining when not needed. Continuing aft the navigation center is to starboard and the fully equipped galley is to port. Aft of the galley is another private double cabin and to starboard is the head complete with lavatory, marine head and large shower. The Sabre 38 MKII features plenty of storage, ventilation and lighting.
