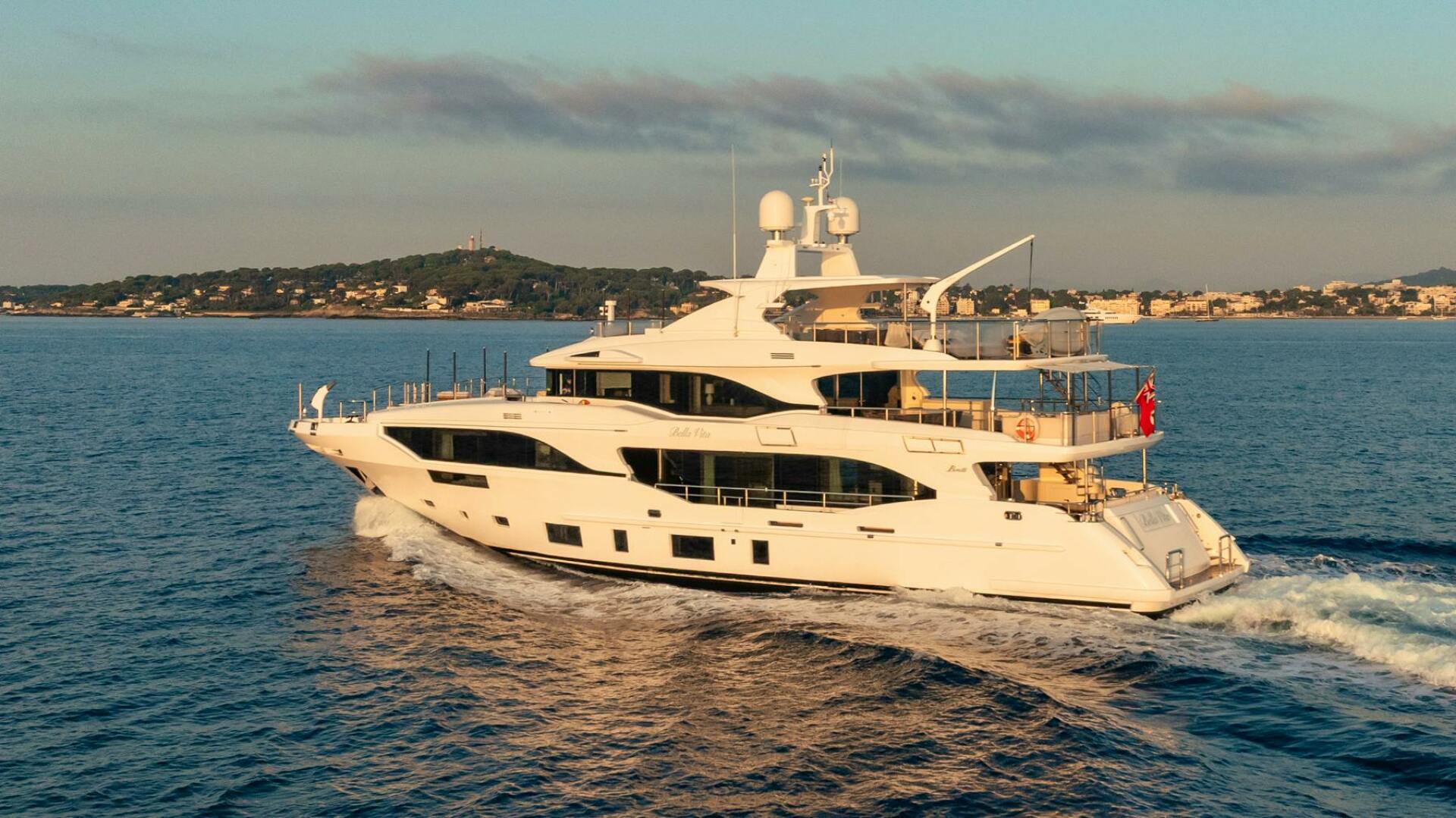

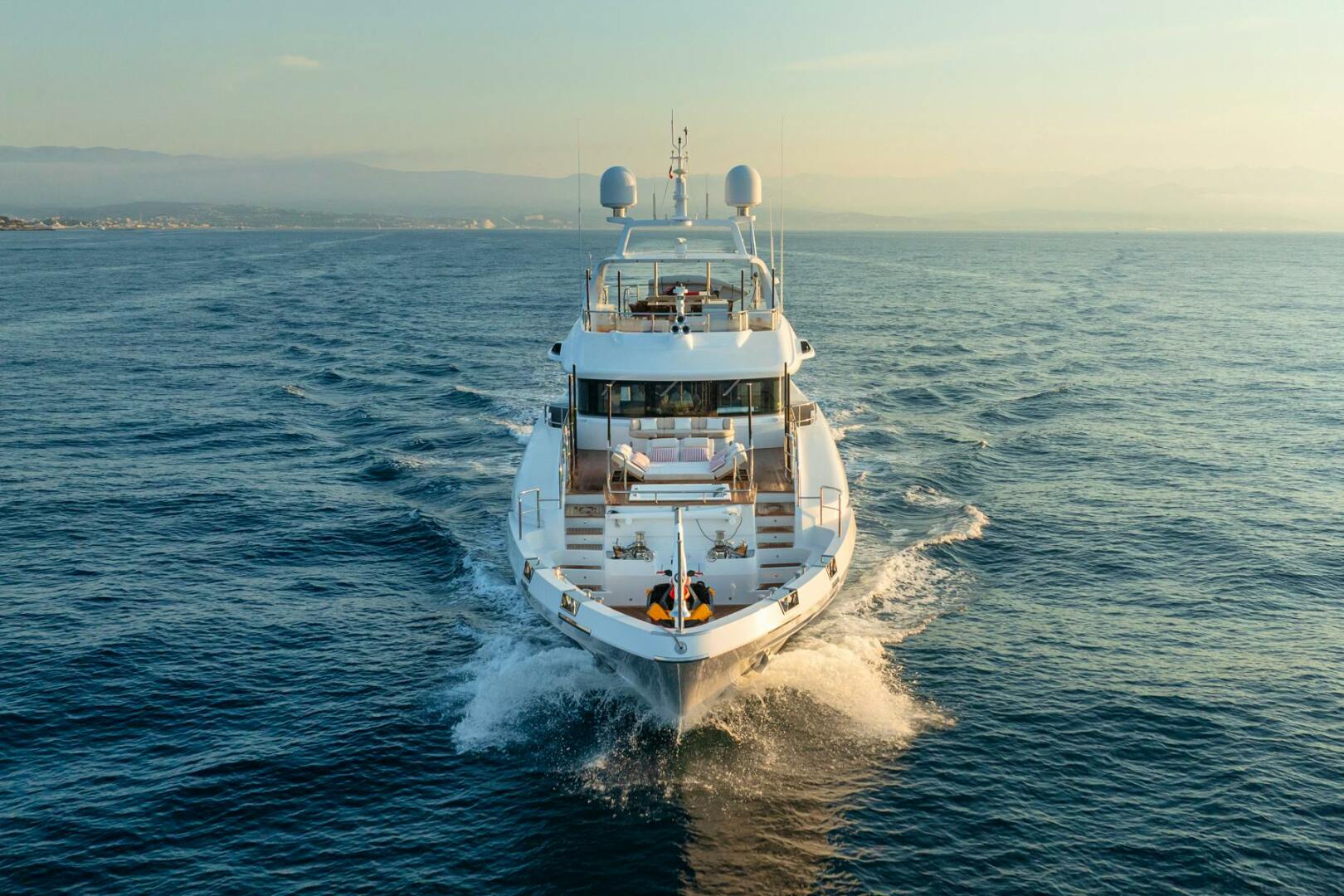

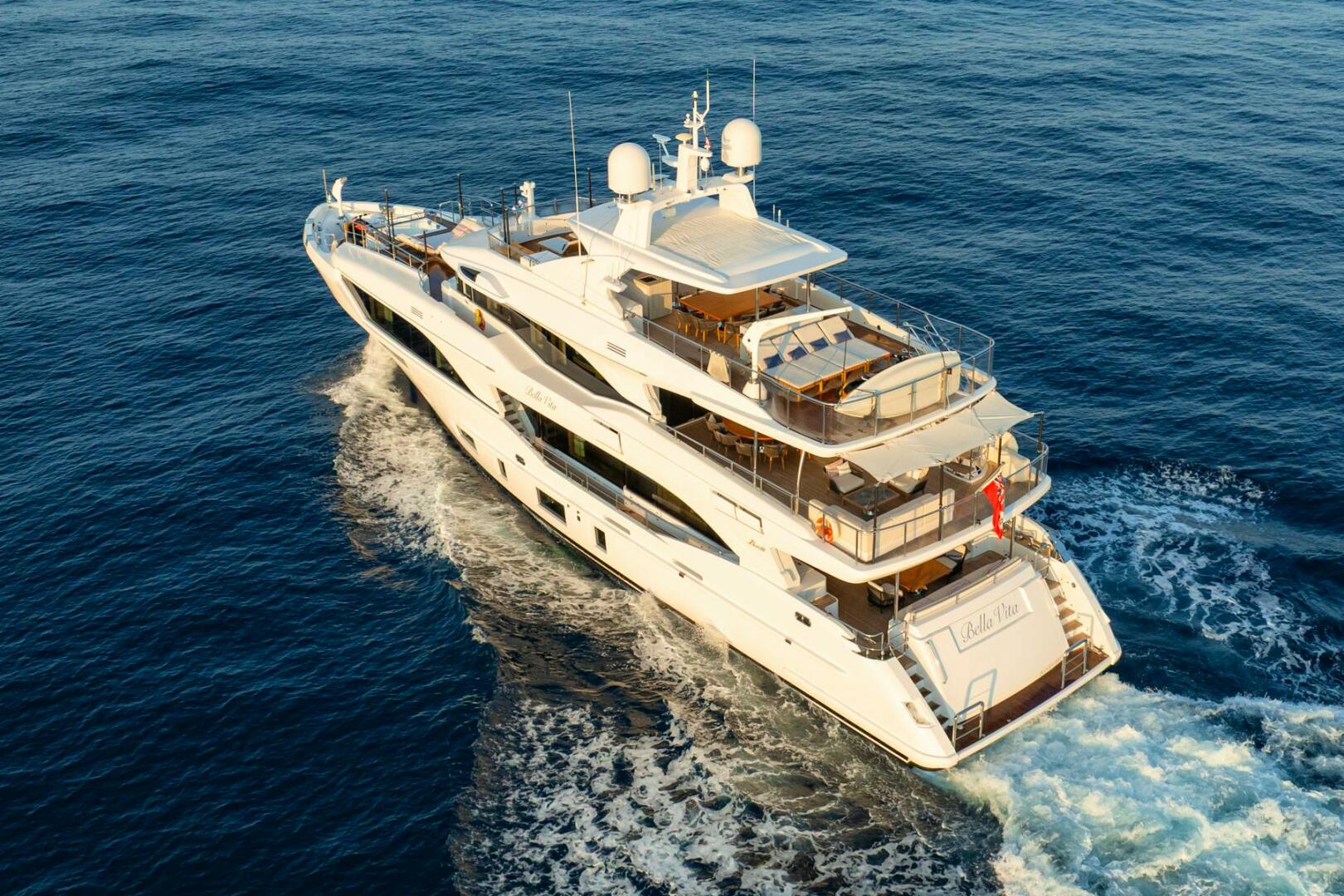

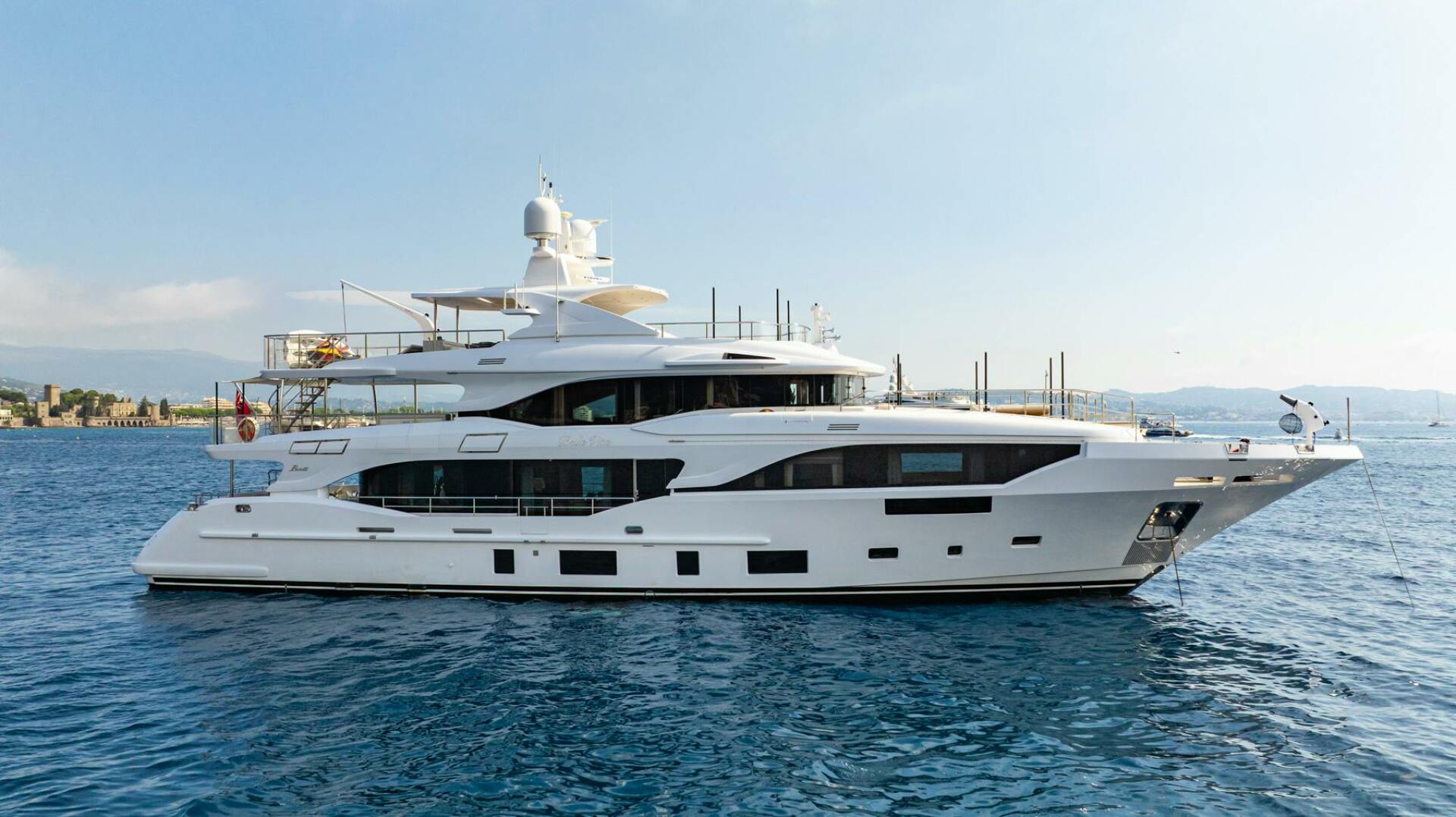

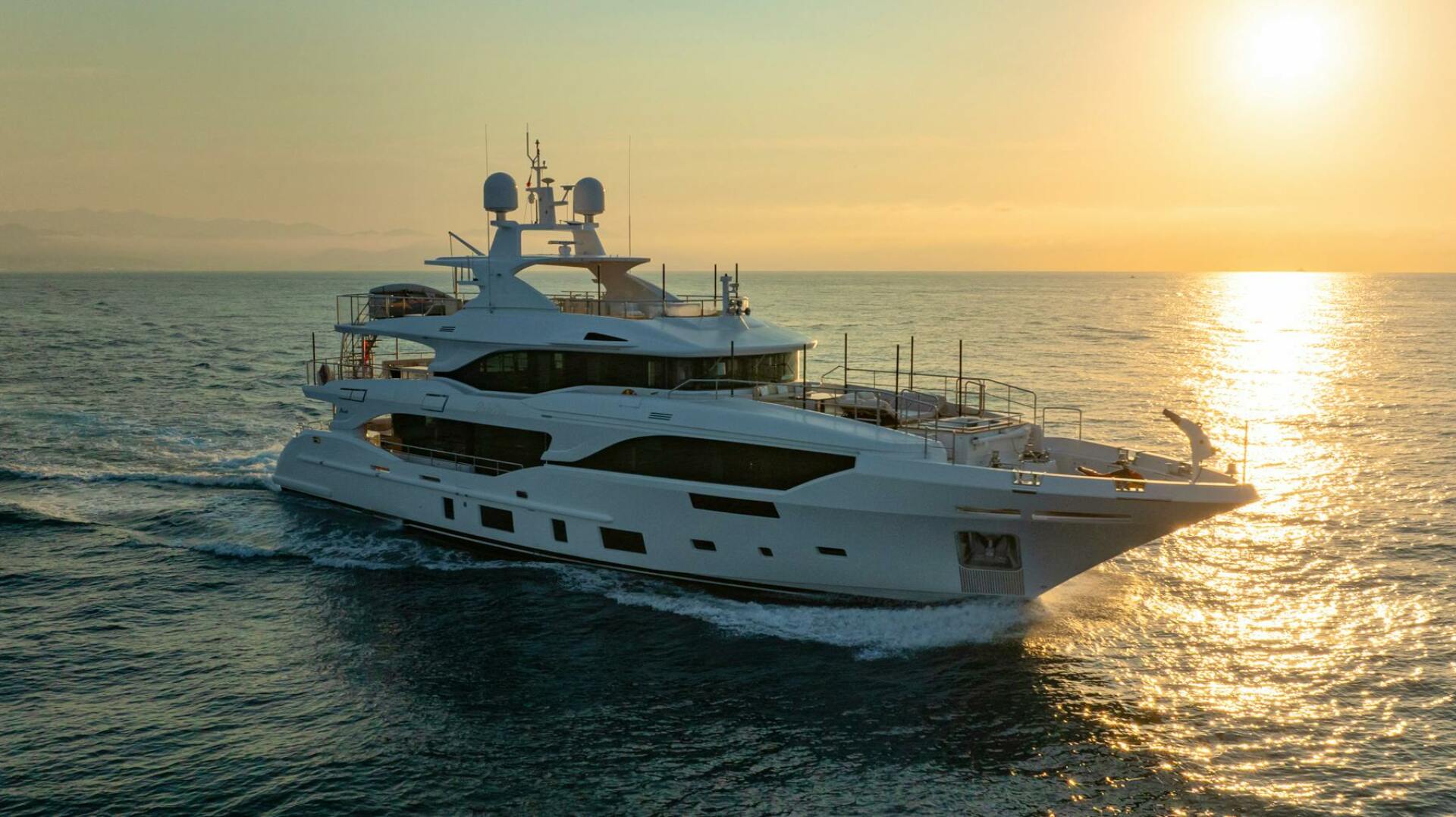

2020 Benetti Benetti Mediterraneo 116

•     Premier Italian builder Benetti
•     Highly customized interiors
•     Huge spacious exterior decks
•     Five staterooms sleeping 10 guests
•     Owner supervised build
•     Only private use since build and immaculate condition
•     Built to MCA compliance
•     Five-year survey completed


Length Overall: 35.30 m (115’ 10”)
Waterline Length (full load): 28.30 m (92’ 10”)
Beam: 7.50 m (24’ 7”)
Draft (half load): 2.05 m (6’ 9”)
Draft (full load): 2.15 m (7’ 1”)
Displacement (light ship): 159,000 kgs (350,535 lbs)
Displacement (half load): 185,000 kgs (407,855 lbs)
Displacement (full load): 200,000 kgs (440,925lbs)
Gross Tonnage (ITC 69): 271 GT
Classification: C ✠ Hull • MACH; Y Unrestricted Navigation
Naval Architect: Pierluigi Ausonio Naval Architecture
Exterior Designers: Giorgio M. Cassetta
Interior Designer: Benetti
Engineering: Benetti R&D Dept.
Type: Displacement Motor Yacht
Hull Material: GRP
Superstructure Material: GRP
Decks: Teak
Flag: Cayman Islands

Propulsion

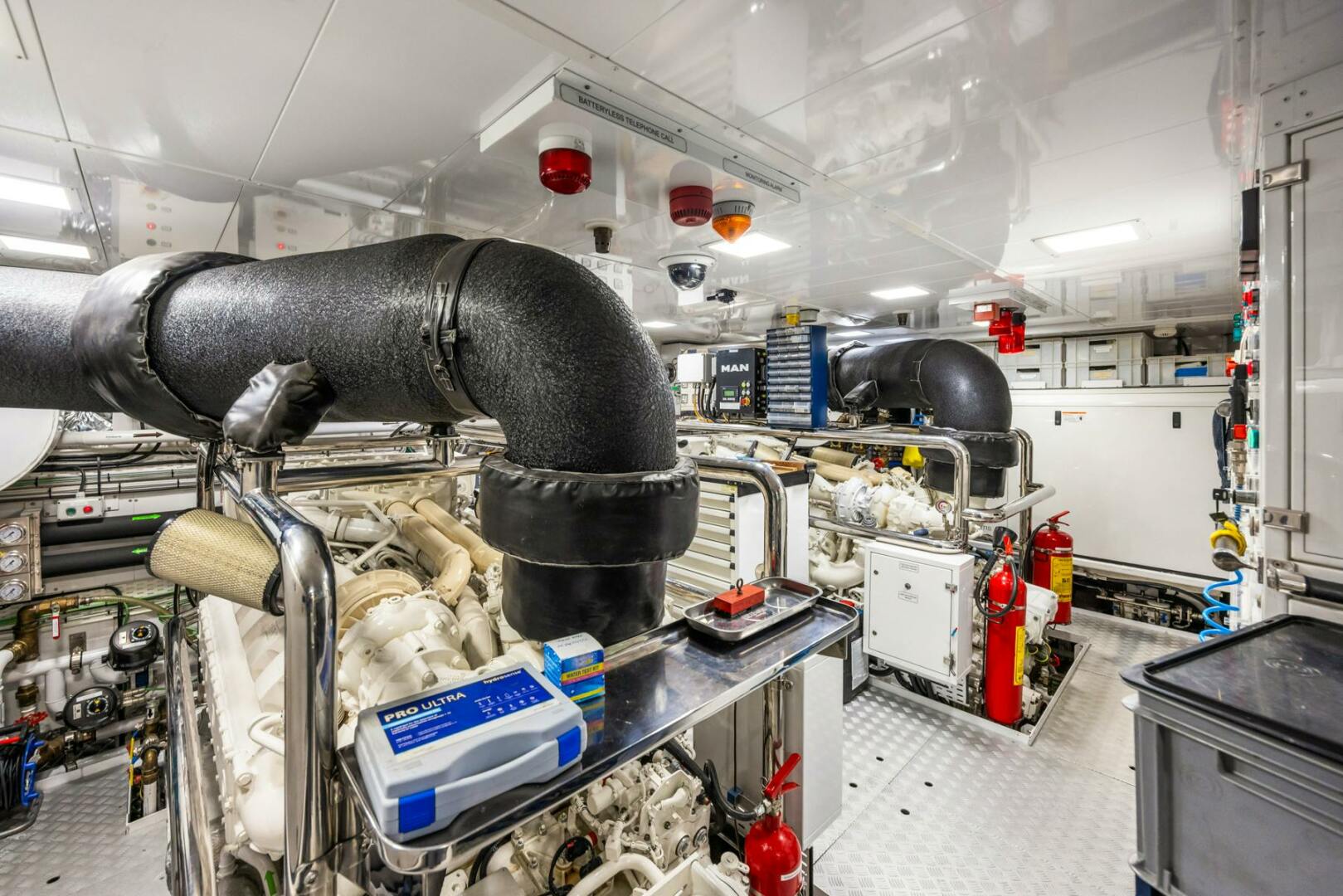

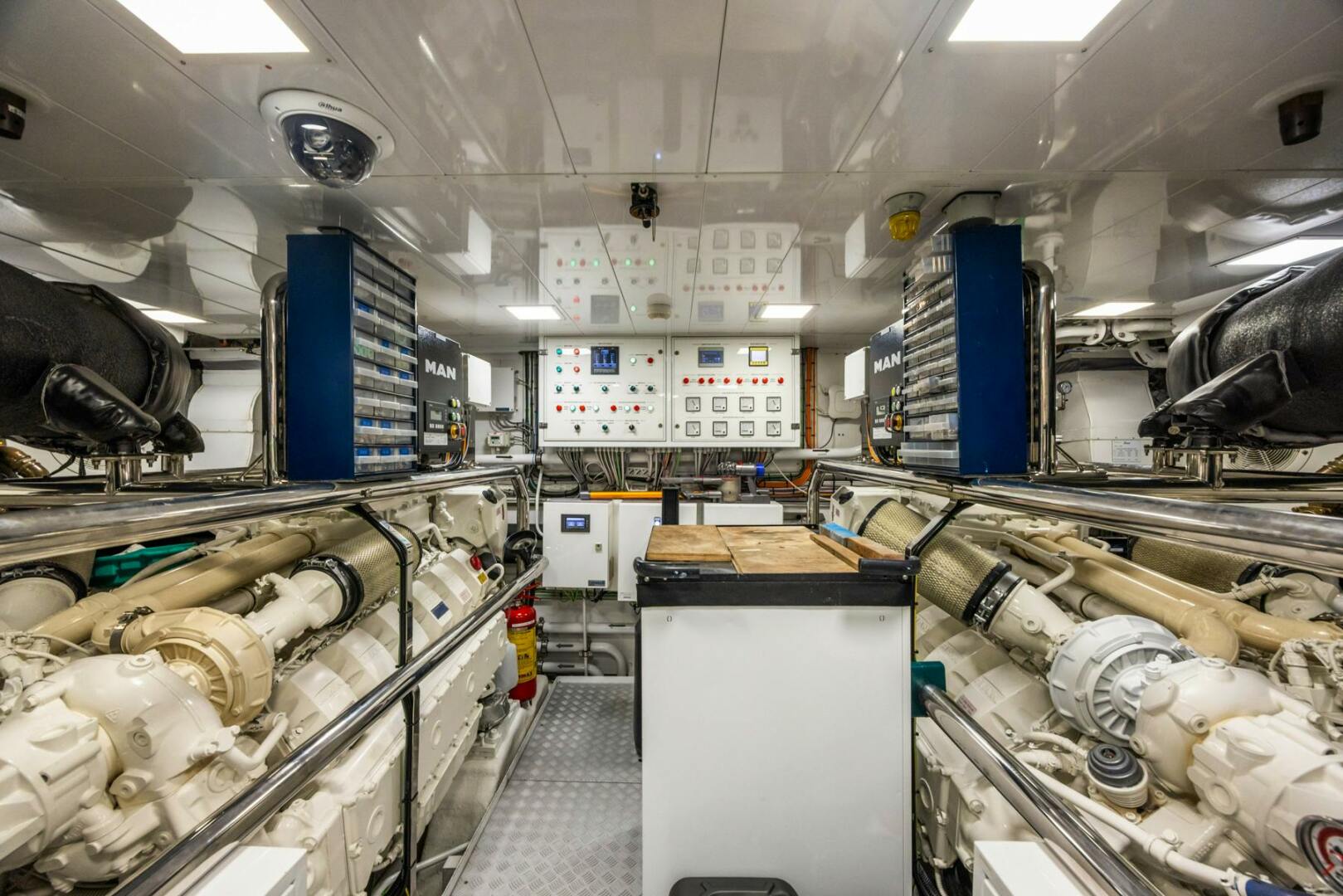

Main Engines: 2 x 1400 Hp (1029 kW) MAN V12-1400 @ 2300 rpm each
Port Engine Hours: 3,150
Starboard Engine Hours: 3,150
Max Speed: 15 knots
Cruise Speed at 85% of Max Power: 14 knots
Range at 10 knots: 3200 NM
Gear Boxes: Reduction gear box for each engine type ZF 3310, ratio 4,478:1
Shaft Lines: Water lubricated bearing shaft line AQUAMET 17, diam. 110mm
Propellers: 2 x High skewed propellers, 5 NiBrAl blades

Tankage

Total Fuel Capacity: 33,000 l (8,718 USG)
Fresh Water Capacity: 4,000 l (1,057 USG)
Sewage and Grey Waters: 3,500 l (925 USG)
Clean Oil: 550 l (145 USG)
Dirty Oil: 550 l (145 USG)

Electrical Equipment

Main Generators: 2 x 70 kW HOHLER 70EFOZDJ, 400VAC / 50Hz
Port Generator Hours: 7,460
Starboard Generator Hours: 7,460
Electrical System: 400V AC / 50Hz / 3-phases
Shore Power Convertor: 70kVA 400V (inlet) / 400V (outlet), 3 phases + neutral, 50Hz
Shore Power: Glendenning CM8 100A
Emergency Lighting System: 24V DC battery system
Service Equipment: 24V DC battery system
Radio Equipment 24V DC battery system
Underwater Lights: 8

Main Equipment

Bow Thruster: Electric CMC BTM50 52 kW / 400VAC 3-phase
Stern Thruster: CMC BTM40
Stabilizer Fins: Zero-speed stabilizer fins (CMC Stabilis Electra SE80-7-4-160)
Fire Pump: Electric GIANNESCHI ACB 531/C 400VAC
Bilge Pumps: Electric GIANNESCHI ACB 531/C400VAC
Motor Pump: GIANNESCHI M-ACB 531
Fuel Oil Transfer Pump: Electric transfer pump GIANNESCHI ACB 331 400VAC
Clean Oil Pump: Electric GIANNESCHI PQ40 400VAC
Dirty Oil Pump: GIANNESCHI PQ40 400VAC
Sewage and Grey Waters Pump: 2 x GIANNESCHI MVI60 400VAC
Fuel Filters: Alfa Laval
Fresh water Pumps: 2 x GIANNESCHI CSX 804 400VAC
Hot Water Pumps: 2 x GIANNESCHI Z25 400VAC
Water Maker: Idromar MC9 8,500 L/day
Water Heaters: 2 x 150 l (39 USG)
A/C Sea Water Pumps: 2 x Sea water pumps
A/C Fresh Water Pumps: 2 x Freshwater pumps
Air Treatment Units: 4 x Units
Engine Room Fans: 2 x Axial flow fans GIANNESCHI ELL/AP 457/3, 2 x Centrifugal flow fans GIANNESCHI VCR 351/B

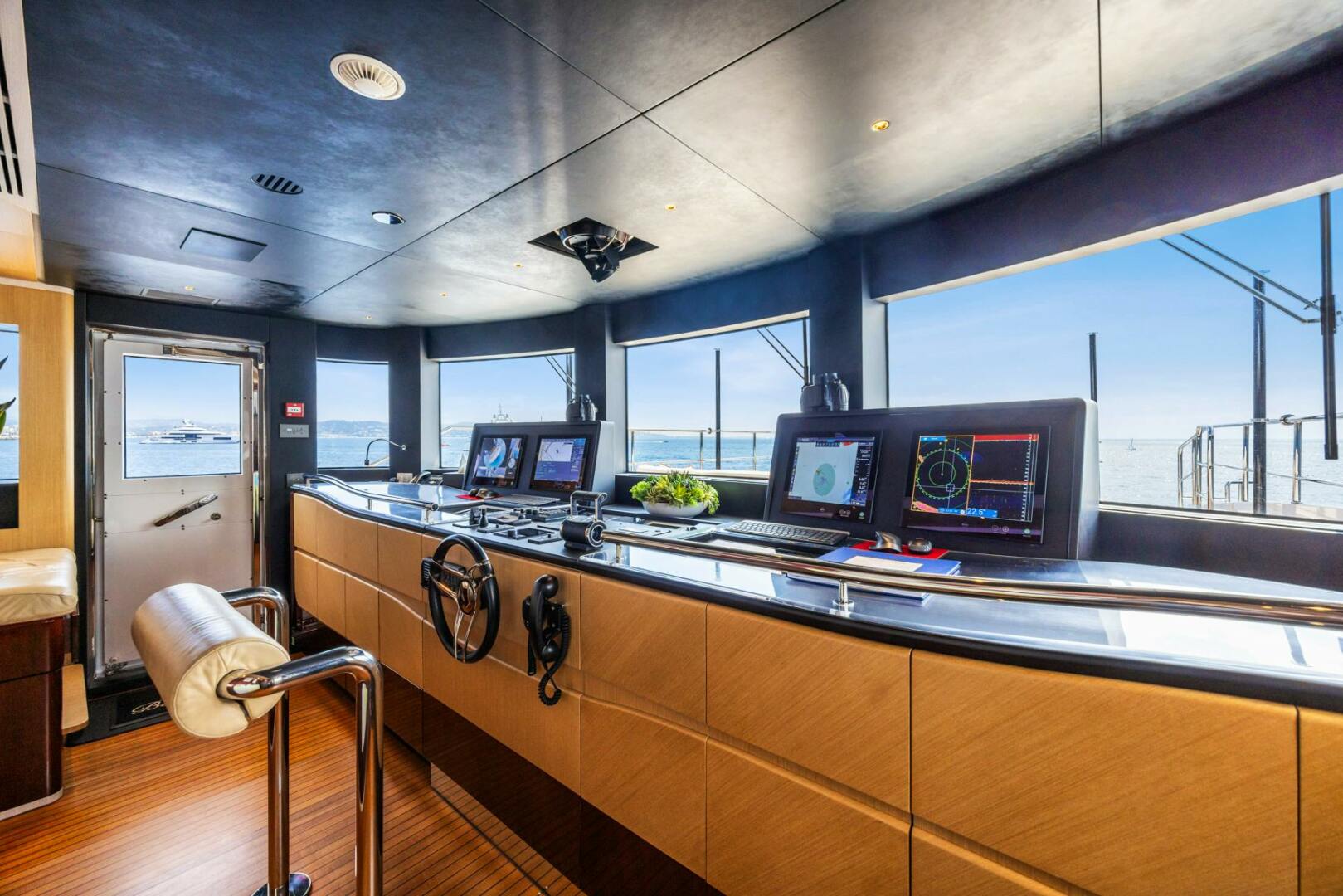

Steering actuator with wheel
Bow thruster control lever and running indicator
Main engines throttles
Emergency stop for main engines
Fin stabilizers control panel
4 x LCD monitor (upgraded) 15” IP 65 marinized
2 x NMEA Displays 3,5” for Wheelhouse
2 x Cartography systems
2 x Navnet TZT tillers
Control trackball
X-Band Radar NN TZT, 64NM, 6kW with 4 ft antenna
Echosounder dual frequency/speed/temp sensor
Furuno AIS, GPS, and Maxsea TimeZero Chartplotter
Transas NS4000 ECS Chartplotter
Magnetic compass for Wheelhouse
Weather station
Autopilot system, micro-processor controlled, with feedback system
Rudder angle indicator
Emergency Intercom System
Log: Speed-log system included in integrated navigation system
Echosounder: With dual frequency transducer (depth, log, water temp)
Magnetic Compass: Ceiling mounted magnetic compass in wheelhouse
VHF: 2 x VHF class D
Telephones: VOIP telephone system for internal communications
Wifi: Starlink + 5G with 4 sims (full LTE router & antenna)
CCTV: Full HD cameras, 3 x Main Deck, 2 x Engine Room, 1 x Mast, 1 x fisheye on aft UD dining area
Provision for VSat and SAT TV cables

Integrated CAT6 high speed network managed by a CRESTRON

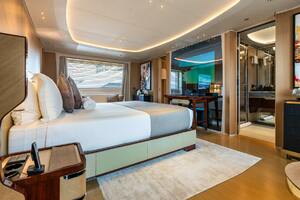

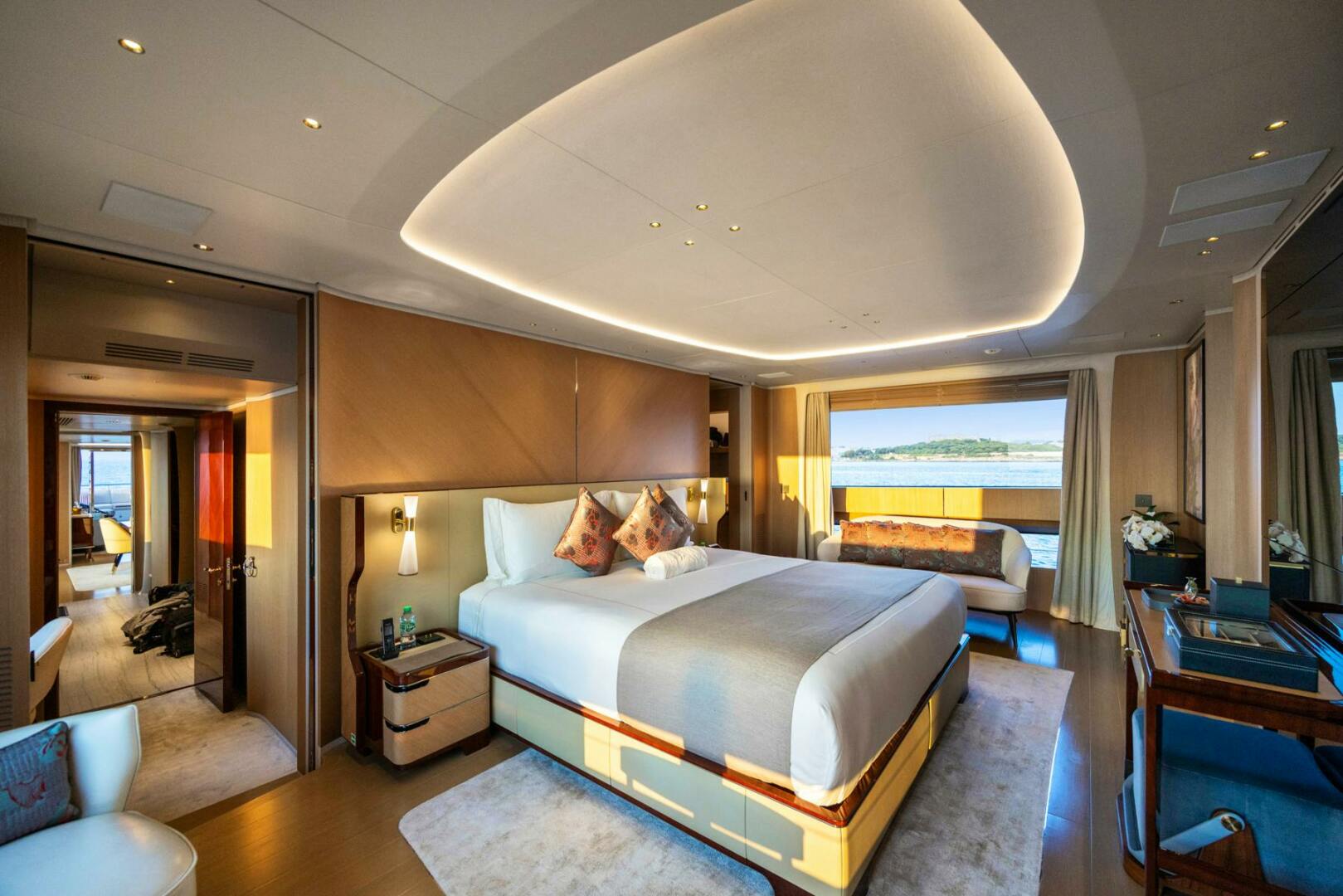

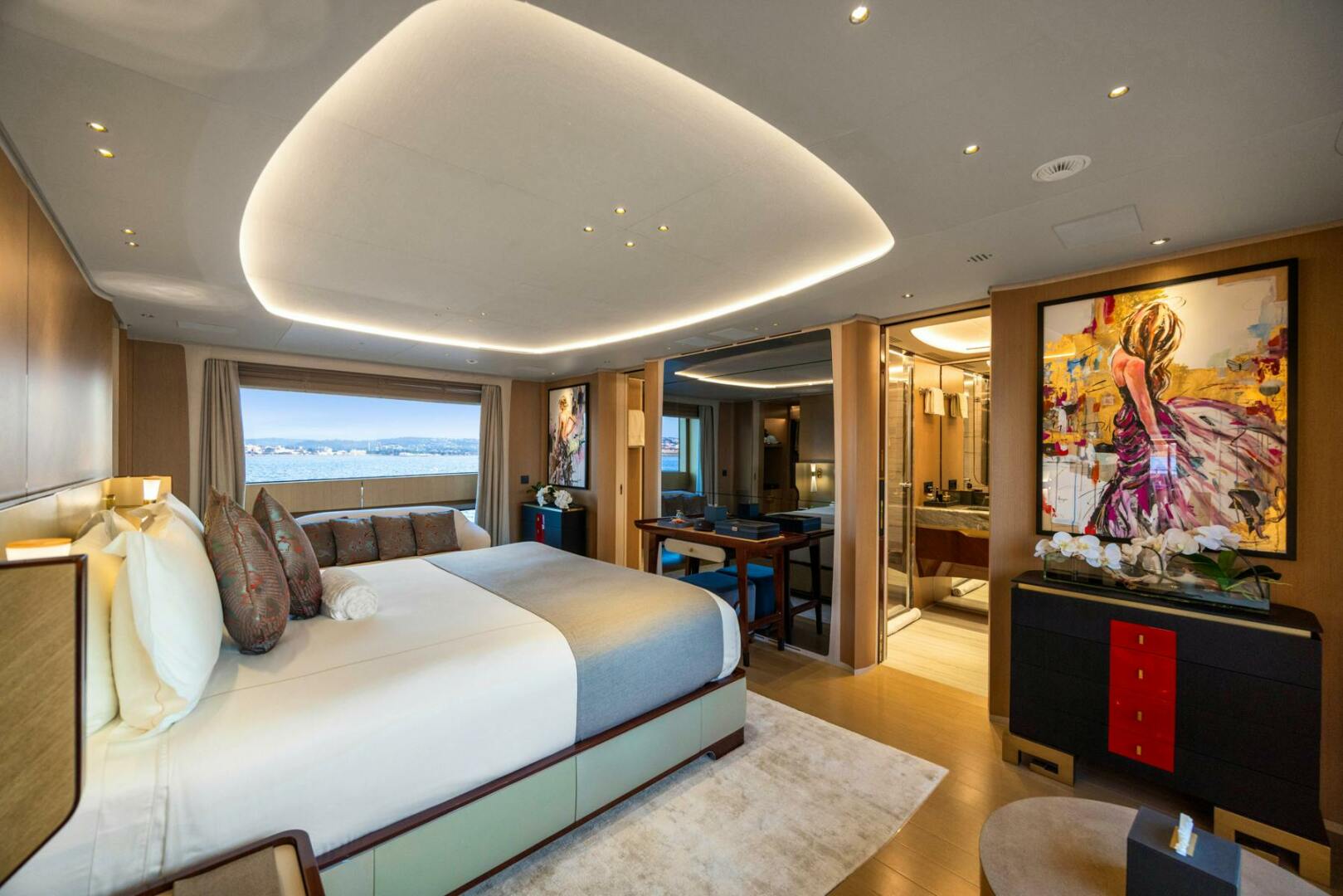

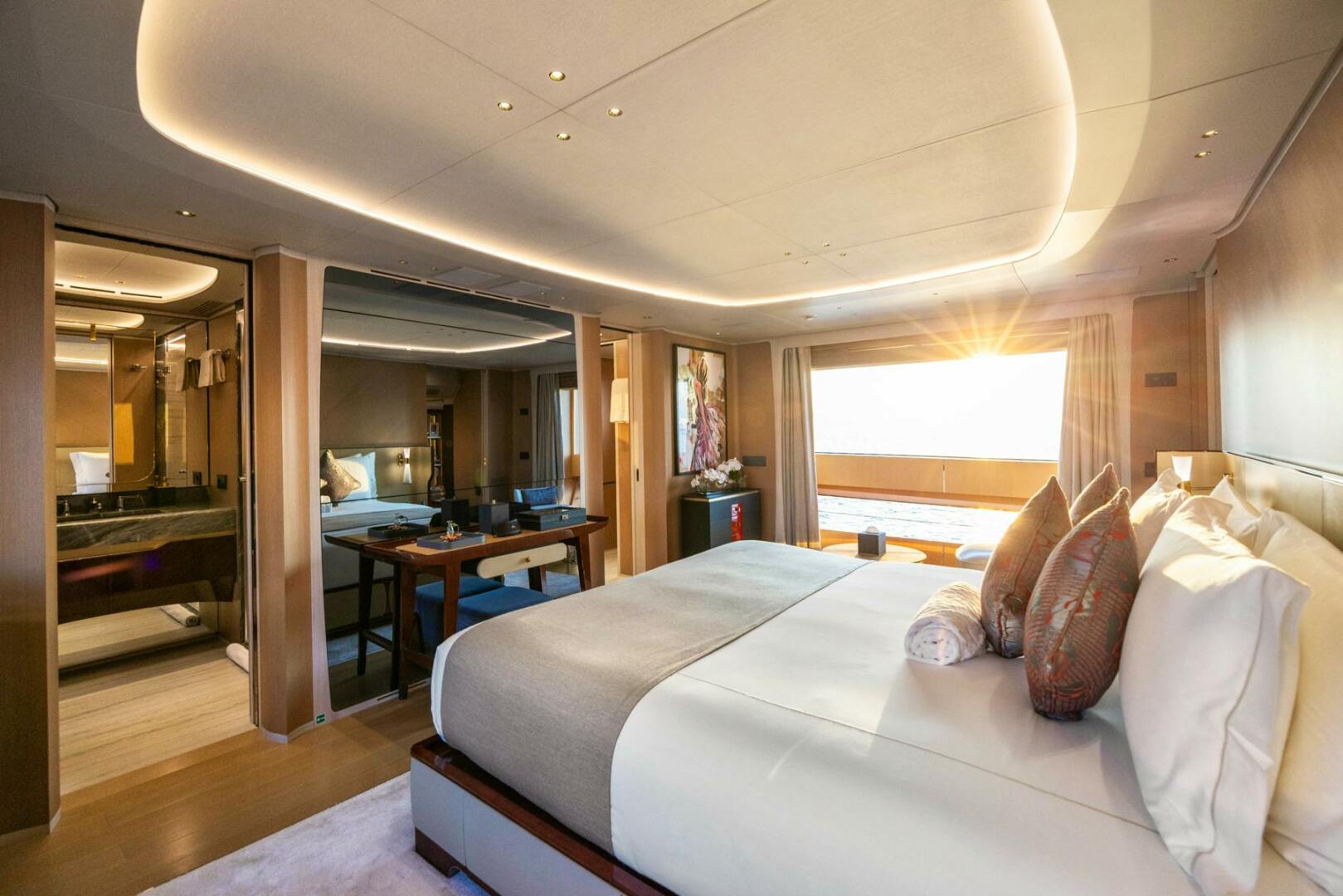

Owner’s Stateroom:

•    TV 55” LED Ultra HD
•    Blu-Ray player
•    H.Q. Speaker system surround 5.1 with powered subwoofer
•    Integrated Wi-Fi remote control (mini-iPad)
•    Mini iPad charge docking station
•    Apple TV

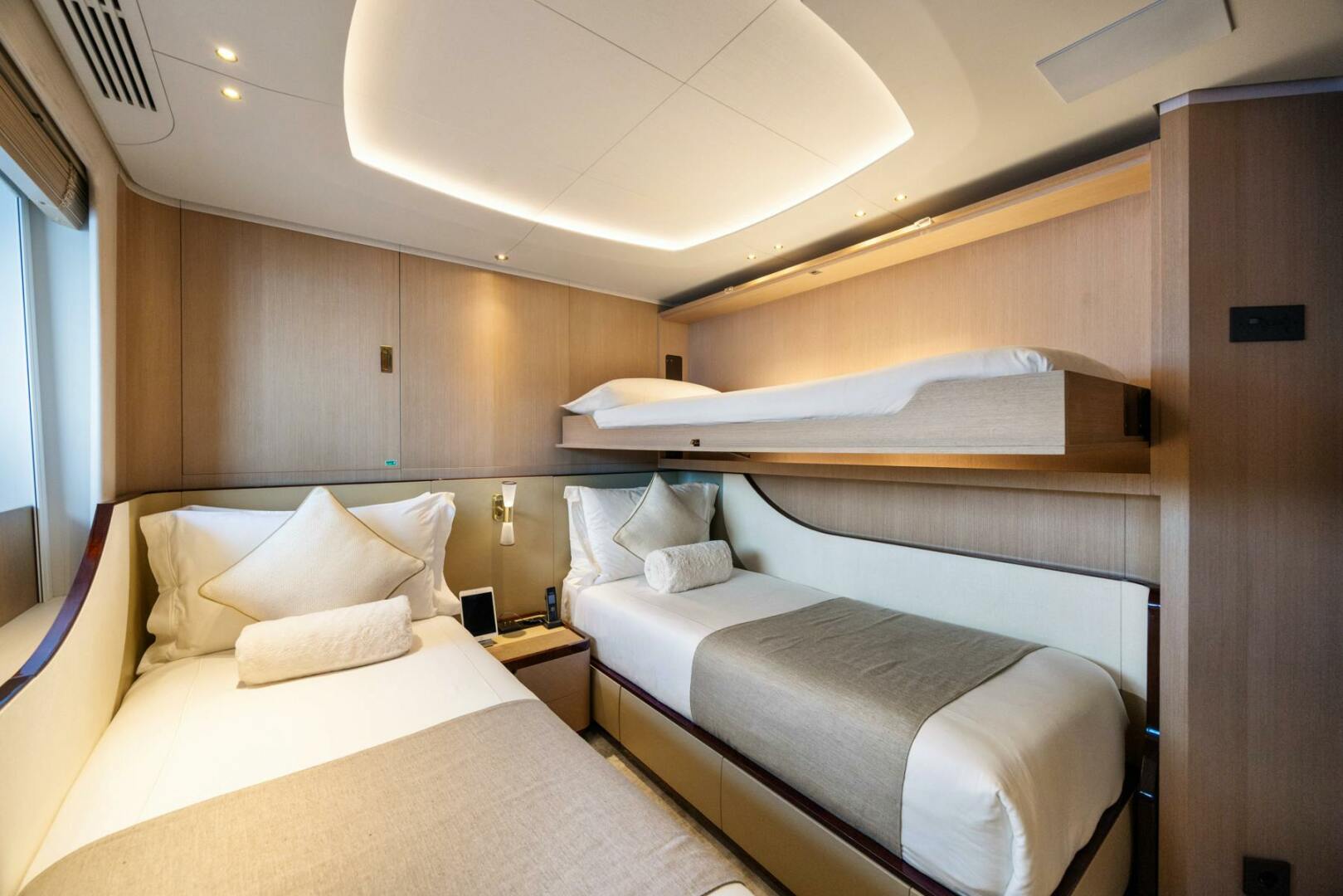

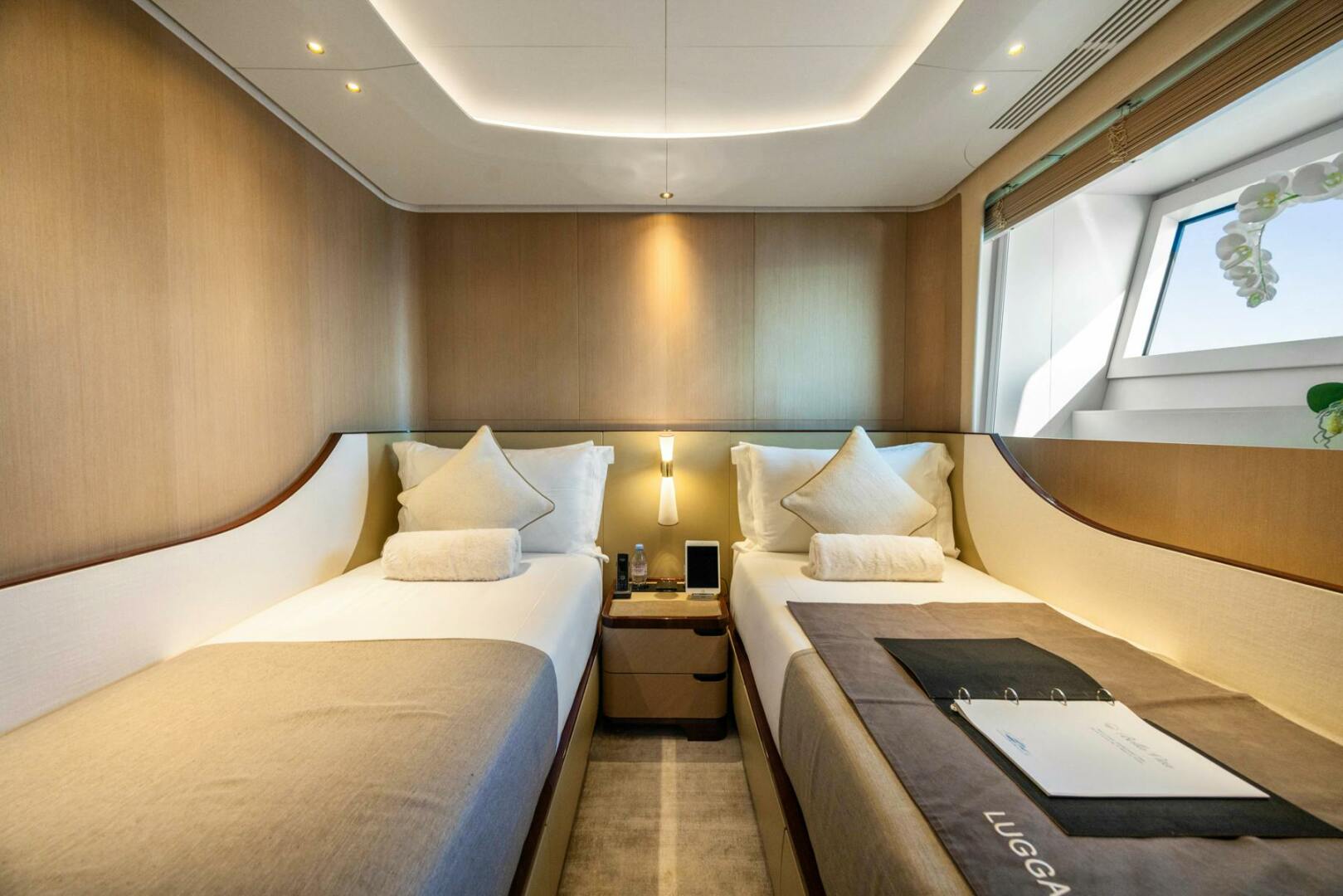

Twin Guest Cabins:

•    TV 28” LCD Full HD
•    Blu-Ray player
•    Pair of loudspeakers
•    Integrated Wi-Fi remote control (mini-iPad)
•    Mini iPad charge docking station
•    Apple TV

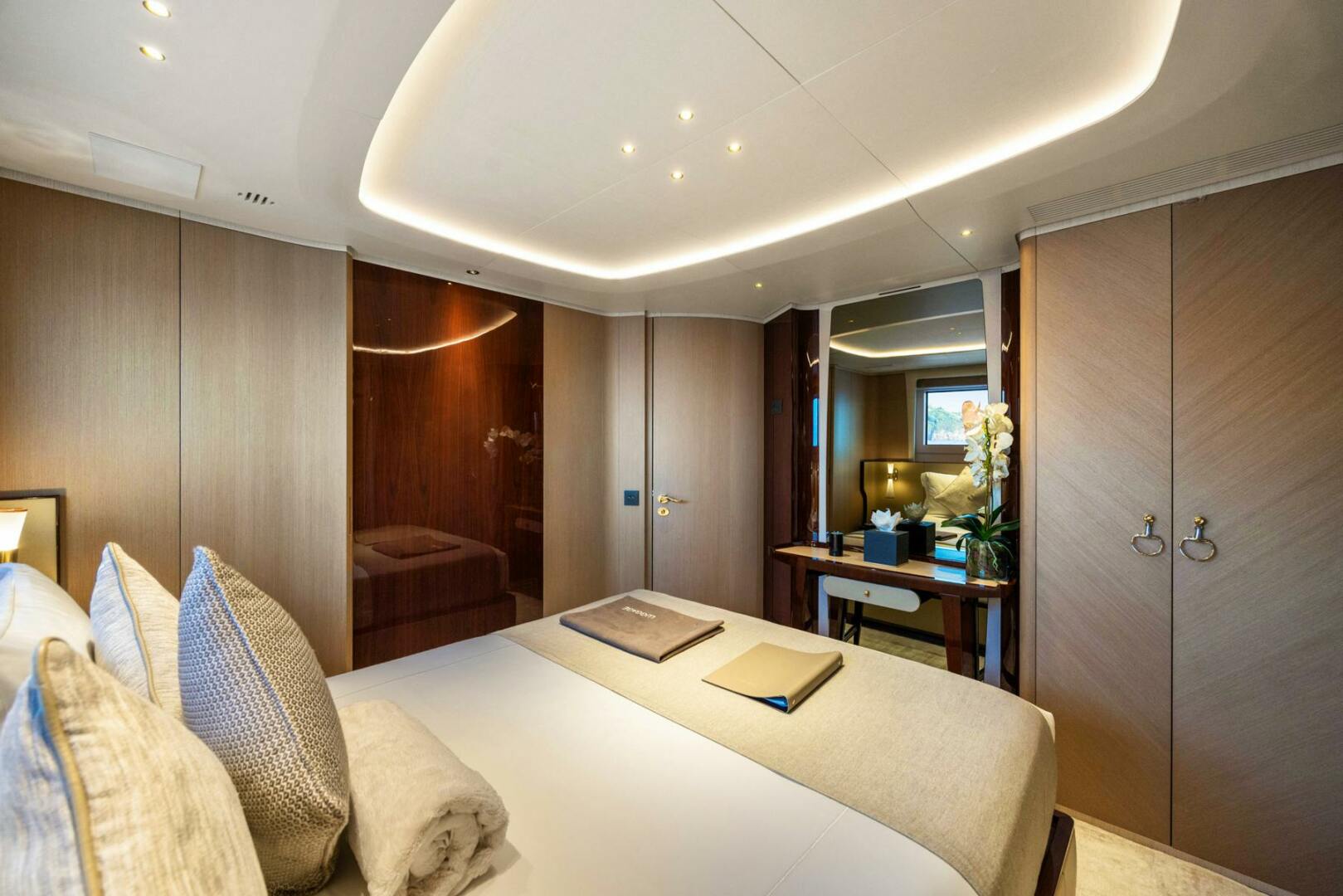

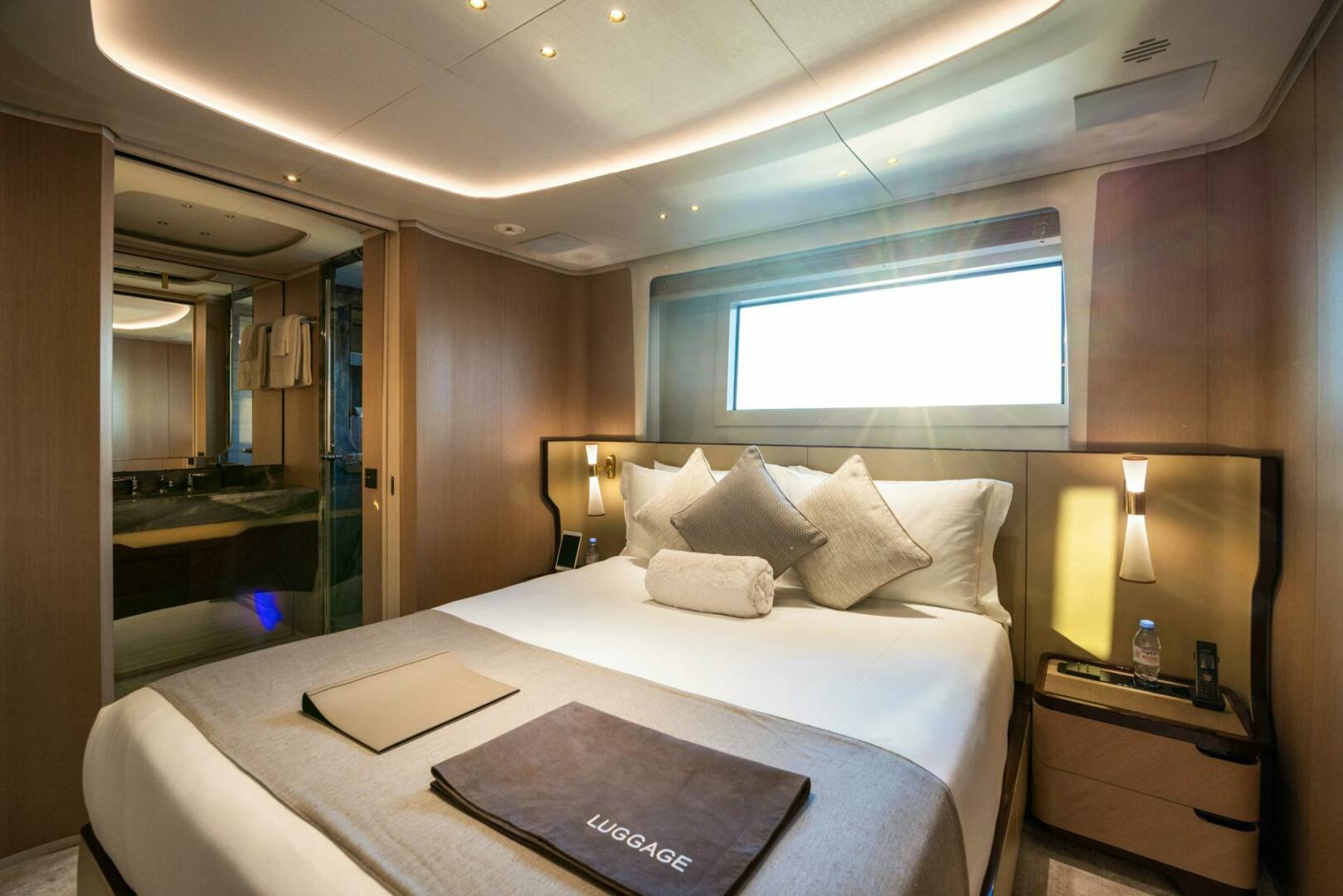

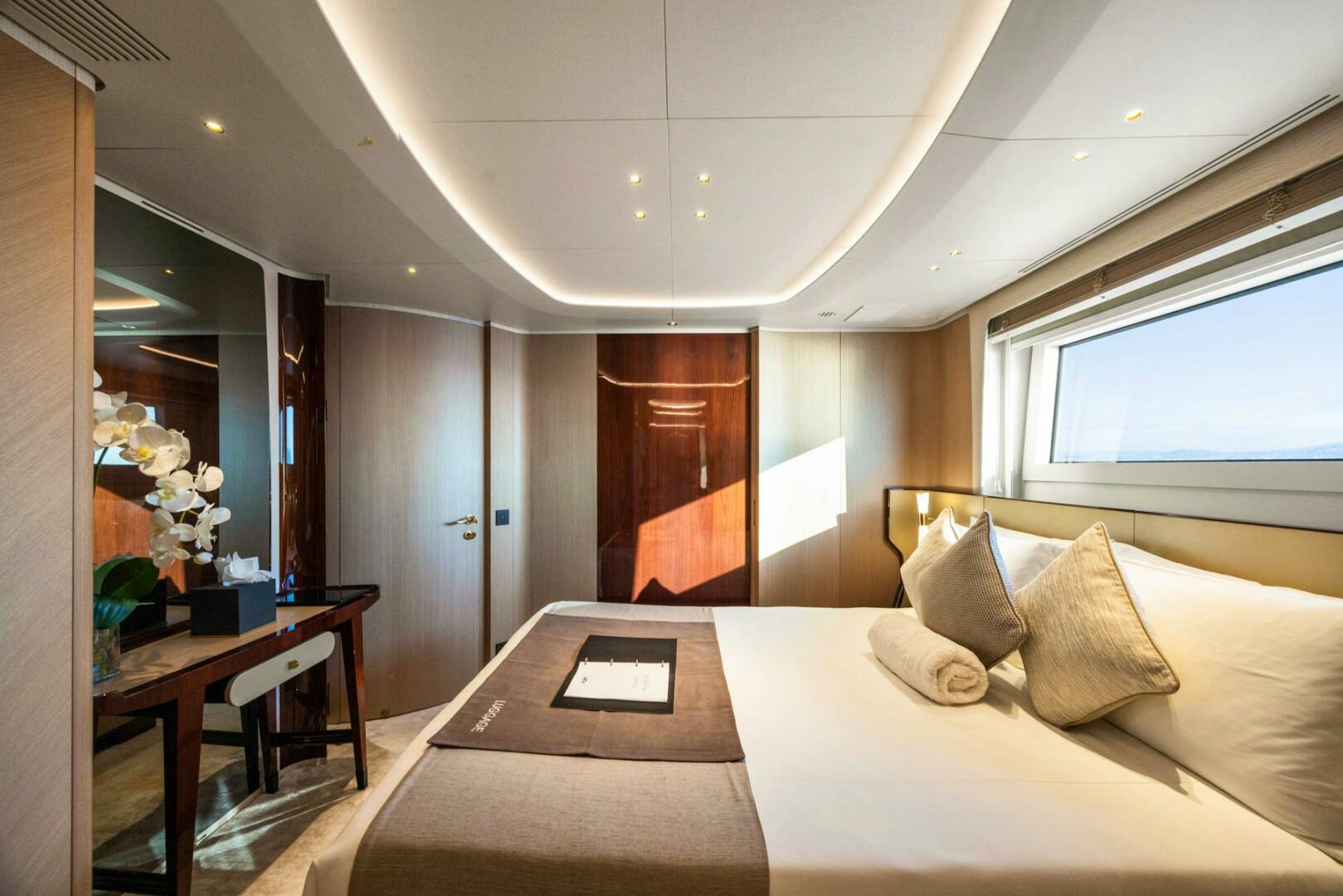

VIP Cabins:

•    TV 32” LCD Full HD
•    Blu-Ray player
•    Pair of loudspeakers
•    Integrated Wi-Fi remote control (mini-iPad)
•    Mini iPad charge docking station
•    Apple TV

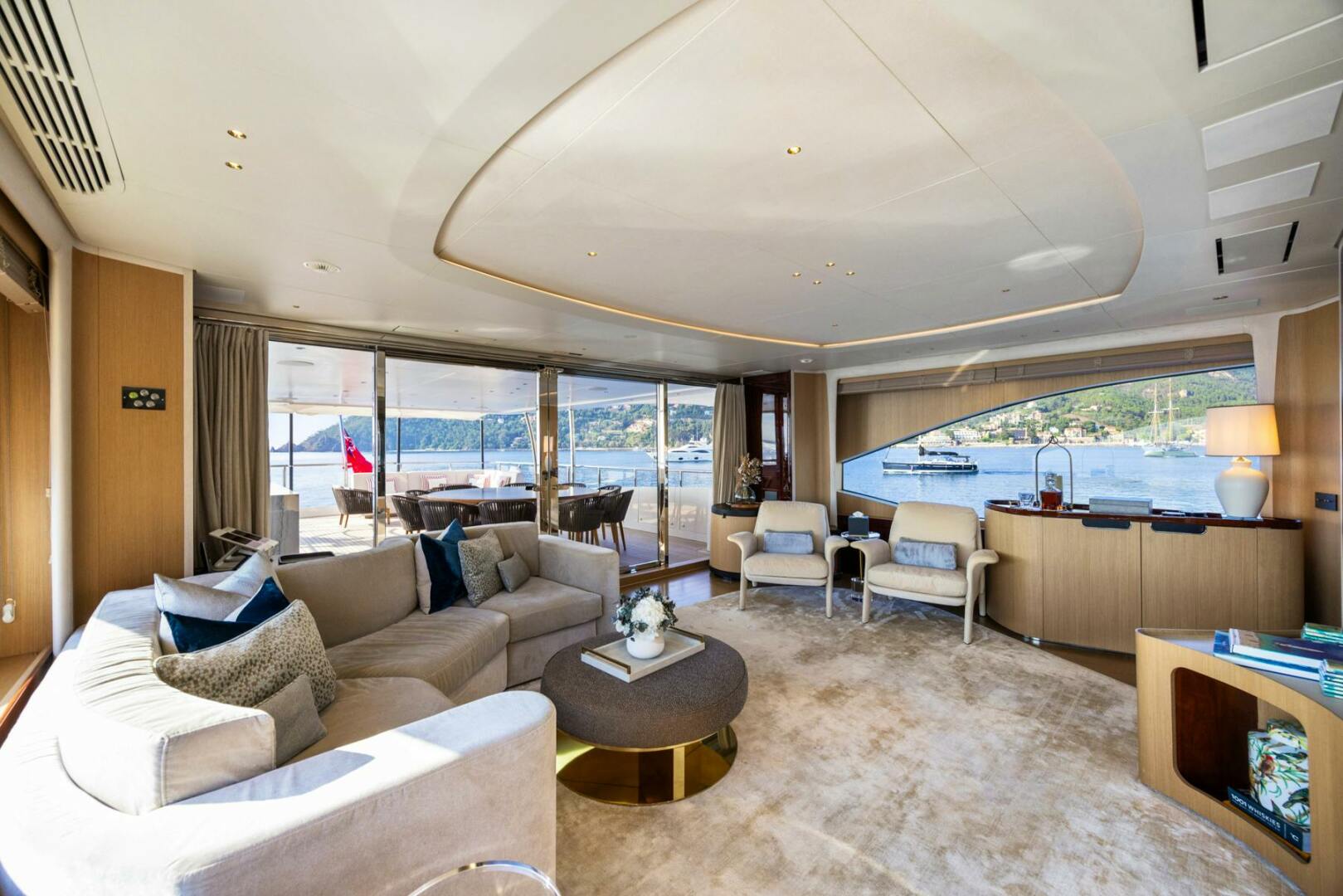

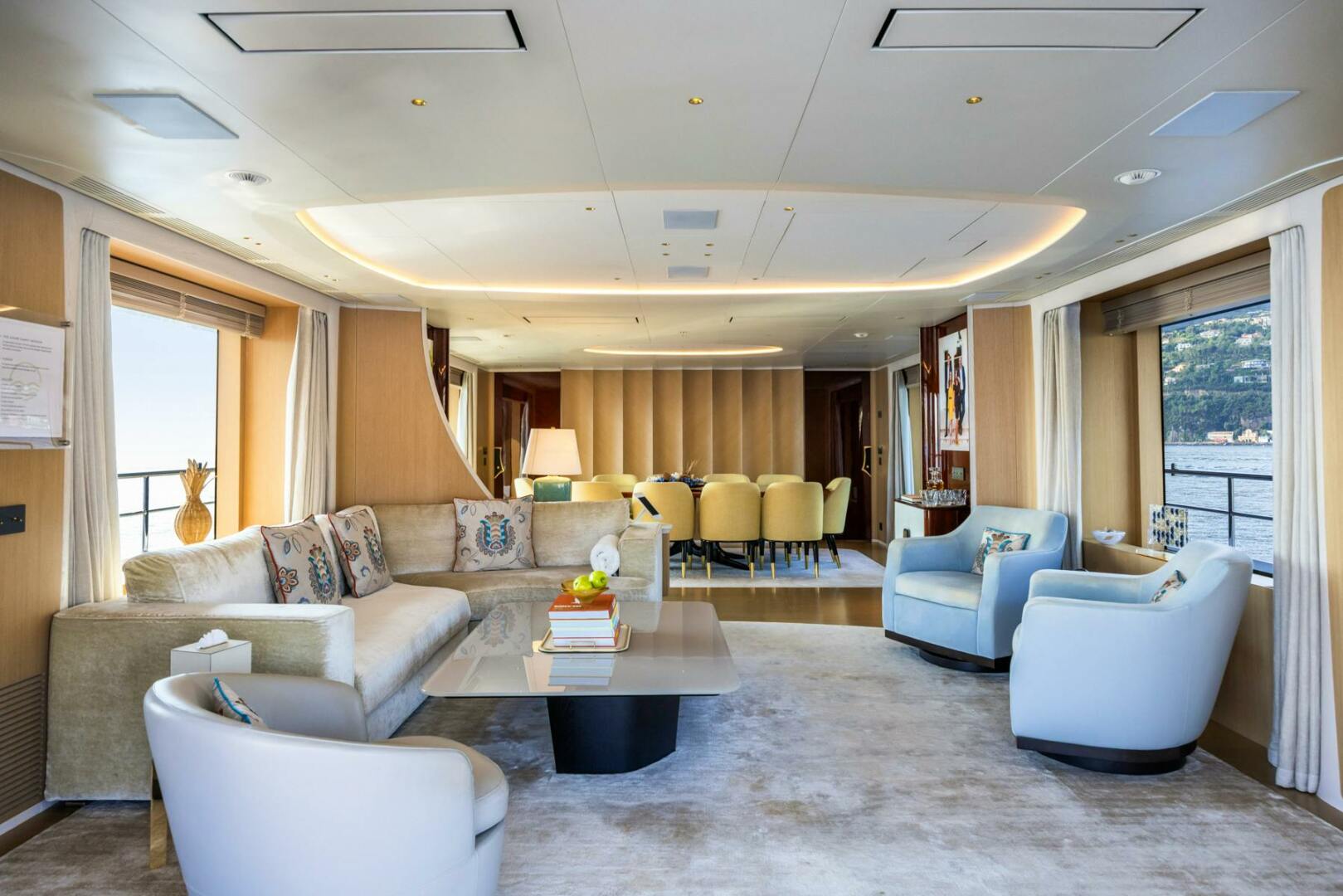

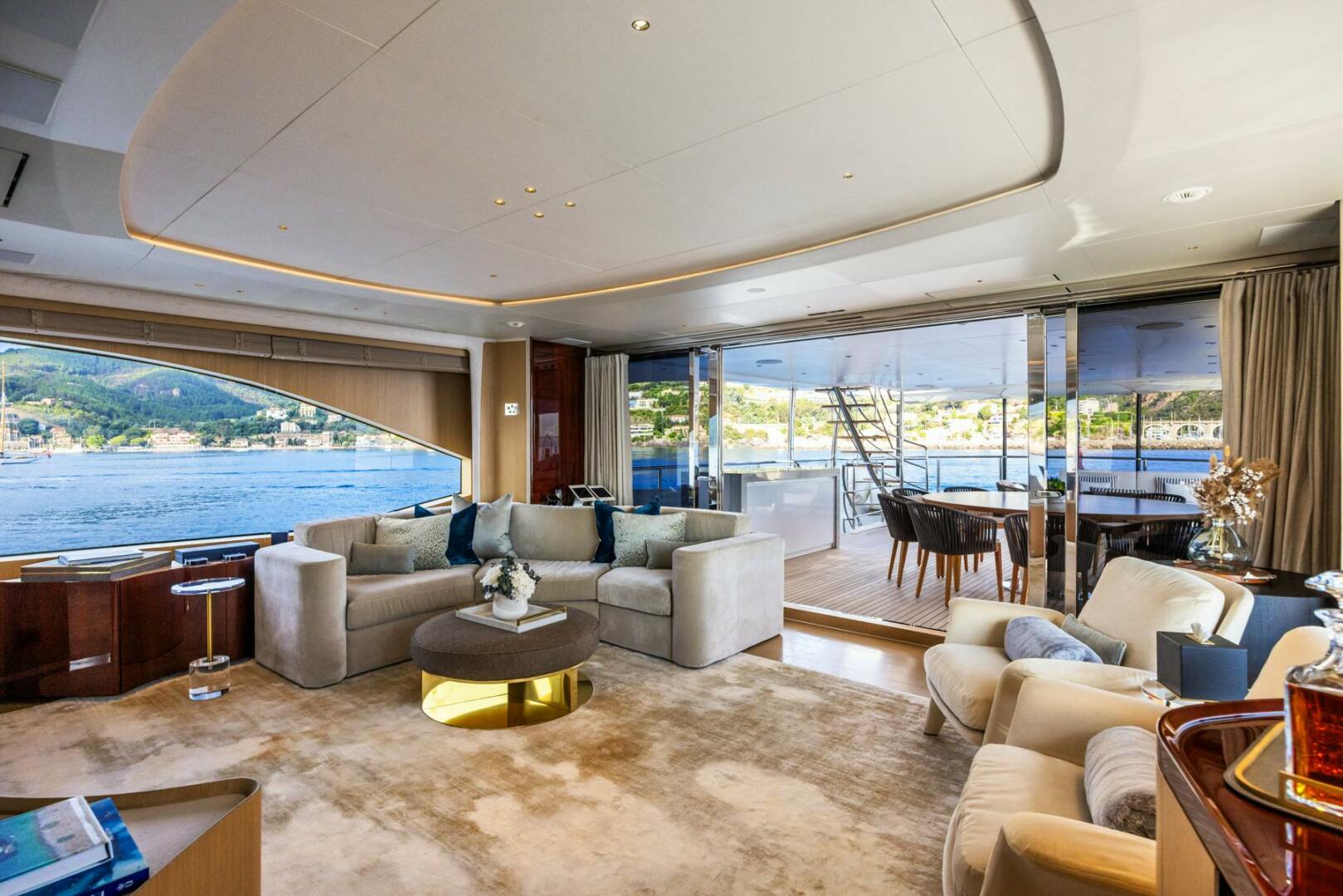

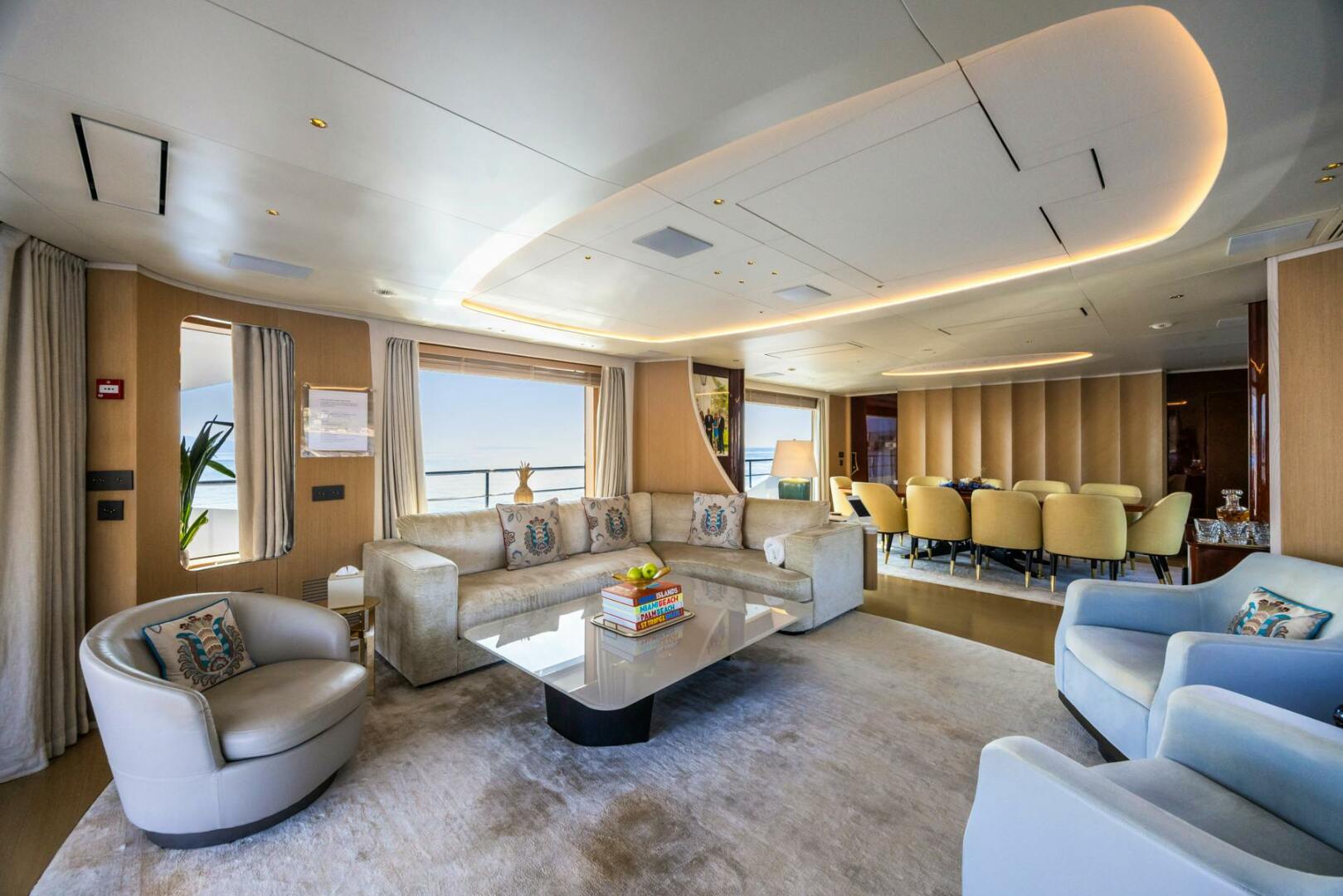

Main Saloon:

•    TV 55” LED Ultra HD
•    Blu-Ray player
•    Speaker system surround 5.1 with powered subwoofer
•    Integrated Wi-Fi remote control (mini-iPad)
•    Mini iPad charge docking station
•    Apple TV

Main Saloon Dining:

•    Keyboard for volume control
•    Pair of loudspeakers

External Main Deck:

•    2 x Pairs of marine speakers
•    Keyboard for volume control

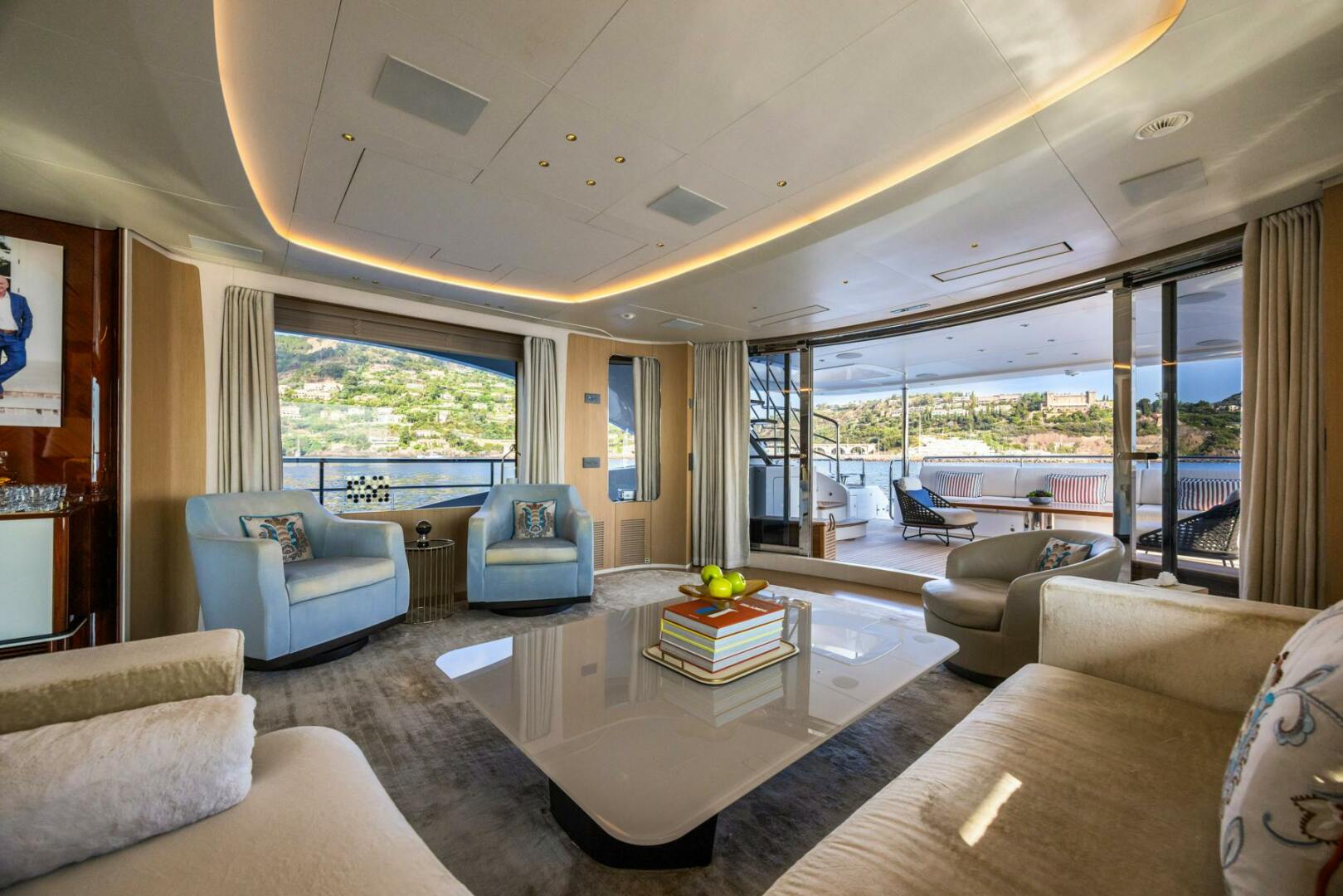

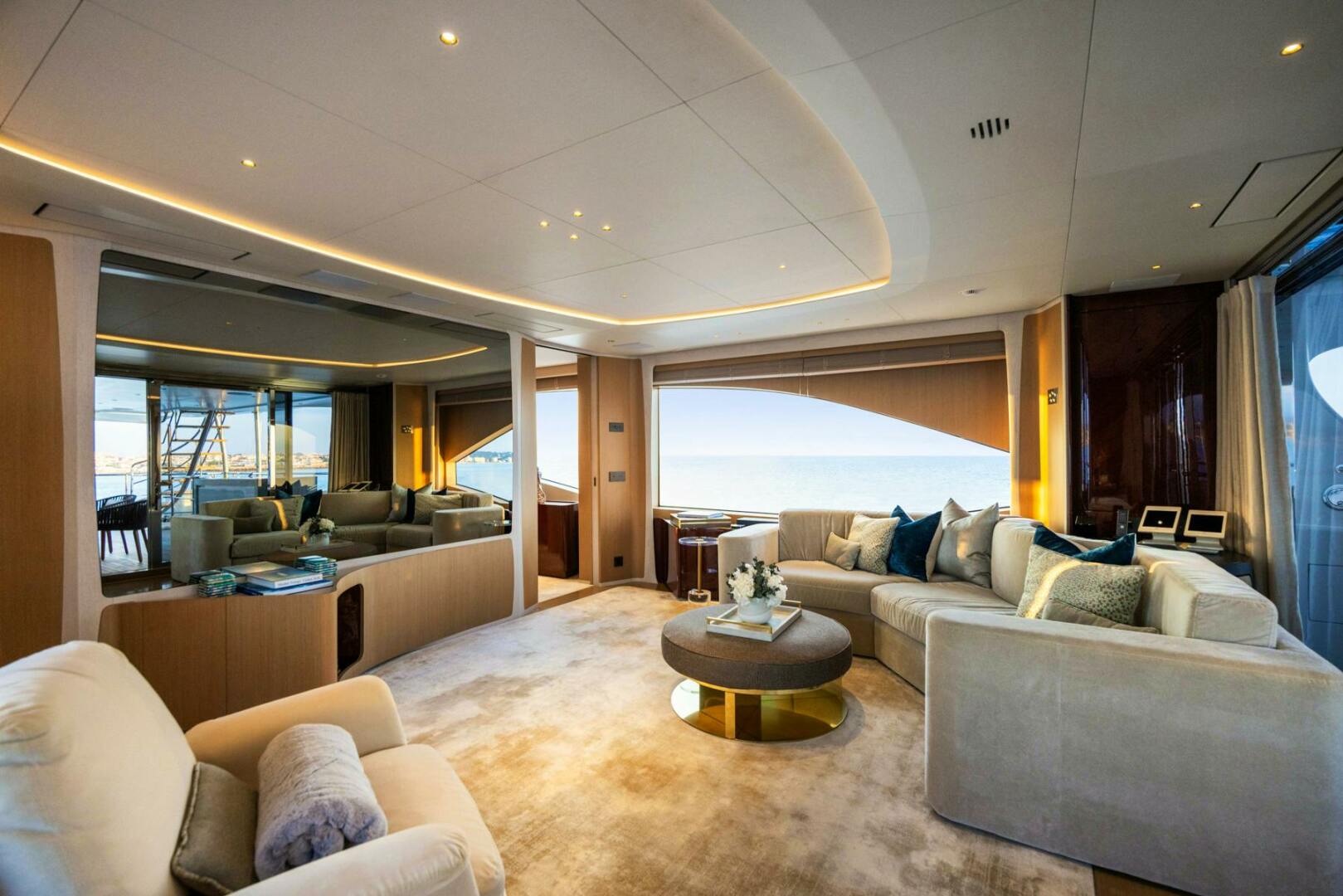

Sky Lounge:

•    TV 65” LED Ultra HD
•    Blu-Ray player
•    Speaker system surround 5.1 with powered subwoofer
•    Integrated Wi-Fi remote control (mini-iPad)
•    Mini iPad charge docking station
•    Apple TV

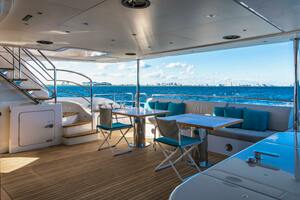

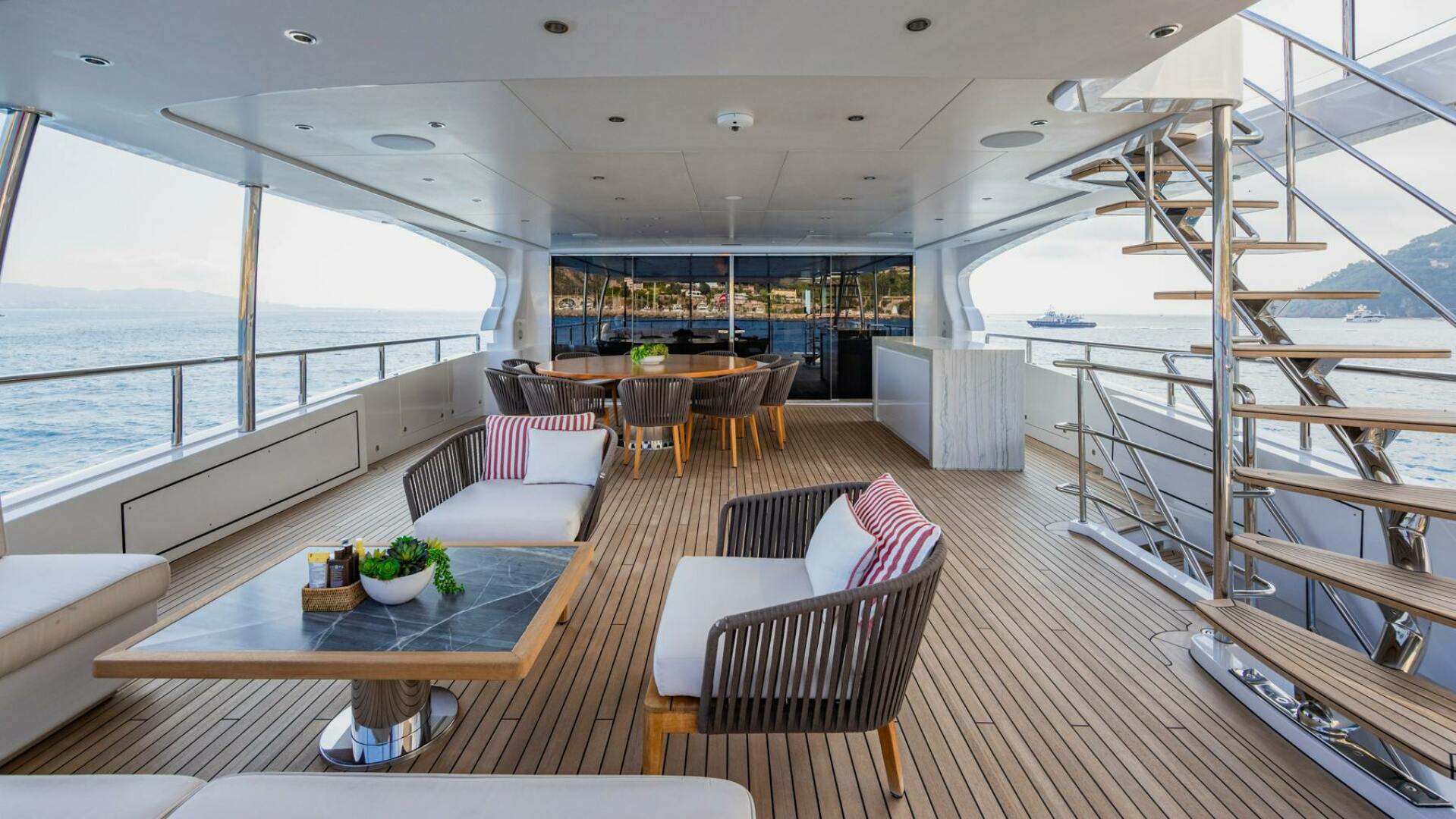

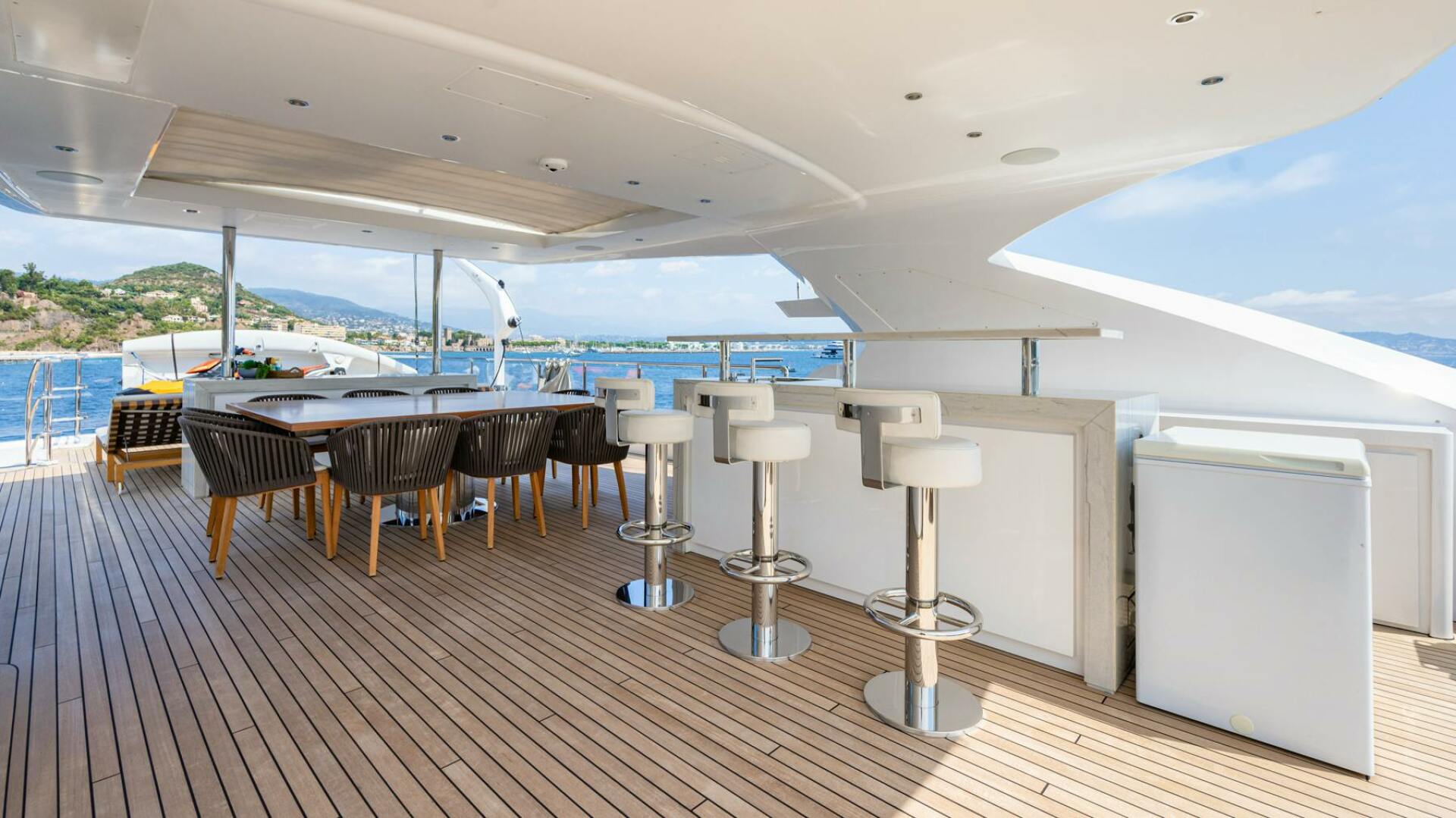

External Upper Deck Aft:

•    Keyboard for volume control
•    2 x Pairs of marine speakers External

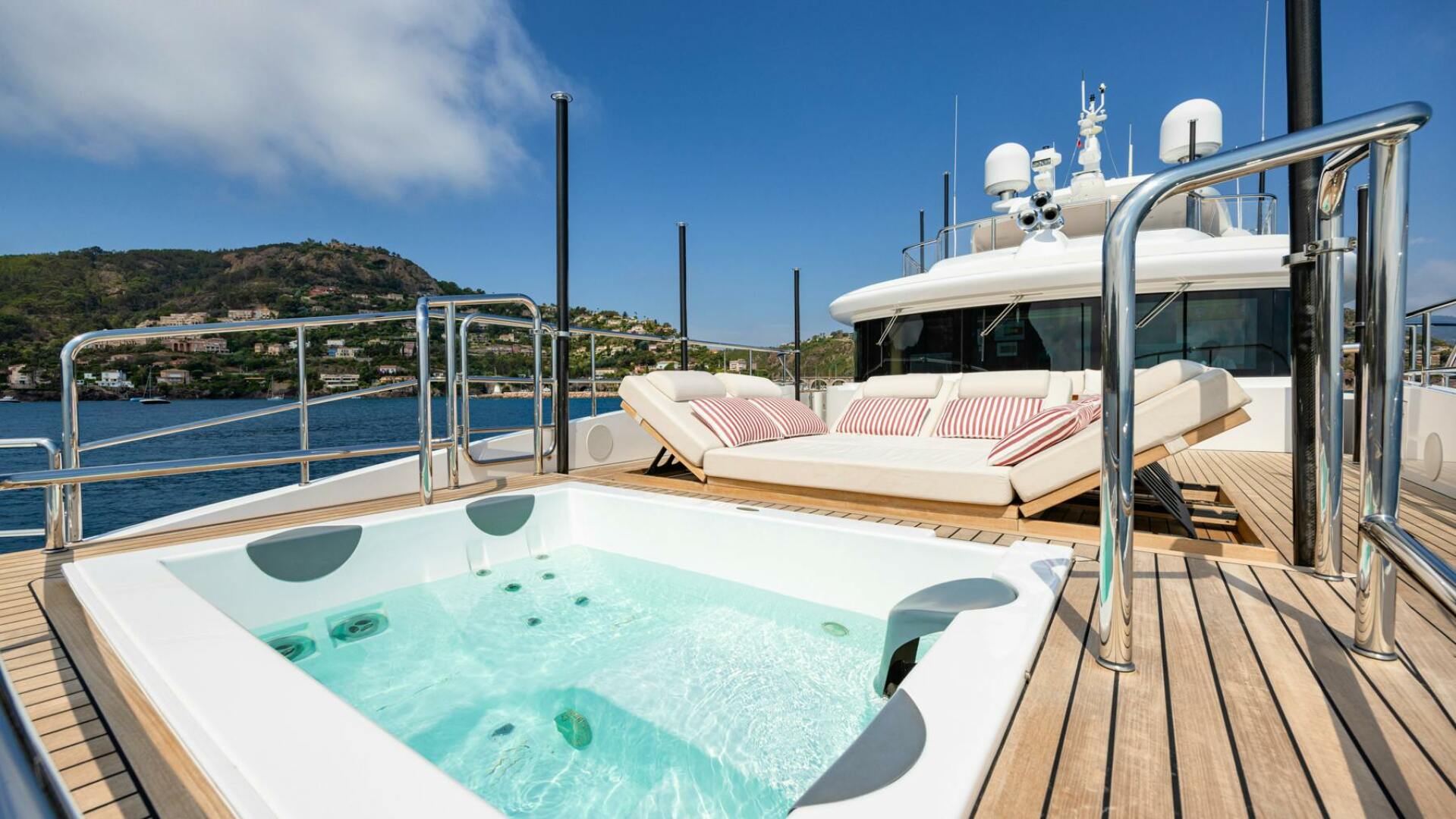

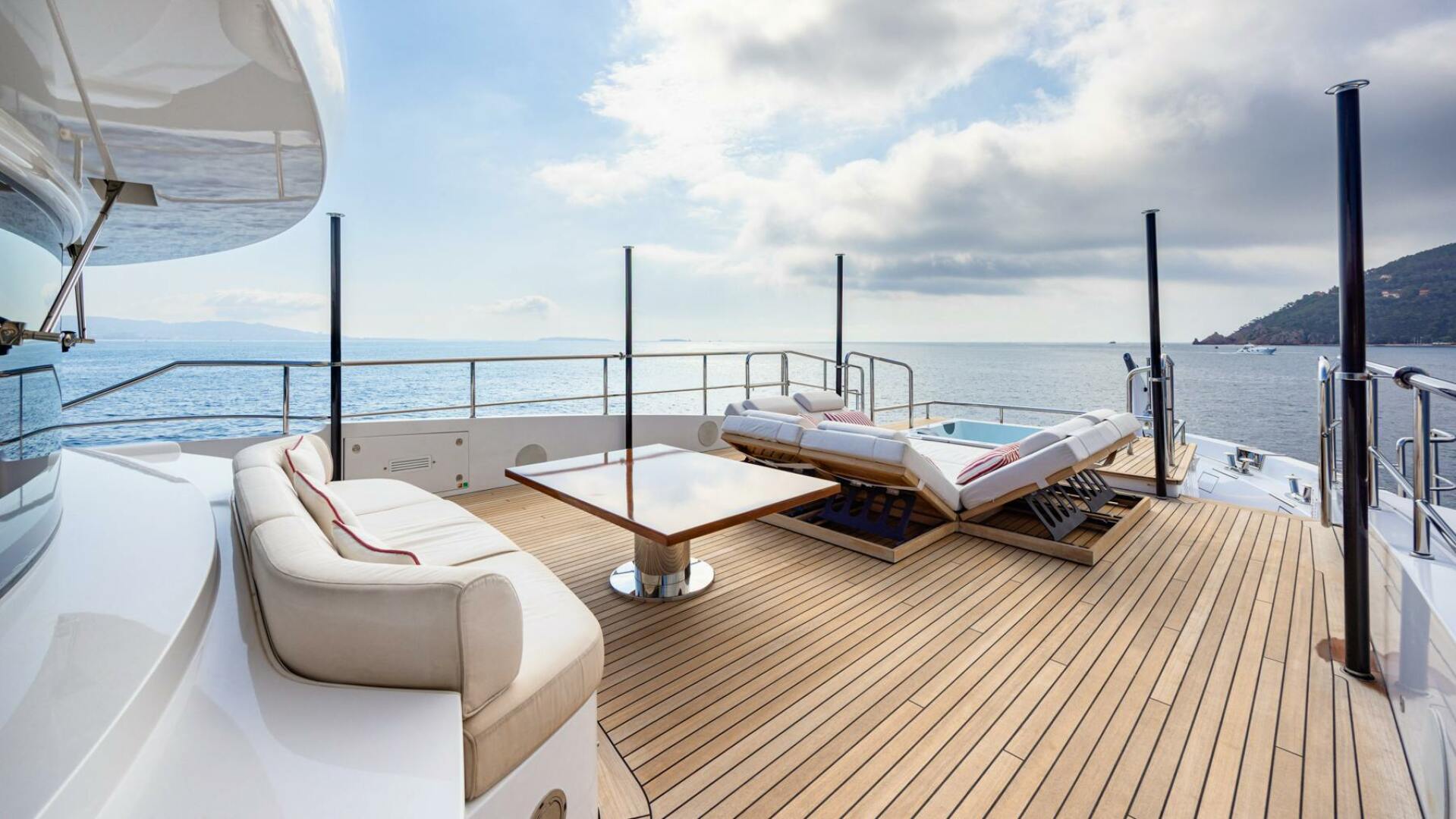

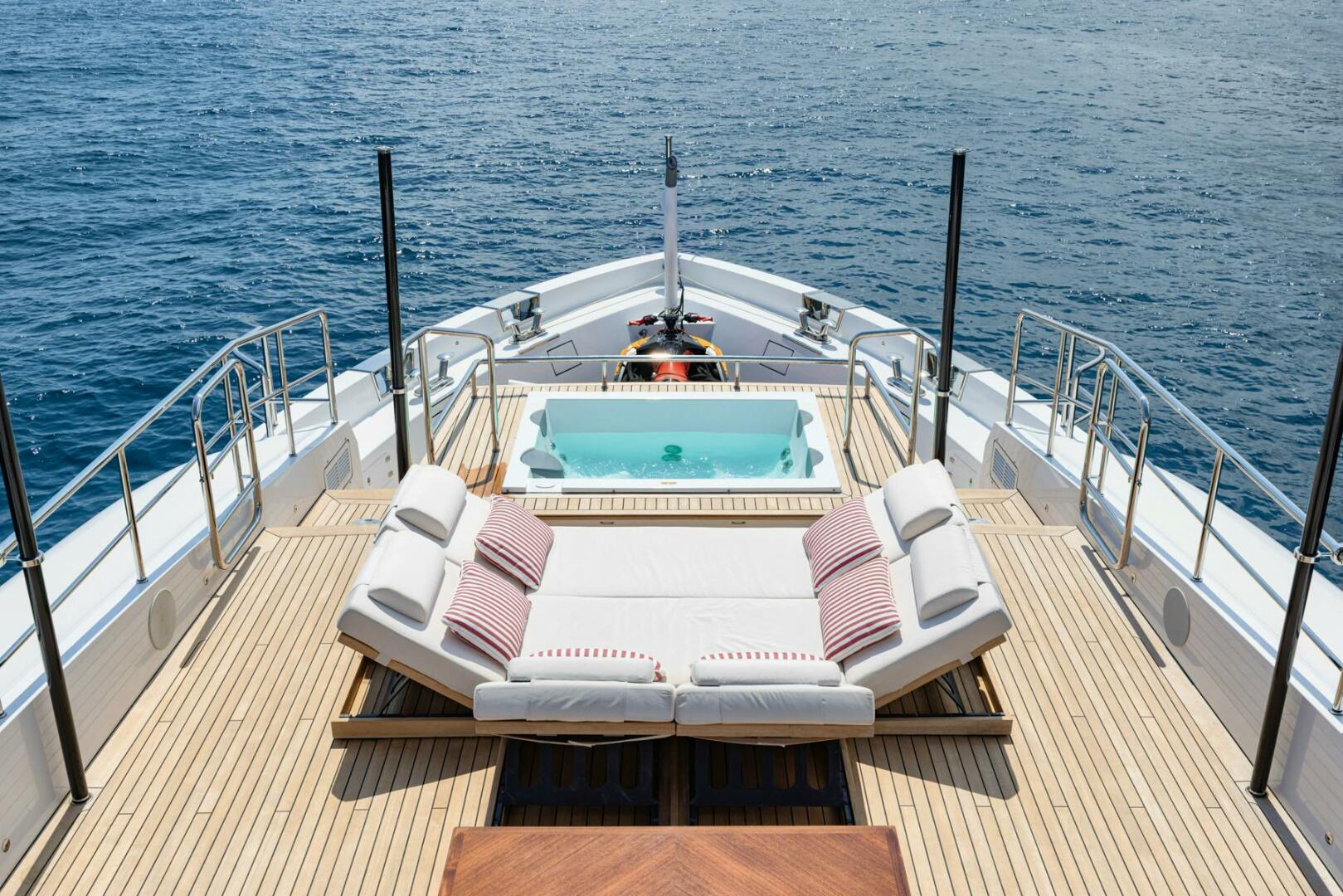

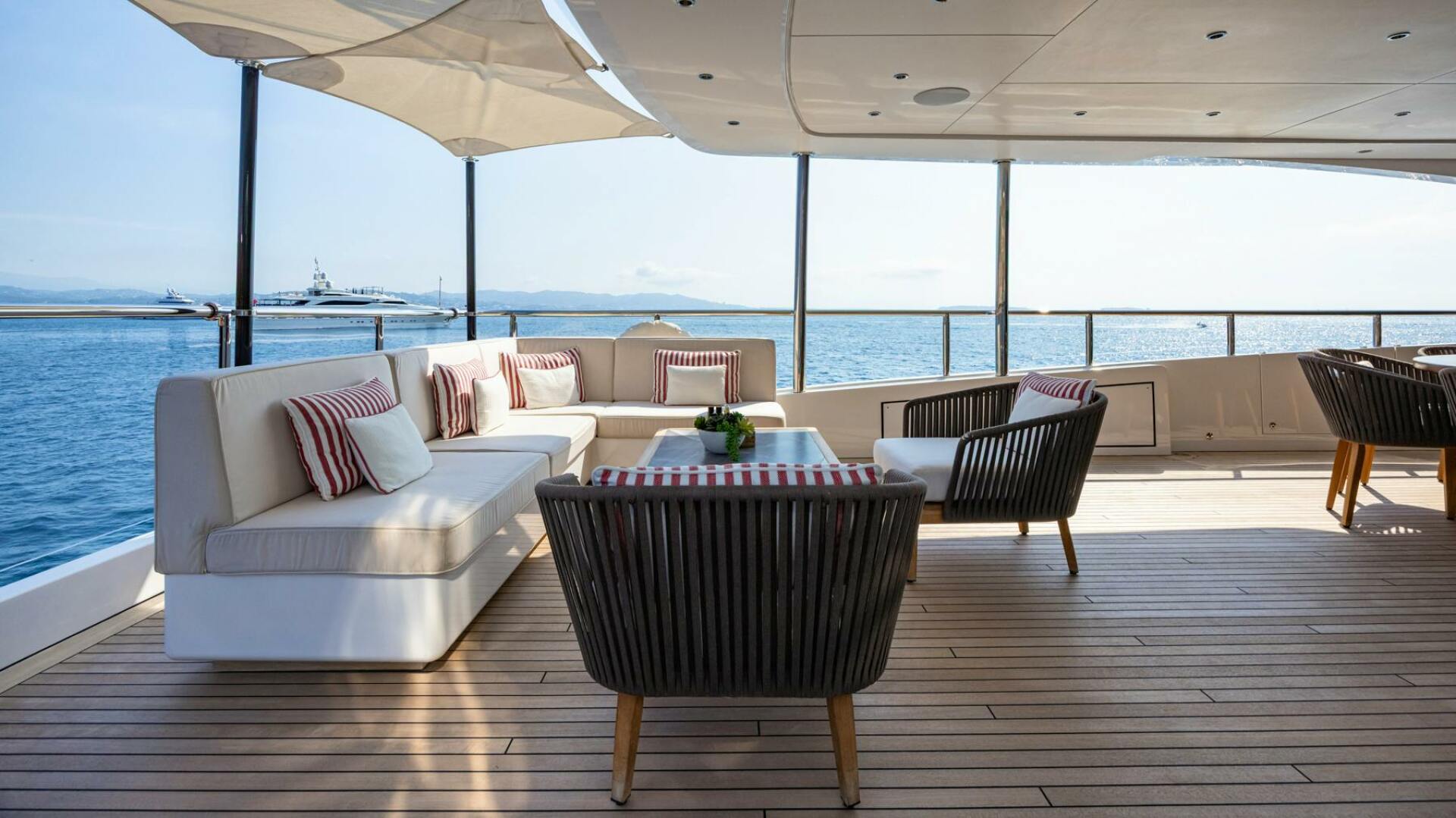

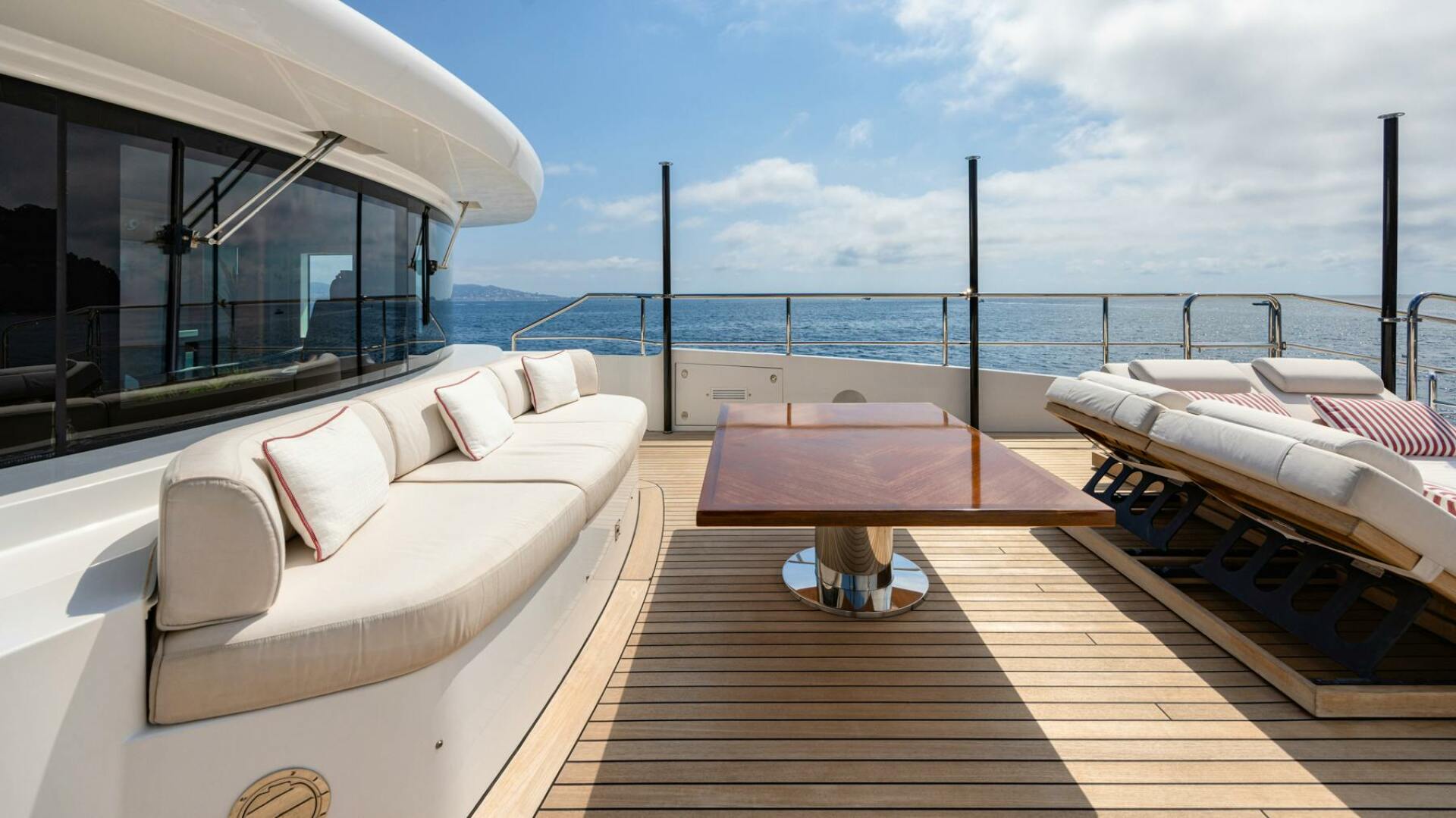

Sun Deck:
•    Integrated Wi-fi remote control (mini-iPad)
•    Mini iPad charge docking station
•    3 x Pairs of marine speakers
•    Power amplifier

Crew Mess:

•    TV 32” LCD Full HD
•    Micro Hi-Fi – AM/FM Tuner - BD player
•    Crestron system
•    Apple TV
•    Video on Demand
•    Pair of loudspeakers
•    Monitoring screen

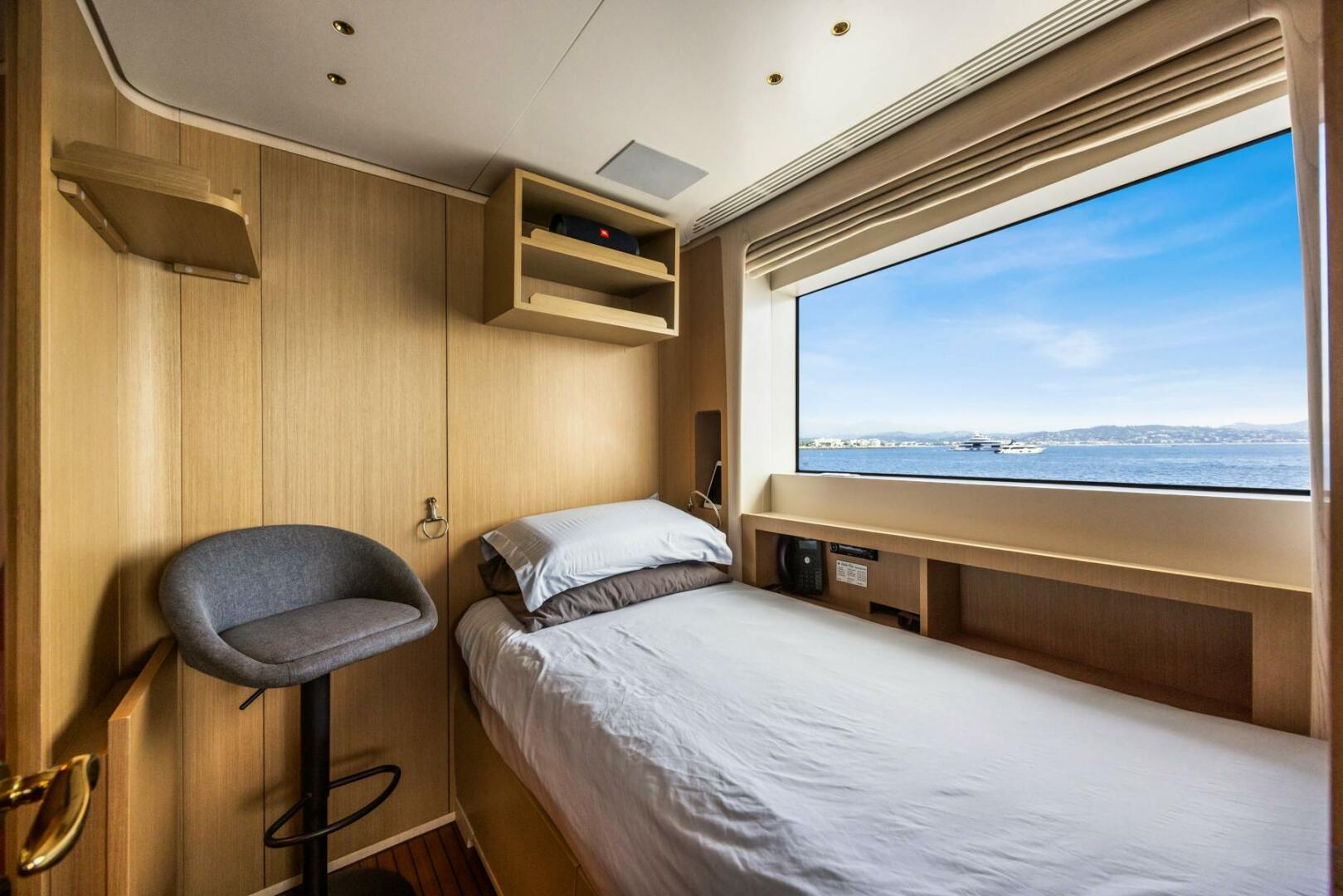

Crew Cabins:

•    AM/FM Tuner - CD player- iPod Ready
•    TV + Apple TV
•    Pair of loudspeakers

Galley:

•    AM/FM Tuner - CD player- iPod Ready
•    Pair of loudspeakers

Wheelhouse:

•    Micro Hi-Fi - AM/FM Tuner - CD player
•    Pair of loudspeakers

Captain’s Cabin:

•    AM/FM Tuner - CD player- iPod Ready
•    Crestron system
•    Apple TV
•    Video on Demand
•    Pair of loudspeakers

AV Technical Space:

•    2 x Switches managed 24 ports full gigabits
•    Service PC for rack maintenance and remote service
•    AVoD storage system 9 Tbytes raw (6Tb net) RAID System
•    CRESTRON processor
•    Voip Server
•    Wi-Fi controller
•    9 x AppleTV
•    Power amplifier
•    UMTS Router
•    UPS Rack mount
•    Rack for devices housing

Crew:

•    1 x Miele washer machine
•    2 x Miele dryer machine
•    Crew mess fridge

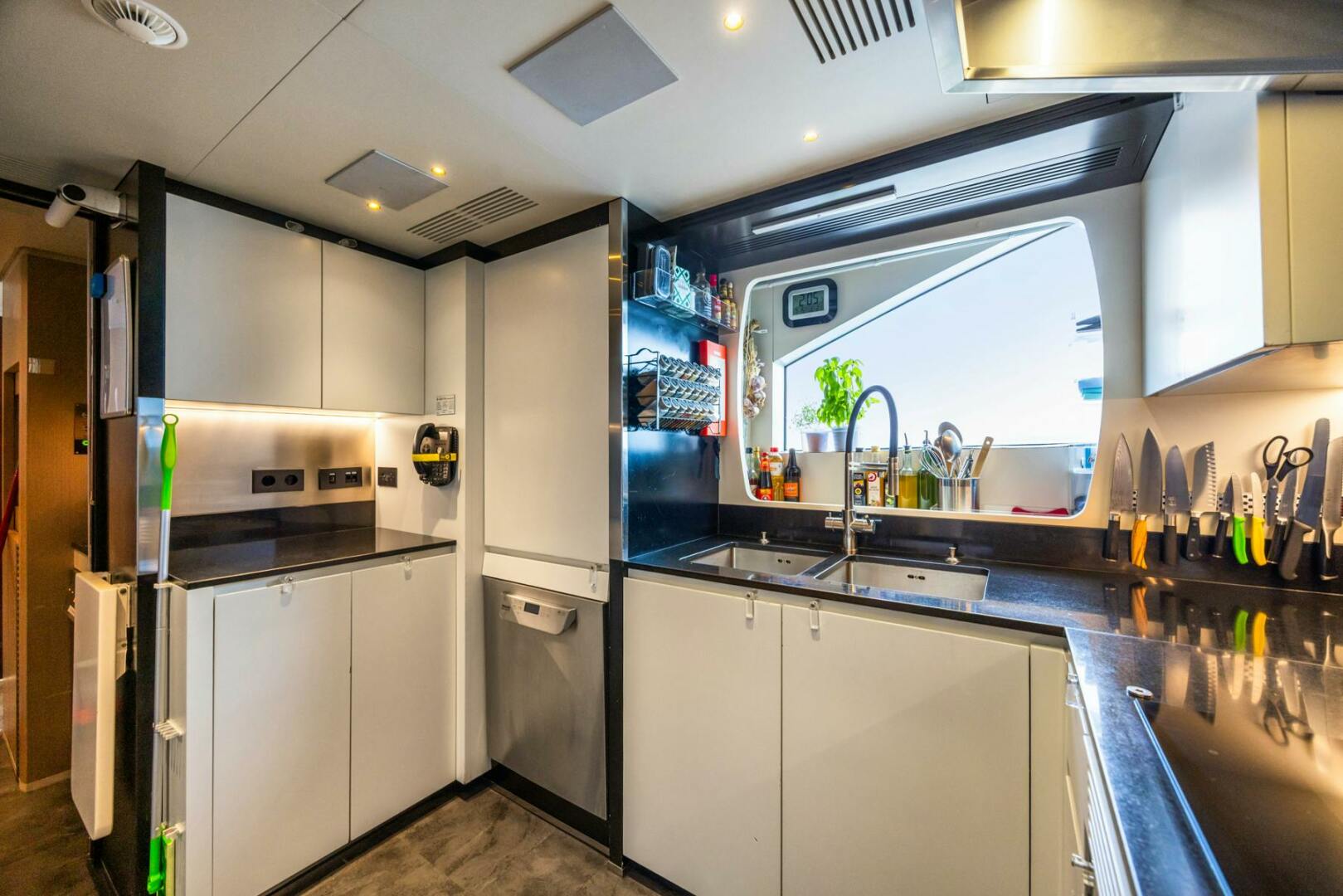

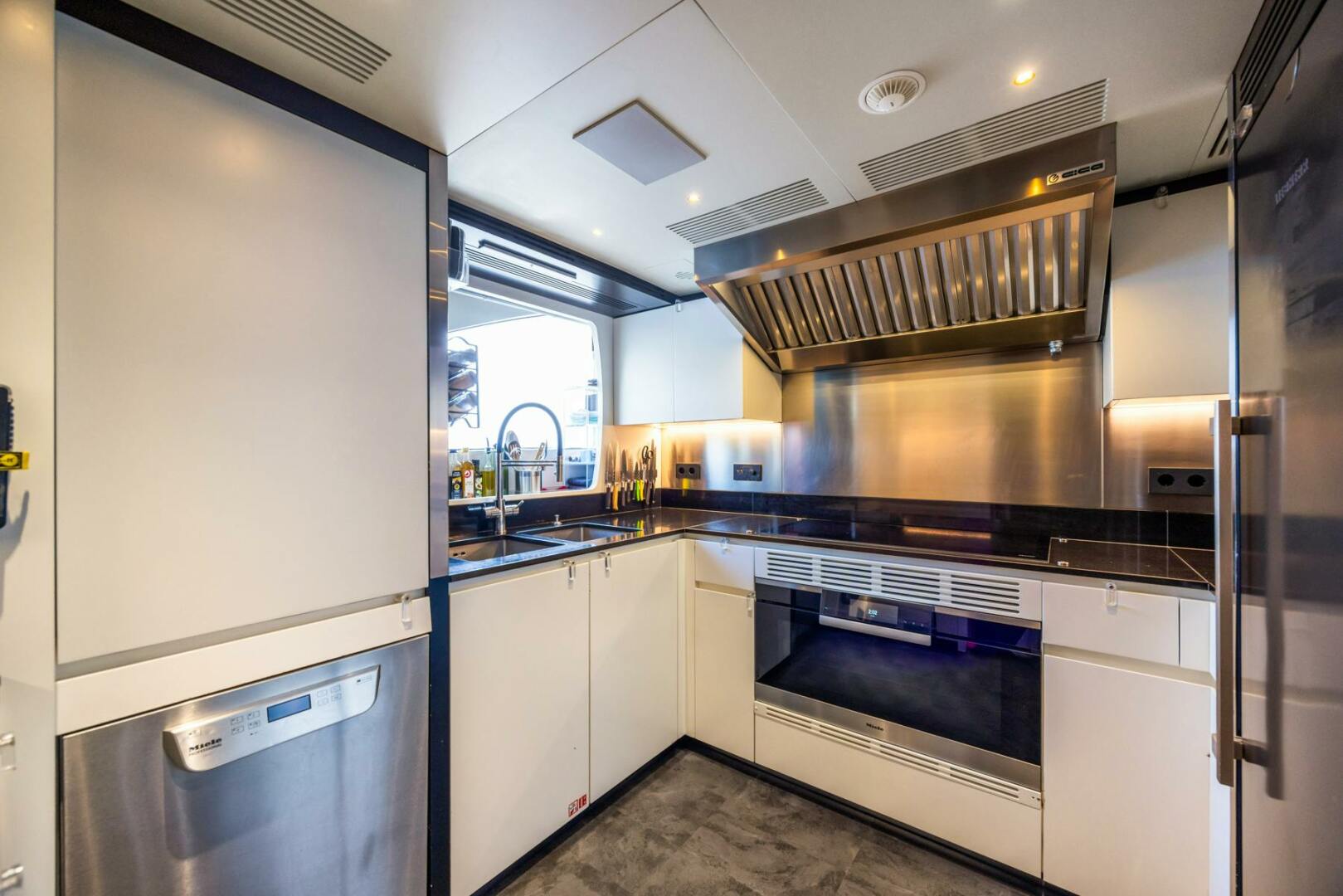

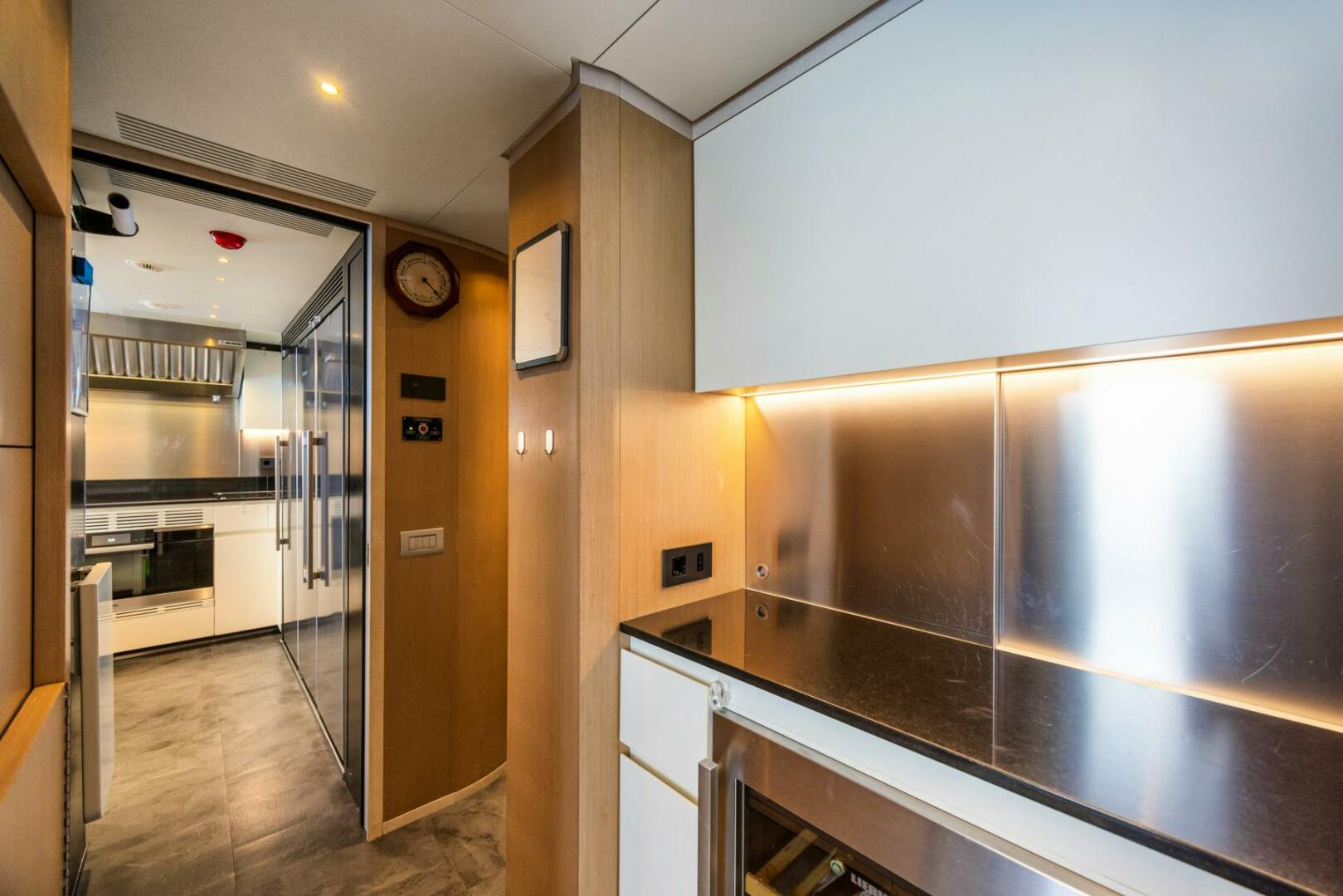

Galley:

•    Miele Cooking top
•    Miele Exhaust hood
•    Miele Oven
•    2 x Miele Dishwasher
•    Garbage macerator
•    Freezer
•    2 x Fridges
•    Nespresso coffee machine
•    Trash Compactor

Pantry:

•    Wine cellar
•    Microwave

Sky Lounge:

•    Ice maker ISOTHERM
•    3 x Mini fridge ISOTHERM
•    BBQ cabinet CUSTOM

External:

•    Sundeck Icemaker
•    Cruise Fridge
•    Sundeck Freezer

Windlasses: 2 x Electric MUIR 400 VAC
Capstans: 2 x Electric MUIR 400 VAC
Mooring Bollards: 10 x AISI 316L stainless-steel
Anchors: 2 x Galvanised steel 200 kg each
Anchor Chains: 2 x 6 shackles per line, 14mm chain
Gangway: Hydraulic retractable telescopic
Swimming Ladder: Manual/removable AISI 316 stainless-steel
Crane: Atlas crane in bow mooring and SD aft for jetski storage
Tender refueling station in garage

Fire Extinguishers: Portable CO2/foam/powder fire extinguishers
Nozzles & Hoses: Fire nozzles and hoses as for rules
Blankets: 2 x Firefighting blankets stored in the galley
Medical Kit: Medical kit supplied
Life Rafts: 4 x Life rafts for 6 people
Life Buoys: 2 x with buoyant line
Life Jackets: 17 x Life jackets
Engine Room Fire Dampers: 4 x Fire dampers

Tender: Williams 505 dieseljet
Jetskis: 2 x Seadoo Spark TRIXX 2-UP 90

•    Glendenning CM8 for shore power supply with 25m cable
•    Shore Power converter (70 KVA)
•    Shackles anchor chain upgrade (6 shackles per line, 14mm chain)
•    Atlas crane in bow mooring and SD aft for jetski storage
•    GSM phone line
•    Furuno AIS, GPS, and Maxsea TimeZero Chartplotter
•    Transas NS4000 ECS Chartplotter
•    2 x Additional 15” LCD screens in the Wheelhouse
•    Provision for VSat and SAT TV cables
•    External speakers independent from internal source
•    Crestron system + Apple TV + Video on Demand in captain cabin and crew mess
•    TOP option: TV, stereo, and Apple TV in 3 crew cabins
•    Third monitoring screen addition in the crew mess
•    CCTV Full HD cameras: 3 fixed on Main Deck, 2 panning in Engine Room, 1 on mast, 1 mini fisheye on aft UD dining area
•    3 x Mattresses upgraded to 9-inch high
•    Guest bases with 12-buck airflow holes; crew bases lined with Heronrib for airflow
•    Ice maker (Isotherm IM230) on the sun deck
•    External shower with stainless steel pole on bathing platform
•    Diving equipment store: scuba tanks rack and compressor
•    Marble upgrade throughout the interior
•    Carpet upgrade
•    Underwater lights: 8 installed
•    Gym equipment installation

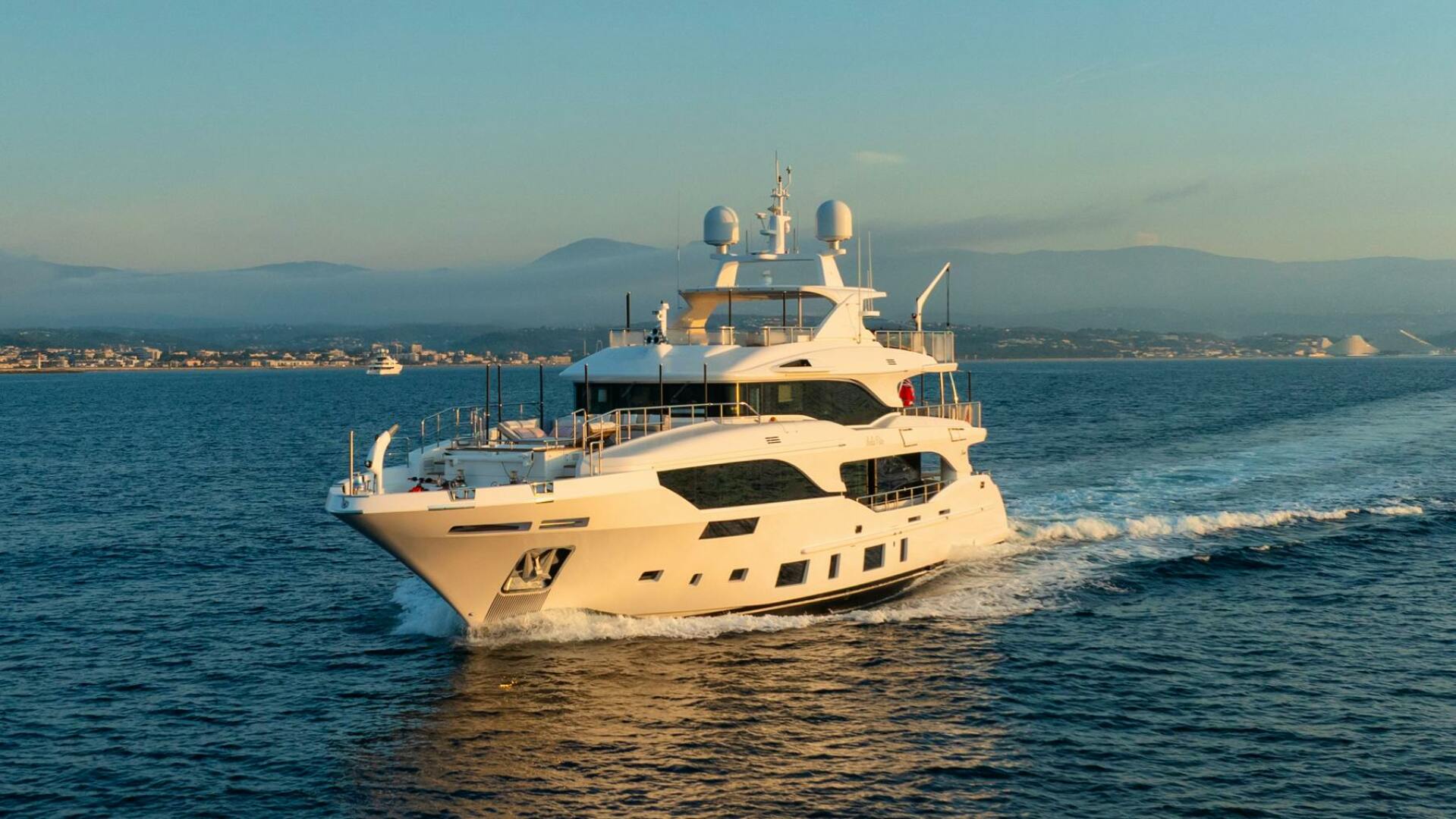

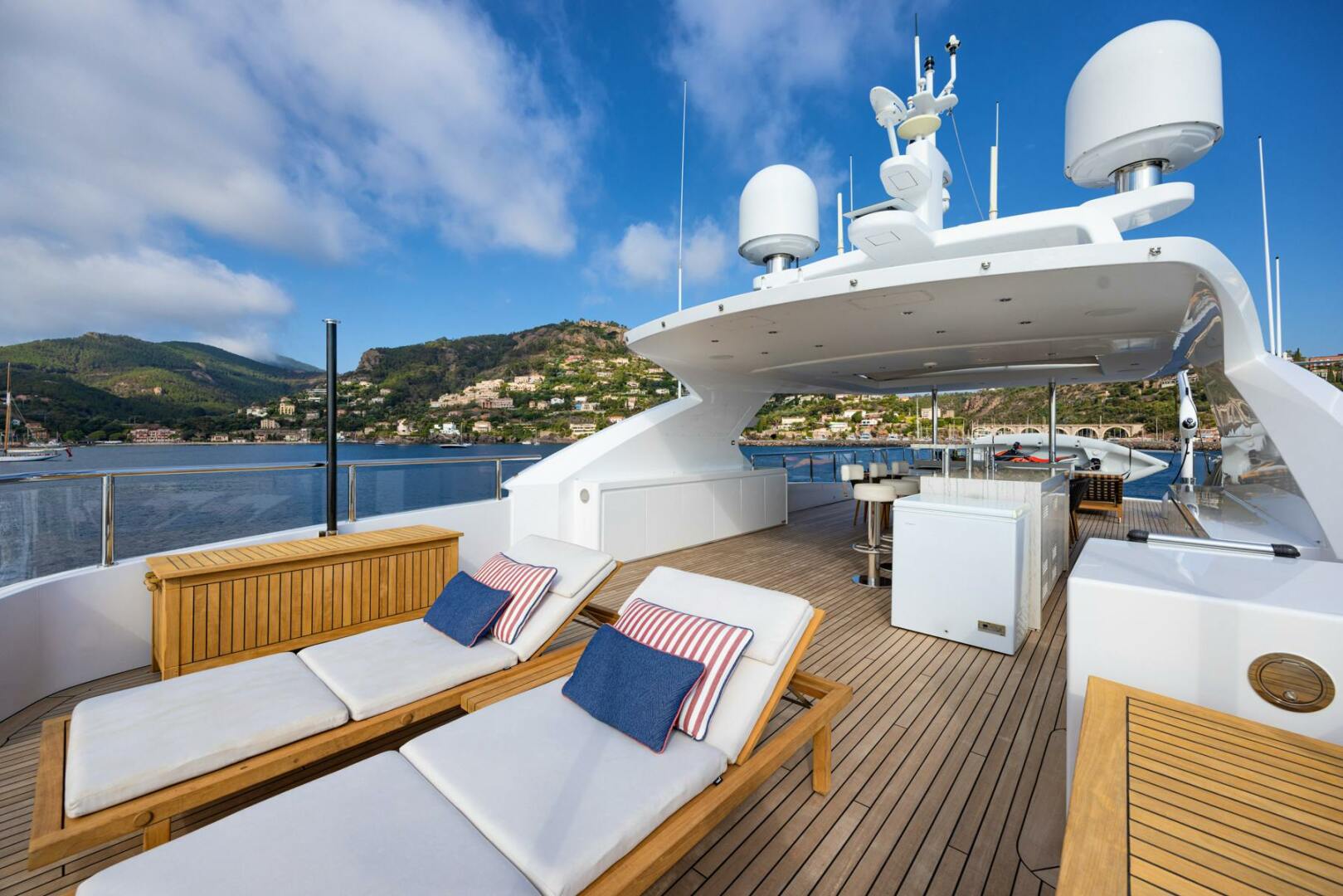

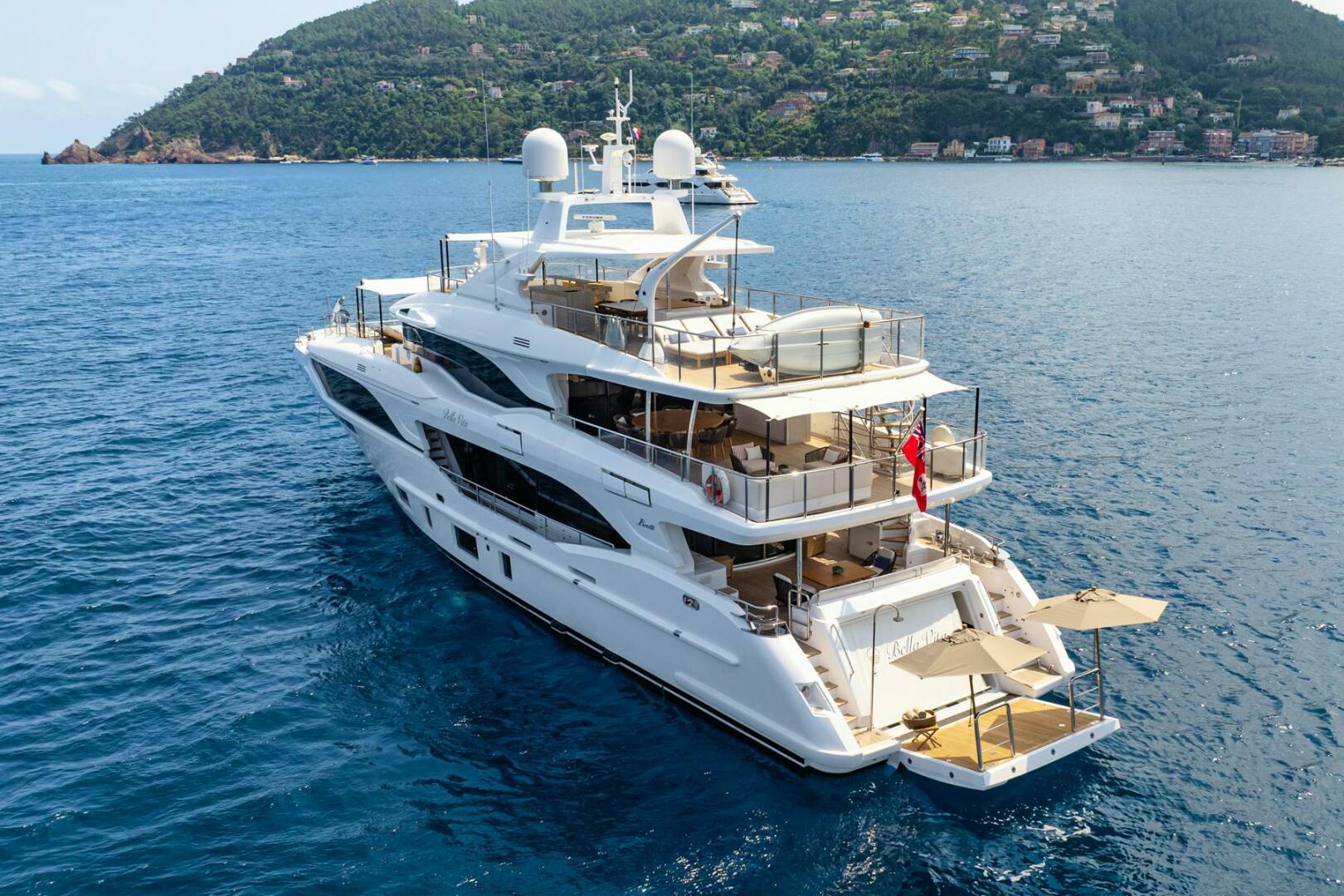

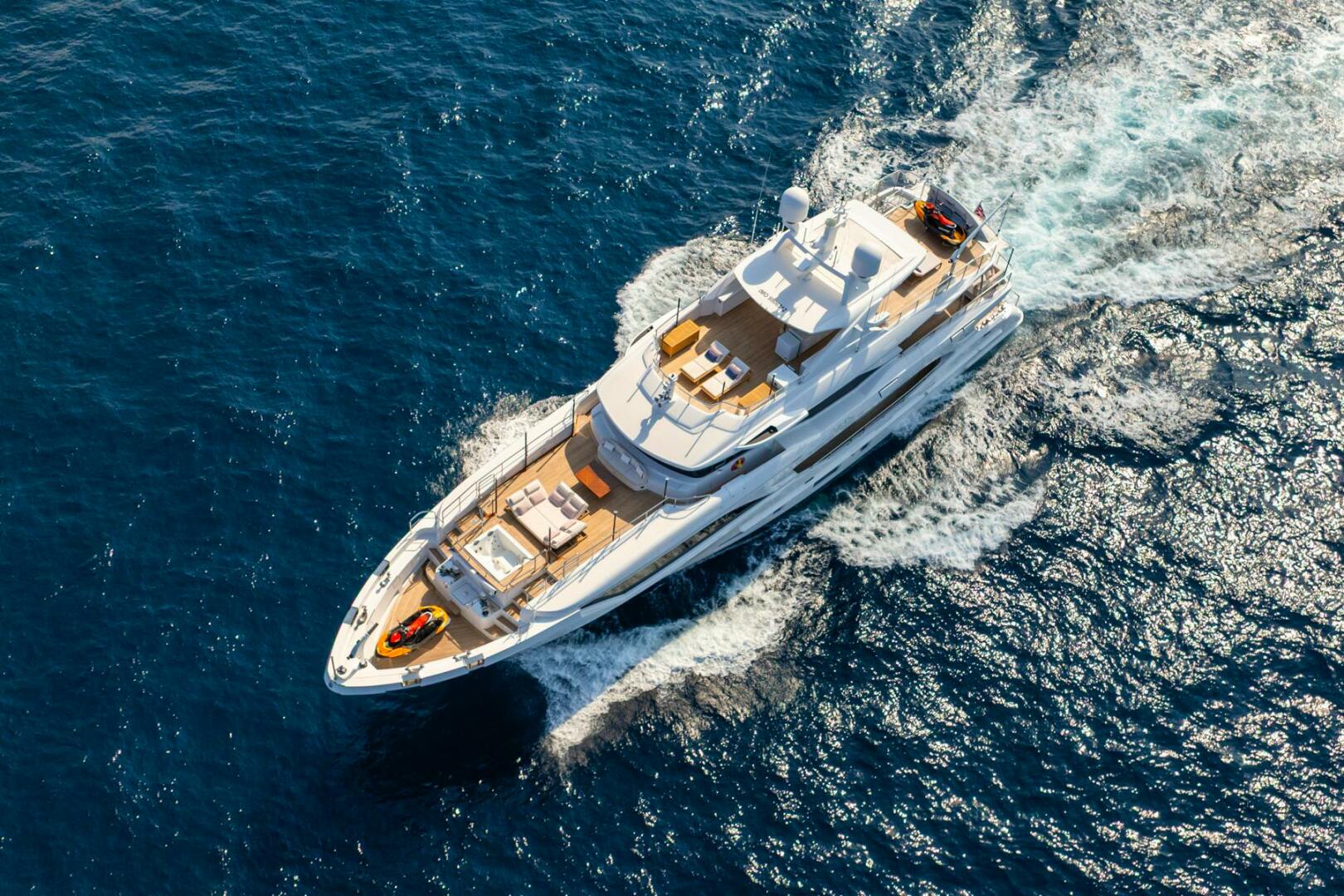

IMAGES OF SISTERSHIP.
