1990 Bristol 47.7

Accommodations

Legacy features a luxurious 2-stateroom, 2-head layout finished in varnished cherry with a teak & holly cabin sole. Starting forward in the guest cabin you'll find a large V-berth with hanging locker and ample storage drawers and lockers all finished in select cherry with a bright finish. Moving aft you'll find a guest head / shower to port and an additional hanging locker to starboard.

The main saloon in the 47.7 is a huge space with a custom, curved dinette to port and twin, upholstered swivel chairs to starboard. Above the swivel chairs you'll find brackets to set up temporary pipe berths for additional crew. Abundant storage is available in several lockers, shelves and drawers outboard of the dinette and settee. The saloon space is especially bright due to the installation of two additional fixed ports in her hull sides, one midships on the starboard side and one behind the dinette cushions. Multiple overhead hatches and several stainless steel opening ports provide additional light and ventilation.

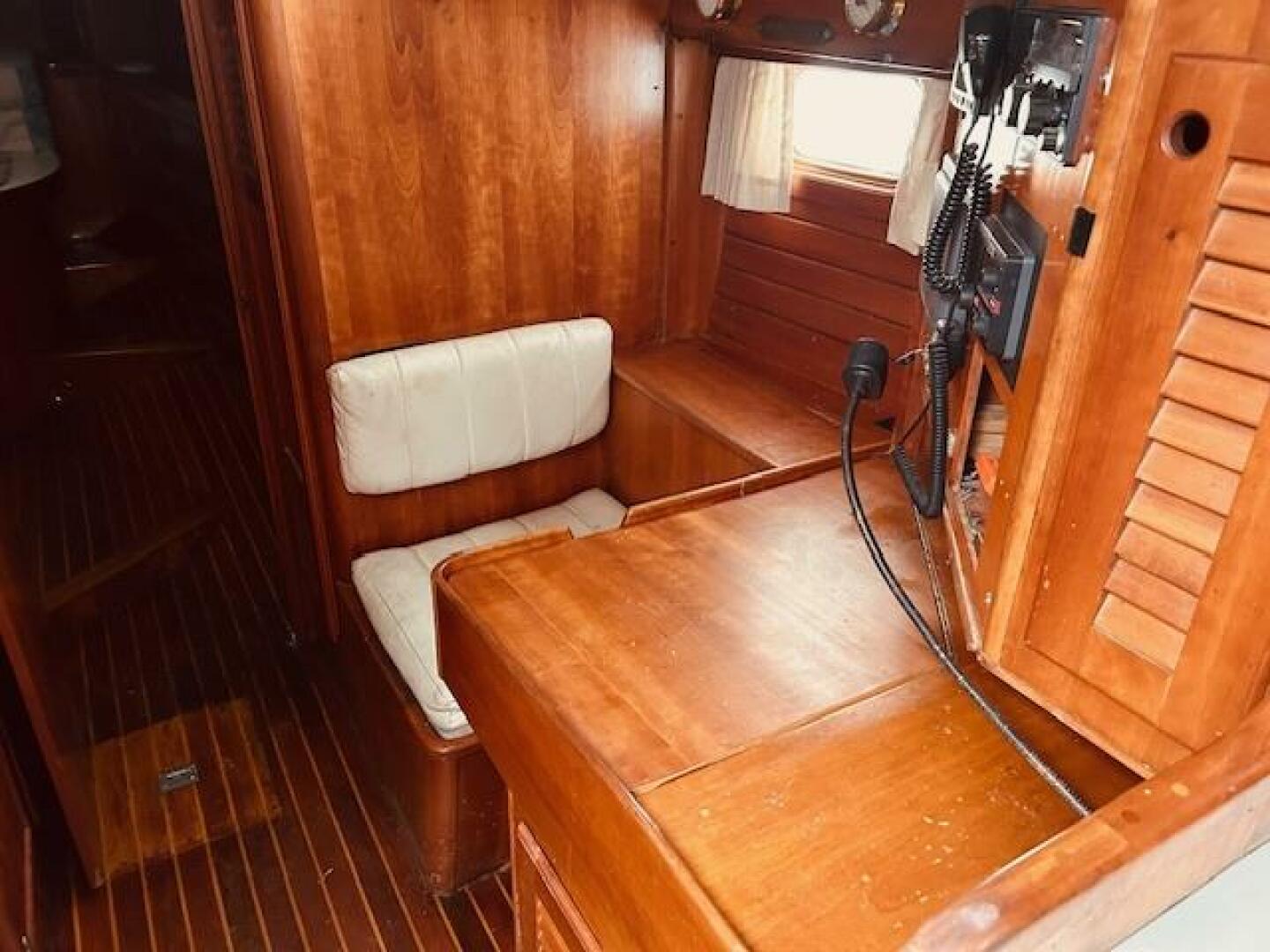

Moving aft from the saloon you'll find the U-shaped galley to starboard and a forward-facing Nav station to port, followed by a walk-through passage into the aft cabin. Engine and generator access is provided along the inboard side of the walk-through passageway along with DC & AC switch panels.

The aft Master Stateroom is a thing of beauty, featuring a walk-around island berth, two hanging lockers, a bureau with multiple drawers, numerous small storage spaces and access to the private aft head and shower.

Galley

Located to the starboard of the companionway steps.

• Spacious U-shaped galley with white corian countertop and a matching corian sink.
• Both fresh & sea water taps.
• H/C pressure water
• Facing aft is a large stainless steel top and front loading icebox with SeaFrost refrigeration.
• A microwave oven mounted over a cabinet with custom dish and cup holders.
• Next to the microwave is a gimbaled Force 10 three burner stove/oven with a Xintex S-2 propane monitor.
• Opposite the galley on the port side is a large stailness steel freezer, just forward of the Nav Station
• A trash receptacle is built in under the sink.
• Abundant storage in lockers and drawers

Heads

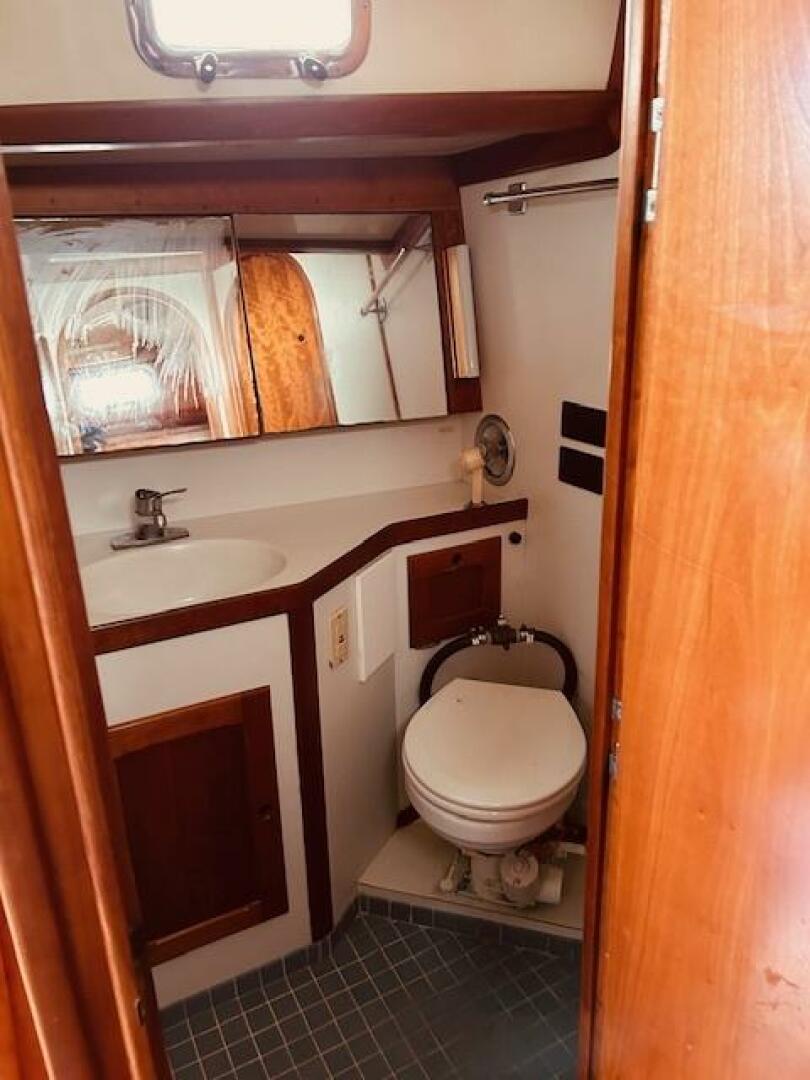

Forward/Guest Head

• Electric Raritan toilet with a Y-valve for direct overboard discharge
• Vanity with Corian countertop and integral sink
• Shower with sump
• Tile flooring
• Abundant storage

Aft/Master Head

• Ensuite to the Master Stateroom
• Electric Raritan toilet with a Y-valve for direct overboard discharge
• Vanity with Corian countertop and integral sink
• Separate full-height shower stall with sump
• Tile flooring

Electronics and Navigation

HELM STATION

• Raymarine 12" HybridTouch plotter
• Raymarine MFD
• Raymarine PL70 Autopilot control
• Simrad VHF remote mic
• Northstar GPS next to companionway
• Binnacle compass needs replacement

NAV DESK

• Simrad VHF
• Raymarine E80 Plotter
• Older Raymarine GPS display
• Icom IC-M700 SSB radio

Electrical Systems

• Northern Lights 5kw generator with 871 hours shown on meter
• (2) 4D house batteries, Group 31 start battery
• Heart Interface battery monitor system
• 30 amp dockside cable with splitter
• 50 amp dockside cable
• Three Guest 2100 battery switches
• 2000w Inverter
• Two high-output alternators
• Forward & Aft auto-electric bilge pumps
• Horn
• 12V fans
• 12V outlets

Mechanical Systems

• Marine Air VR 16K-H heat pump/air conditioner with environmental control unit
• Whale Gusher manual bilge pump
• 3 blade Max Prop
• Spur line cutter
• Emergency tiller
• Groco Paragon Jr. freshwater pump
• Stainless steel prop shaft with LasDrop stuffing box
• 2 Racor water/fuel separators with detection kits
• VDO electric tank monitoring system
• 2 electric shower pumps
• Fireboy 1310 automatic halon fire control system
• Raritan 12 gln electric/heat exchanger hot water heater
• (2) 10# propane tanks

Deck & Hull

The hull is constructed of hand laid solid fiberglass and finished in Hunter Green Awlgrip with dual white boot stripes. The centerboard keel has encapsulated lead ballast.

The deck is laminated with end grain balsa core/fiberglass construction, fastened on top of a recessed 3" flange and through bolted with 5/16" stainless steel bolts. Decks are finished with white gelcoat and light grey non-skid. Some of the white gelcoat areas are faded and need painting or new gelcoat.

• Cockpit has a teak sole
• Cockpit cushions
• LifeSling MOB
• Forespar Motor-Mate
• Teak outboard motor mount
• Boarding gates port & starboard
• Swim ladder with teak steps
• 4 teak dorade boxes with Hood SS 6500 cowl vents and SS guard rails
• Oversized Spade Primary Anchor w/200' Chain and 200' 3/4 Nylon Rope
• Large Danforth secondary anchor w/25' Chain + 200' Nylon Rope
• Maxwell VWC rope/chain windlass (2004) w/ foot switches
• Custom teak barrier trim on foredeck to contain anchor dirt from washing down the deck
• Custom made teak cockpit table w/sides
• All lifelines replaced (2002)
• Four inflatable fenders
• Bosun seat
• Guest 220 spotlight
• Mast mounted electric horn
• Tri-color strobe light on mast
• Dodger with removeable wing panels
• Bimini top with window
• Full cockpit enclosure w/removeable curtains
• Companionway screen
• Kato Stainless steel dinghy davits
• 30" side stanchions with double lifelines
• Edson wheel pedestal w/teak rimmed wheel
• Aft Deck Shower

Sails & Rigging

Unique to Legacy is the running rigging setup with lines running through the cockpit coaming to Lewmar Grand Prix stoppers accessible from the helm station, so the boat can be easily singlehanded.

• Hood roller reefing 135% dacron 7.4 oz genoa
• Hood 9.0 oz dacron mainsail
• Hood 9.0 oz dacron staysail for removable inner forestay
• Navtec adjustable backstay
• Hood Electric Stoway mast
• Two Barient 36 three speed electric winches
• Firdell radar reflector on mast
• Inboard & outboard genoa tracks
• Harken roller furling headstay
• Removeable inner forestay for cutter rig
• Topping lift
• Insulated backstay
• Forespar boom vang
• Navtec rod standing rigging
• Running backstays
• Spare jib halyard with stopper
• Rod Rigging
