1937 Classic Knud Reimers 15 Square Meter
Get More Info
VIXEN
33' Classic 1937
Classic Knud Reimers 15 Square Meter 1937 For Sale in Brooklin, Maine
$90,000
Brooklin, Maine
Dimensions
- Length Overall: 33'
- Beam: —
- Maximum Draft: —
- Dry Weight: —
Tank Capacities
- Fuel: —
- Water: —
- Holding: —
Engine Information
General Description

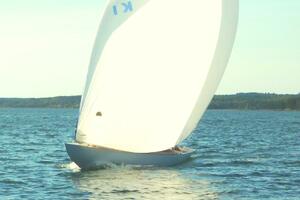

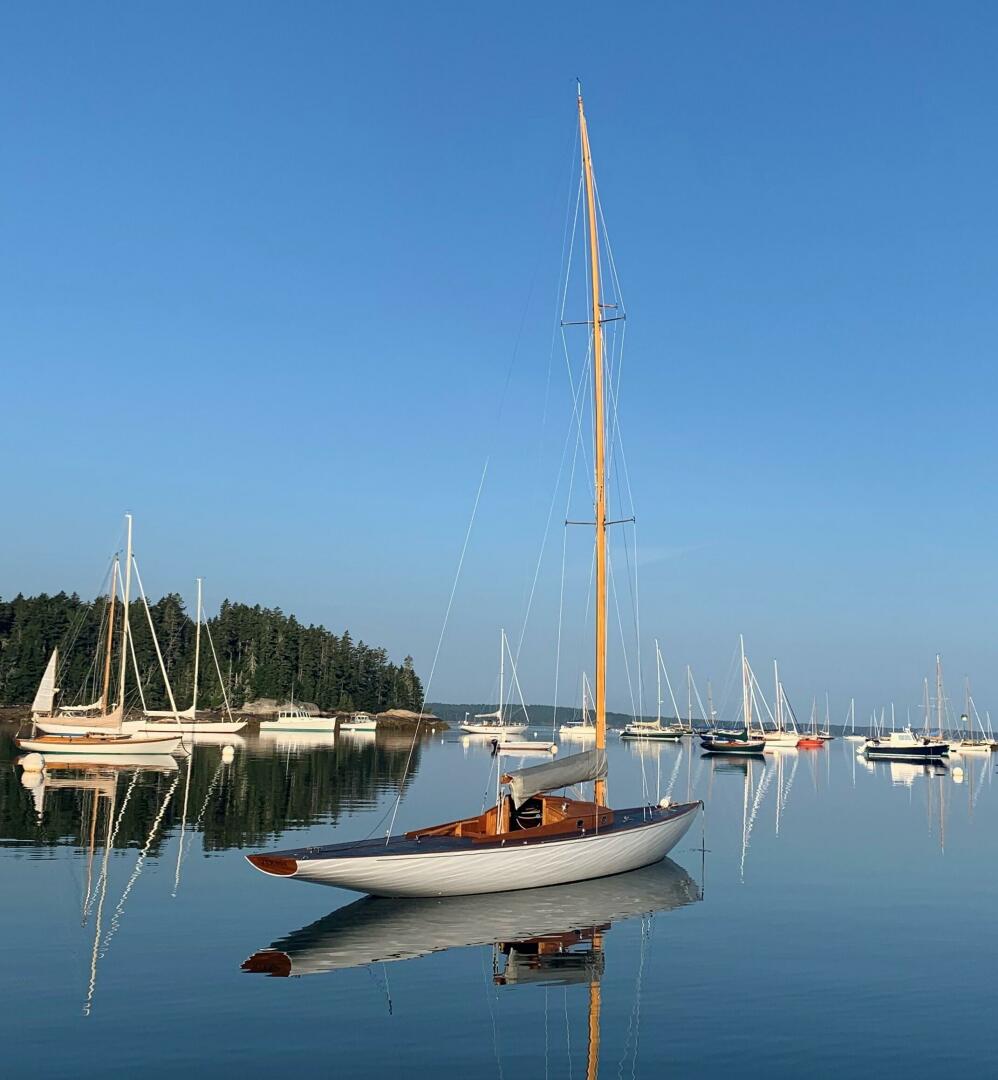

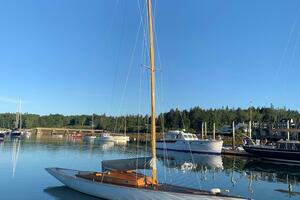

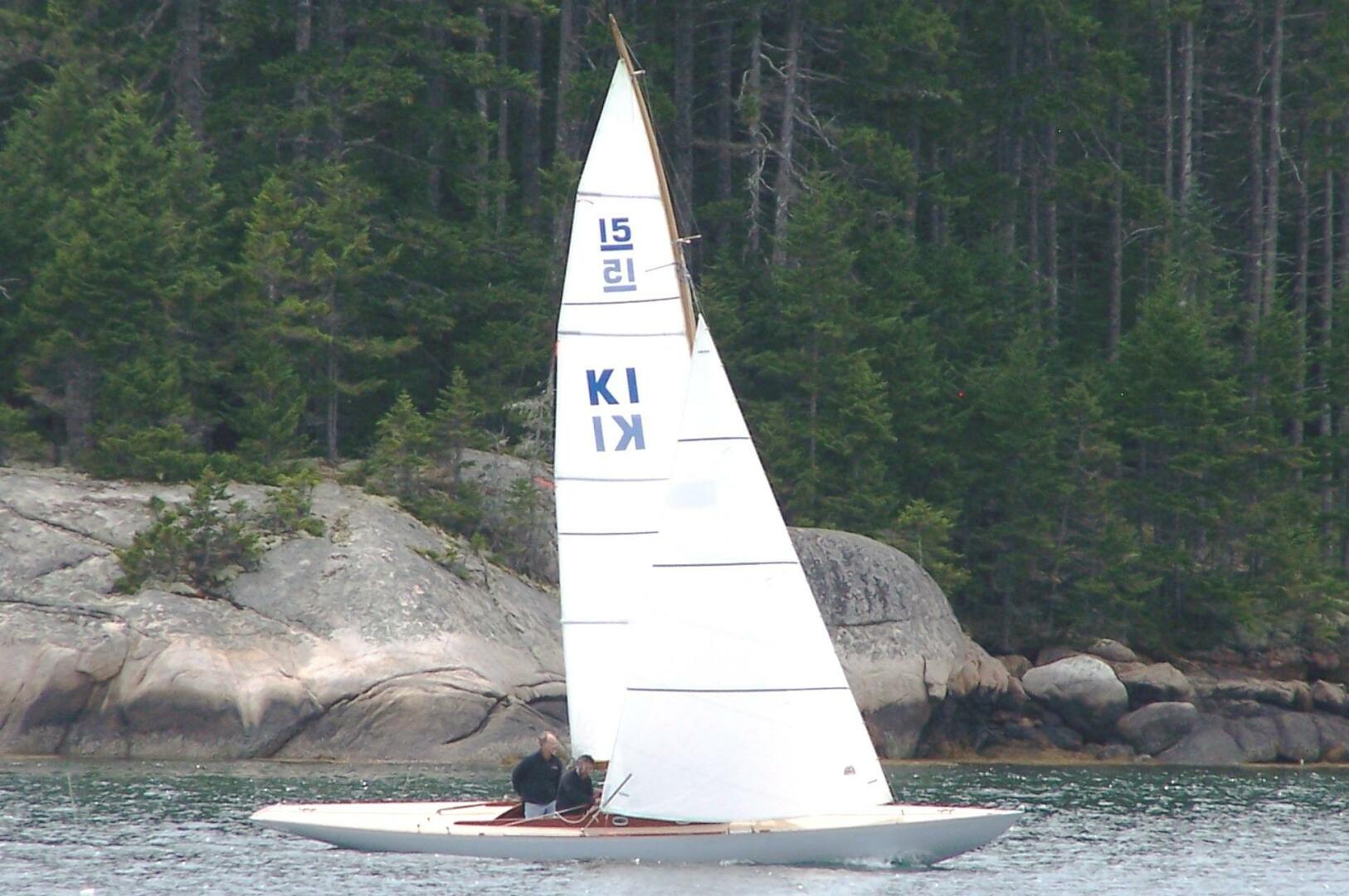

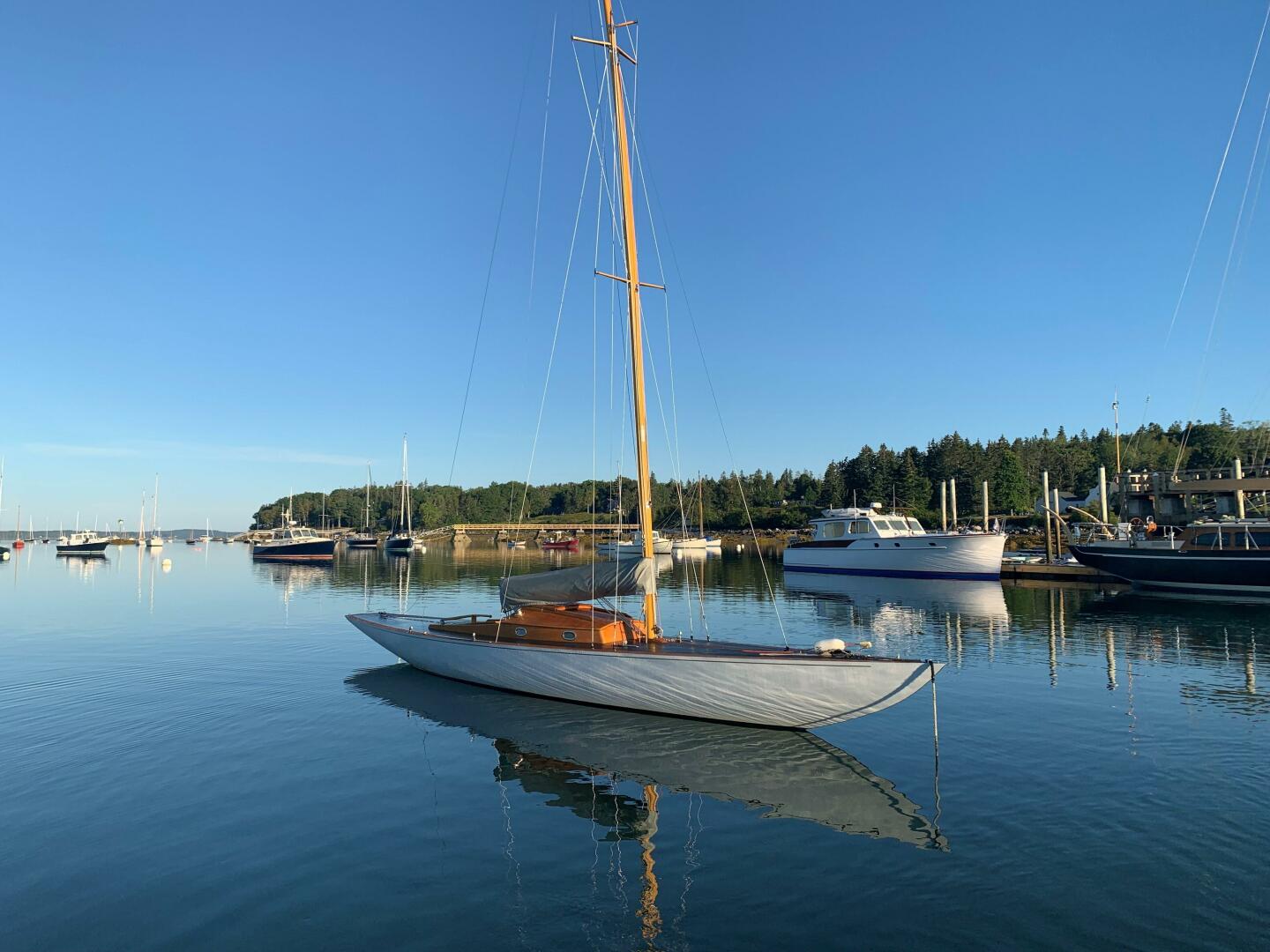

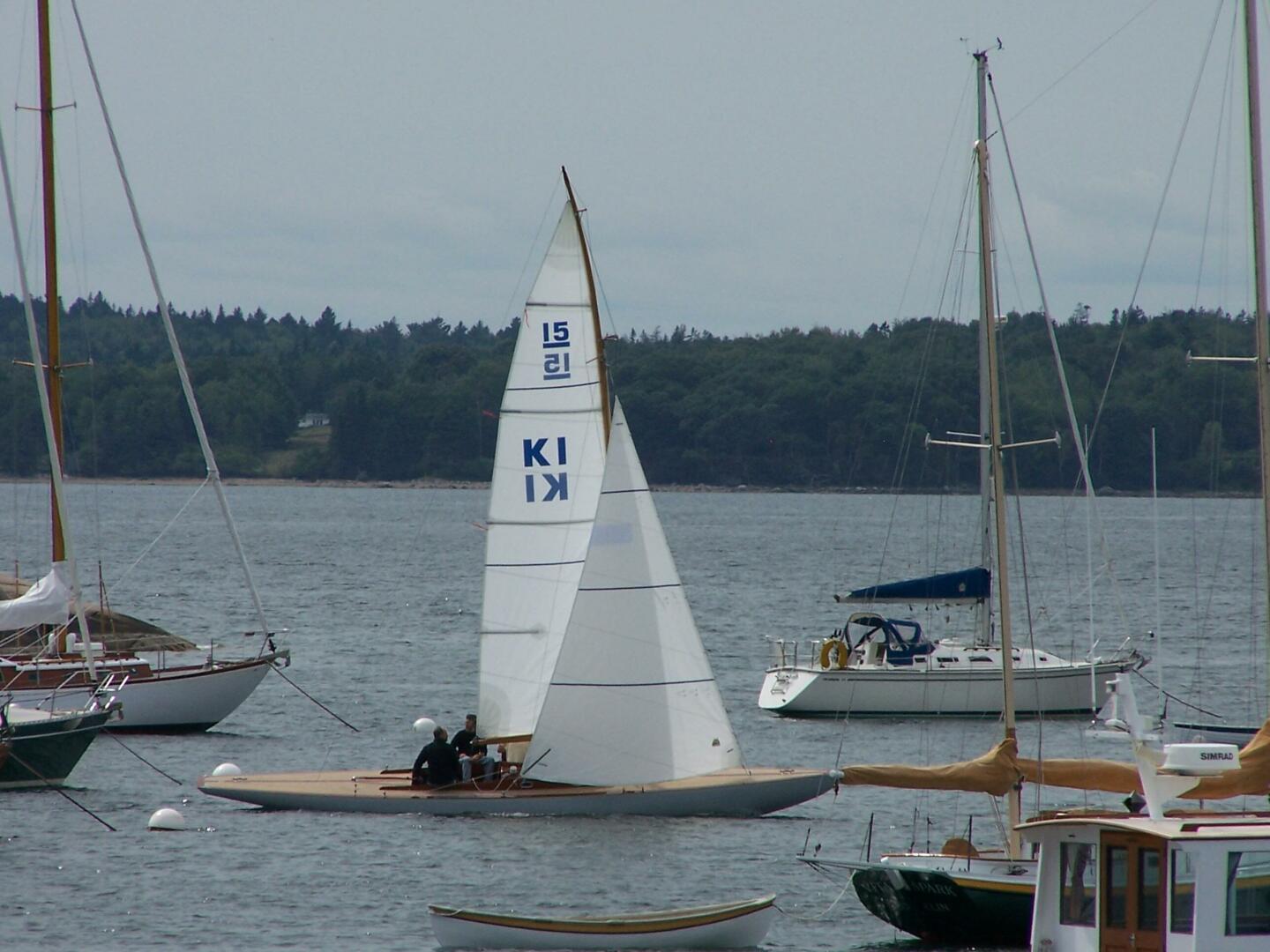

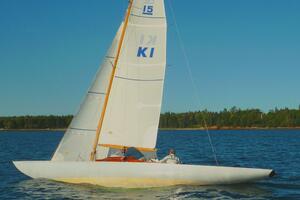

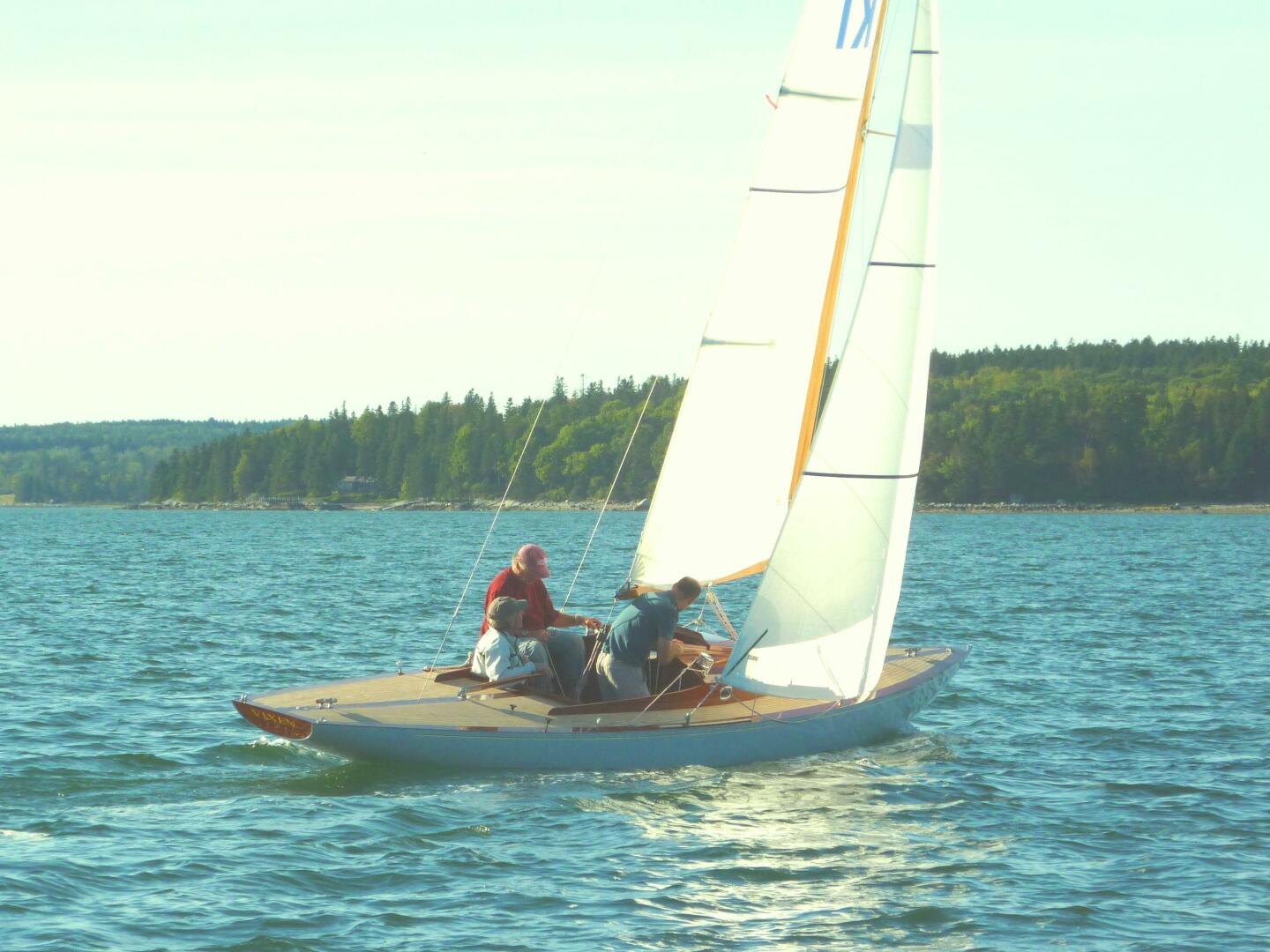

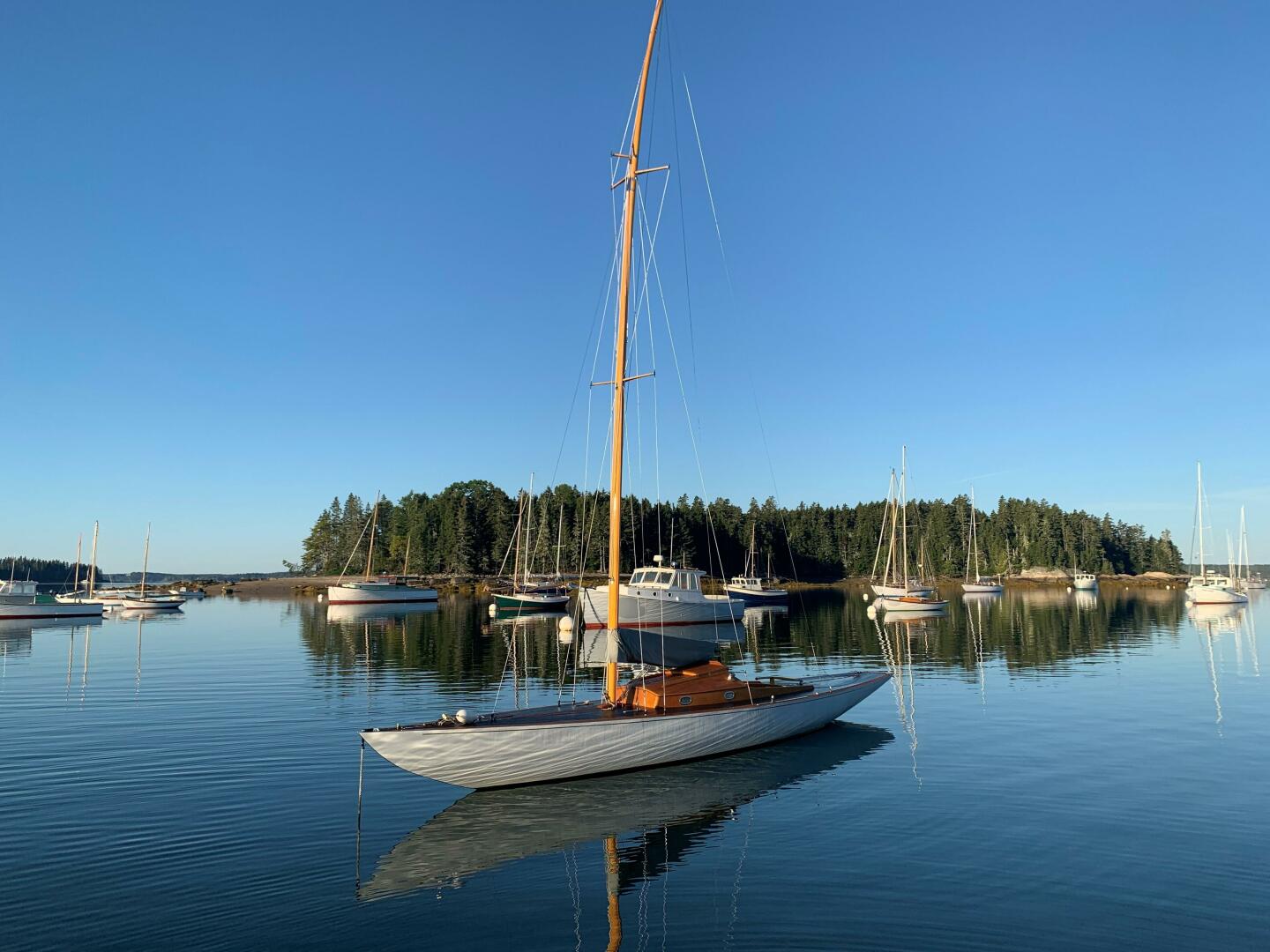

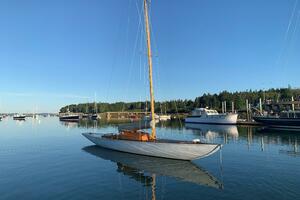

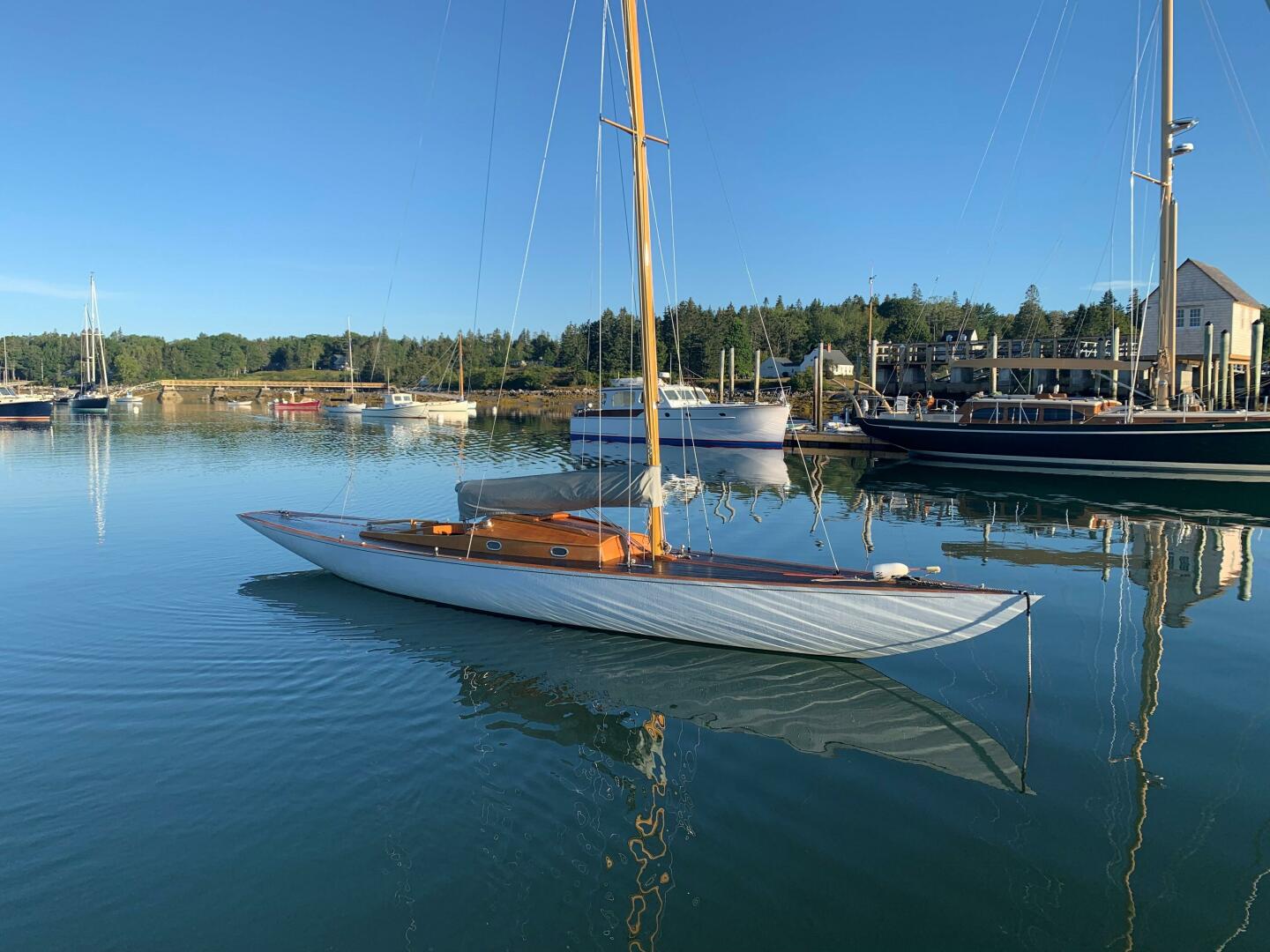

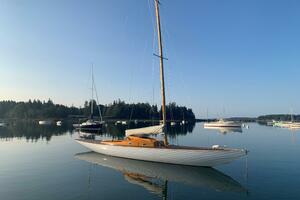

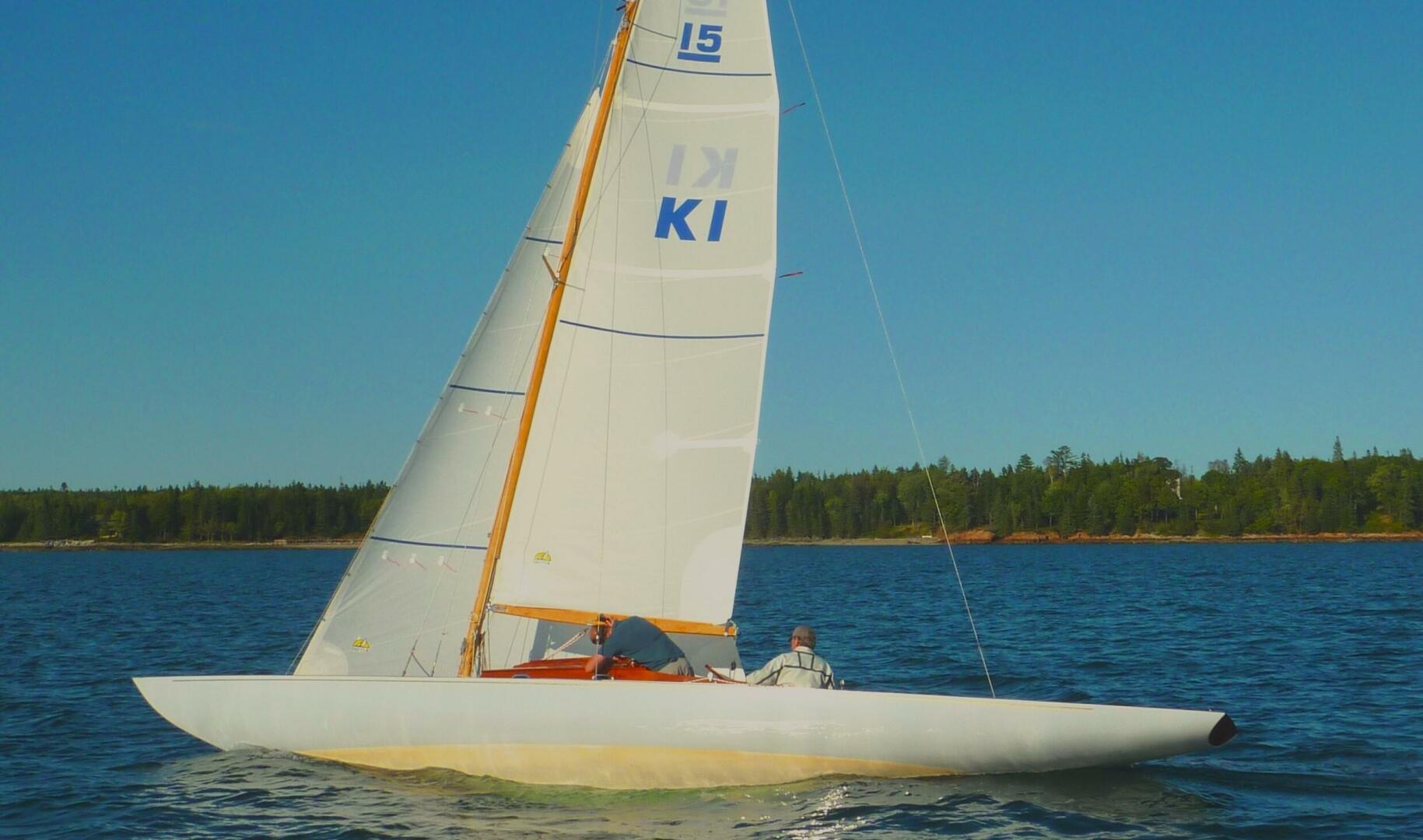

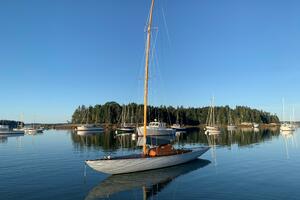

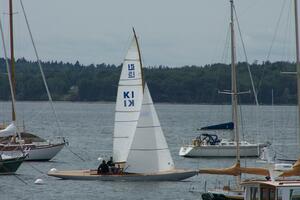

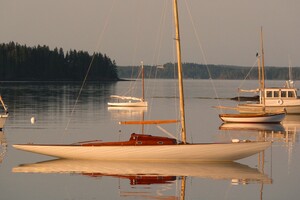

Vixen is a 15 square meter sloop originally designed by Knud Reimers and built by Oscar Schelin’s Kungsors Boat Yard (Sweden) in 1937. She was built for the export market and was shipped directly from Kungsors’s to the UK prior to the start of the Second World War where she was one of only a handful (her sail number is K1) of the elegant Square Meter Rule yachts sailing in the UK.
At the time building to the Square Meter Rule was prolific in the Baltic but scarcely known in the UK. Much finer in form and lighter in displacement than her British counterparts, Vixen and her kind were viewed with suspicion by the (British) yachting establishment and with her light and efficient construction deemed as ‘un-seaworthy.”
One famous British sailor begged to differ with this opinion as he had fallen in love with the Swedish Square Meter yachts and collaborated with Reimers to build his own yacht. This of course, was Uffa Fox, and the boat he built at Cowes was a slightly larger version 22 Square Meter named Vigilant. So confident was Uffa in its sea keeping that he set out to sail the 1,000 miles to its spiritual homeland of Sweden to take part in the Swedish Square Meter Rule championships.
Vixen was raced on the Solent prior to World War II and then moved to Scotland continuing her racing career on the Firth of Forth and then the Clyde. In 2010 Vixen was sailed in the Uffa Fox Challenge (Cowes UK to Trosa, Sweden 1000+ miles) by three intrepid Brits (Luke Yeats, Jack Gifford & Will Shepard) and completed the race in 12 days. After a bit of rest the trio raced Vixen against other 15 square meters in Sweden but eventually, she was put on the hard and offered for sale where she caught the eye of a sailing and yacht restoration enthusiast who just happened to be a client of Brooklin Boat Yard.
Vixen’s new owner had always admired the sleek looks and sailing qualities of square meter boats and wanted to have a wooden boat that he could use to race in the (wood only) classic yacht races here in Maine and southern New England. Figuring that if Vixen had sailed across the North & Baltic Seas without sinking that was as good a survey as needed so he bought her sight unseen.
The boat all her equipment was packed up into an extra-long shipping container and arrived here at Brooklin Boat Yard in the summer of 2011 with just enough time to be launched and raced in the Eggemoggin Reach Regatta.

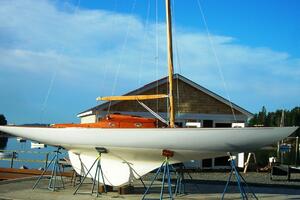

Vixen’s new / current owner had already worked with Brooklin Boat Yard on a complete and total restoration of the Bill Tripp Jr. designed Katrinka so he looked to us again to restore Vixen. Many man-hours, floors, frames, planking, rigging, a whole new deck and cabin later Vixen was back in the water and ready to race again with confidence, style, grace and success.
Vixen is offered for sale now as her owner starts yet another (this will be his fourth) restoration project. Contact us to set up a day to see Vixen for yourself here at Brooklin Boat Yard.
Bluewater Yacht Sales is pleased to assist you in the purchase of this vessel. This boat is centrally listed by Brooklin Boat Yard. It is offered as a convenience by this broker/dealer to its clients and is not intended to convey direct representation of a particular vessel
Principle Dimensions and Information

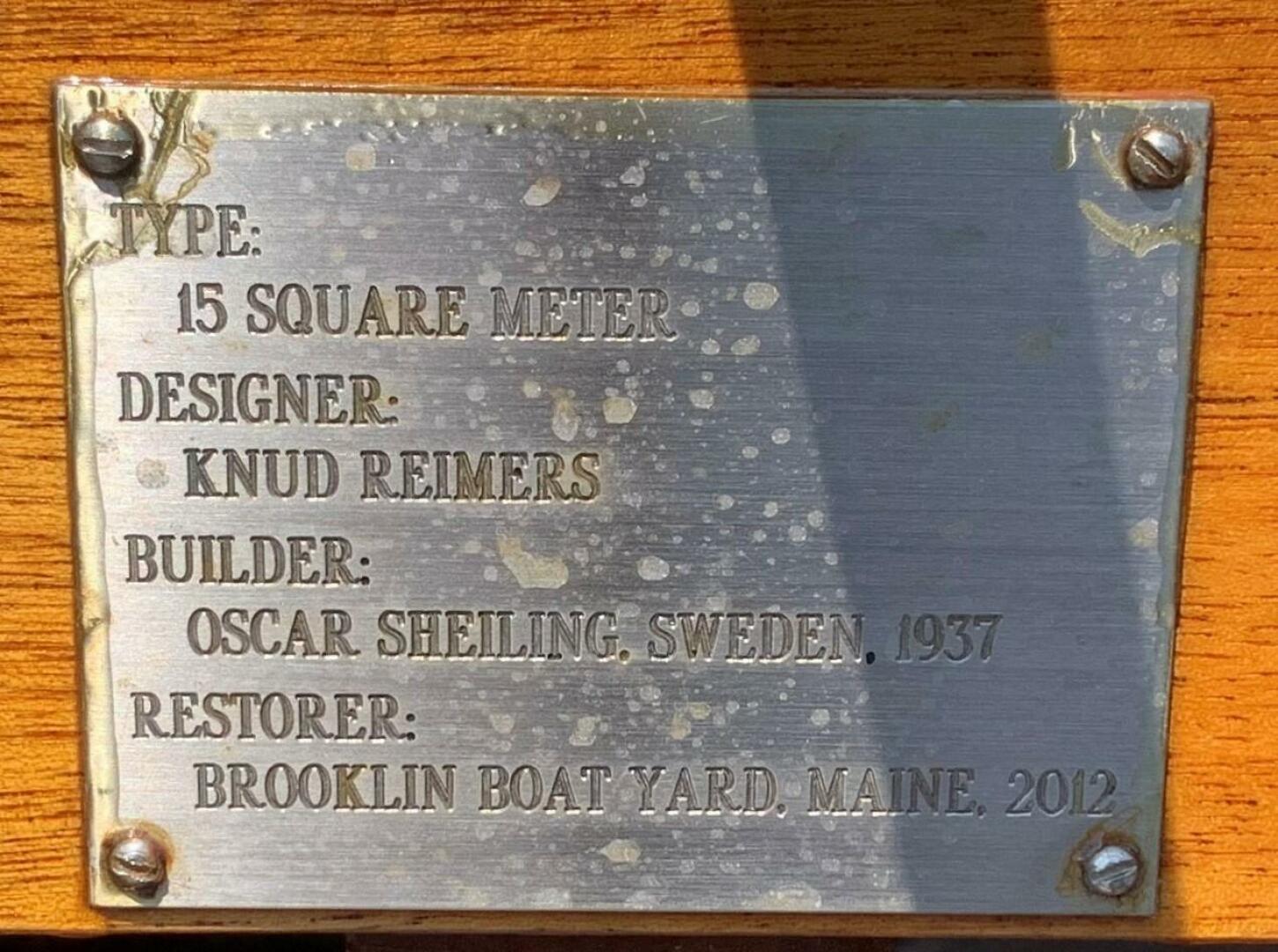

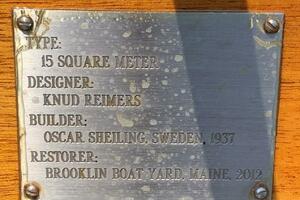

Designer: Knud Reimers
Builder: Oscar Schelin / Kungsors / Sweden
Year Built: 1937
Restoration: Brooklin Boat Yard
Year Restored: 2012
LOA: 33’, 0”
LWL: 21’, 8”
Beam: 5’, 9”
Draft: 5’,0”
Displacement: 2,600 lbs.
Auxiliary Propulsion: Torqueedo electric outboard with side mount
Hull and Deck Construction

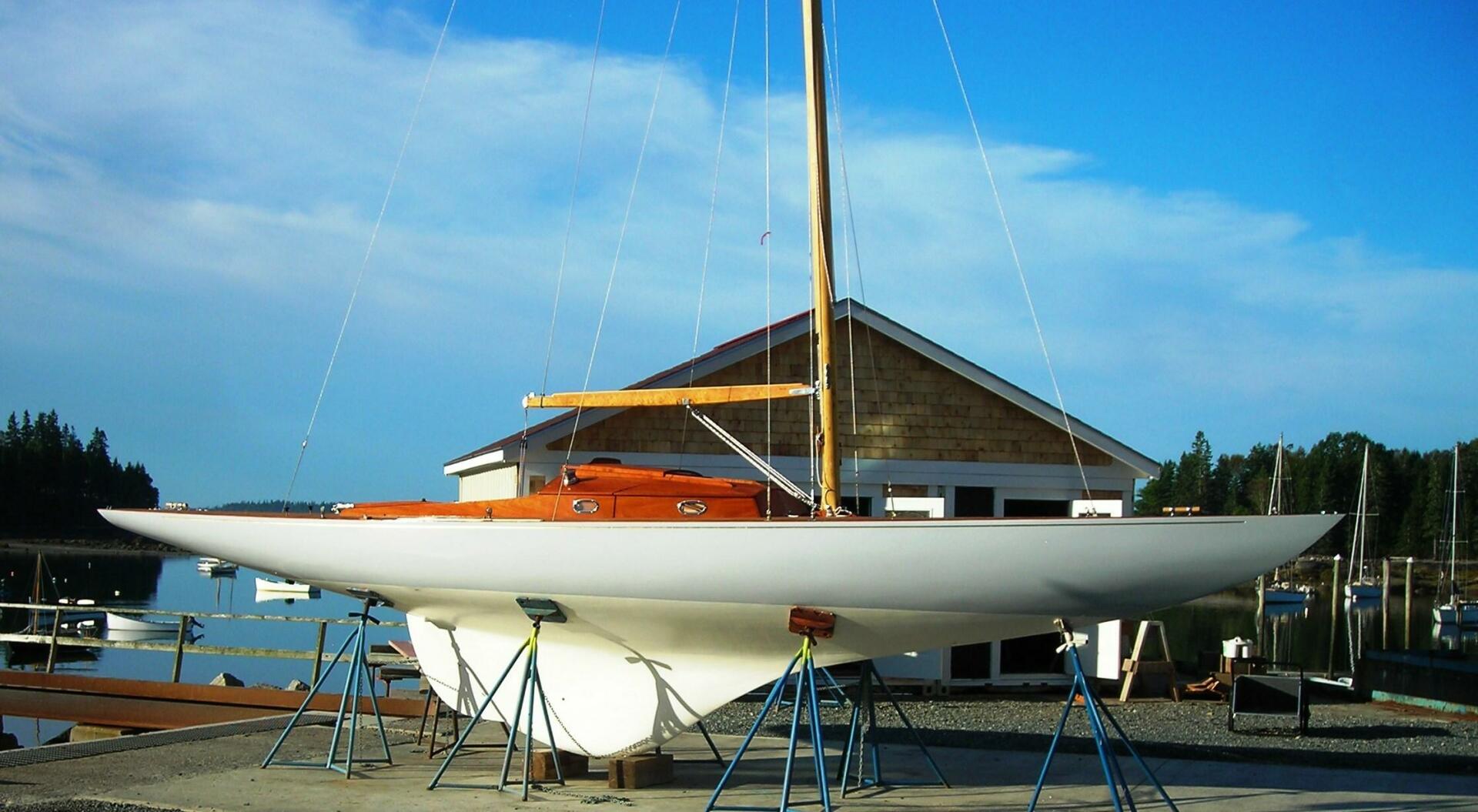

Full keel with cut-away fore-foot and keel hung rudder
Traditional plank-on-frame construction
White Oak stem, keelson, keel deadwood, horn timber, floors, frames and sheer clamp
Mahogany planking
Copper rivet fastened
Fir deck beams, carlins and cabin framing
Subdeck of V-matched marine plywood for decks and cabin top

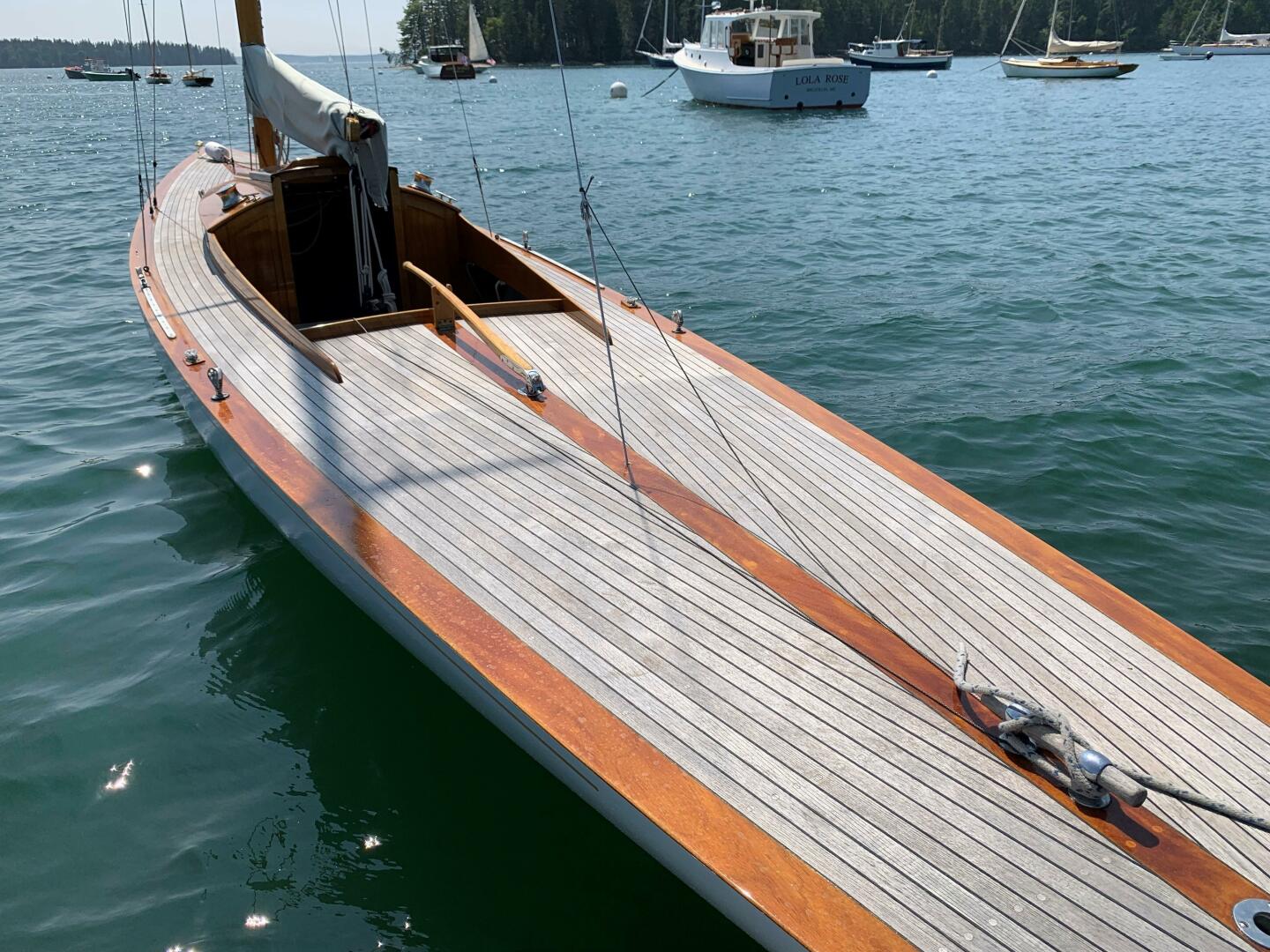

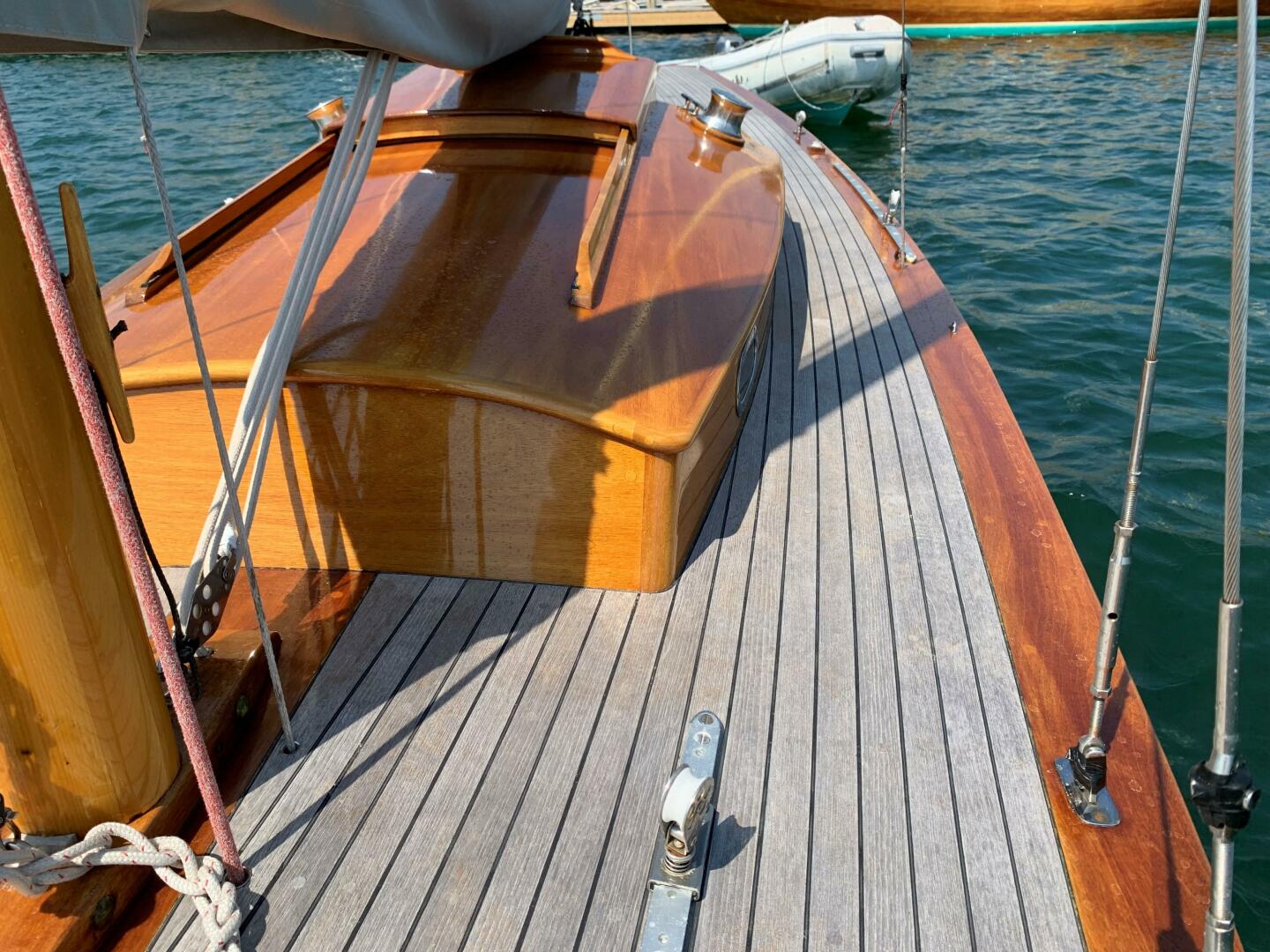

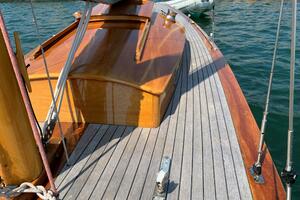

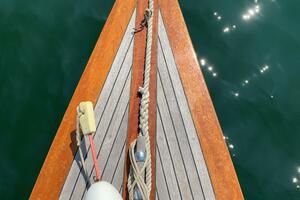

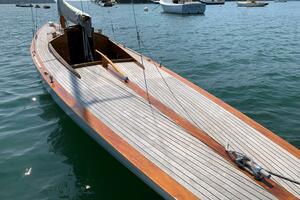

Bare Teak decks with varnished Mahogany taff rail, king planks and covering boards
Varnished Mahogany transom

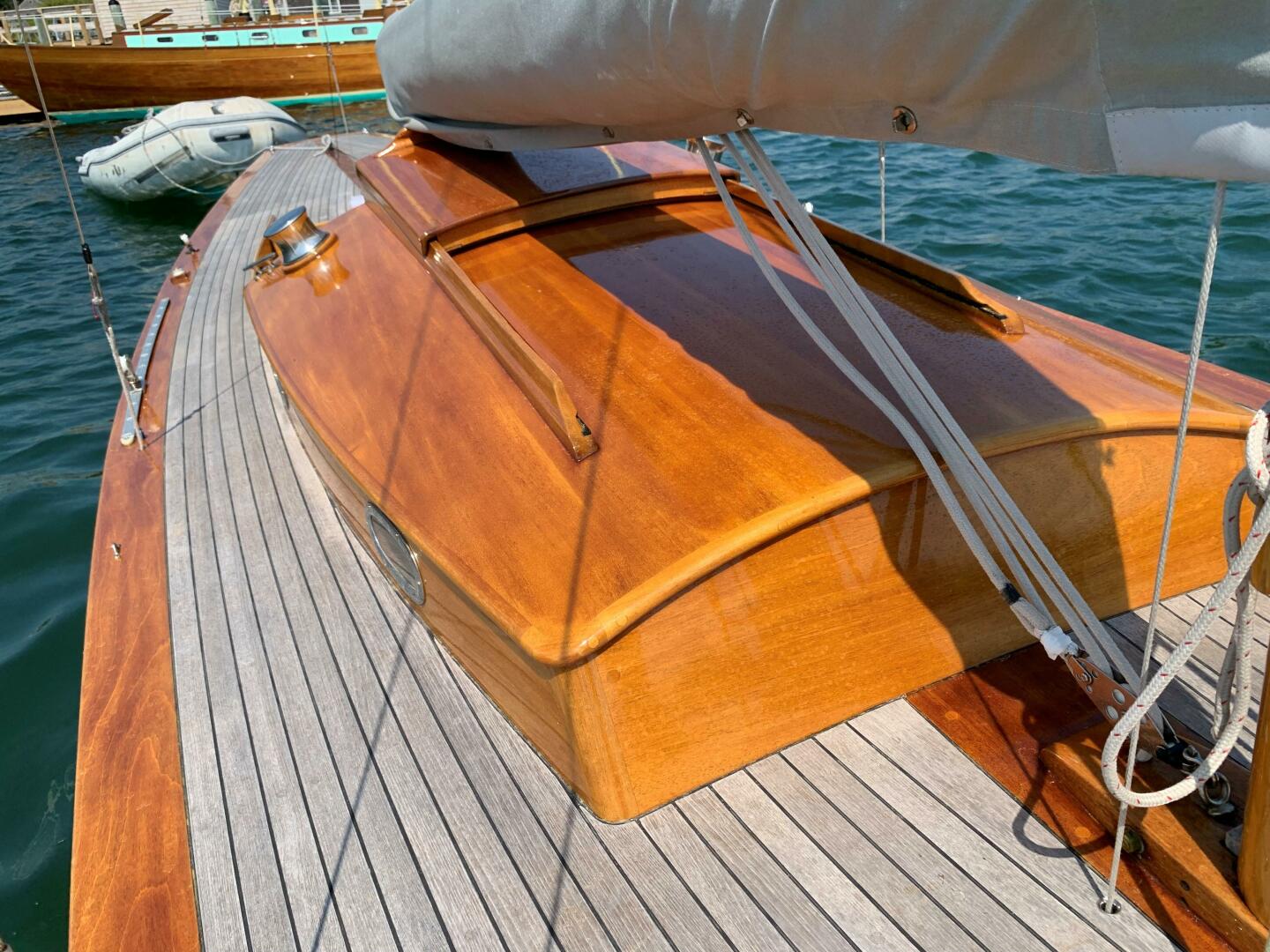

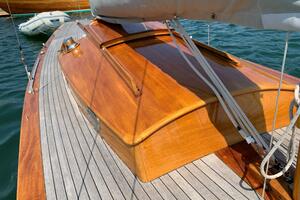

Varnished Mahogany cockpit coamings, cabin sides, aft cabin bulkhead, companionway drop boards, sliding companionway hatch and cabin top
Exterior lead ballast
Topsides finish paint Light Gray
Deck Hardware and Features (aft to fore)
Stainless steel docking line chocks (port and starboard aft)
Stainless steel ensign flagstaff socket on center line
Single stainless steel and bare teak stern cleat on center line
Schaeffer stand-up blocks port and starboard
Schaeffer foot blocks port and starboard
Aluminum headsail / genoa tracks with adjustable cars and blocks on covering board outboard of cockpit port and starboard
Fixed portlights with polished stainless steel trim rings port and starboard on cabin sides (2ea / side)
Stainless steel bottom action winches port and starboard on cabin top aft
Stainless steel cleats at winches port and starboard cabin top aft
Stainless steel chainplates (upper and lower shrouds) on covering boards outboard of mast port and starboard
Varnished mahogany mast step just forward of cabin (deck stepped)
Aluminum headsail / jib tracks with adjustable cars and blocks on deck between mast and chainplates port and starboard

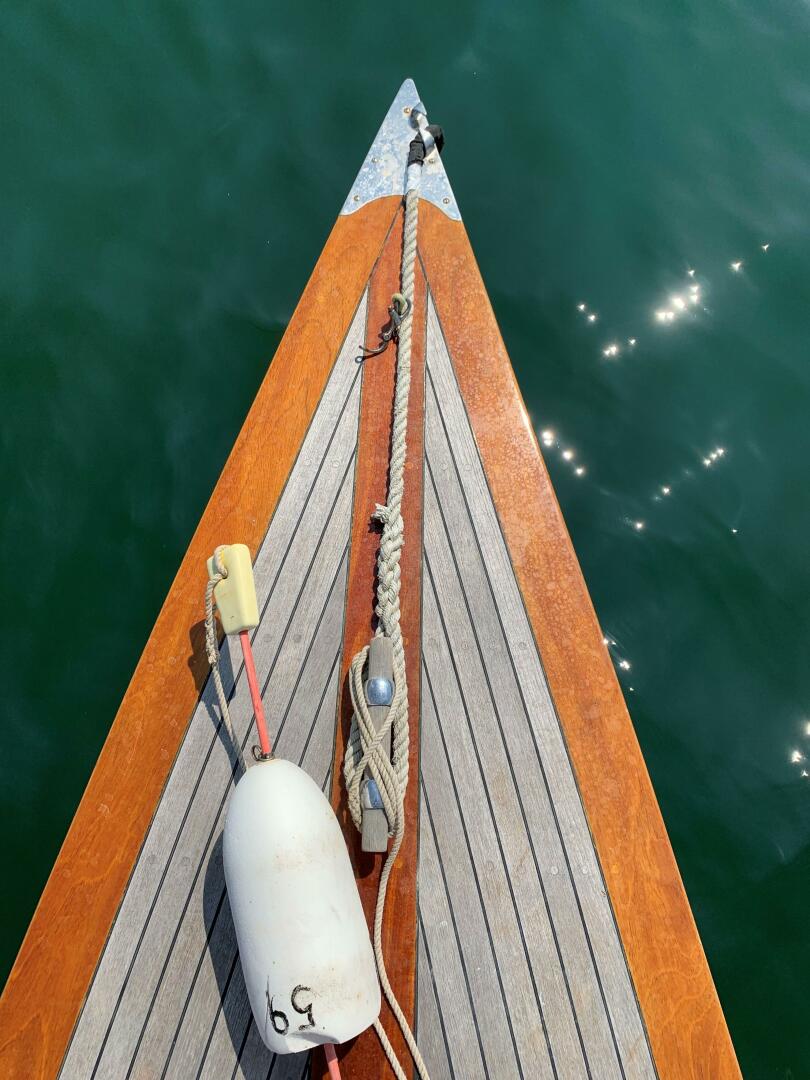

Stainless steel and bare teak bow dock line cleat on center line
Stainless steel stem iron with integral headstay attachment point

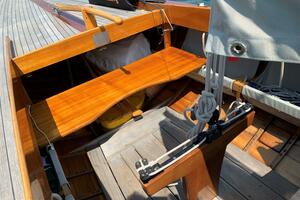

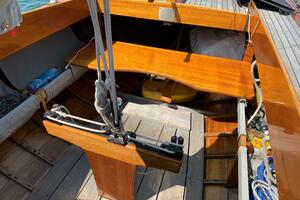

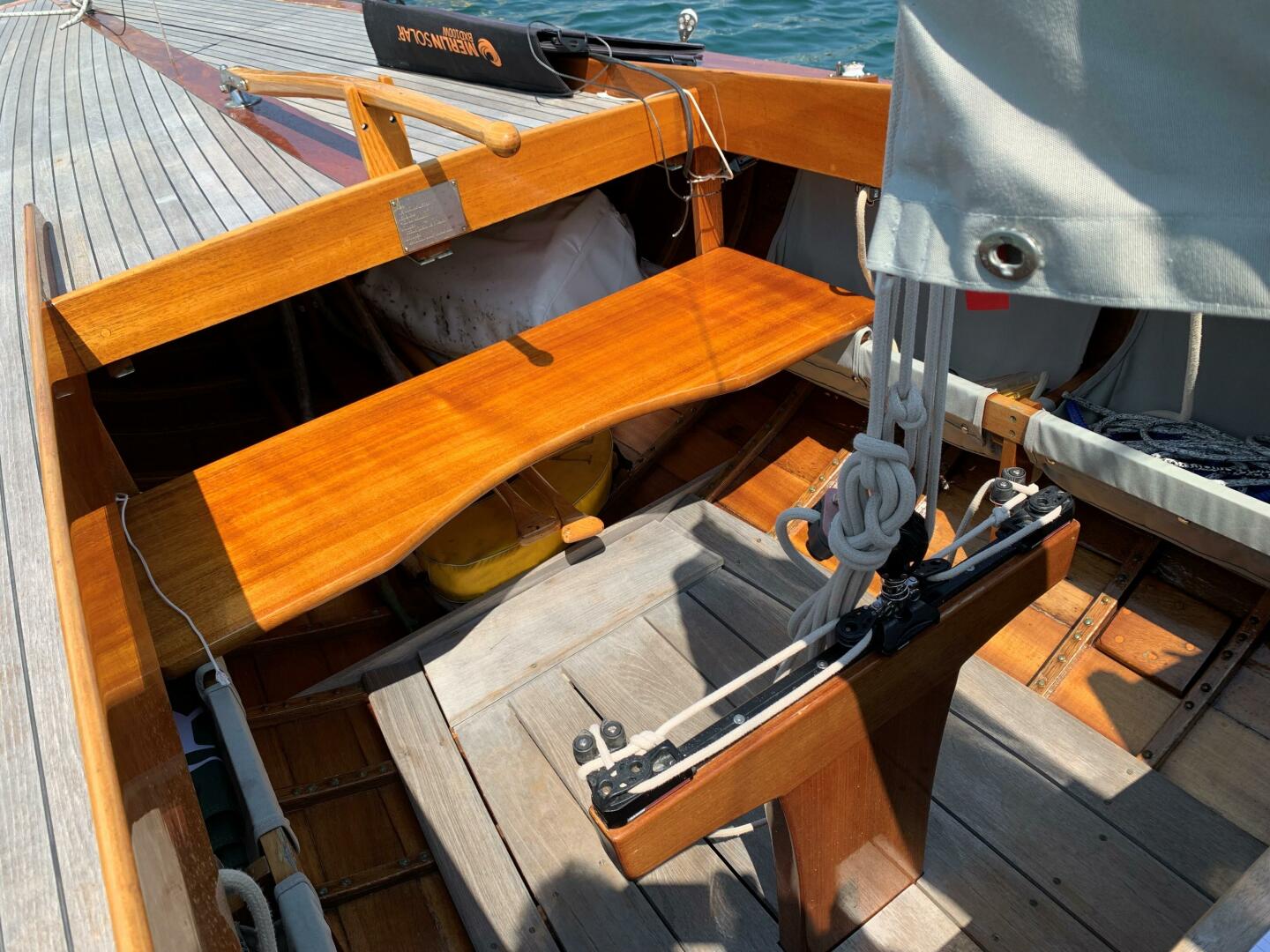

Cockpit Hardware and Features
Varnished mahogany cockpit coamings, aft cabin bulkhead, helm seat and main traveler pedestal
Custom canvas line bags port and starboard under decks
Bare teal bridge deck / plank
Bare teak cockpit sole
All sail control lines lead to cockpit
Interior Arrangement
Simple interior
White V-matched overheads under deck and cabin
Varnished mahogany interior cabin sides with fixed portlights
Varnished mahogany bench seats port and starboard
Varnished teak sole
Spars and Rigging

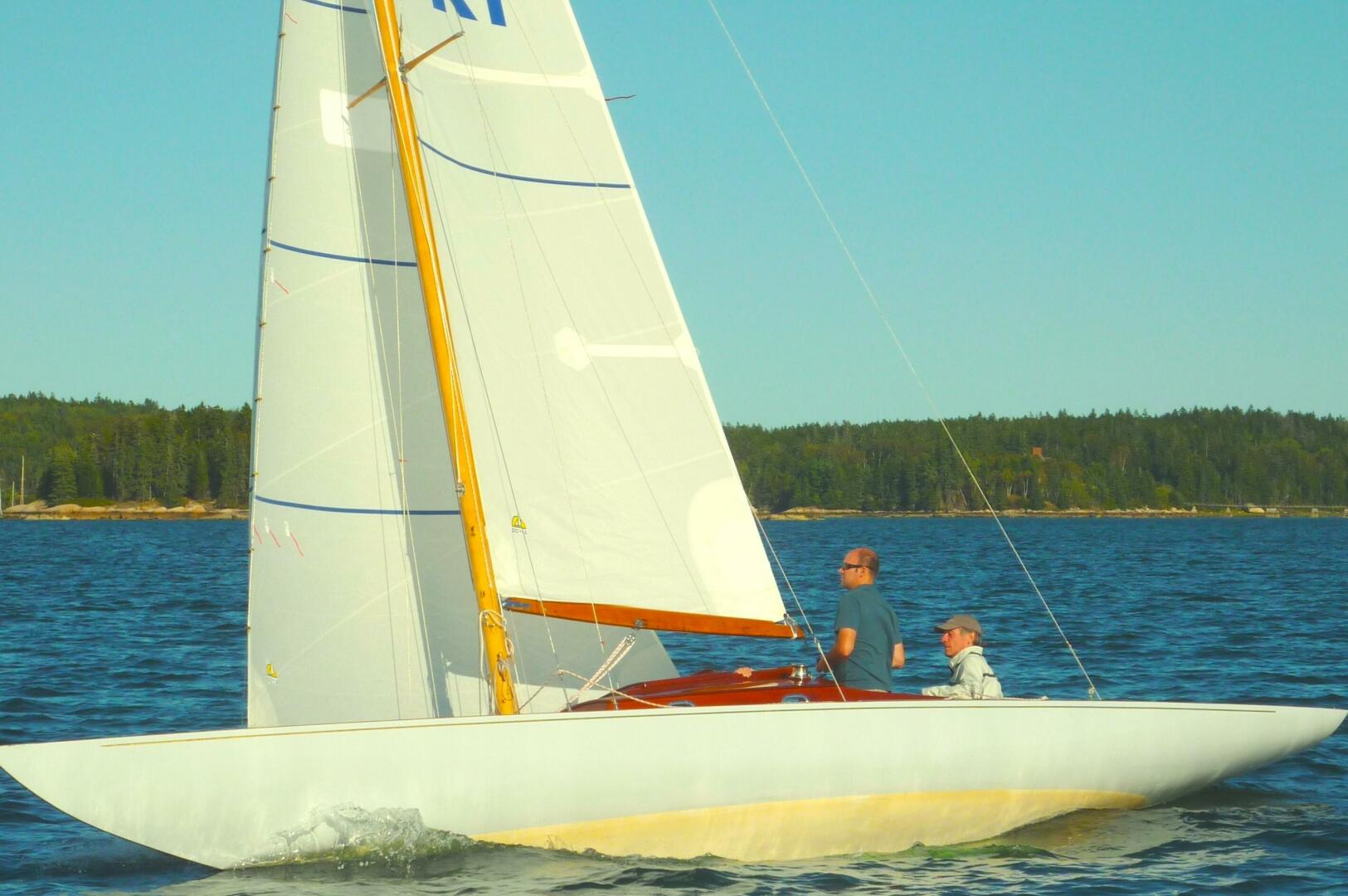

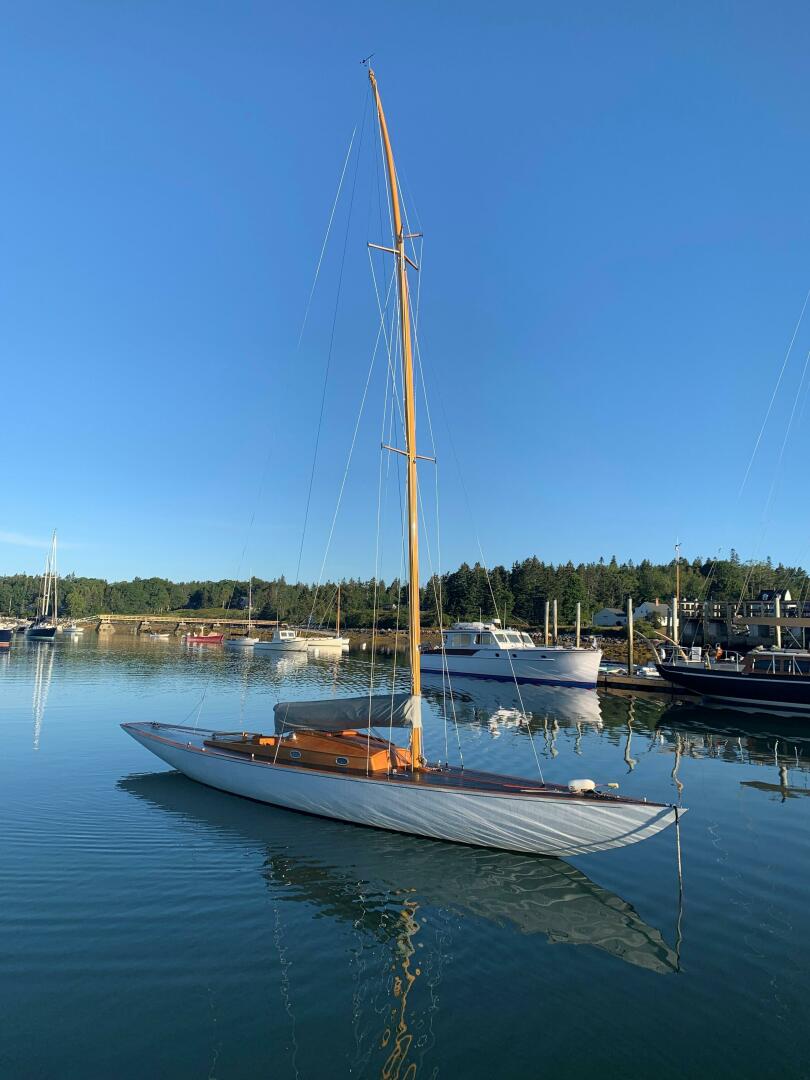

Deck stepped, double spreader with jumper strut, fractionally sloop rig configuration
Varnished spruce mast of laminated construction with induced pre-bend and mainsail luff groove.
Varnished spruce boom
Varnished spruce spinnaker pole
Spinnaker pole track on mast
Stainless steel wire standing rigging with stainless steel shroud turnbuckle adjusters
Running back stays lead under deck to cockpit cam cleats port and starboard
Twing lines lead under deck to cockpit cam cleats port and starboard
Permanent backstay lead under deck to cockpit cam cleat aft

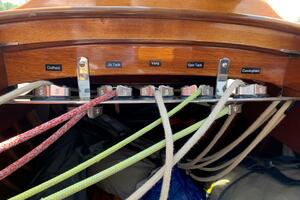

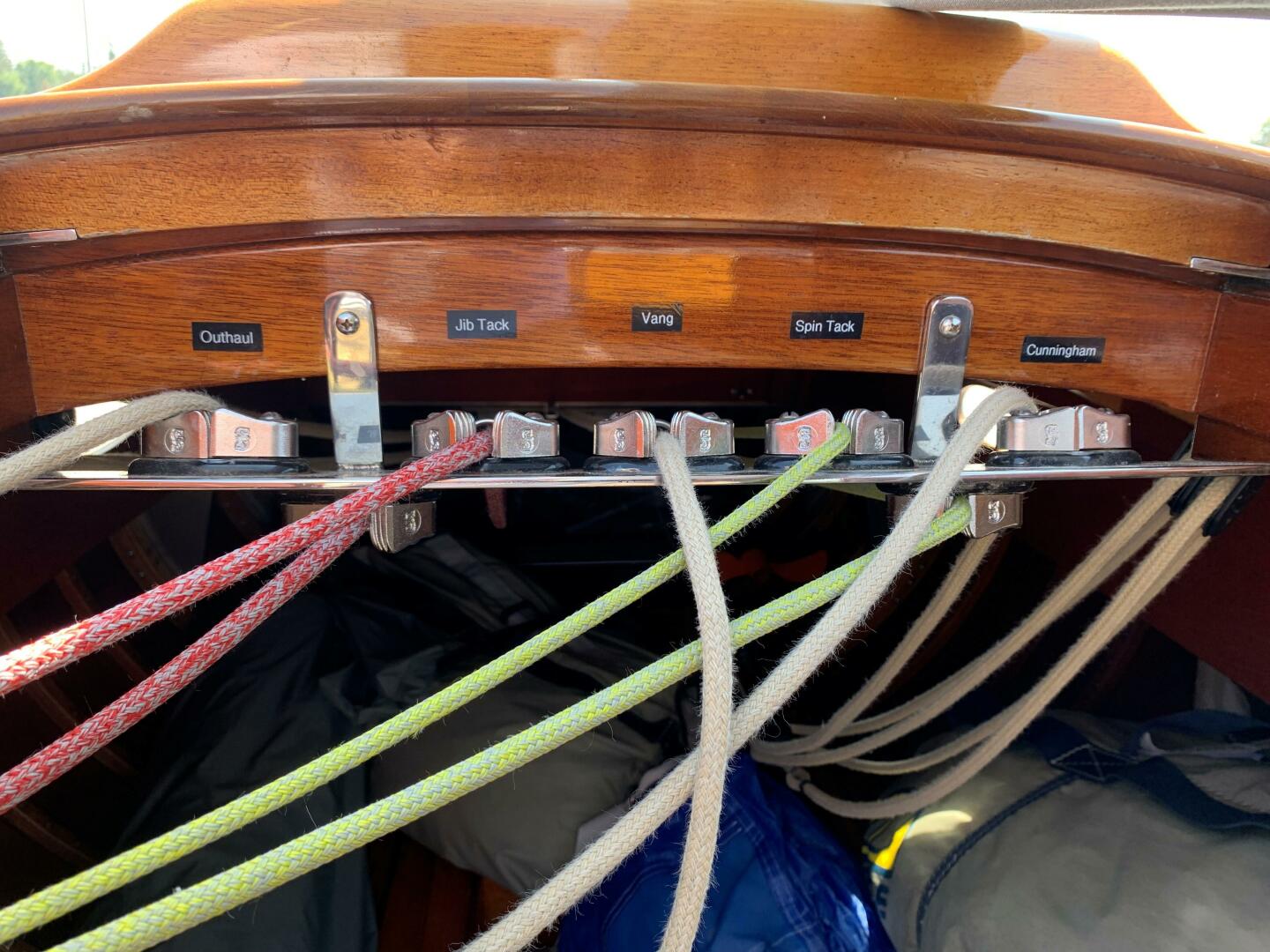

Sail controls (outhaul, jib tack, vang, spinnaker tack and Cunningham lead aft under deck to cam cleats mounted at the companionway hatch
Rope vang
Harken adjustable main sheet traveler
Harken main sheet blocks and cam cleat
Fixed main boom topping lift
Main controlled at mast
Spinnaker pole topping lift and inboard track controlled at mast
Head sail and Spinnaker halyards led aft under deck to cockpit
Stainless steel bottom action winches port and starboard on cabin top aft
Stainless steel cleats at winches port and starboard cabin top aft
Loos tension gauge
Sails and Canvas
Race Main (larger roach) - North ldi 2025
Wind seeker Genoa (on a furling line) - North ldi 2025
Race Genoa - North ldi 2025
Blade - North ldi 2025
Cruising Main - Doyle 2020

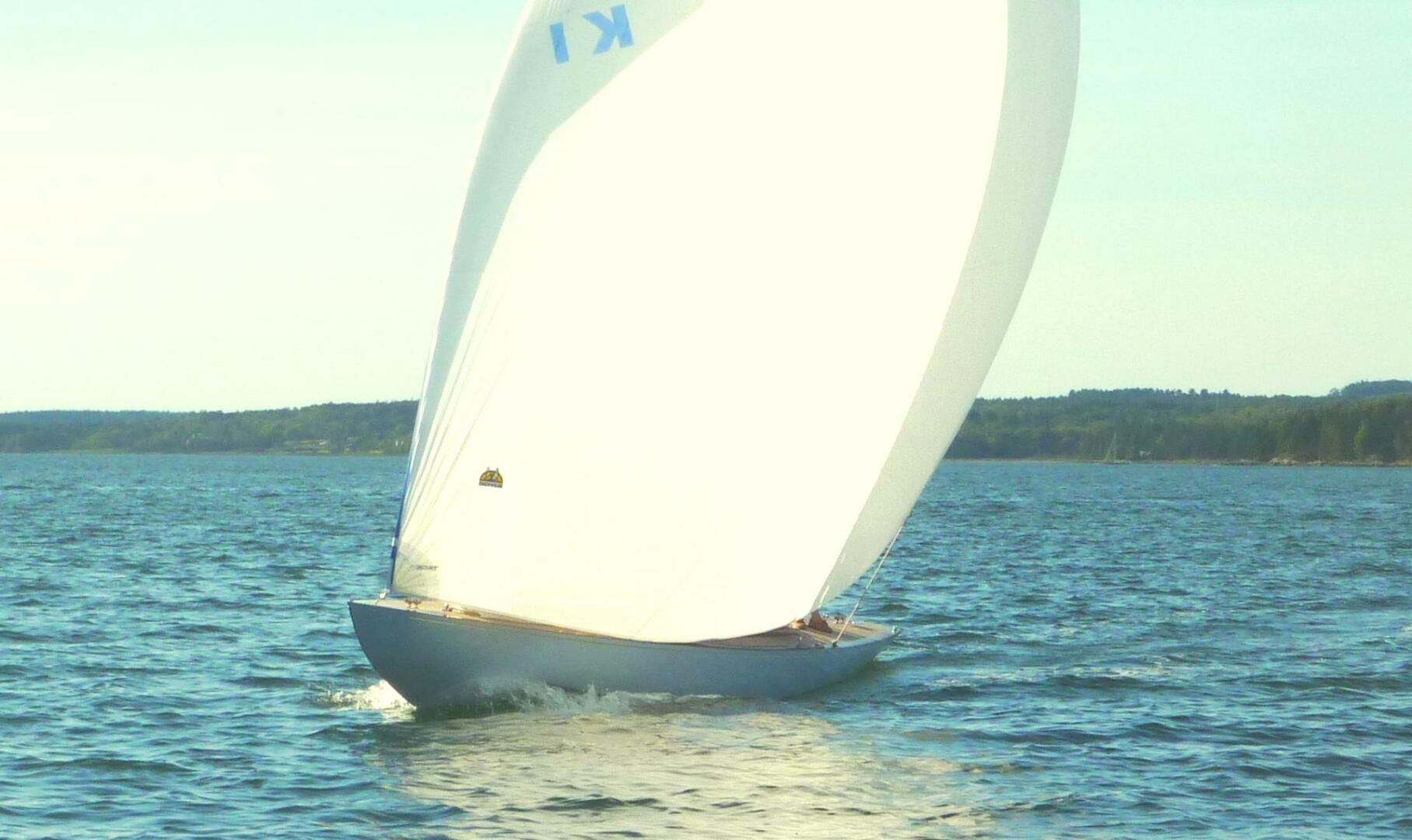

Symmetrical Spinnaker - Doyle 2016
Race Main (larger roach) - Doyle 2015
Balloon Jib (soft hanks) - Doyle 2014
Cruising Main - Doyle 2012
Large Genoa - Medium Doyle 2012
Large Genoa - Light Doyle 2012
Medium Genoa - Medium Doyle 2012
Medium Genoa - Light Doyle 2012
Blade - Doyle 2012
Asymmetric Spinnaker - Doyle 2012
Main Sail Cover
Custom cockpit line bags
Padded bag for companionway drop board storage
Extra sail ties
Electronics and Navigational Equipment

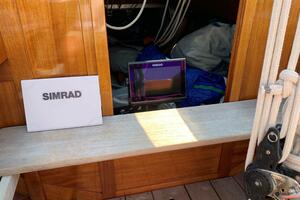

Simrad GPS chart plotter on swing-out bracket at companionway
Auxiliary Propulsion
Torqueedo electric outboard motor with side mount bracket
Paddles (2ea)
Electrical Equipment
Victron Energy 12-Volt DC battery

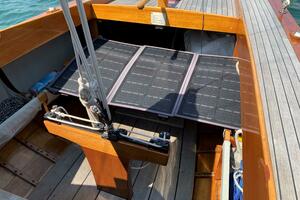

Merlin Solar BXD 100W solar panel
Vectran Blue MPPT75115 solar charger
Blue Seas battery selector switch
Ground Tackle
Danforth anchor with appropriate chain and rode
Dewatering Equipment
Whale Gusher manual bilge pump under cockpit sole
Rule electric / automatic 500 GPH bilge pump in main cabin bilge
Safety Equipment
PFD’s / Type II (3ea in bag)
PFD’s / Type V (3ea inflatable vest)
PFD / Type IV (1ea Life ring)
Orion flares kit
Additional Equipment
Custom West Mersea double-axle boat trailer with mast racks, spare tire, electric brakes
West Marine fiberglass dock box mounted on trailer for gear and sail storage.
Fenders with fleece covers
Dock Lines
Misc. cleaning supplies.
