2025 Horizon FD100

• ABS/DNV type approved fiber/resin & sandwich core material applied
• White gel coat finish
• One piece hull & superstructure utilizing SCRIMP^TM technology w/ Horizons patented 6D infusion, incl. longitudinal & transverse stringers
• Hull, deck & superstructure-built w/ licensed process SCRIMP^TM for improved strength & less weight
• High density foam cored hull bottom
• High density foam cored hull sides, decks & superstructure
• Stringers w/ high density foam coring
• Interior structural components all properly bonded to hull
• Strong collision bulkhead for extra safety
• International anti-fouling bottom paint w/ anti-osmosis treatment
• PropSpeed/PropGold metal paint for underwater appendages
• Tunnels for reduced draft
• HPPB High performance Piercing Bow
• Upper deck w/ bump out design at port & side stbd
• Asymmetrical skylounge design (STBD side wide body, incl. a non-skid ledge & grab rail above)

• Teak aft deck & teak steps
• Teak Hi/Lo swim platform
• Nonskid on port & stbd walkways & bow
• (2) High tensile ½” 350ft anchor chains
• (2) Maxwell anchor chain counters at pilot house
• (2) S/S 110kg anchors
• (2) S/S rollers & chain stopper
• (2) Maxwell VC2500 electrical rope capstan on aft deck
• Freshwater/seawater anchor chain washdown
• Heavy-duty S/S 1 3/4” handrail w/ 1-1/2” stanchions & steel cable
• Frameless windows, tinted Low-E tempered glass for windshield
• Frameless windows, tinted tempered laminated glass for side windows
• Portuguese bridge w/ U-shaped seating, sunpads & storage per layout
• Roll top cushions for sun pads on the forward deck
• (2) pop-up secret lights
• Fwd port walkway sink & storage
• Sun awning w/ carbon posts for the forward sofa seating
• Cabinet at fwd settee w/ fridge, icemaker & storage
• (2) FRP aft bulwark side boarding doors
• Wind weather doors on each side of aft deck, to side walkway
• Aft deck seating w/ sliding, folding, hi-lo dining table & loose furniture
• Built-in side storage tables on port & stbd side of aft sofa
• Aft deck bar w/ sink, fridge & Scotsman icemaker to stbd
• Electric flip-down 55” LED TV
• Extra storage next to the aft deck staircase
• Electrical S/S sliding door for main salon, self-locking
• Marquipt 7-step side aluminum boarding sea stairs w/ designated storage
• Pre-wire for boat name on stern, port & stbd sides
• Two pop-up cleats on hi/lo swim platform
• Reinforced structure and upgraded cleats (x2) allow for towing a tender up to 15,000 lbs. at a slow speed
• Added second masthead light and additional yellow stern light

• Hydraulic door w/ pantograph door in the middle
• Sofa seat w/ removable cushion/ table, as per layout
• 43” LED TV
• Hydraulic Hi/Li swim platform w/ 2500lb capacity with lifting center platform
• A tailor-made Aritex transformer with 440lb capacity incorporated as a dive step
• (6) Rope rails with four poles at each corner of the platform
• Wet bar w/ fridge, freezer & ice maker, as per layout
• Eskimo ice system with pump to insulated ice box to Port
• (4) sockets for removable handrails on swim platform
• 2” removable corner rails on swim platform
• Built-in shower w/ hot/cold water above swim platform

• Skylounge design w/ day head, L-shaped sofa, refrigerator/freezer drawers, icemaker, sink & LED 50” Hi/Lo TV as per layout
• Custom designed helm w/ full set of engine gauges, monitoring system for important equipment, fuel & water gauges, Ritchie Supersport magnetic compass, surveillance camera system (PTZ cameras for aft deck & engine room), bilge pump panel & nav lights
• (2) STIDD helm chairs & leaning post
• Pocket door to separate skylounge & pilothouse
• Hi/Lo screen between pilothouse and skylounge
• Sofa w/built-in end table & chart drawer in pilothouse, per layout

• Teak boat deck
• Oversize drains w/ strainer on each corner w/ internal overboard drains
• Removable S/S rails around the boat deck
• 43” hi/low TV on stbd side
• Full wet bar stbd w/ sink, Subzero fridge/freezer & ice maker
• Loose L-shaped sofa with coffee table & armchair
• Cabinet w/ hi/lo propane 24” BBQ
• Sunshade for boat deck area, per layout
• Upgrade STD Steelhead Davit to ES 2500 (2500lb/1130kg)
• (4) Lumitec flood lights for mast & boat deck
• (2) Tokai Sanshin searchlights
• (2) Zodiac 10-person life raft w/ custom brackets
• Fusion stereo system w/ speakers & Sonos amp
• Sliding door to boat deck w/ self-lock

• Non-skid
• Radar arch w/ antenna bracket
• Windshield w/ S/S frame & S/S rails
• One stair from the upper deck
• Large L-shaped sofa w/ coffee table, as per layout
• Full-width forward sunpad w/ roll top cushions & storage
• Wet bar w/ sink, fridge & ice maker
• Jacuzzi w/ rotating 55” Hi/Lo TV
• Handheld remote plugin for engine control on port

Twin CAT C32 ACERT Engine 1900hp (no SCR), Incl. upgrade gears, structure, engine girders, stern tubes, shafts, propellers, etc.

(2) "plug-in" receptacles for a remote handheld controller (plug locations: Tri-deck and boat deck)

Yacht Controller Supremo STL wireless

S/S shafts Aqualoy 22HS

VEEM Superyacht High-performance 6 blade propellers

Bronze struts w/ backing plates

Shaft & rudder packing glands w/ Tides Marine seals

Sidepower Zero Speed Stabilizers (SPS96B/VF1950)

Sidepower hydraulic bow (SH700) & stern thrusters (SH550)

Delta-T engine room ventilation system

(2) FRP foil balanced blade rudder w/ S/S rudder stock

S/S emergency tiller in rudder cabin

Hypro Steering System

Underwater exhaust system for engines w/ bypass mufflers

Anti-noise treatment to exhaust system

Zipwake interceptor system

Engine load distributed through flexible mountings on S/S engine bed bonded to FRP hull girder

ER clean design w/ lightweight honeycomb floor

S/S overhead grab rail on each side of the engine

Engine room LED ceiling lights & LED lights under engines

Engine alarm system for low oil pressure & high water temp

Prewire & pre-plumbed for dive compressor

Air conditioning in ER

Workbench w/ sink & vice

Custom-made toolbox

S/S Drawers for tools

• Chilled water Marine Air a/c
• Backup A/C circulation pump (ship loose)
• Backup A/C sea water cooling pump (ship loose)
• A/C Engine Room
• Fuel tanks w/ sight & electrical gauges
• Dual Racor 75/100 MA fuel filters/water separator, each engine.
• Racor 500 MA fuel filters, one each generator
• (2) Electric fuel transfer pumps
• Reverso FPS210 fuel polishing system
• Oil change pump system for engines, gears, & generators
• 400 Gallon FRP water tank
• Seaxchange watermaker XTC II 1,800 GPD + Spot Zero II 2000 GPD
• High-volume Headhunter AC freshwater pressure pump & back up DC pump
• Freshwater charcoal filters in the main supply pipe & galley
• Freshwater hose for filling engine & generator expansion tank
• Marine grade lines for the freshwater system
• (2) 30 Gallon water heaters
• Hot water circulation pump
• Headhunter sanitary waste treatment system (TW-HMX 6001LP)
• Headhunter toilet system
• 200 gal holding tank w/ Y-valve & deck fitting for dockside pump out
• 100 Gallon sump tank
• Electric level indicators for holding tank & sump tank
• Electric Rule bilge pumps
• Air handler in engine room (18K BTU)
• (2) Manual bilge pumps in ER & forward staterooms
• High water level bilge alarm
• Bilge exhaust ventilation fans
• Seafire fixed fire extinguisher (FM200) for ER w/ remote control
• Fire insulation in engine room
• Fire resistant treatment for pipe
• Auto shutdown system
• Automatic fire damper system
• (5) Portable fire extinguishers in recessed lockers
• Integrated fire alarm in pilothouse w/ heat & smoke detectors in each cabin
• Fire Pump w/ outlets & hydrants
• Install Honeywell dehumidification system (Honeywell DR65A3000 x5 units, incl. T10 Pro smart thermostat control panel per unit.)

• LED lighting system throughout interior & exterior
• Maretron monitoring & control system
• (2) Kohler 40kW generators w/ sound shields
• 100A shore power system w/ ISO Boost transformers 100A (2)
• Glendinning shore power Cablemasters (x2) 100Amp w/ 75’ power cable each
• (4) 255AH AGM start batteries for engines/gens w/ (2) battery chargers
• (8) 210Ah Lifeline AGM batteries for boat’s DC 24V service power w/ (2) combined inverter/chargers
• (2) 210Ah Lifeline emergency batteries w/ independent battery charger
• Magnus Air-cooled 80kVA shore power converter
• Main electric panel includes AC & DC circuit breakers
• Emergency power package & lighting system
• AC volt receptacles located throughout including engine room
• GFI protection for all AC outlets in heads, galley & ER
• Octoplex multiplexing power distribution system
• Electrolysis bonding system
• Cathodic protection w/ zinc anodes for shafts, struts, etc.
• (8) Underwater lights
• Stern docking lights
• Extra LED searchlight

• Guest accommodations include on-deck master stateroom, fwd VIP cabin, port & stbd VIP cabins & twin guest rooms, all ensuite
• Crew area has 3 cabins, 2 heads, crew galley w/ access from aft deck & transom
• Custom luxury interior package for soft goods, décor & lighting
• Main wood: bleached walnut in satin finish w/ walnut accents
• Crew wood: silver oak in satin finish
• Rock oak floors in main salon, dining, foyer, skylounge & pilothouse
• Fabrica carpet for all guest staterooms
• Cambria quartz countertops & flooring for all guest heads
• Stacked Miele washer/dryer in laundry & crew companionway (total of 2)
• Vitrifrigo under counter fridge in guest foyer
• Full set of Horizon logo galley tableware for 10 including dish holders, pots/pans, dishes, plates, cutlery, glasses, etc.
• Extra sheet sets for every bed, towels for every guest cabin

• Dayhead in main salon aft
• L-shaped sofa, custom coffee table w/ ottomans per layout
• (2) Loose swivel chairs & side table to stbd
• Custom area rug

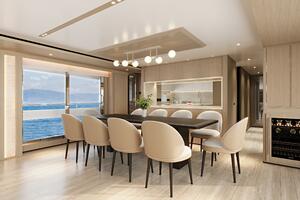

• Fixed formal dining table w/ seating for 10
• Stbd wet bar with Subzero fridge/freezer, sink, U-chill cooling wine holders & ice maker
• Large wine cooler
• Electric single-treatment curtains
• Free-standing hutch w/ extensive storage
• Custom wine glass locker w/ wine cooler
• Port & stbd sliding doors of main salon
• 65” LED TV
• Home theater system

• Professional Galley w/ full height pantry + extensive storage per layout
• Direct port side deck access into Galley
• Pull out cabinet Chef stool
• Full height 48” Pro Sub-Zero fridge + full-height freezer w/ icemaker
• Sub-Zero under counter 24” refrigerator & freezer
• Miele 5 burner cooktop, oven & hood
• Spice Locker
• Microwave oven w/ drawers
• Kitchen Aid Trash compactor
• S/S double sink w/ disposal
• Miele dishwasher
• S/S pot & pan holders over cooktop
• Hi/Lo screen & privacy doors to enclose galley
• Opening porthole

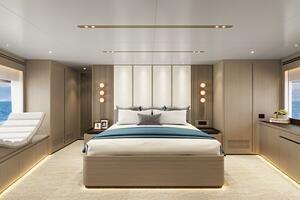

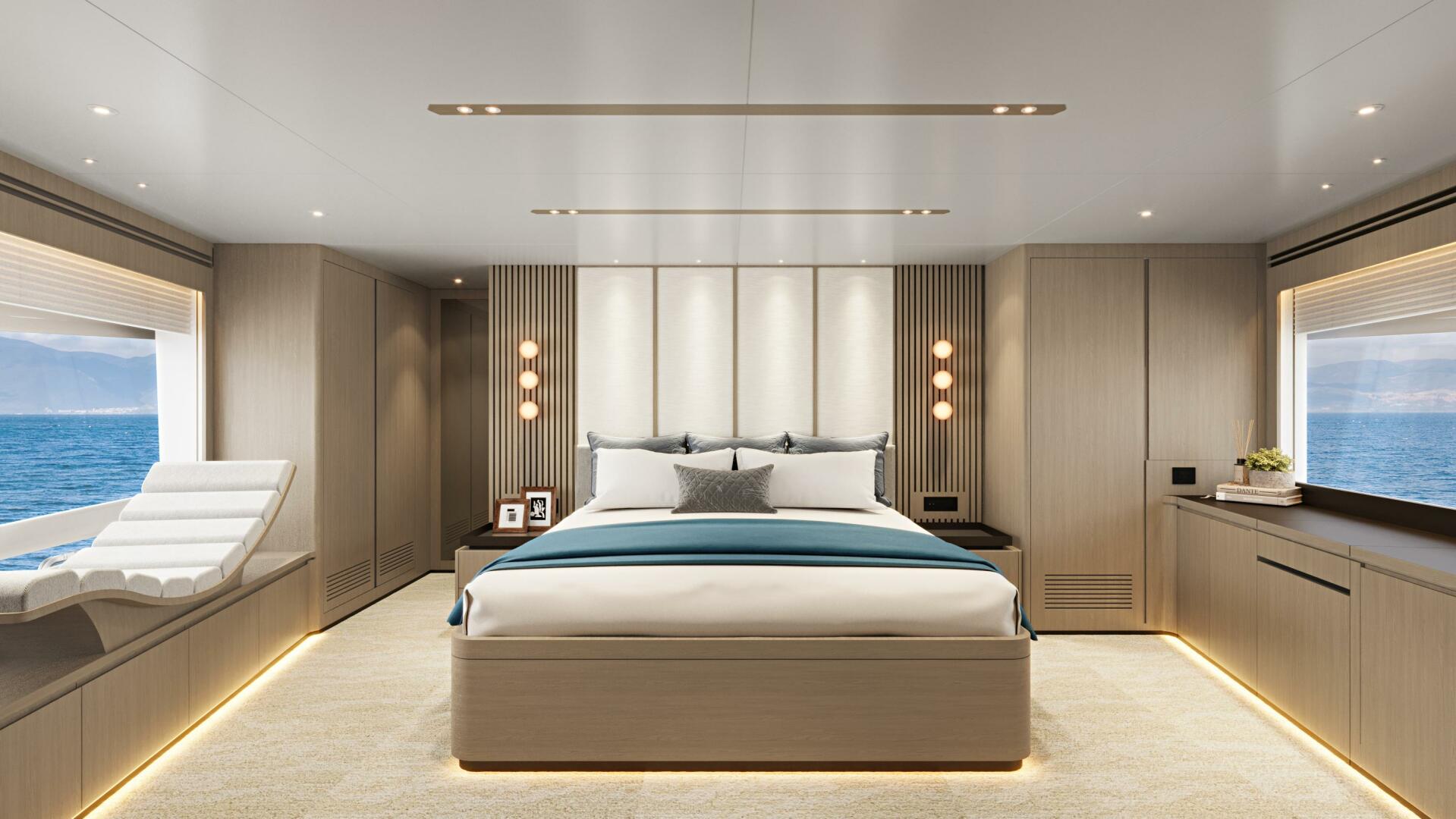

• King bed w/ storage drawers & nightstands
• Escape hatch in Master head w/ ladder
• Ensuite his & hers head w/ sink, toilet & storage on each side, middle shower w/ rain shower head
• 2 hanging lockers (port & stbd)
• Pre-wire for electric roman shades
• (2) Portholes that open
• Sonos sound bar
• Control4 system
• 50” LED TV

Queen bed w/ nightstands & drawer storage

Large hanging locker on stbd side

Ensuite head w/ sink, shower & toilet

43” LED TV

Mirrored staterooms w/ Queen bed, storage drawers & nightstand

Large hanging lockers

Ensuite head w/ sink, shower & toilet

Escape hatch in port stateroom

43” LED TV

Twin beds, one fixed + one sliding

Pullman

Hanging locker

Ensuite head w/ sink, shower & toilet

32” LED TV

Captain’s cabin w/ hanging locker, 43” LED TV & ensuite head

(2) Bunk crew rooms w/hanging locker

Shared head w/ sink & shower

Crew galley w/ sink, 43” LED TV, convection microwave & cooktop

Full-height fridge/freezer

(2) USB outlets in crew galley

Pocket door to separate the crew mess & the stern stairs

Stacked Milele washer/dryer

• TV antenna on top of radar arch
• SAT TV KVH TracVision UHD7 + Dummy Dome + SAT phone pre-wire only
• (5) Panasonic PBX Telephones w/ intercom feature
• Exterior connector for shore phone & cable TV
• Surveillance camera system (PTZ cameras at aft deck & engine room).
• Fusion speakers for all exterior
• Interior Sonos speakers
• Upgraded AV system to Sonos
• Subwoofers in tri-deck, boat deck & aft deck
• Add Control4 system (only control AV system) for the following areas: tri-deck, bow, skylounge, boat deck, aft deck main deck incl. salon, galley & master stateroom
• Prewire FLIR M364C night vision
• Prewire for future Starlink cable

• Full Garmin nav system includes:
• (4) Garmin GPSMAP 9224 24” multifunction display
• Garmin GMR 1226 72” 12kW 72nm open array radar system
• GMR Fantom 54 solid-state open array & pedestal
• MBB300C for inputting Maretron info to Garmin display
• Garmin Grid 20 remote input device
• (2) Garmin VHF 315
• Garmin AIS
• Garmin Reactor Autopilot control system
• Garmin instrument display w/wind transducer; Airmar Ultrasonic speed & temp transducer
• Garmin fish finder
• Garmin satellite weather antenna

Listing MLS by Yachtr.com
