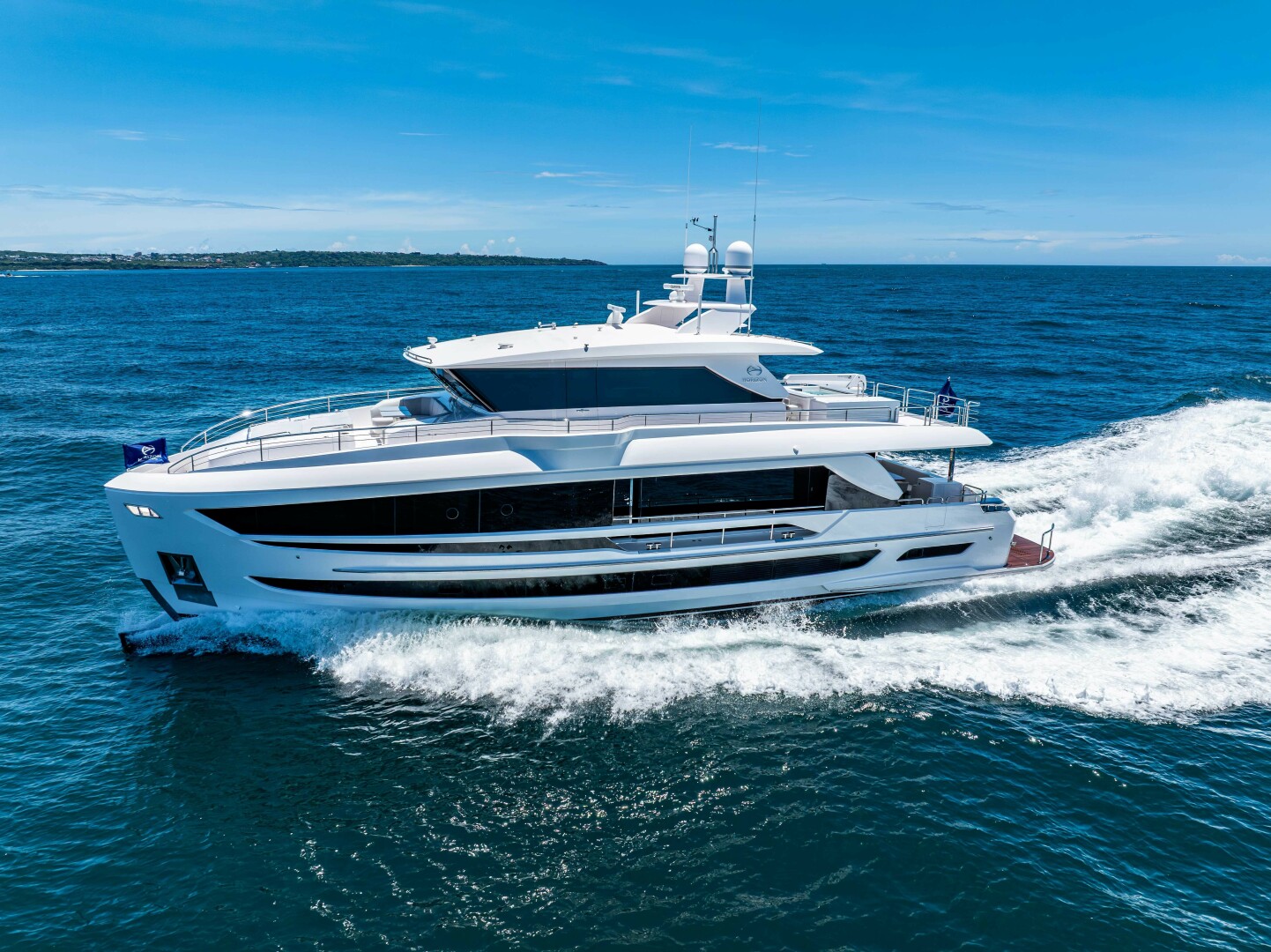

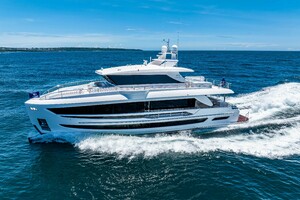

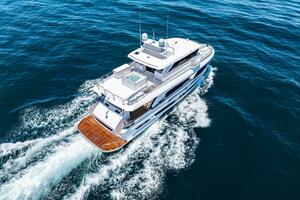

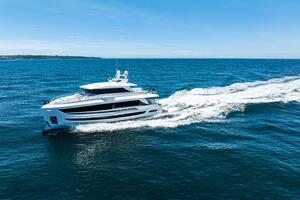

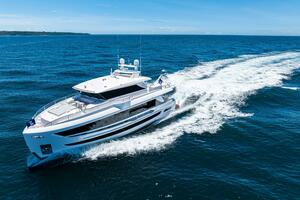

2026 Horizon FD80-617

White gel coat finish

One-piece hull and superstructure utilizing SCRIMP™ technology with Horizons patented 6D infusion, incl. longitudinal and transverse stringers

Hull, deck & superstructure built with licensed process SCRIMP™ for improved strength and less weight

Hybrid design hull bottom with sandwich construction and solid fiberglass

High-density Divinycell or equivalent foam-cored hull sides, decks & superstructure

Stringers with high-density foam coring

Interior structural components are all properly bonded to the hull

Strong collision bulkhead for extra safety

International brand anti-fouling bottom paint with anti-osmosis treatment

PropSpeed/PropGold metal paint for underwater appendages

Tunnels for reduced draft

High Performance Piercing Bow (HPPB) with S/S protection plates

Upper deck with bump-out design at PORT and STBD side

(x2) 8-person life rafts

Teak aft deck, teak swim platform, and teak steps to the boat deck and swim platform. Non-skid for the rest

FRP cap rail

Maxwell VWC3500 vertical hydraulic anchor winches (x2) with local foot switch and remote handheld controller

Maxwell electrical rope capstan (VC2500) on aft deck(x2)

300ft High tensile 1 /2" anchor chains (x2)

90 kg 5/5 anchors (x2)

Chain counter (one per windlass) x2

5/5 rollers (x2) and chain stopper

Heavy-duty 316 5/5 cleats and fairlead with rollers

Bulwark with flush-mounted courtesy lights

Aft deck corner hawsers (x2)

Bulwark side doors (x2) aft deck for boarding

Freshwater/ seawater anchor chain washdown system by manual operation

1-3/4" handrail with 1- 1/2" 5/5 stanchions and steel cables around the entire boat

5/5 flagpole at bow

Standard lines and ProStock fenders PF6 (x4) & PF24x42 (x1), incl. Horizon logo covers

Portuguese bridge with sofa seats as per the layout

Foredeck sunpad cushion with cup holders and pop-up lights (x2)

Frameless windows, slightly tinted tempered laminated Low-E glass for the windshield

Frameless windows, tinted tempered laminated glass for side windows

Stairs from aft deck to swim platform with 5/5 gate doors and handrails

Salon 5/5 manual sliding entrance door with self-locking

Deckhouse side entrance doors (x2 hinged doors)

A wind door on each side of aft deck to its side walkway

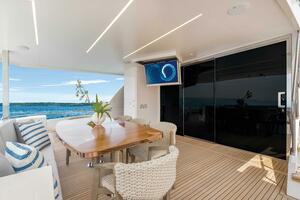

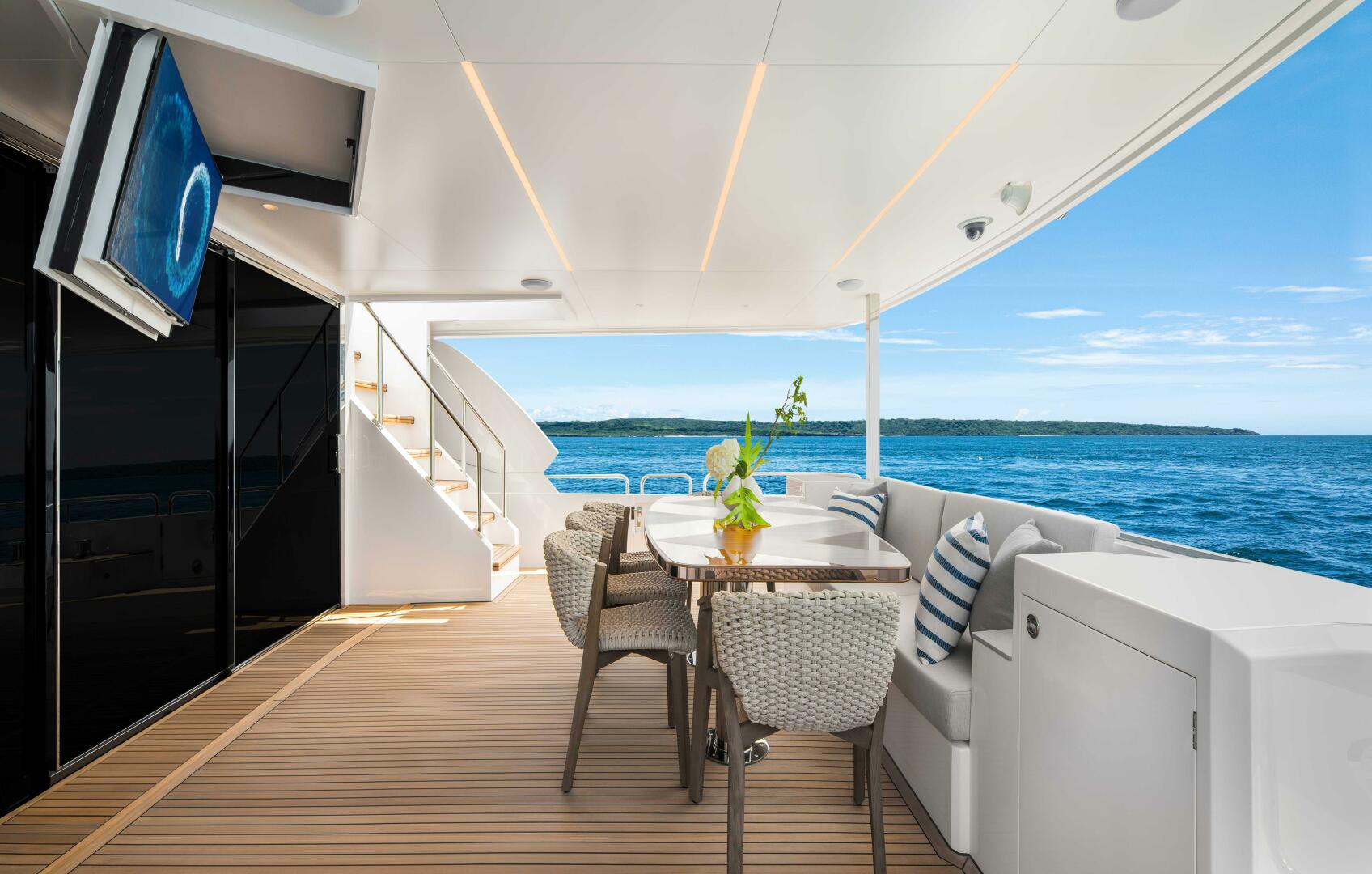

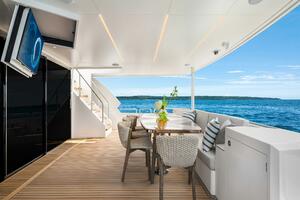

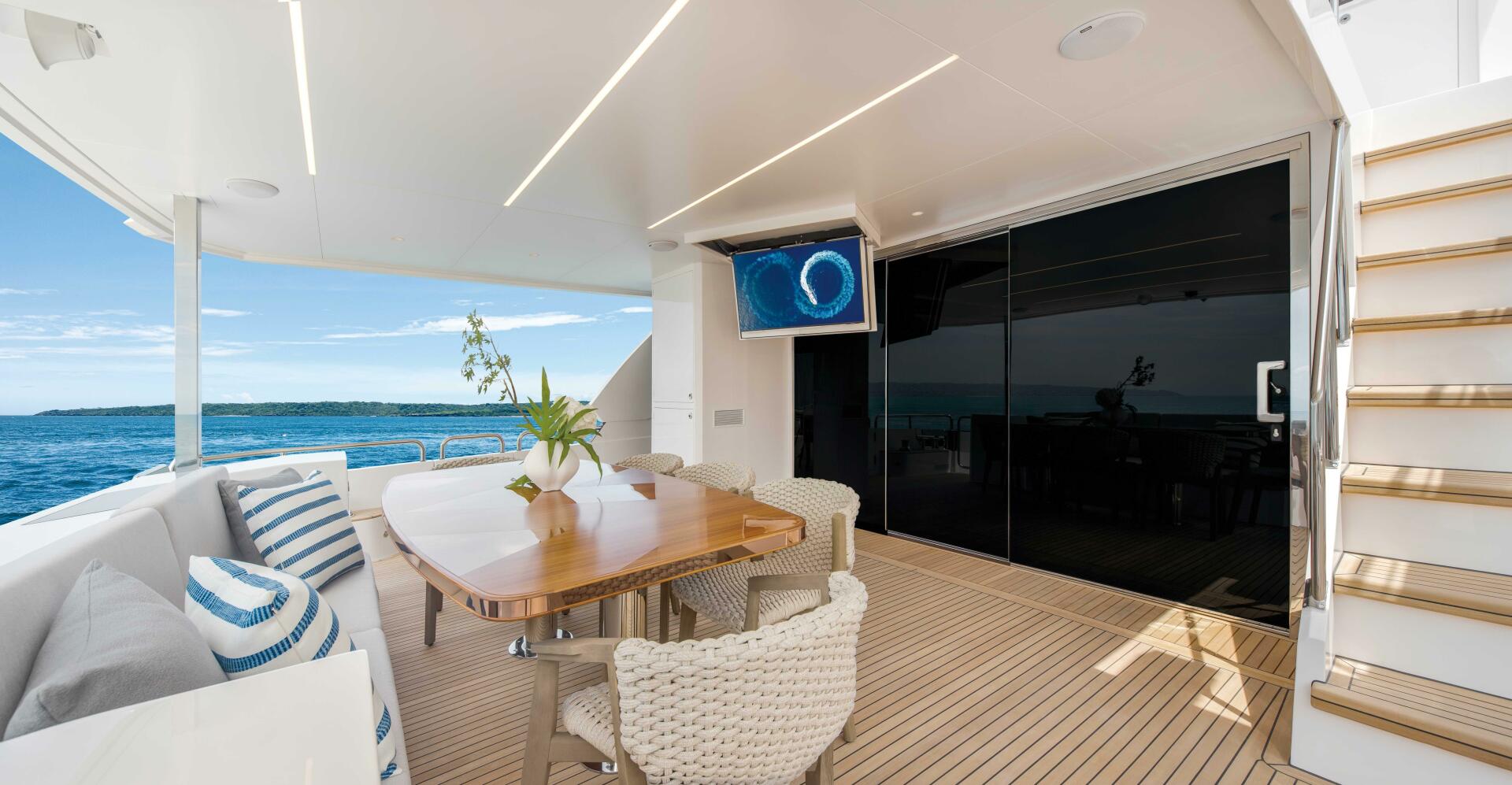

Aft deck multi-use table as per design

One integrated stair from the aft deck to the upper deck

Hydraulic Hi-Lo swim platform with function as a tender lift up to max. 2200lbs

Two pop-up cleats on the Hi-Lo swim platform

Boat hooks (x2) (ship loose)

Built-in shower with hot/cold water above swim platform

One extractable or foldable swim ladder

Sun awning to Foredeck & boat deck (total 2 sets)

Rub rail around hull sides

5/5 portholes

Openable porthole in galley (x1) and in Master head (x1)

Glass windows (x2) on the aft deck stern bar top

Exterior LED step lights

2" Removable corner rails (x2) on swim platform (with extra 4 sockets on fixed platform)

Prewire LED boat name on PORT, STBD, and stern (3

sets, max.8 letters/set)

Skylounge, Salon entrance door and Salon side hinged

doors (x2) with screen

MarQuipt 7-step side boarding sea stair (incl. FRP

storage box, not carbon fiber)

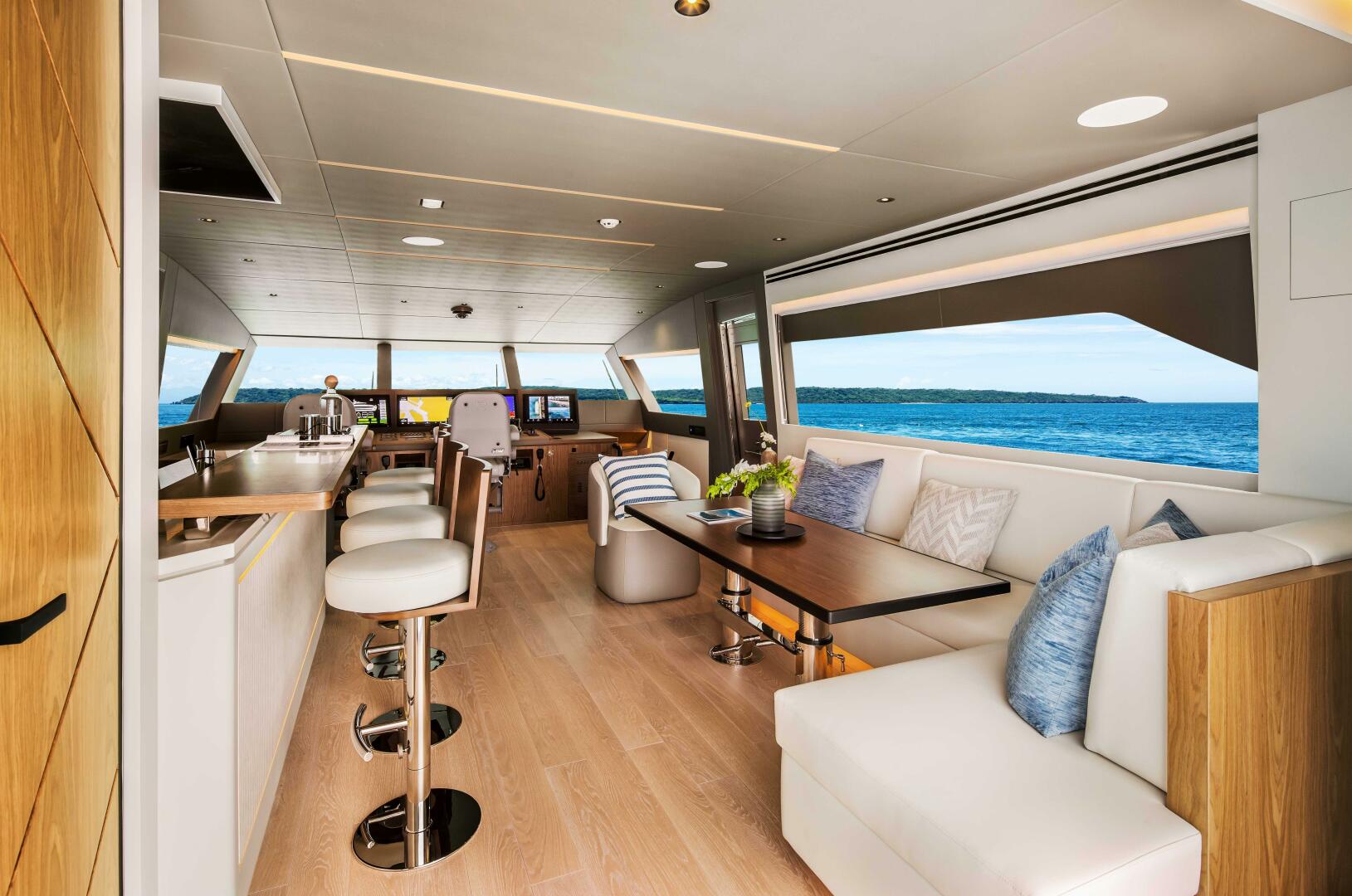

SKYLOUNGE

Skylounge area enlarged by 1 foot, as per layout

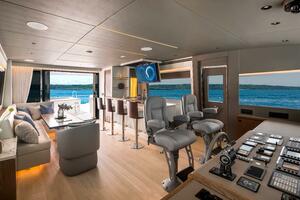

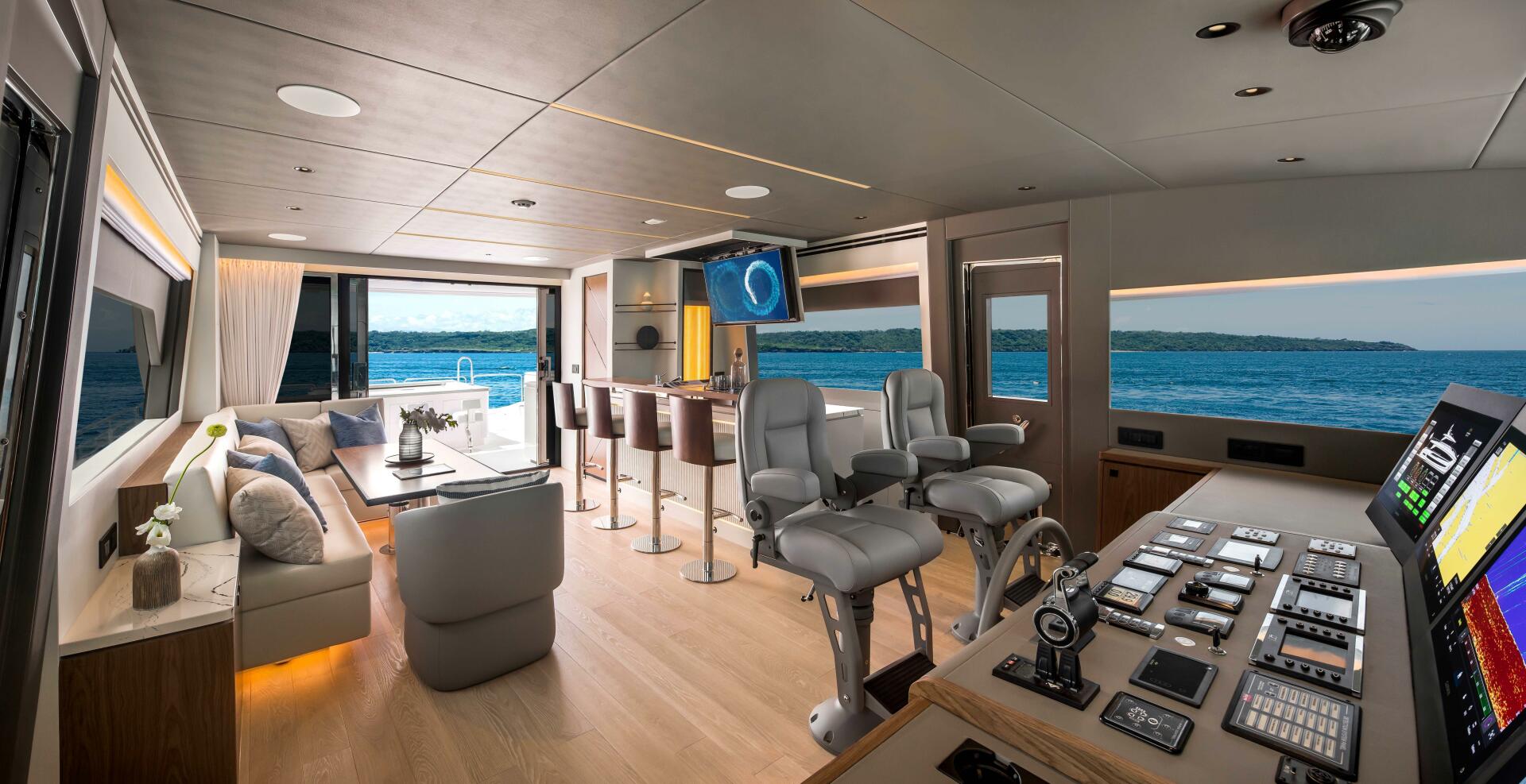

Helm station with carbon fiber dashboard panel (as main station)

Air Conditioner

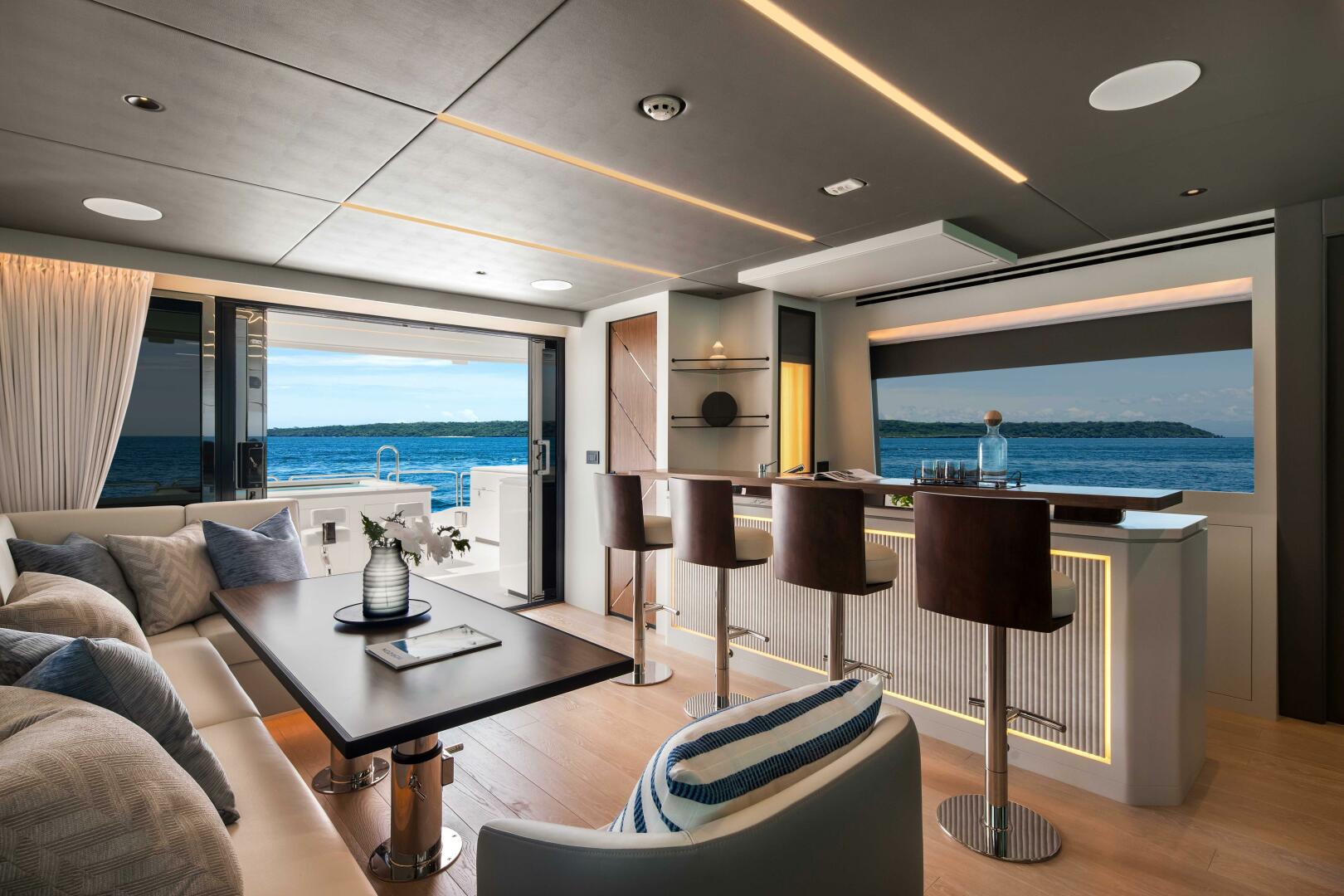

Multifunctional L-shaped seating with hi-lo table, cushions on top of the table allow conversion into a daybed

Custom bar with Cambria countertop, a built-in sink, a Vitrifrigo ice maker (MHYDIXN1X-1) and a Vitrifrigo refrigerator (C85IXD4X-1 ), details as per interior spec

5/5 manual sliding door to the boat deck with self-locking

A day head in Skylounge

BOAT DECK

Non-skid exterior deck

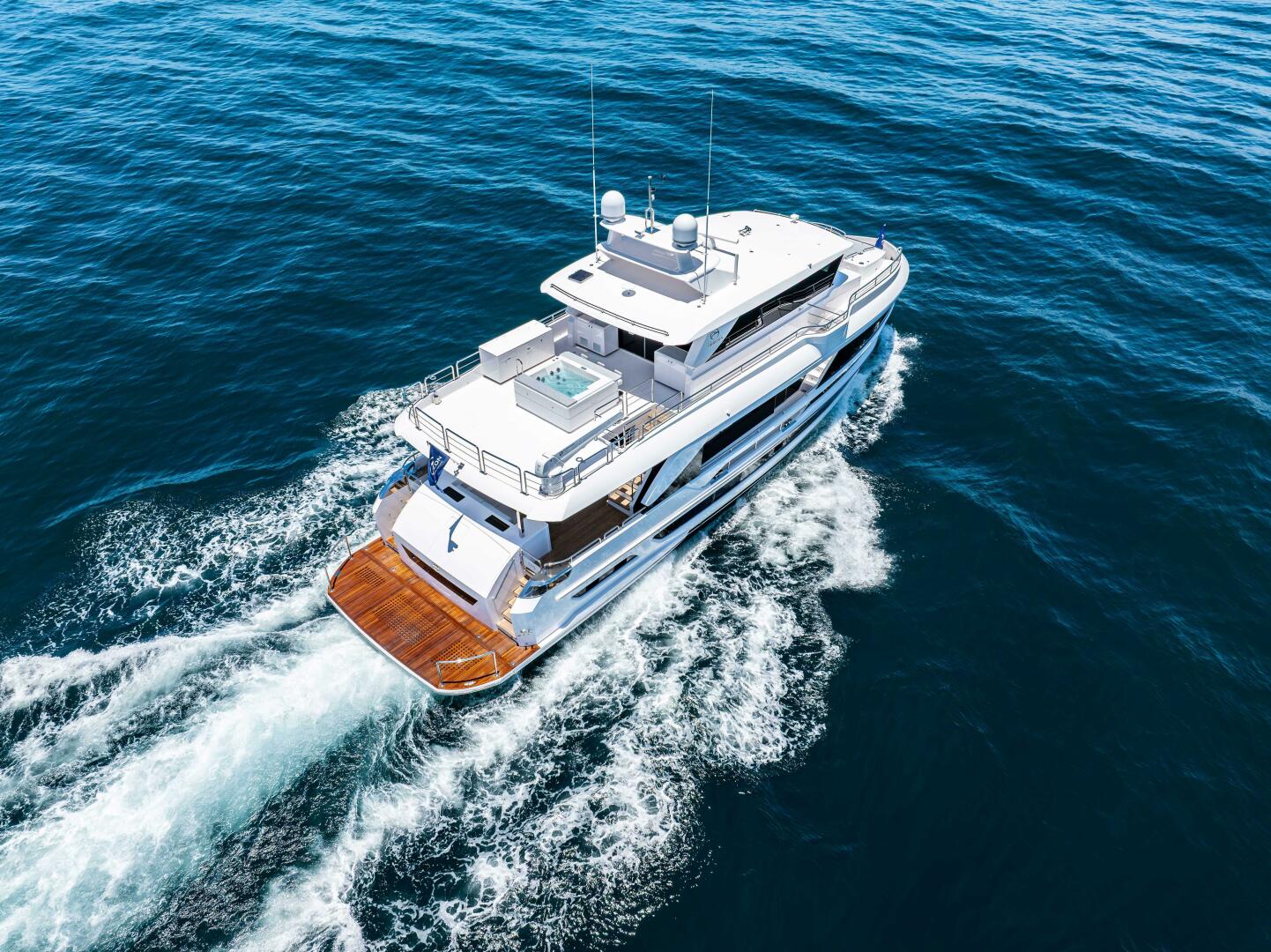

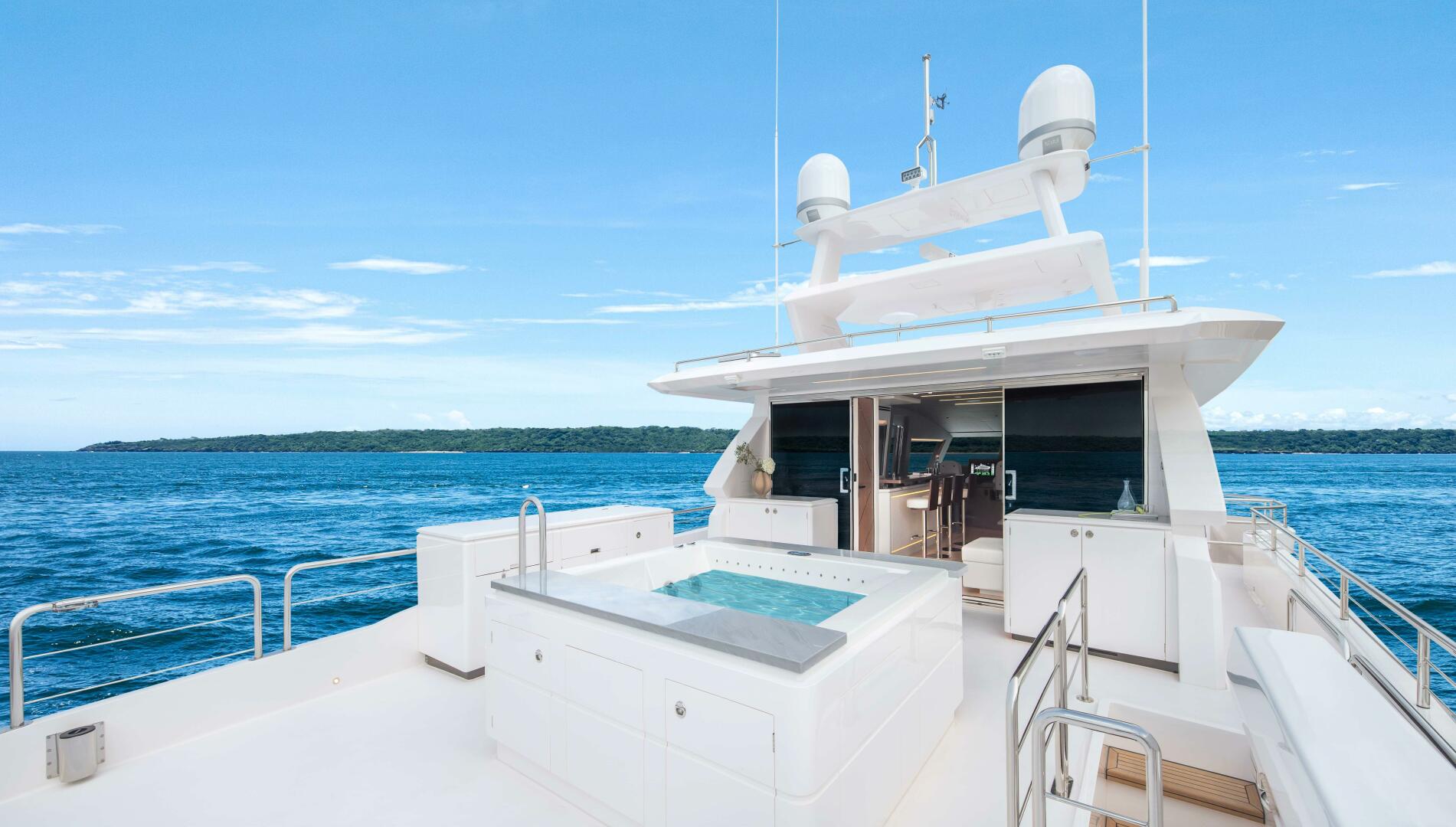

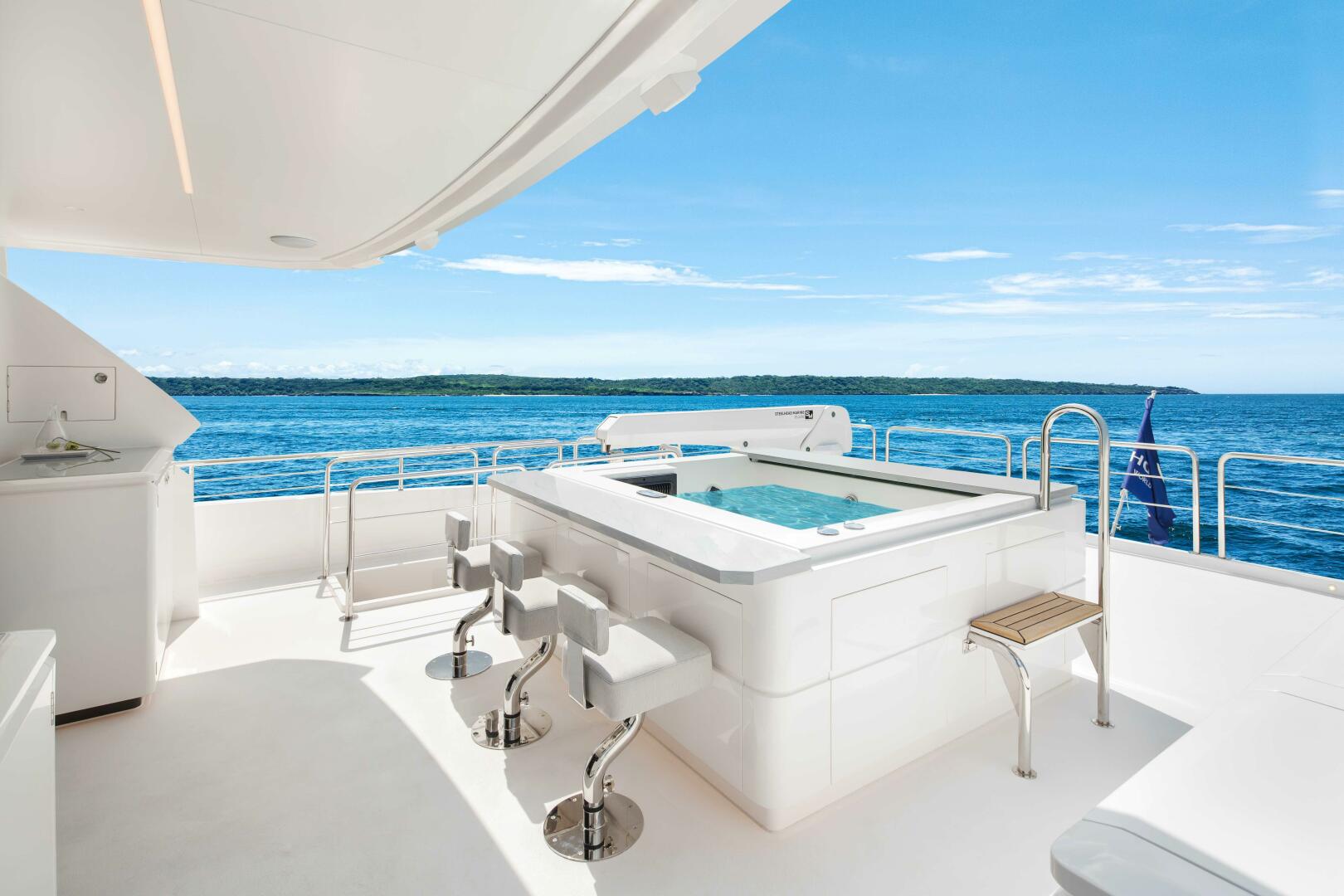

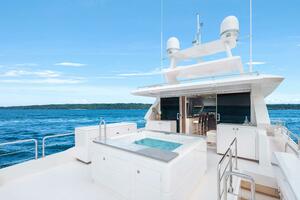

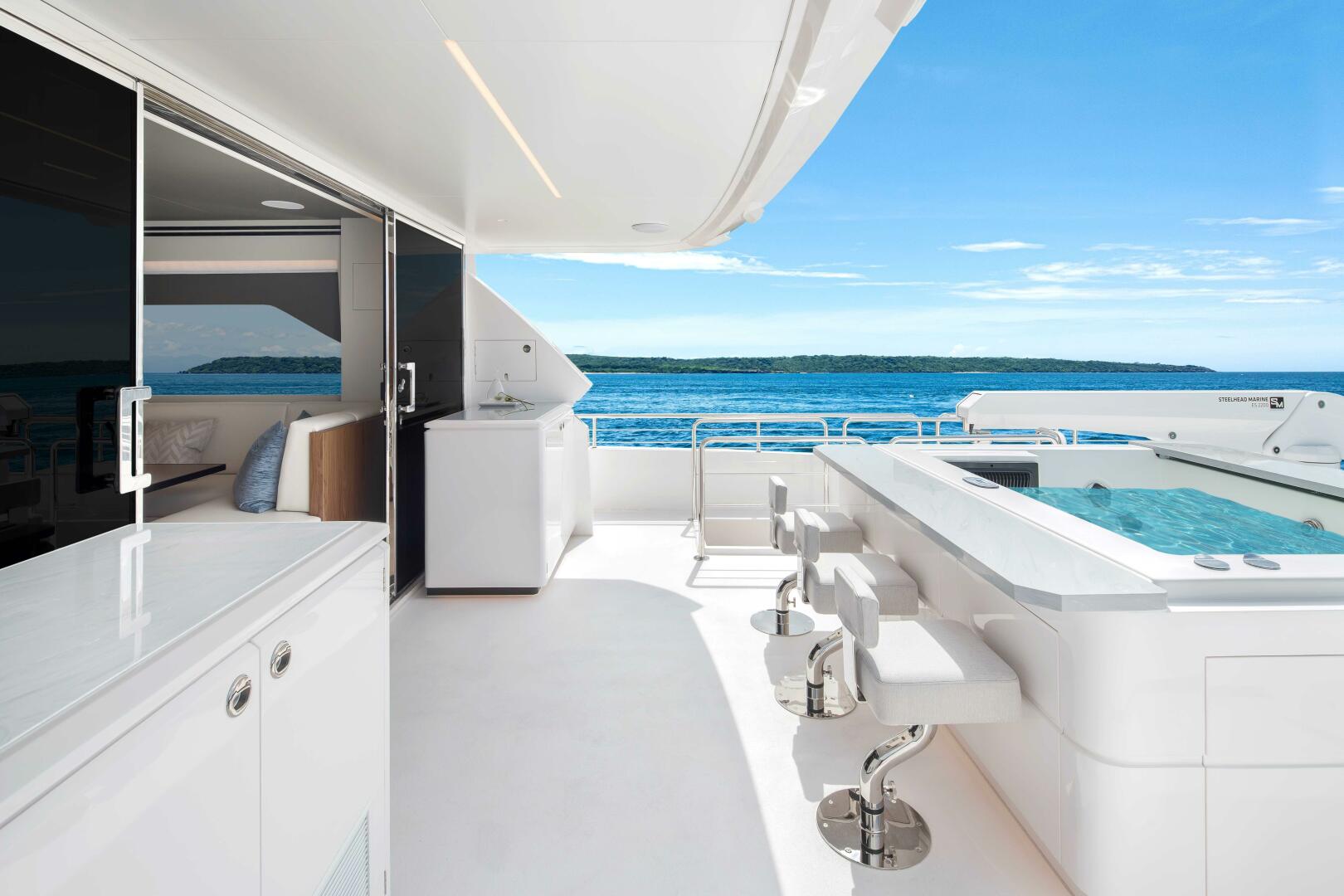

The boat deck features a heated Jacuzzi with a built-in shower head, and a custom bar connected, including 3 stools

4SPACES/ SUNLIMIT/ STROHEIM fabrics for exterior cushions and sunpad

STAMOID covers ("Smart 1", White color) for flybridge, helm seats, aft deck seats, sunpad, and foredeck cushions and seats

Meganite for counter/tabletop 1/0 FRP (excl. extended design)

A Vitrifrigo ice maker (MHYDIXN1X-1) and a Vitrifrigo refrigerator (C85IXD4X-1 ), under the boat deck

counter details as per interior spec

One hidden 24" propane BBQ with manual Hi-Lo lift and cover

Hatch on the hardtop with a ship-loose retractable ladder

Oversized drains with strainers on each corner of boat/upper deck and internal overboard drains

Radar arch with antenna bracket

Takai Sanshin LED search lights (x2)

Lumitec flooding lights (x4; 2 for mast and 2 for boat deck)

Chrome-plated Buell air horns on top of the radar arch

5/5 flagpole at stern

Hydraulic davit 2200lbs (Steel head E52200)

LED warm white lights for the Horizon logo on PORT and STBD side

8-person life raft with bracket (A pack, 2 units)

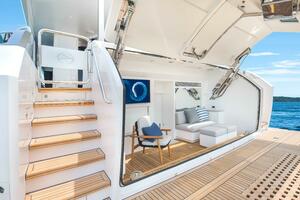

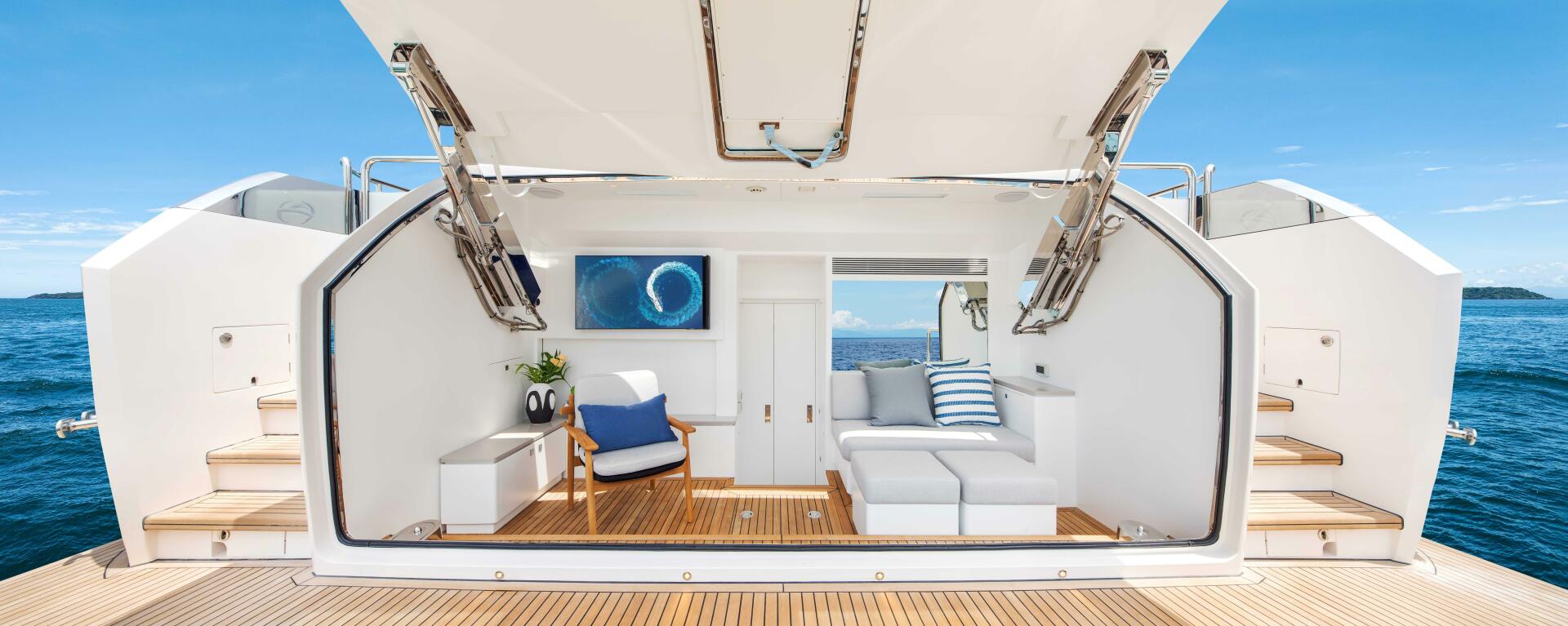

Teak Beach Club and swim platform; teak steps to the boat deck and swim platform

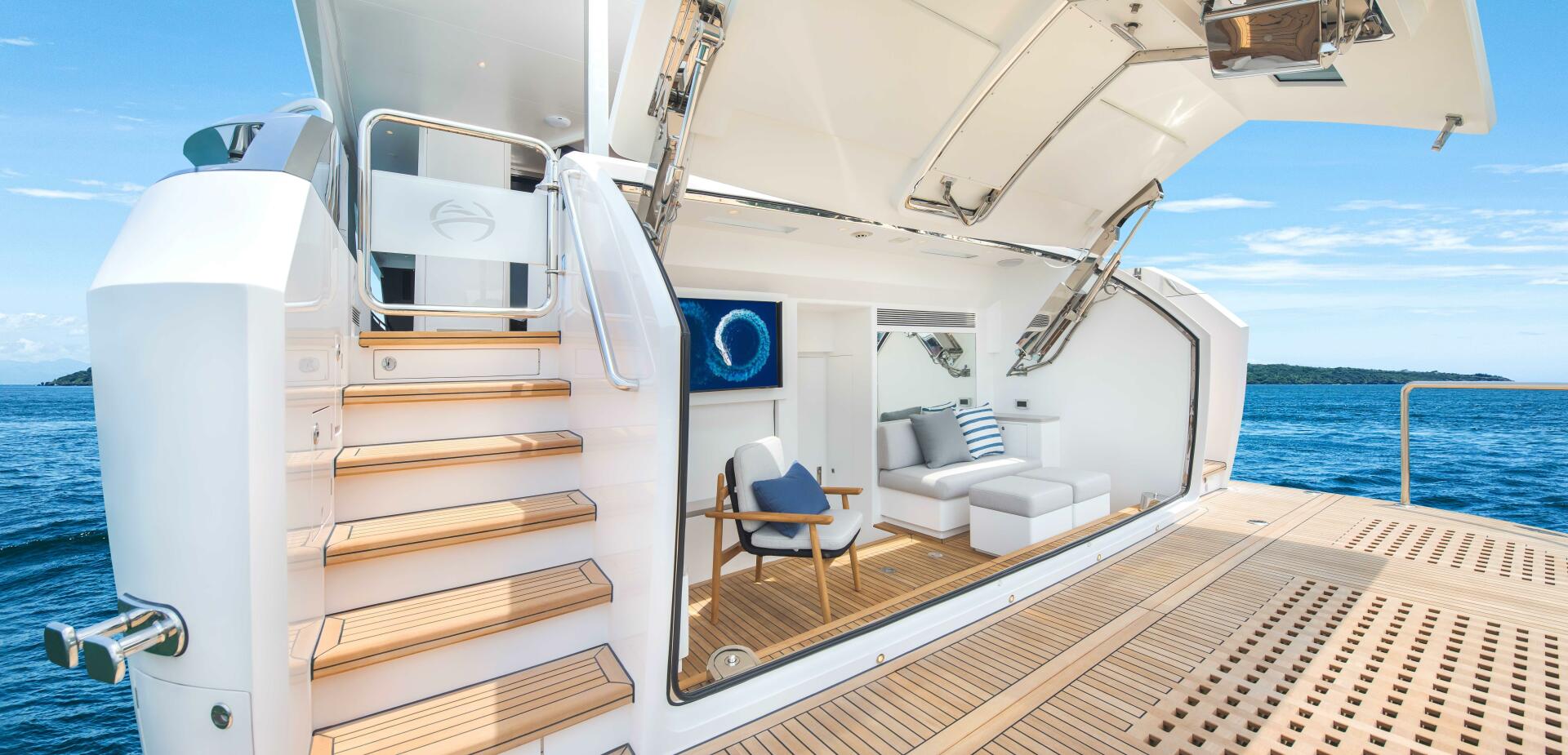

Hydraulic door w/ pantograph door in the middle

Hydraulic Hi-Lo swim platform (990kg/2,200lb lifting capacity) w/ two removable corner rails

Seatings w/ table and 43” LED TV

Stidd manual pilot chair (SOON, x2)

Heavy-duty Speich 5/5 wipers with wiper wash system

Variable speed control on each windshield wiper

Standard black mesh for windshield

Riviera ASTRA 4" magnetic compass at helm, International LED navigation lights (incl. anchor, masthead, stern, PORT and STBD side light, total 5 units)

Prewire for FUR M364C night vision (no bracket)

Full set of engine gauges at the helm

Electrical fuel and water level gauges

Monitoring system for important equipment (bilge pumps, blowers, navigation lights)

Surveillance camera system (two PTZ cameras; one at aft deck & one in engine room)

Garmin Surround View Camera system

Wireless charger (x1)

Twin diesel engines with reduction gears

Live SAE-C PTO on gearboxes for thrusters/windlass & stabilizer power

SAE-B PTO on engines for hydraulic steering gear

Seatorque shaft system (incl. Seatorque Bolt-On Shaft System, "BOSS", model no. M4B: AQ22HS s/s shaft, Cardan shaft, QuicKutter line cutters)

High-performance 5-class 5-blade propellers in NiAIBr

Bronze strut with backing plate

Rudder packing glands with Tides Marine dripless seals

MTU engine controls with a chrome control head at helm (each) station

One remote handheld control (with throttles, gears, and thrusters) with plugs on pilothouse (x1) and aft deck (x1)

Prewiring for future wireless yacht controller

FRP foil-balanced blade rudder with 5/5 rudder stock (x2)

Hypro power steering system

5/5 emergency tiller in rudder cabin

24" 5/5 steering wheel(s)

Underwater exhaust system for engines w/ bypass mufflers

Side-Power hydraulic stabilizer system SP593B

VF1650 (1.65 square meter) with "At Anchor" function

Side-Power hydraulic bow thruster SH550 (550kg) and stern thruster SH420 (420kg)

Zipwake interceptor system

A backup Side-Power DC24V seawater cooling pump (ship loose)

GENERAL DESCRIPTION

Color-coded wiring for easy identification

AC & DC main electric panel with circuit breakers

Sub-panel design with circuit breakers in each zone for electrical distribution

AC volt duplex receptacles with USB A+C outlets located throughout the boat, including aft deck seat base, bow deck table pedestal, and engine room. (Details per lighting plan)

GFI protection for all AC outlets in exterior, heads, galley, and engine room

Fiberglass water/exhaust separator for generators

Electrolysis bonding system

Cathodic protection with zinc anodes for shafts, struts, etc

Indirect lighting under valance in salon, staterooms, Skylounge, and Galley

Dimmer system for LED ceiling lights in aft deck, Skylounge or flybridge

Dimmer system for LED ceiling lights in salon, pilothouse, master, and VIP staterooms

Italian Vimar outlets & switches for lighting system

Motion detection light at the guest foyer close to staircase

Underwater lights (x6)

AC/DC MAIN POWER SYSTEM

AC electrical system: 240V/120V, Single-Phase 3-Wire, 60Hz

255 Ah 12V AGM start batteries (x4) for engines/generators with battery chargers (x2); 125Ah 12V AGM batteries (x2) for DC 24V engines control power with a battery charger (x1)

255 Ah 12V AGM batteries (x4) for ship's DC 24V service power with a combined inverter/charger (x2)

All batteries are enclosed with proper fixtures

Ignition-protected battery switch

Octoplex multiplexing power distribution system

Maretron monitoring and control system with a MBB300C for inputting the Maretron info to GARMIN display

SHORE POWER SYSTEM

Glendinning shore power Cablemasters (x2)

1 OOAmp w/ 75' power cable each

Shore power connection with 1 OOAmp 150 boost polarization transformers and galvanic isolator (x2)

Shore power 100Amp plugs (x2), and 100Amp bow inlets(x2)

NAVIGATION SYSTEM

Garmin GPS with Satellite Compass

Garmin GMR™ 1236 xHD3 (6-foot /12kW/96nm) open array and Pedestal (x1) and GMR Fantom™ 54 (4-foot/50w/ 72nm) Solid-state Open Array and Pedestal (x1)

Garmin GPSMAP® 9222 - 22" (x4) multifunction displays

Garmin Fishfinder and transducer

Garmin Autopilot system

Garmin Wind/ Speed/ Temp transducers

Garmin AIS

Garmin VHF (x2) with built-in loudhailer

Guest accommodation includes an on-deck master stateroom, fwd. VIP stateroom, stbd. VIP stateroom & port VIP stateroom, all ensuite

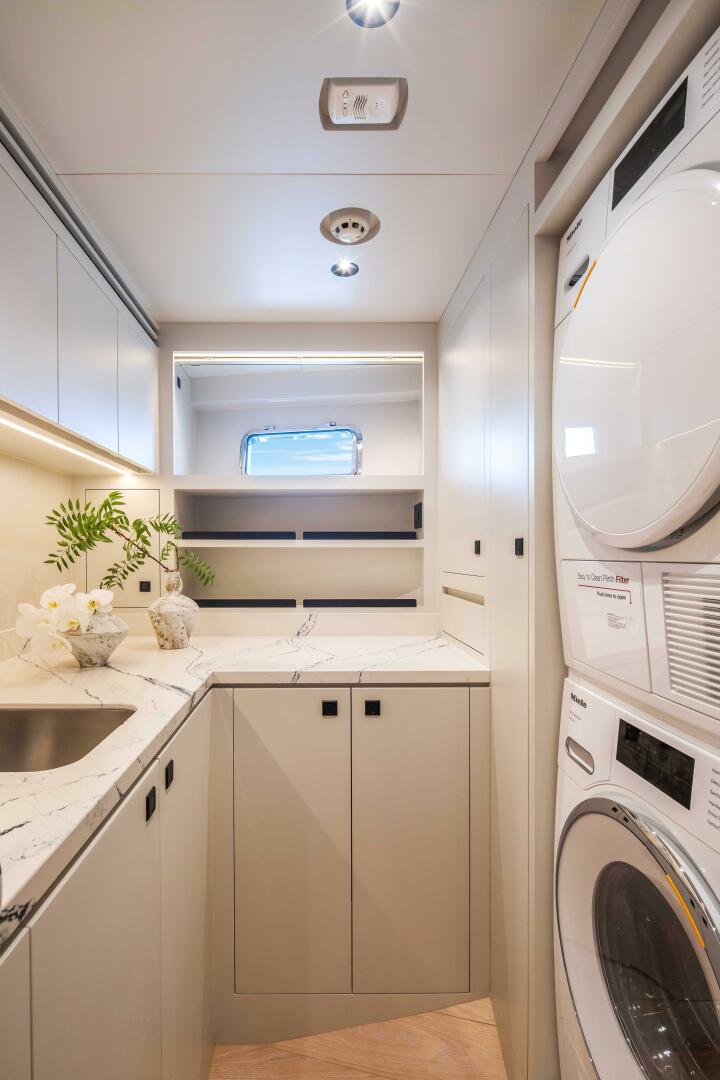

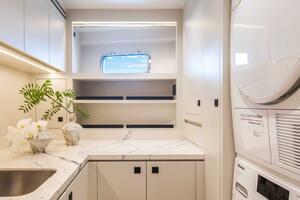

Laundry room with ironing board, sink, and storage

European OAK bleached oil hardwood flooring for public area, carpet for staterooms, and Cambria

for galley and heads. (Details please refer to Interior spec)

Cambria countertop for heads and galley. (Details please refer to Interior spec)

Crown cut natural walnut (70% SATIN 30% GLOSS) for interior

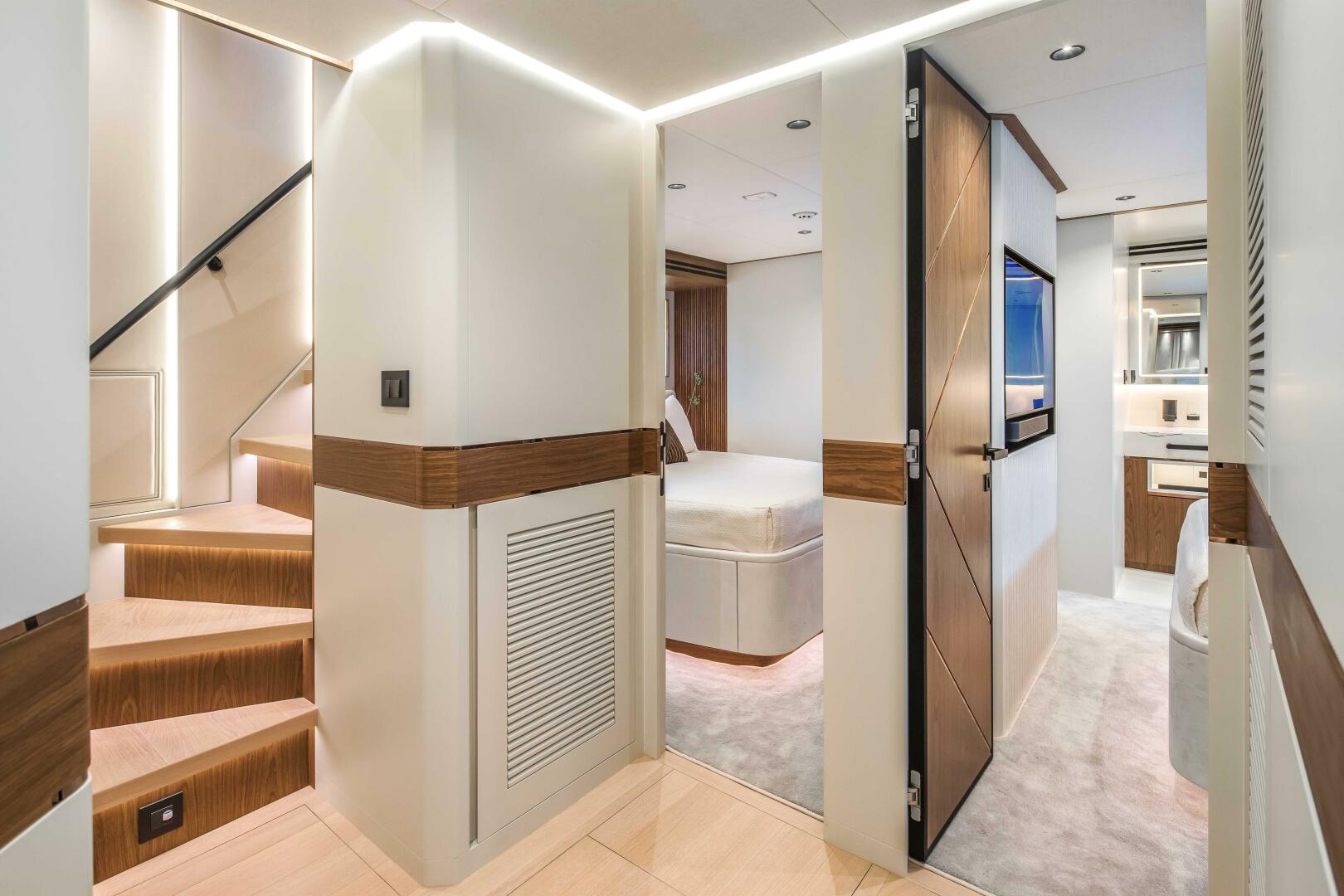

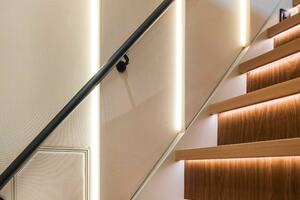

Interior stairway from main deck to Skylounge and forward staterooms.

High-quality Frascio entrance door handle with master key system (incl. 3keys) and cabinet door push latches per interior spec

High-density hotel-grade pocket spring mattresses for the entire boat, except crew cabins and upper bunks

Manual single-layer Roman shades for Skylounge and crews, single-layer Honeycomb blinds

(blackout) for guest staterooms

Manual aluminum Venetian blinds for galley and heads

Motorized single-layer Honeycomb blinds (blackout) in Master Stateroom (except head)

Motorized translucent curtains for Salon windows; Manual for the entrance door

Bedspreads, decorative pillows for all guest staterooms per interior spec

Full set of Horizon logo galley tableware for 10, incl. dish holder, pot/pan, dishes, plates, knives,

forks, glasses, etc., with Glass/Dishes/Plates holders

Cambria finishes in all shower stalls

Feature walls for the master shower and aft toilet finished in Cambria stone

KEUCO/ABI faucets, towel bars, towel rings, cup/brush/soap holders, toilet brush for forward heads

Exhaust blower for each head

Duravit basins in forward heads

Rain shower (x1) in the Master

Day head in Salon with dual access, an inboard and an outboard door

Two USB chargers for each stateroom

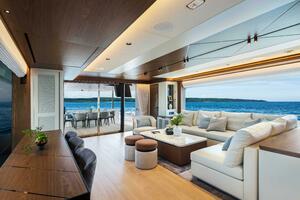

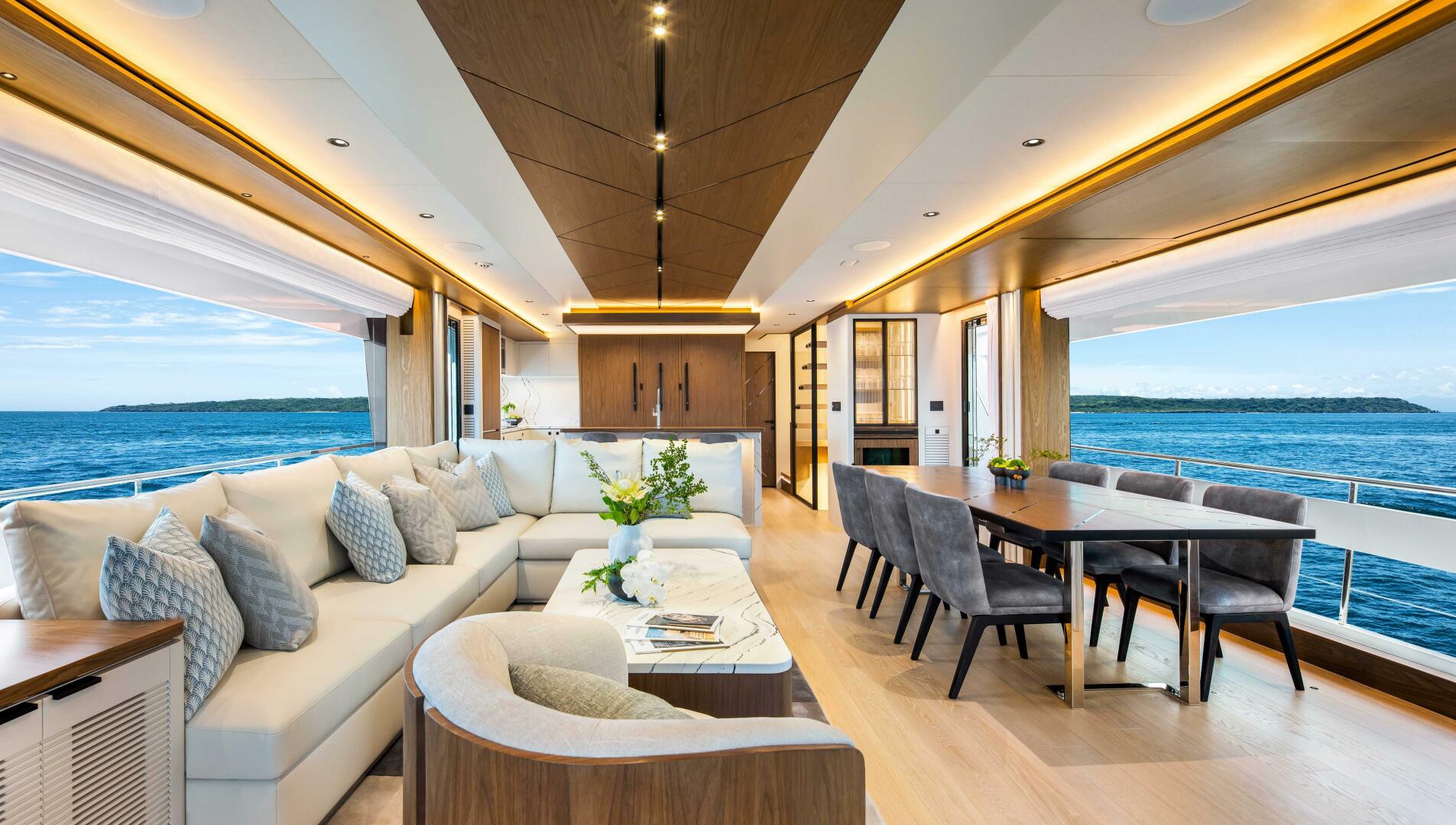

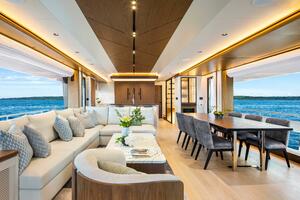

3-panel manual sliding salon door

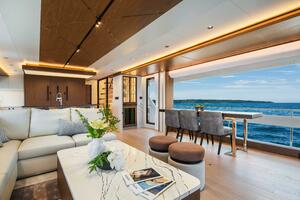

Full-height windows in the main salon

Electric single-treatment curtains

Dayhead in main salon aft

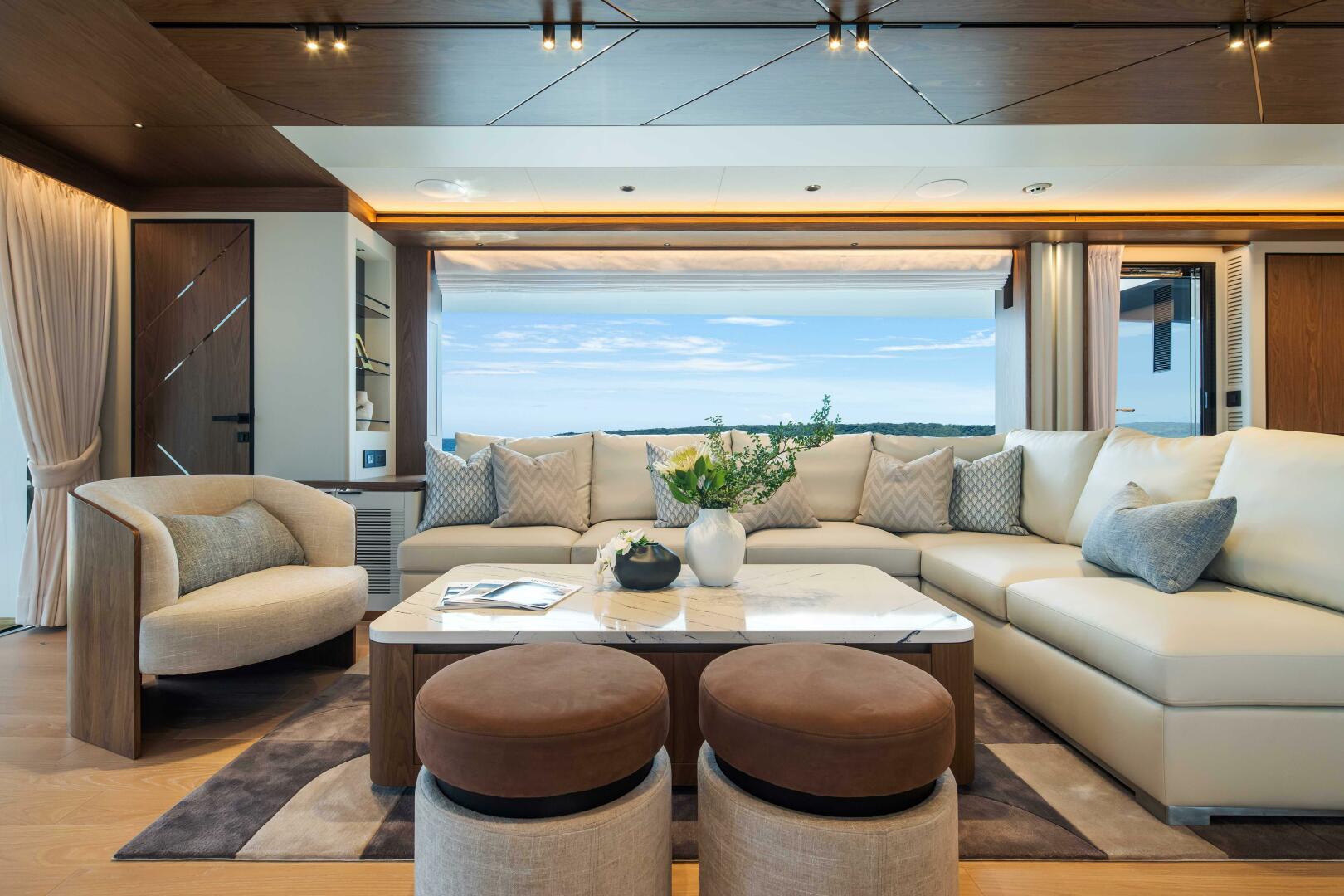

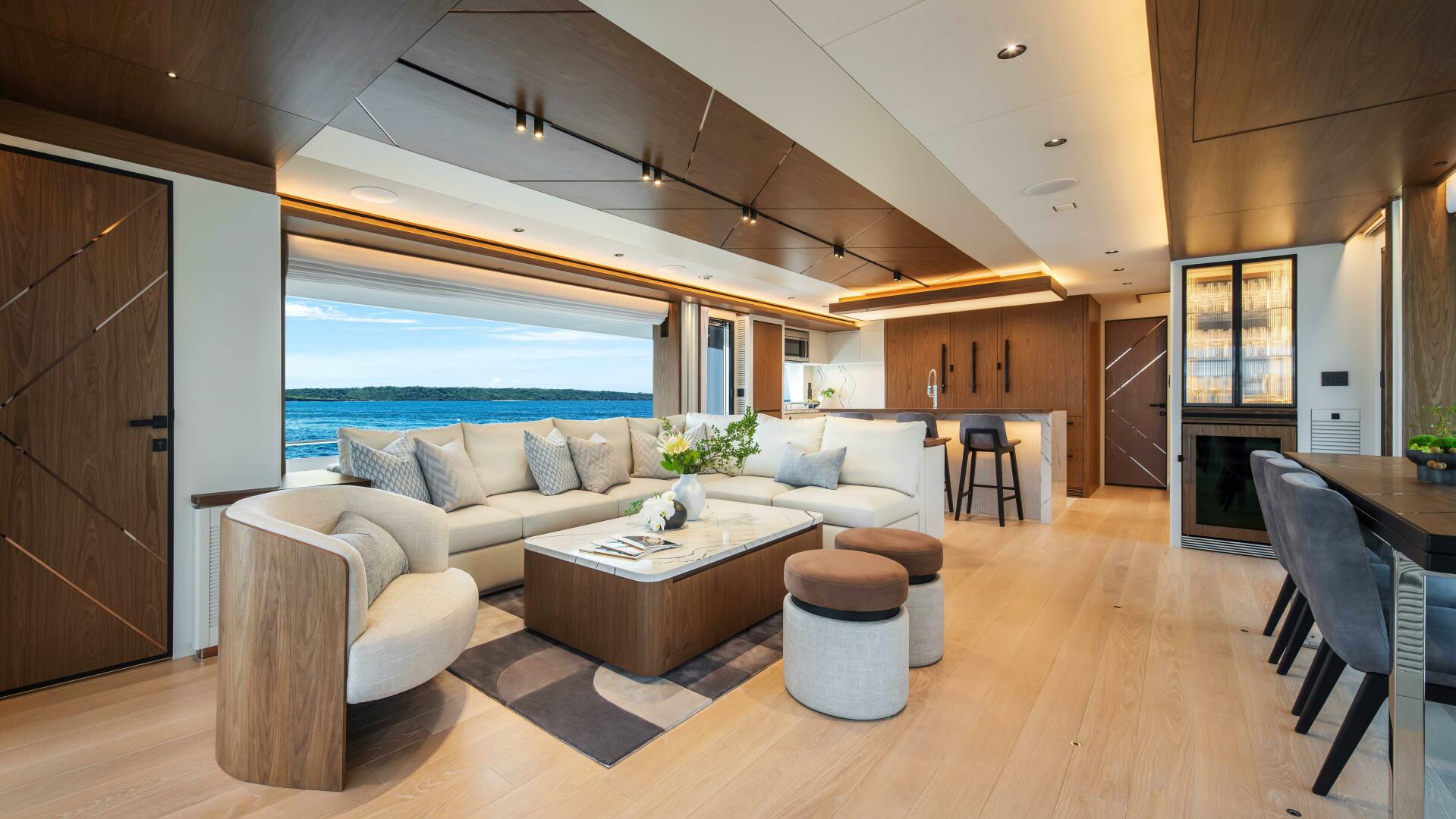

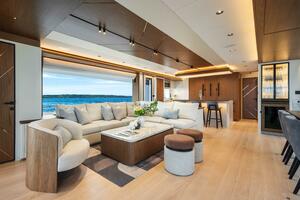

L-shaped leather sofa w/ storage underneath

Custom area rug

Coffee table w/ ottomans

Port side buffet cabinet

Convertible folding dining table & stools, per layout

Breakfast bar design

U-Line wine cooler

Hinged opening doors to port & stbd near galley

55” LED Foldup TV

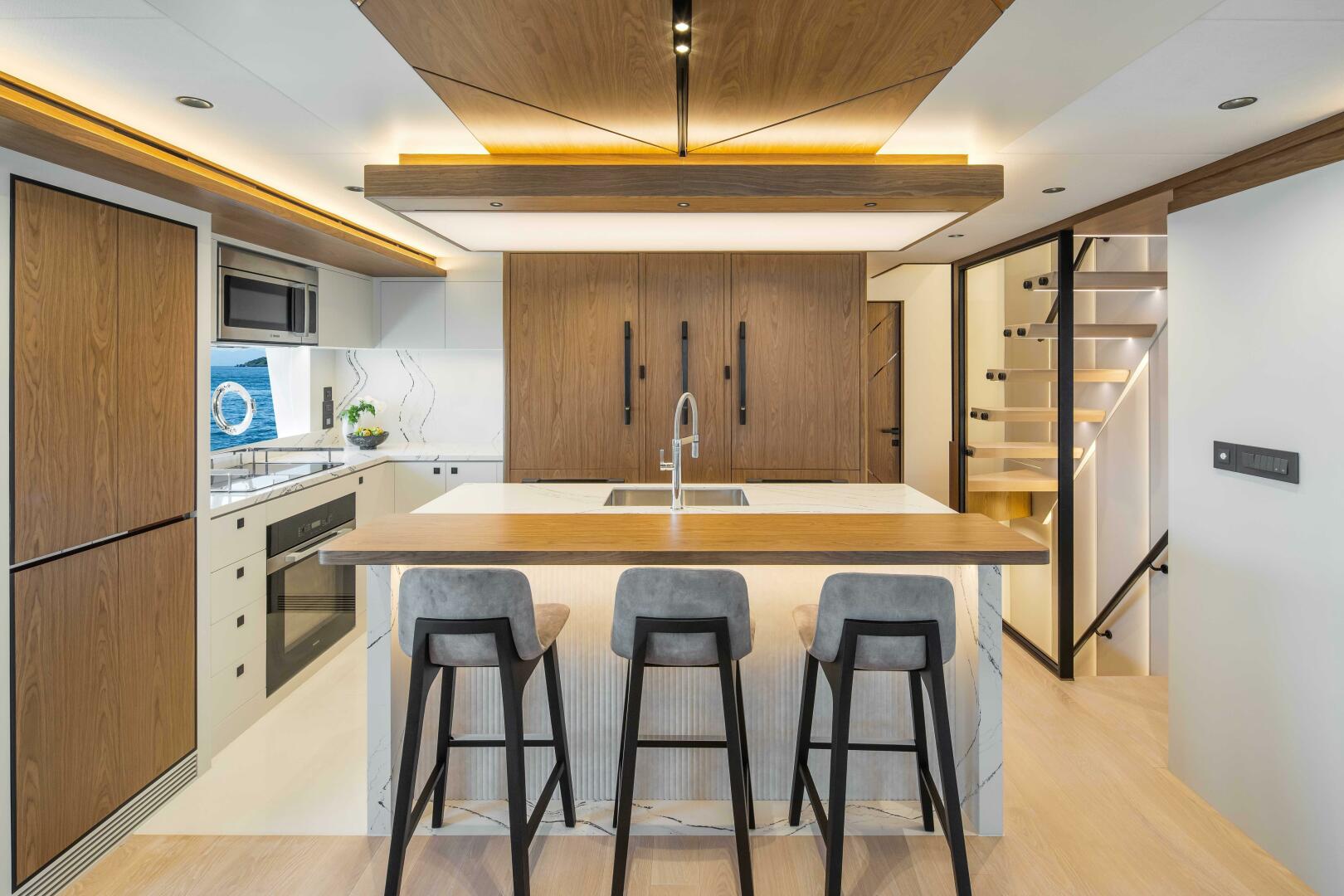

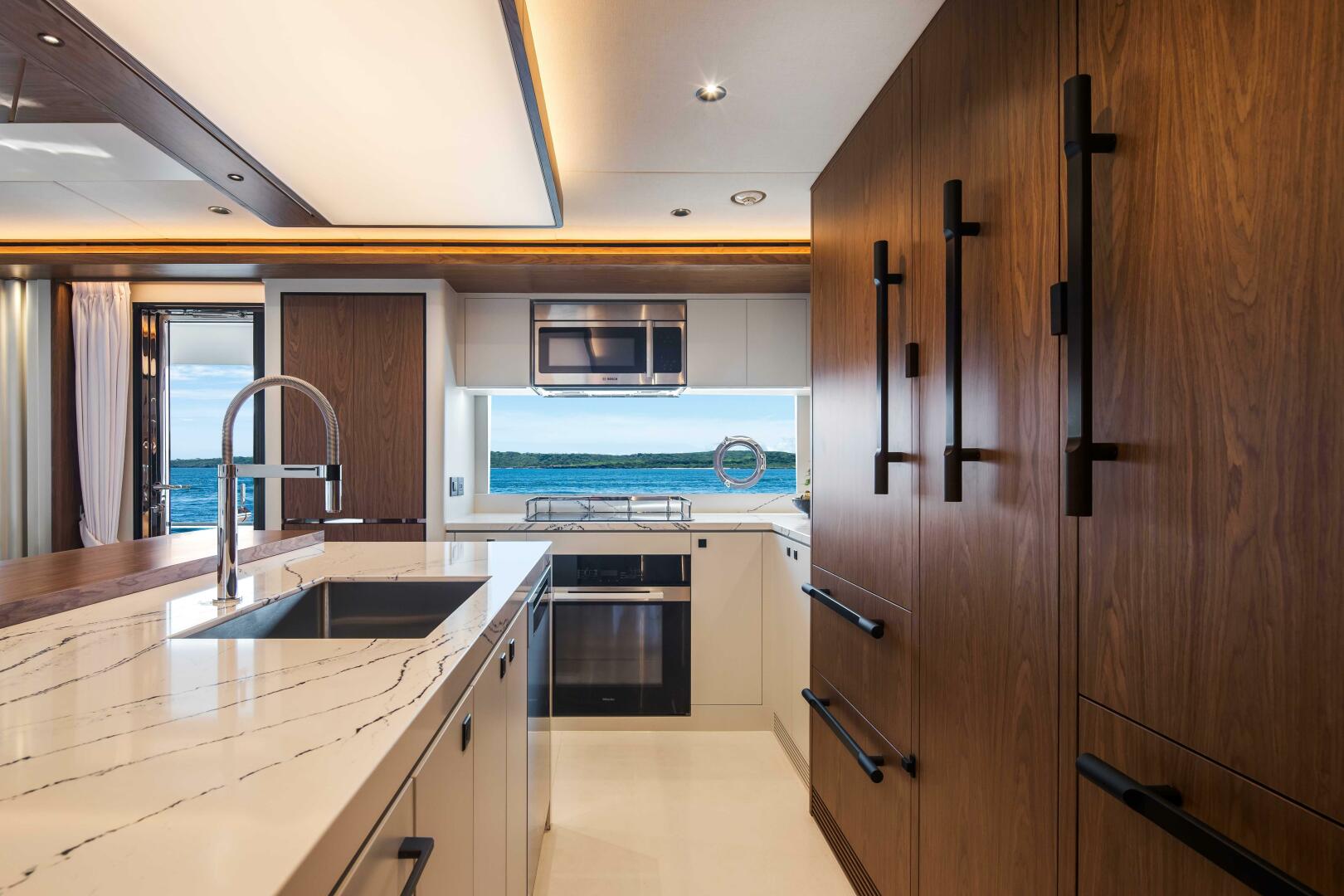

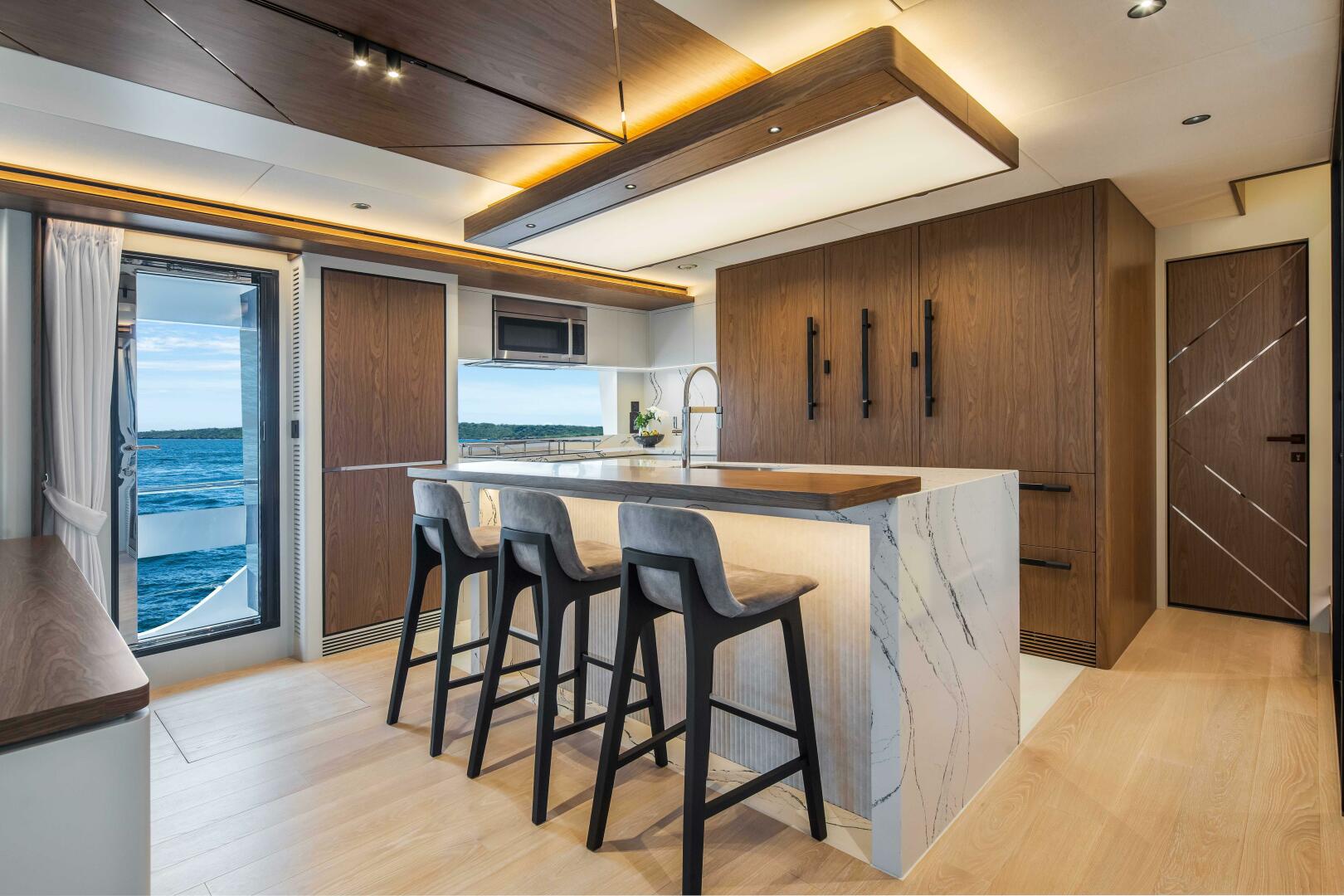

Enclosed galley design w/ Hi-Lo blind

Professional galley + extensive storage per layout

Full-height Sub-Zero refrigerator + freezer

Miele cooktop, range hood, oven, microwave & dishwasher

U-Line wine cooler

(1) opening porthole

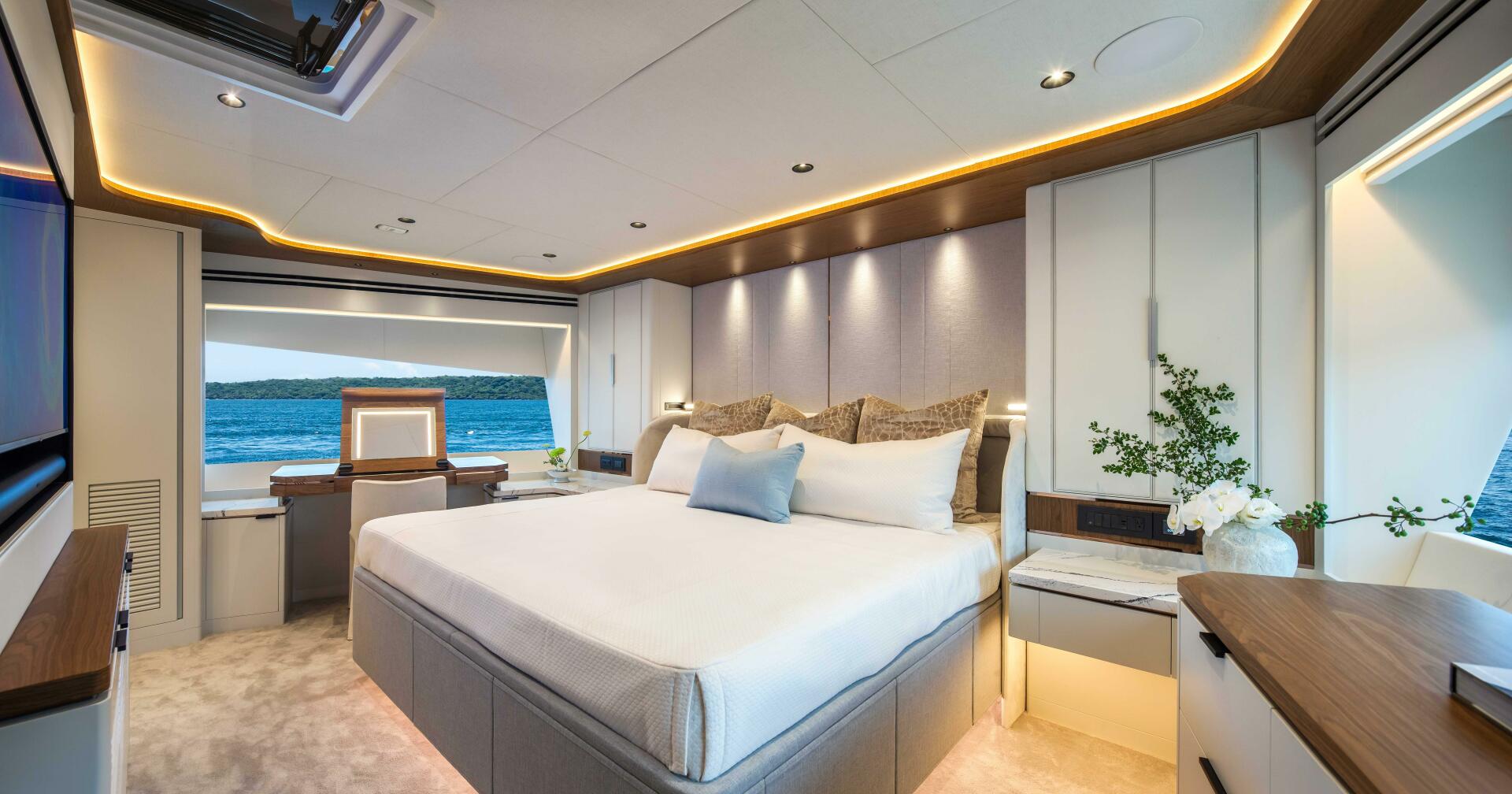

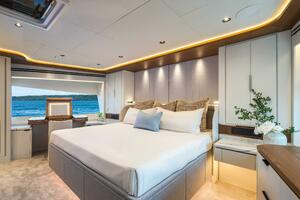

King bed w/ storage drawers, dual nightstands, owners safe

Chest of drawers to STBD; vanity/desk at PORT

Hanging lockers

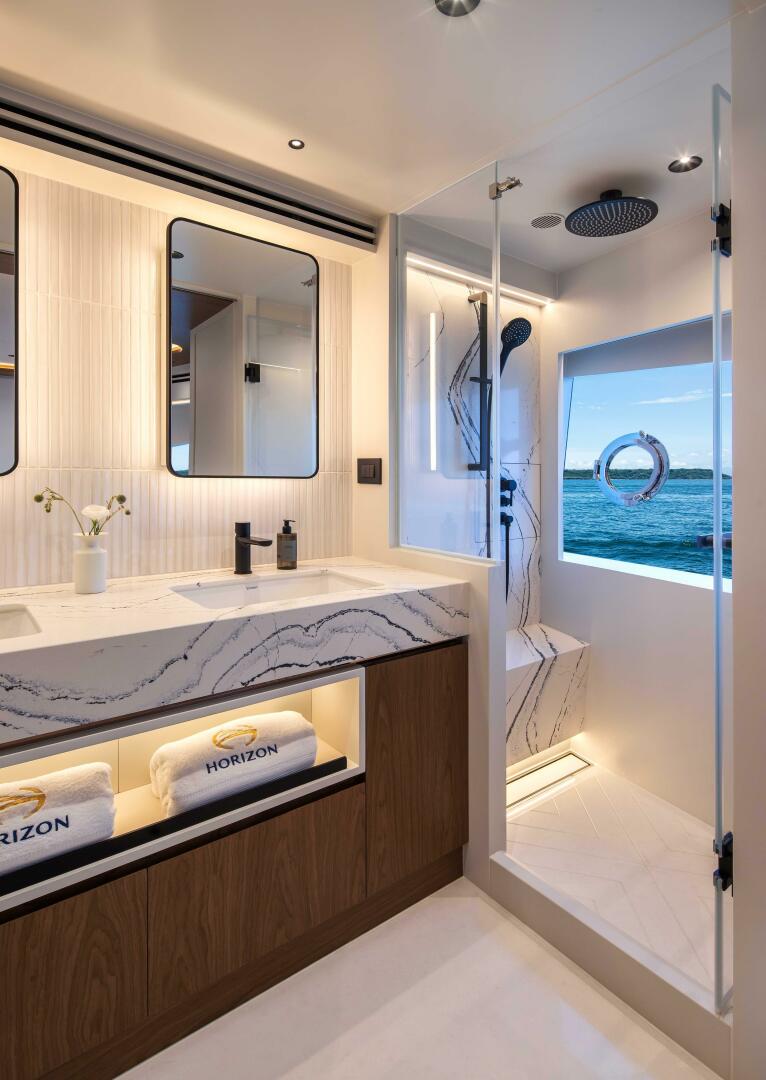

Ensuite head w/sink, rain shower & toilet

Electric shades

(x3) Opening portholes on PORT & STBD sides

50" LED TV

Escape hatch in Master w/ ladder

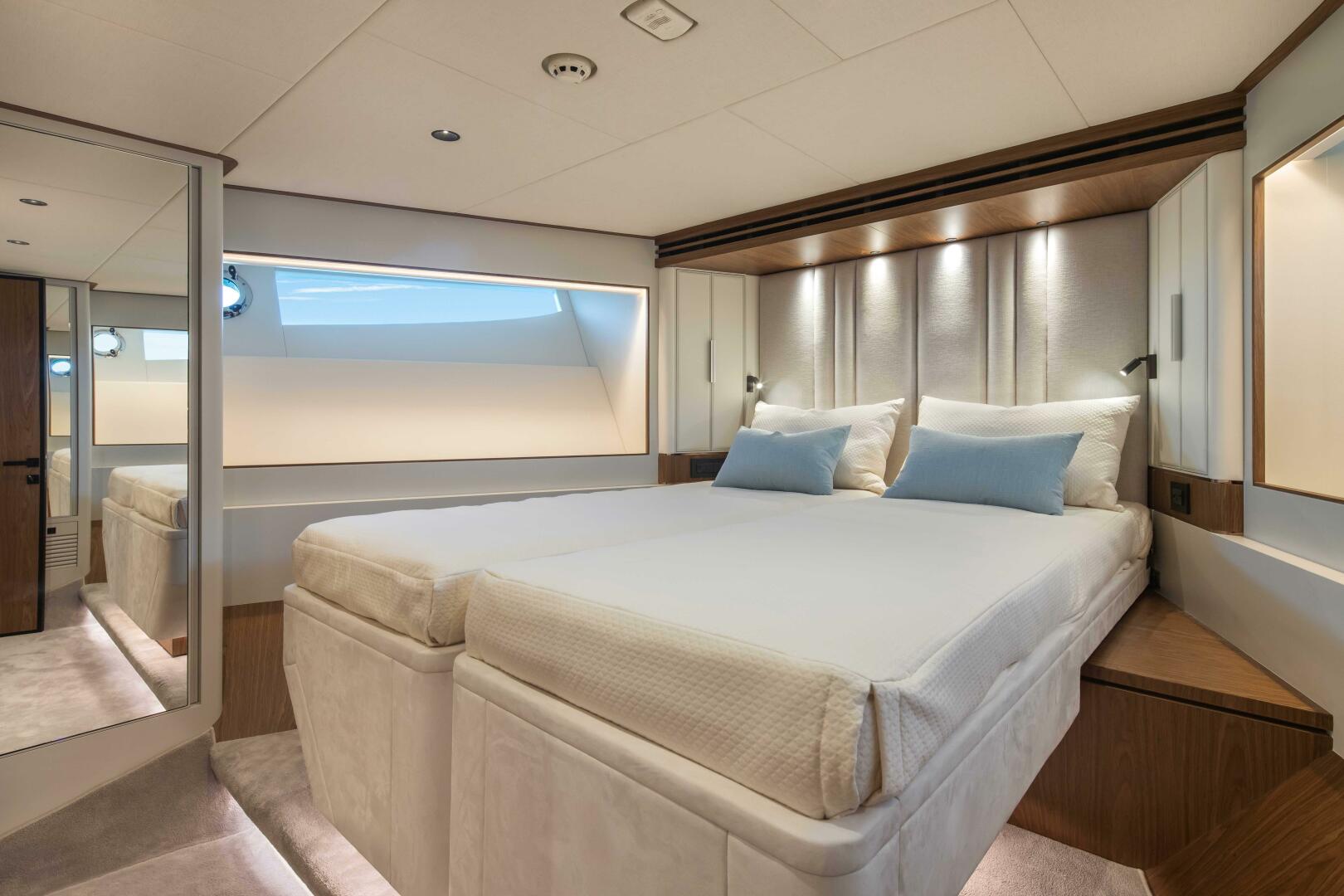

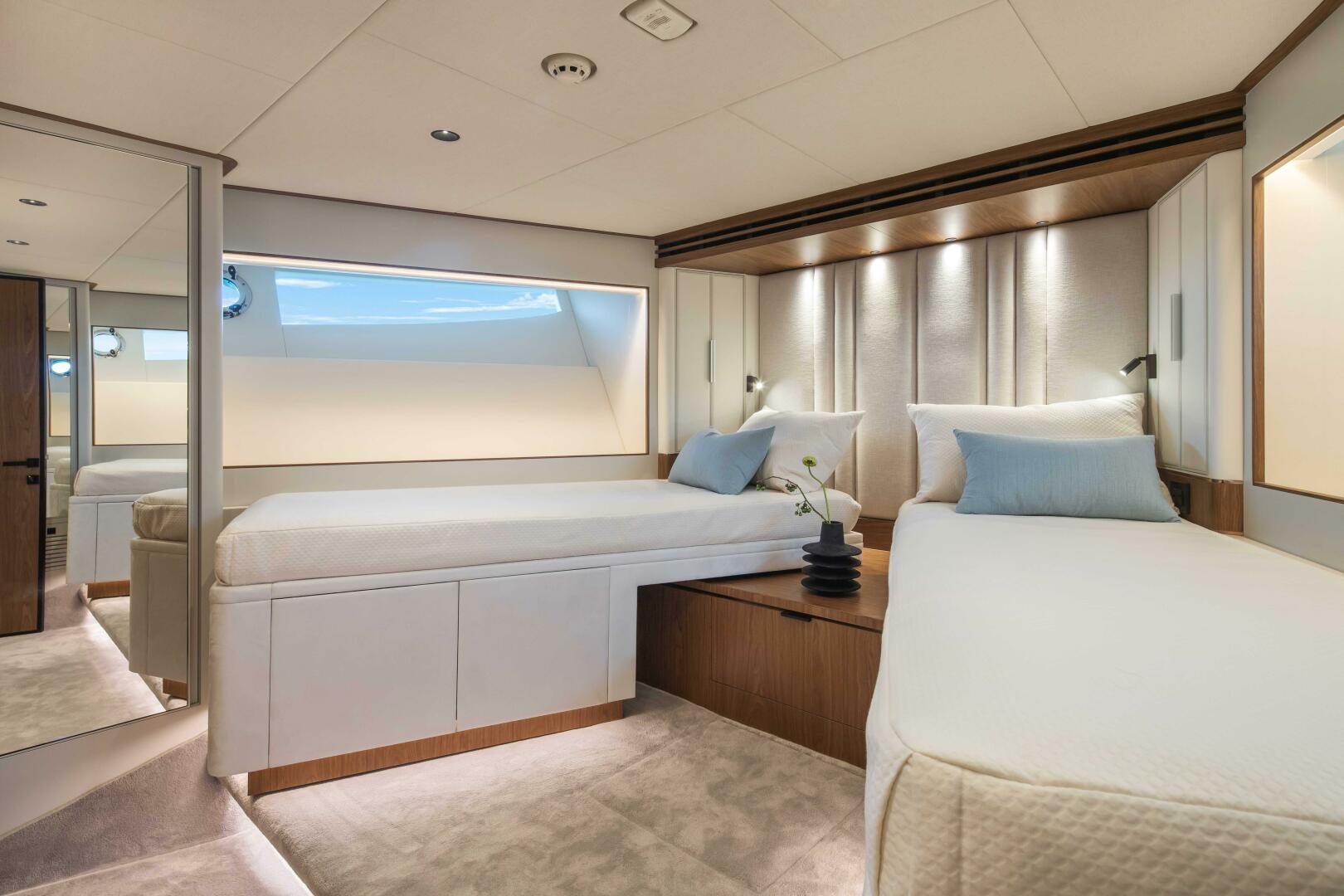

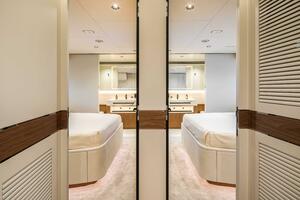

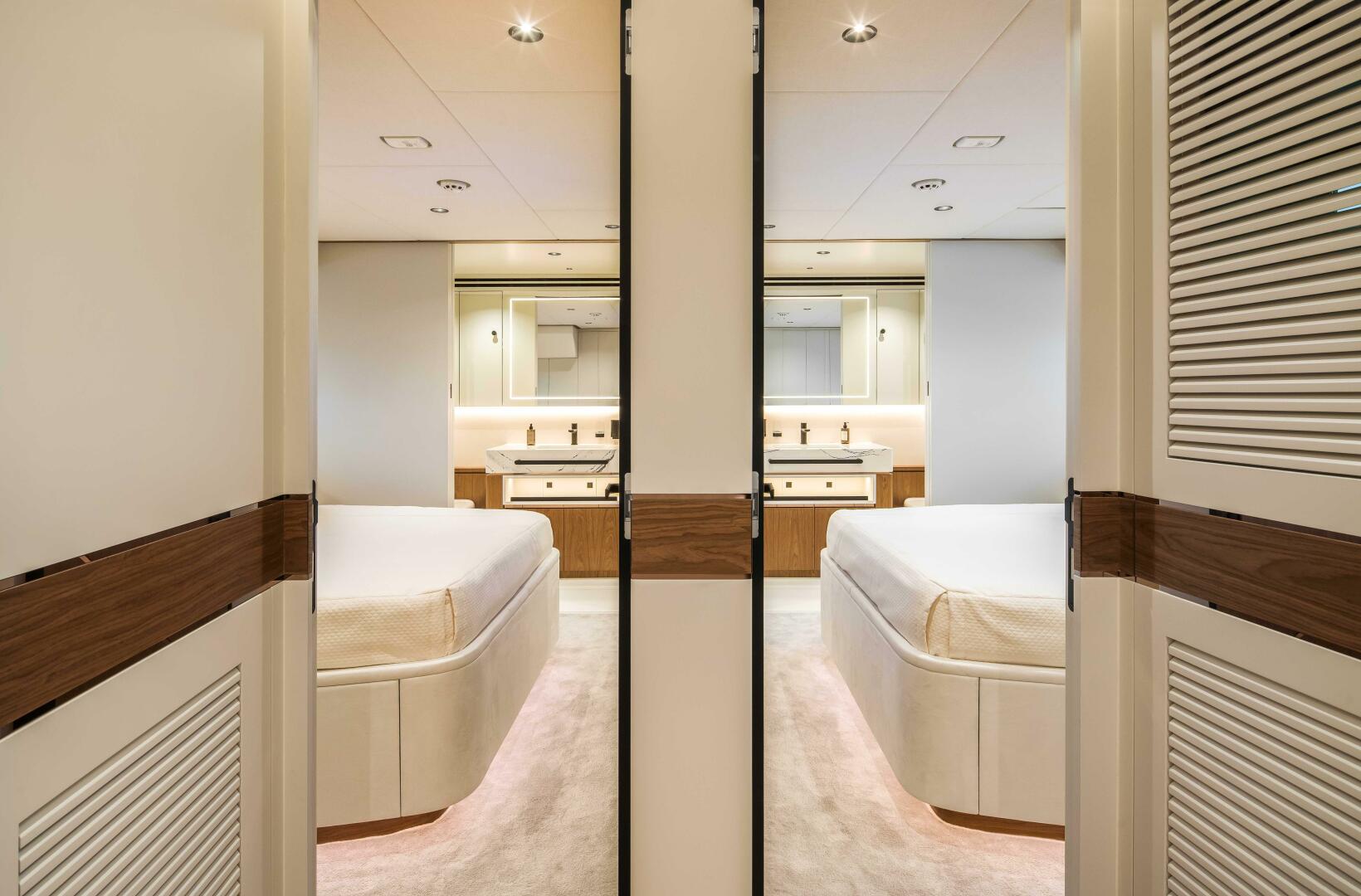

(2) Twin beds, 1 w/ sliding function

Two hanging lockers, port & starboard

Ensuite head w/ shower, sink & toilet

32” LED TV

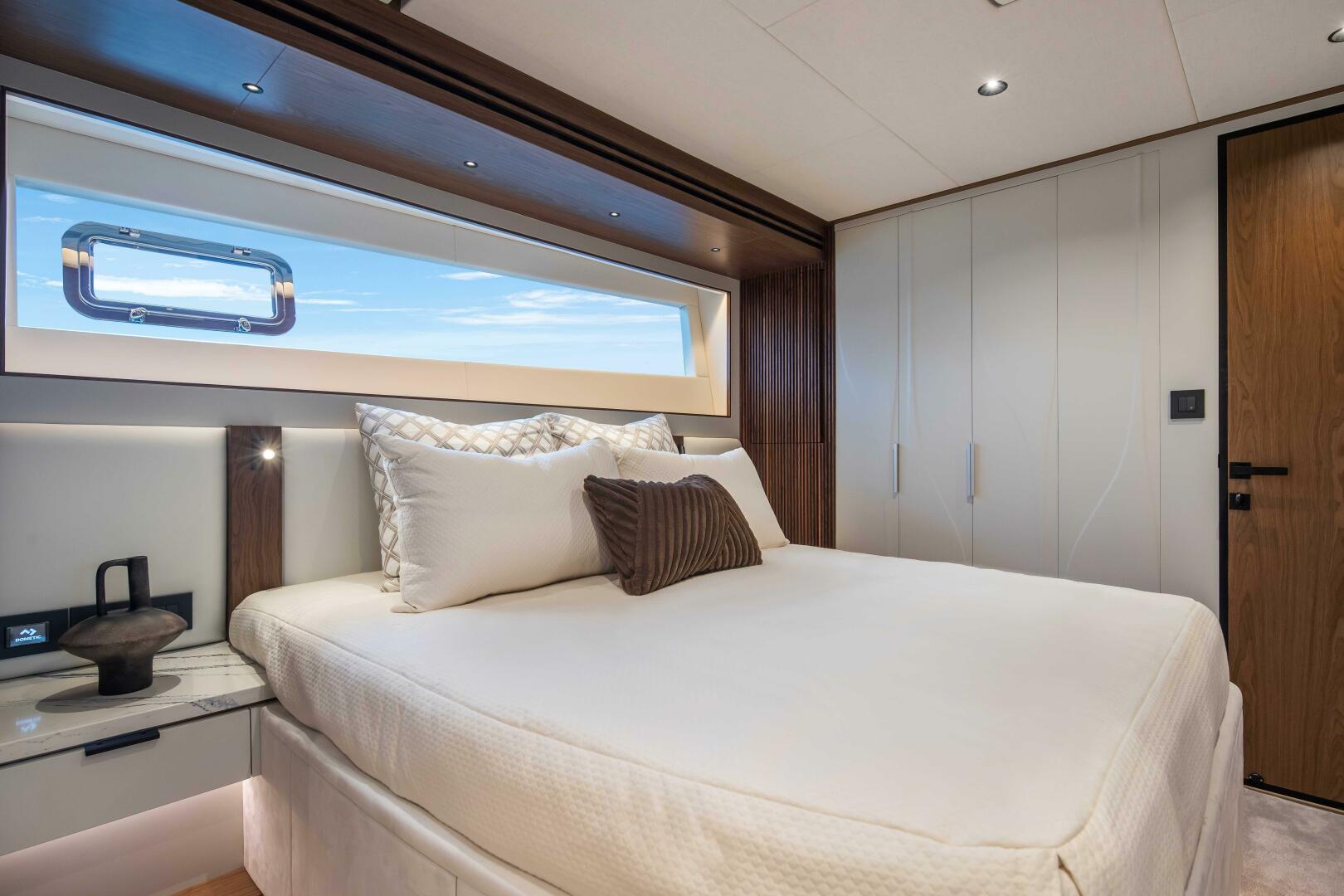

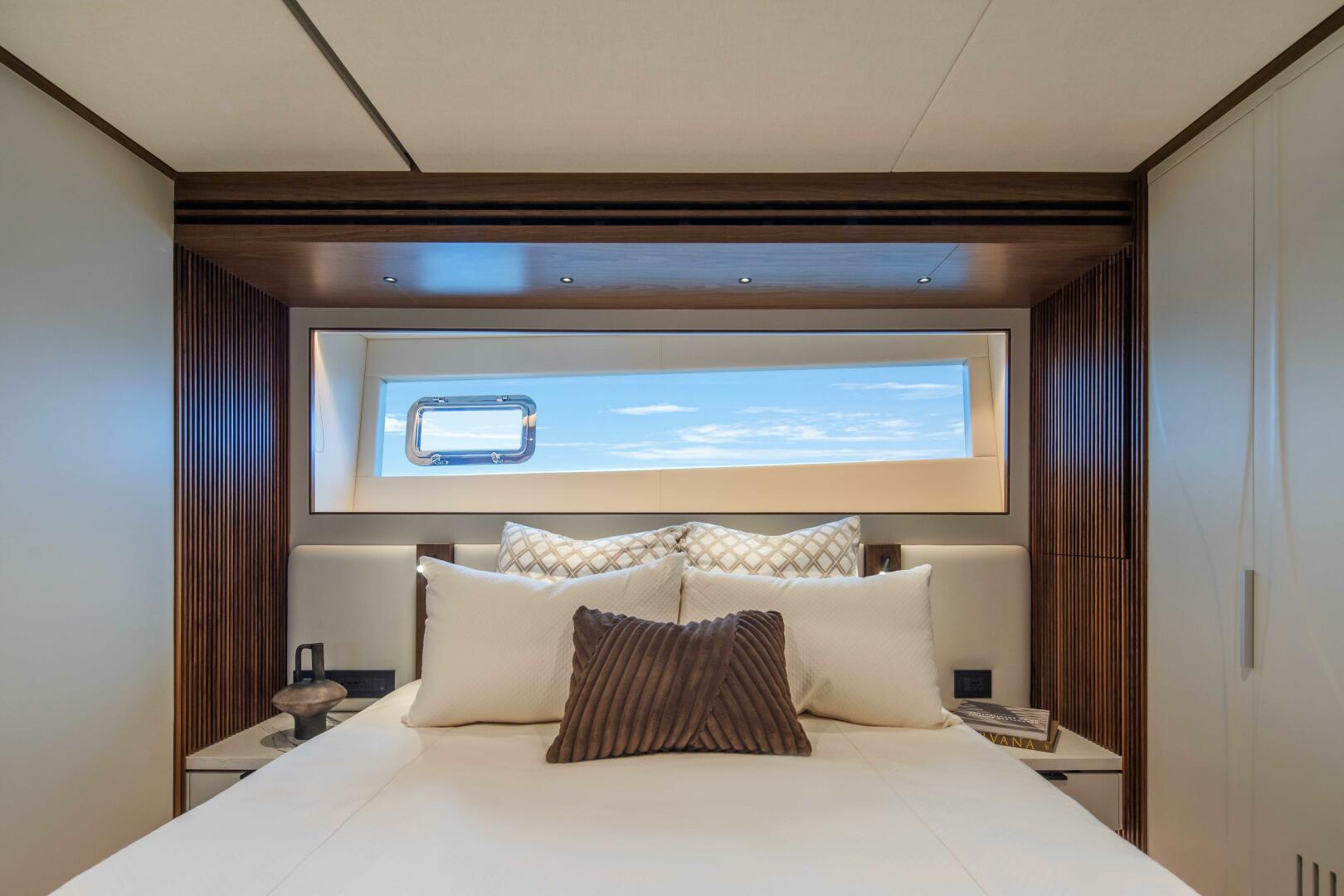

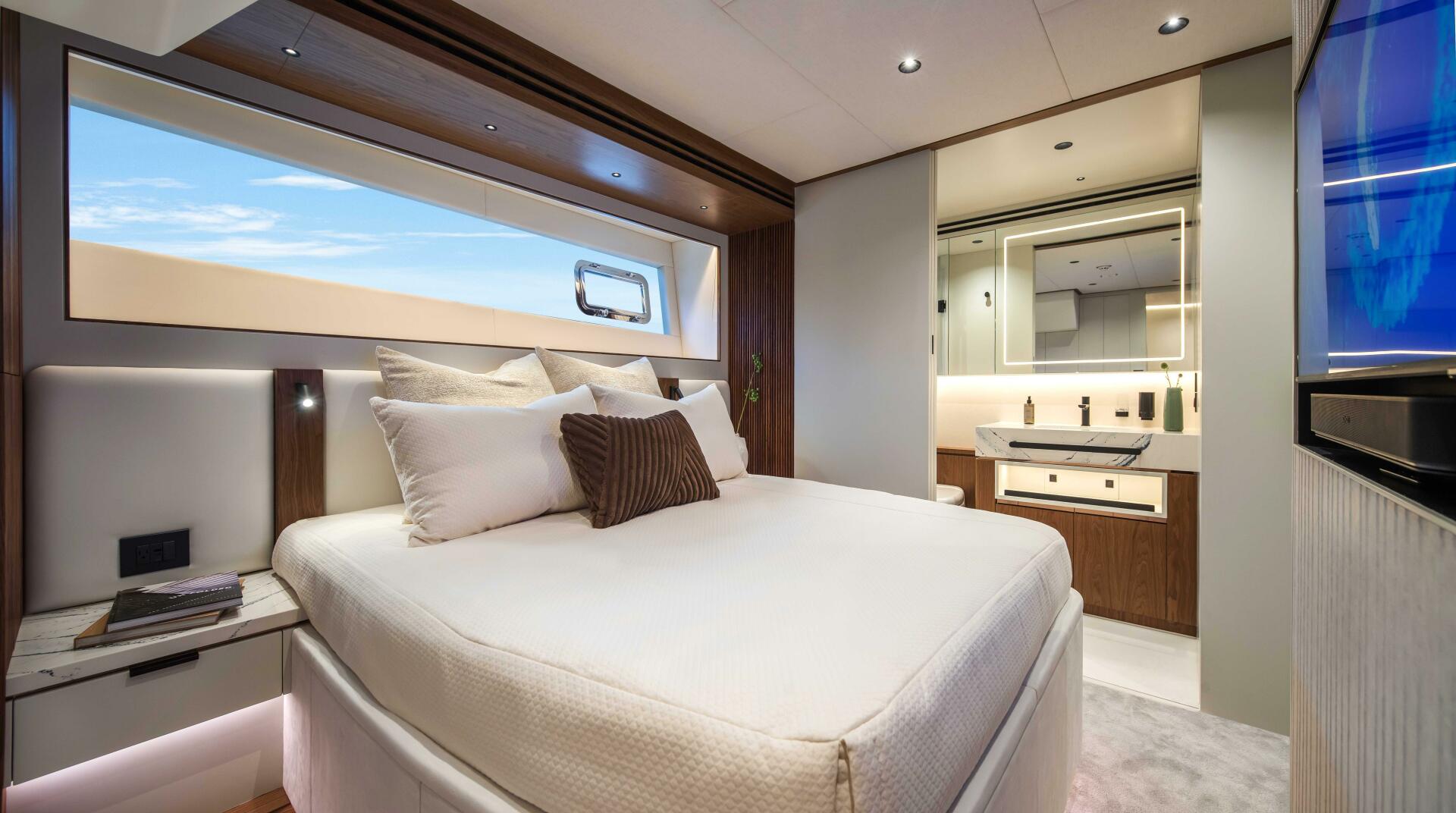

Queen bed w/ nightstands

Large hanging closet

Ensuite head w/ sink, shower & toilet

32" LED TV

Escape hatch up to salon w/ ladder from PORT VIP stateroom

Port Captain’s Cabin w/ double bed, hanging locker, & storage

STBD crew cabin w/ twin bunks, hanging locker

Ensuite head w/ sink, shower & toilet

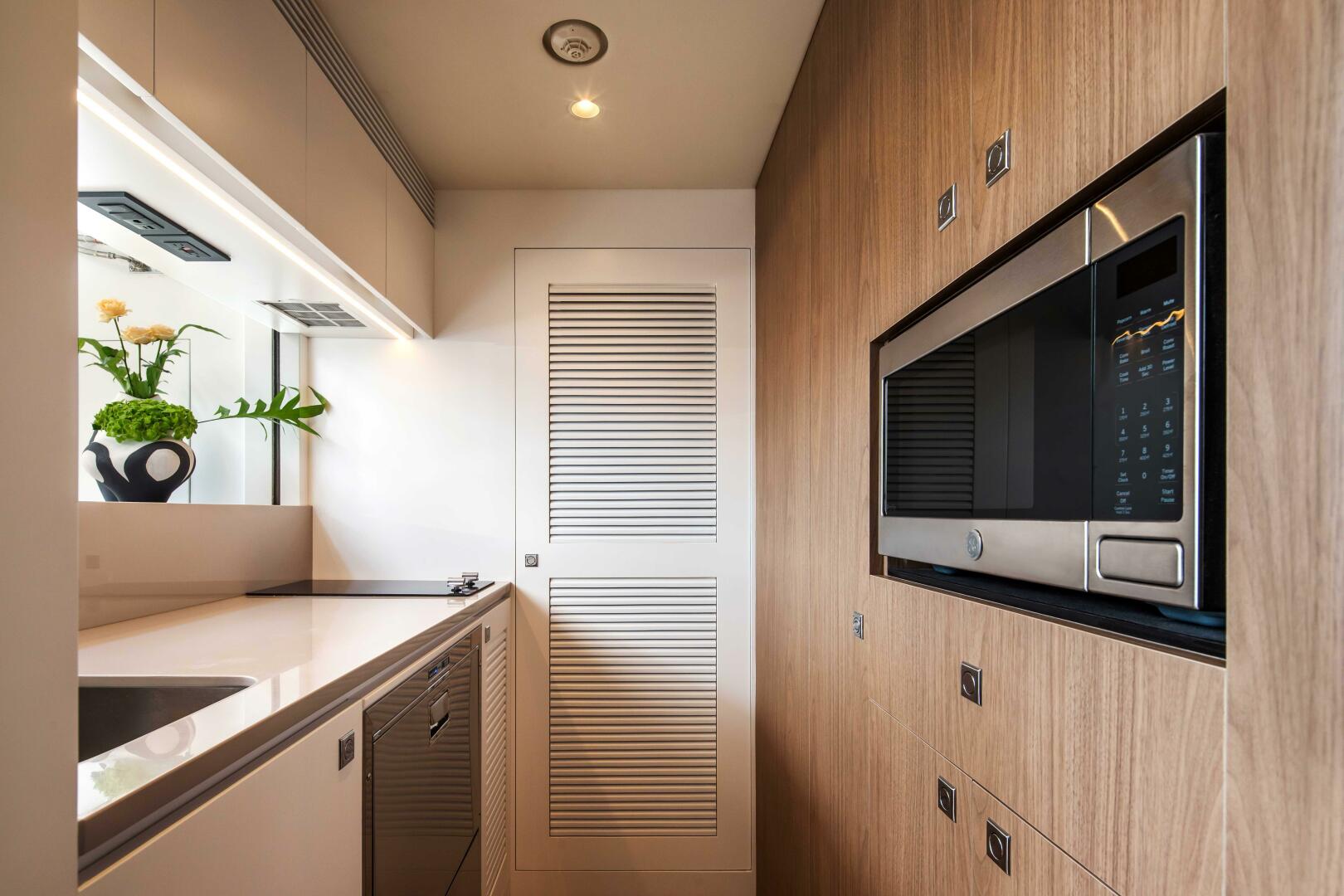

Crew area w/ stove top, Miele washer/dryer, refrigerator/freezer, conventional microwave

Storage lockers, per layout

Hi-Lo privacy screen to enclose
