2022 J Boats J/9

Accommodations

Construction

• Hull and deck molded with biaxial and unidirectional E-glass fabrics and Corecell foam for optimal strength to weightratio. High density core inserts used in way of highly loaded hardware.

• White gelcoat hull with single boot stripe.

• 10 year transferable warranty against osmotic hull blistering,

5 year structural warranty.

• White gelcoat deck with molded non-skid on horizontal deck surfaces.

• High strength, inward turning and overlapping hull to deck joint.

• Molded ISO/ORC height foredeck toe-rails on foredeck.

• Large self-draining cockpit with wrap-around seating and angled backrests.

• Two large cockpit seat storage lockers.

• Swim platform with transom boarding access and optional fold-up swim ladder.

• Molded, structural transverse keel support beams.

• 4.9’ draft low VCG lead keel bonded and bolted to keel sump. Option for 3.9’ draft keel. Steering System

• High aspect, balanced spade rudder mounted in self-aligning, low friction rudder bearings.

• Custom laminated, varnished, curved tiller.

• Spinlock adjustable tiller extension with handle.

Electrical

• One AGM Group 27 battery.

• 12V DC On/Off battery switch.

• 12V DC electrical distribution panel w/ 4 circuit breakers.

• LED navigation lights.

• UL approved stranded, tinned copper ABYC color-coded wiring.

• Bonding system to meet ABYC regulations.

• Two swiveling LED reading lights in main cabin.

• Two red/white dome lights.

• Automatic electric bilge pump and panel switch for manual operation.

Deck Hardware

• SS fabricated chainplates for shrouds.

• Foredeck skylight hatch mounted on cabin house forward of mast.

• Two opening portlights on cabin house sides.

• Companionway opening with molded seahood and slider.

• Acrylic offshore removable dropboard with inside/outside lockable hasp.

• Two 2-Speed Harken 35:1 self-tailing winches on cabin top. Option for electric main halyard winch.

• Two 10" lock-in winch handles with winch handle pockets.

• Two fixed jib tracks on cabin top with plunger-style jib cars. Option for self-tacking jib system.

• 5:1 Harken mainsheetsystem leading to boom-mounted ratchet block/cam near the tiller. • Adjustable backstay systemwith control lines led to the cockpit.

• Harken jib furling system with control line led to cockpit. J/9 Specifications 09/01/22

• Halyard lead blocks mounted at mast base, halyard organizers and Spinlock double rope clutches one per side.

• Stainless bow rail, stanchions and stern rails with single 20” height lifeline, starboard boarding gate and transom gate.

• Foredeck and transom mooring cleats (4).

• Cockpit operated manual bilge pump operable from the helm. Spars & Rigging

• Tapered, fractional, keel-stepped Sparcraft aluminum mast with single sweptback spreaders attached with stainlessthru-bar. Mast includes halyard sheaves, fittings for boom and boom vang attachments, masthead crane, shroudtermination points, lazy jack attachment points, and a steaming light. Spars are anodized and powder-coated white.

• Aluminum boom with 8:1 outhaul, mainsheet attachment points, sheaves for the outhaul and reef line, and lazy jack eyestraps (shipped loose).

• Standing rigging: 1x19 wire forestay & side rigging with adjustable open-body turnbuckles. Soft Dyneema backstay.

• Running rigging package including main halyard, jib halyard, main sheet, two jib sheets, reef line, furler line, lazy jacks.Interior

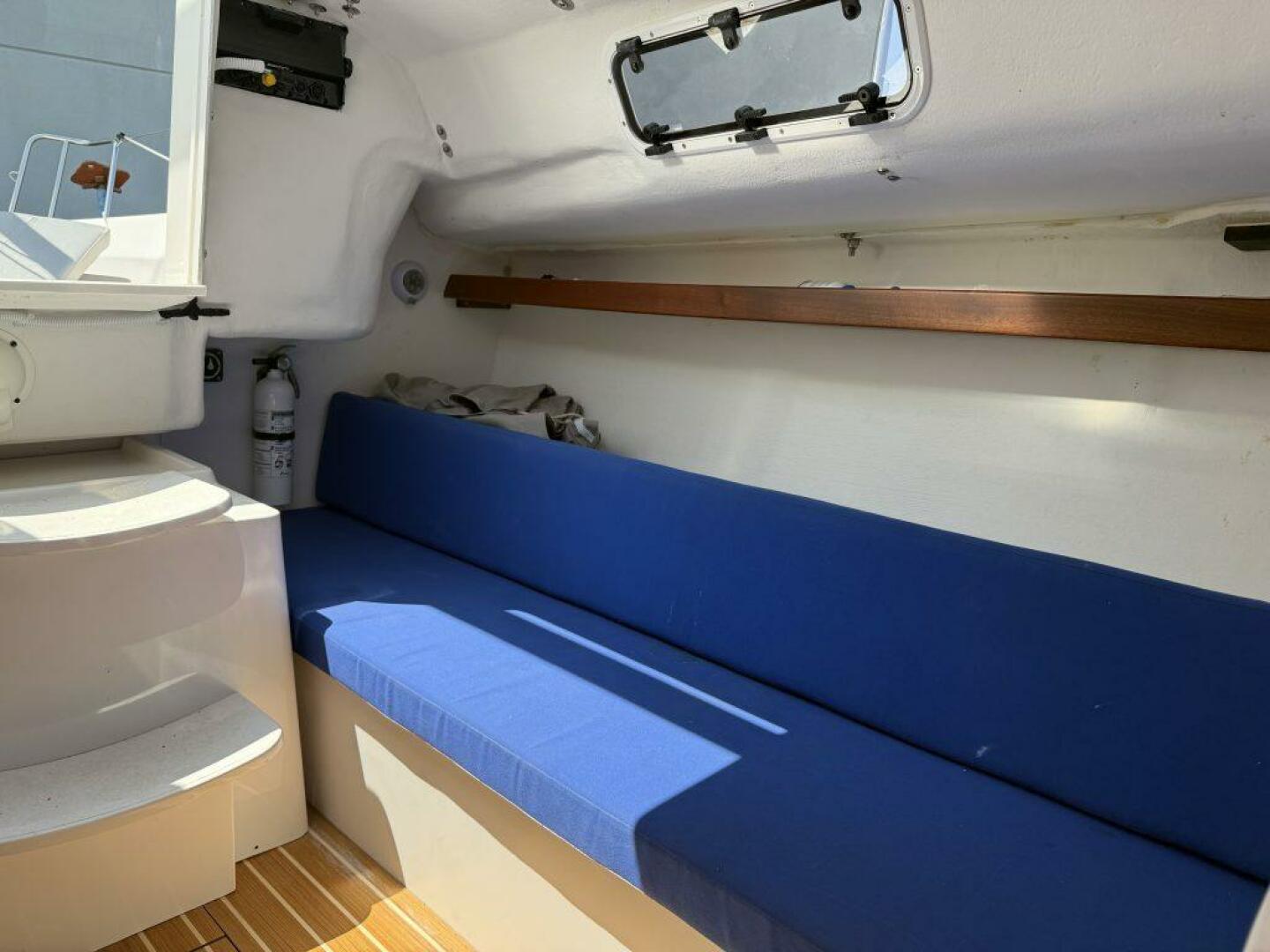

• Main cabin with full length settee berth and removable backrest to port, double seat to starboard, storagecompartments outboard and below the berth/seats.

• Choice of Sunbrella fabrics for 3" standard main salon cushions.

• Teak and holly synthetic high-wear cabin sole in main cabin with centerline access to bilge.

• 36 Quart Igloo cooler. • Angled companionway steps with nonskid treads.

• Molded V-berth supports (option for V-berth platform & cushions).

• Head platform with Raritan PH-II WC, TP holder, holding tank and deck pump out fitting.

• Centerline storage aft of companionway (or engine compartment and systems w/inboard engine option).

• Air-dry gelcoat finish on interior hull & deck surfaces.
