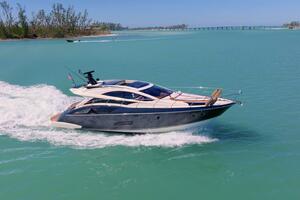

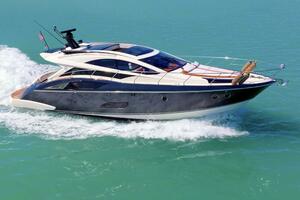

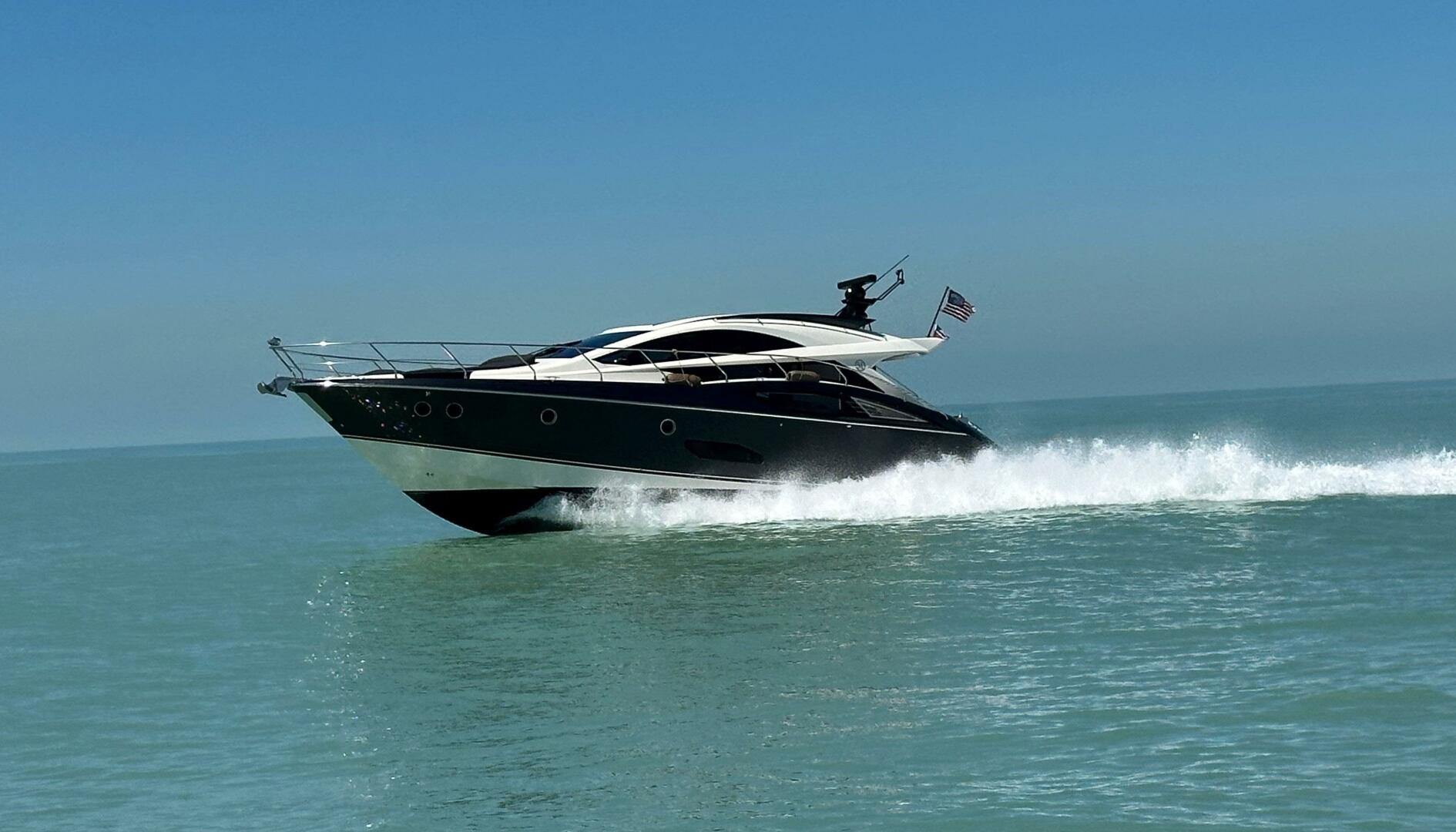

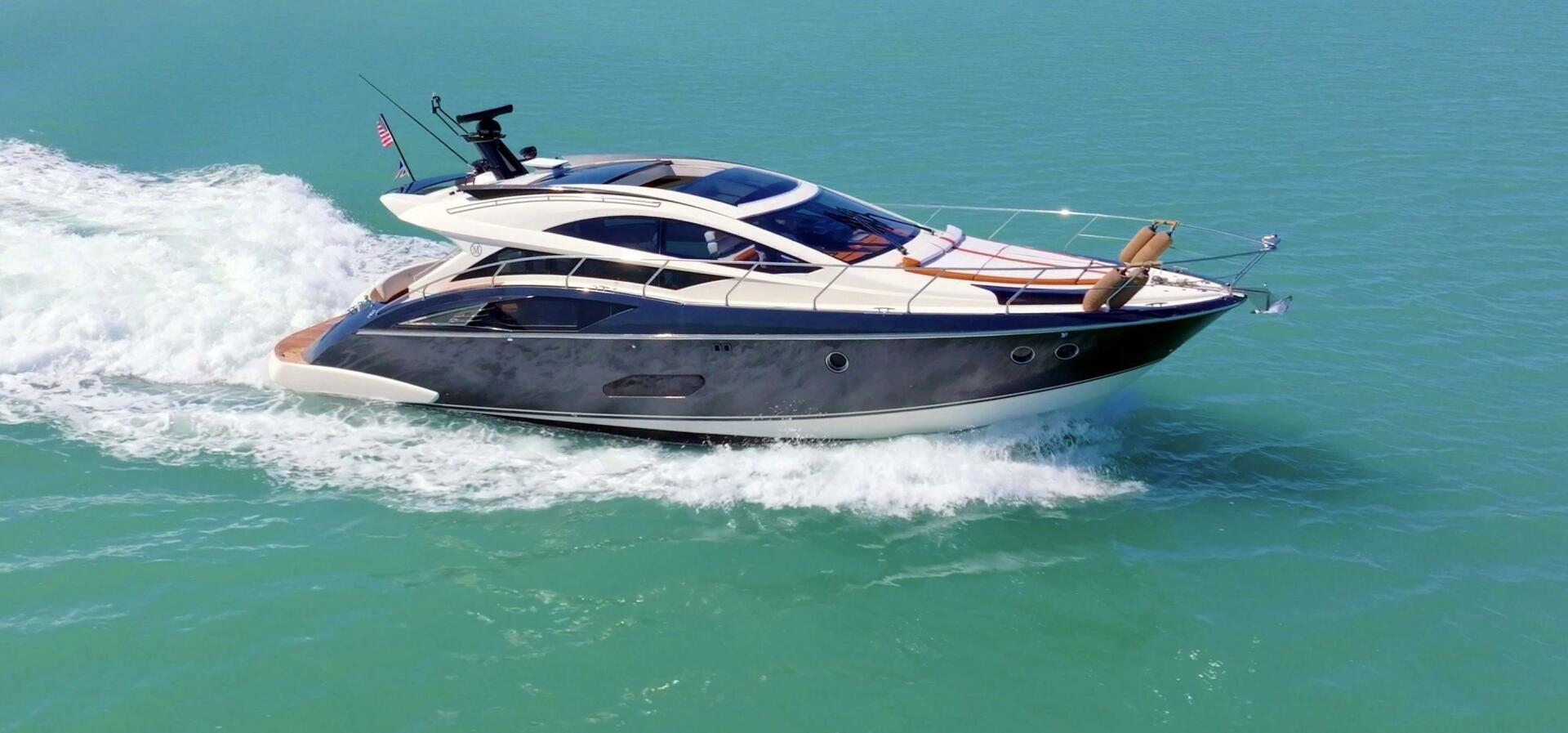

2009 Marquis 500 Sport Coupe
Get More Info
Athena
50' Marquis 2009
Marquis 500 Sport Coupe 2009 For Sale in Sarasota, Florida
$595,000
Sarasota, Florida
Dimensions
- Length Overall: 50'
- Beam: 15'
- Maximum Draft: —
- Dry Weight: —
Tank Capacities
- Fuel: 506.00 gal
- Water: 160.00 gal
- Holding: 90.00 gal
Engine Information
- Engine 1 : 2009 Volvo Penta D6 IPS 600 - 435hp
- Engine 2 : 2009 Volvo Penta D6 IPS 600 - 435hp
- Engine 3 : 2009 Volvo Penta D6 IPS 600 - 435hp
General Description
The luxury details and premium build quality you would expect from Nuvolari Lenard in Venice, Italy and their Superyacht design influence create an absolute head turner!
Rare performance and ride quality with only 650 hours in the Triple IPS 600s which cruise Inverse Entropy confidently in the mid-30s, achieving 40 mph on the pins, quite a feat for a twenty-six ton vessel. Ahead of her time, the layout features expansive "galley-up" entertaining space combined with the al-fresco versatility opening the glass doors and moonroof. Add the rocker switch enabled electric aft bench to extend the cockpit for outdoor entertaining. Ample accommodations below with three staterooms and two heads flowing with natural light. Apparent is the marriage of Italian high design from Nuvolari Lenard in Venice, with the third generation German master carpentry crafted in Wisconsin.
This stunning 2009 Marquis 50SC was a freshwater boat for more than a decade. She underwent a comprehensive two year overhaul involving a complete modernization of electronics, air conditioning, refrigeration, upholstery, flooring, lighting, entertainment, furnishings and even outdoor canvas. She is now impressively restored to an ultra-luxury vessel of the most modern amenities. Her floors are a rare Wenge hardwood, her diamond stitched upholstery is a rich two tone ivory and caramel combination, and her interior furnishings include the finest Italian linens and Ernest Hemmingway collection Serengeti chairs. The most efficient Dometic dual drawer refrigerator inside and stainless steel refrigerator on the salon as well as an updated Domentic electric roof blind system was installed this year. Two new next generation Air Conditioning units were installed in the main salon. The electronic suite includes a pair of Garmin 8616 chart plotters mounted in a custom flush glass enclosure, Chirp sonar, open array radar, a Sionyx Nightwave Ultra Low-Light Marine Camera, Garmin Cortex HF/AIS, collision avoidance, and anchor monitoring. The helm is completed by a premium Italian Gussi steering wheel, completing the artistry of the modernization. A Dockmate system was added this year, allowing joystick control from a lanyard worn by the vessel captain on or off the yacht. Cameras fore and aft allow 360 degree contact monitoring, along with excellent visibility through the abundant glass throughout the interior salon. Additionally, new flat screen displays in all cabins allow monitoring the vessel’s chart plotter display from every cabin, in every bunk. A latest generation STARLINK satellite system with wireless router provides internet access anywhere on the vessel.
Finally, all inboard lighting has been upgraded to energy-efficient soft white LED fixtures, as well as color-selectable accent lighting controlled from the Garmin chartplotters or from your phone via the Poco app.
Outboard, fully refinished teak decks, all new canvas, and a new Yachtline 360 tender painted to match the vessel, mounted on the hydraulic aft swim platform make voyages effortless and enjoyable.
This three stateroom, two head design allows for group cruising over substantial distances in incredible comfort and panache. With triple IPS 600’s boasting 1305 total HP, with modernized hull control units and steering control units, this yacht can achieve ranges of over 1000 miles on a single fueling.
Bluewater Yacht Sales is pleased to assist you in the purchase of this vessel. This boat is centrally listed by United Yacht Sales. It is offered as a convenience by this broker/dealer to its clients and is not intended to convey direct representation of a particular vessel
Vessel Features and Construction
Vessel Features:
The Marquis 500 Sport Coupe is a yacht created through the partnership of Italy's Nuvolari-Lenard Naval Architects and Marquis, America's foremost builder of premium quality yachts. The result is a trend setting sport coupe with styling, quality and performance that will stand out in any port throughout the world.
Propulsion is provided by three Volvo Diesel engines equipped with innovative IPS drives. Performance is exhilarating. When equipped with Volvo IPS Series the 600's Sport Coupe the IPS joystick makes docking and maneuvering this 50' yacht in tight quarters a snap.
Nuvolari-Lenard's heritage of designing the world's most innovative mega-yachts is obvious throughout the Marquis 500 Sport Coupe's interior design and appointments. The Zebrano cabinetry, Brazilian cherry floors now upgraded to rare Wenge wood and designer fixtures set this yacht apart from typical express style boats.
People who love being on the water will place high value on having the cockpit, salon, helm station and galley on the same level.
Like all Marquis', this new yacht is certified to CE-Class A specifications. That means it meets the European Union's highest standards and is built to be used with confidence on any body of water throughout the world.
Construction:
- Cherry wood cabinetry and trim throughout with high-gloss Marquis jewel finish consisting of multiple coats, hand buffed
- Fiberglass hat section stringer system
- Fiberglass structural stringers with laminated aluminum plates
- Hand-laid, molded fiberglass components featuring composite laminate hull sides, decks, and cabin tops
- Solid fiberglass laminate hull bottoms with Knytex substrates and vinyl ester barrier coat
- Tinted, tempered safety glass frameless window systems
- Unitized deck, cockpit, and cabin top construction with integral aluminum truss reinforcement in cabin top structure
Engine Details and Mechanical Equipment
Mechanical:
- Air conditioning - 4-zone 48,000 BTU self-contained system - 8,000 BTU for master stateroom and heads; (2) 16,000 BTU for dinette and salon, 8,000 BTU for guest staterooms; with reverse cycle heat
- Electric fly-by-wire steering - Volvo IPS engines
- Exhaust muffler - generator
- Fresh water cooling - engines
- Fuel tanks - welded, baffled 5052 aluminum
- Internal Seawater Strainers
- Trim tabs - Lectrotab, four stainless steel flat planes
Engine Room:
- Access ladder
- Bilges coated with white, low-VOC gelcoat for enhanced appearance and ease of maintenance
- Blower - forced air ventilation
- Catwalk - diamond plate aluminum
- Fire suppression system - Automatic/manual FE241 (FM200 in European Community) with automatic engine/generator shut down
- Full structural bulkheads laminated to hull sides and stringers
- Insulation - acoustical and thermal, integrated into the laminate
- Lights - overhead, fluorescent, controls in cockpit
- Electrical
- AC/DC distribution panels with magnetic circuit breakers and integral generator and bilge blower controls; AC voltmeter AC amp meter, DC voltmeter and DC amp meter
- Batteries (3) - 31 series starting batteries, Deka Marine, cold cranking rating of 950 amps, reserve capacity of 205 minutes at 23 amp draw, 100 amp/hour rating [(3) engine]
- Batteries (3) - dedicated 31 series, Deka Marine, deep cycle, (12V), cold cranking rating of 950 amps, reserve capacity of 225 minutes at 23 amp draw, 105 amp/hour rating [(1) generator, (2) ship service]
- Battery chargers - (1) 20 amp charger for the engine batteries; (1) 60 amp charger for ship service batteries and generator
- Battery switches on/off - (3) engine, (1) ship service, (1) generator
- Dockside inlet - CATV with 50' (15,2 m) white cord
- Generator - 15.5 kW 60 Hz (13 kW 50 Hz), Kohler with sound shield 600 hours
- Marinco dual 240V/50 amp (230V/32 amp internationally) shore power cord - 50' (15,2 m) white
- Shore power connector - dual 240V/50 amp (230V/32 amp internationally)
- Wiring system - tinned copper strand wire, harnessed, color-coded, labeled, meets or exceeds ABYC standards
- Water and Holding Systems
- Fresh water storage tanks - polyethelyne
- Fresh water tank level monitor
- Grey water sump pump - automatic/manual operation for all grey water drainage below waterline
- Shurflo fresh water system - variable speed drive pump sensor, Smart Sensor, 4.5 gallons/minute (17 liters/minute) flow rate, high flow filter
- Shore water connection with pressure-reduction valve
- Shurflo water system - state-of-the-art plumbing technology
- Transom hand shower - fresh water, hot & cold
- Waste holding tank—with filtered vent and dockside pump out—port side for guest head; starboard side for master cabin head.
- Waste tank level monitor
- Water & waste lines - constructed of molecular cross-linked polyethylene
- Water heater - 11 gallons (42 liters)
Vessel Details
Deck Features/Seamanship:
- Anchor roller - over-the-stem, stainless steel channel with nylon rollers
- Bow chafe plate - stainless steel
- Bow rail - 1 1/4' (32 mm) O.D., lineal-buffed, welded stainless steel, with additional 1/2" (13 mm) intermediate rail amidships & forward
- Bow rail Stanchions - 1" (2,5 cm) stainless steel, anchored to aluminum backing plates laminated into deck
- Cleats _ 12" (30,5 cm) stainless steel; anchor (1), bow (2), stern (2), sping (4) - bolted through a structural aluminum backing plate
- Deck portlights (2) port & starboard on foredeck, tinted plexiglass
- Molded deck toe rail, forward
- Grab rail - 1" (2,5 cm) stainless steel, over cabin windows, running length of cabin & above windshields
- Rub rail molding - heavy-duty, 2" (5 cm) 316L stainless steel insert
- Windshield weather covers - black mesh
Safety and Navigation:
- 65-5-5-5 marine grade bronze seacocks for all underwater thru-hulls
- Active corrosion protection for Volvo IPS - replaces traditional zinc anodes, triple redundant protection, integrates with EVC displays; monitors & adjusts potential voltage in surrounding water to an acceptable level
- Automatic engine synchronization
- Battery master disconnect switches
- Battery restraint brackets & boxes
- Bilge alarm - high water
- Bilge blowers (12V)
- Bilge pumps (4) - (2) 2000 gallons/hour (7570 liters/hour) each, auto/manual operation, (2) 1100 gallons/hour (4163 liters/hour) each, automatic operation
- CO detectors in salon & staterooms
- Compass - Ritchie illuminated, flush-mount 4.5" (11,4 cm) dial
- Engine alarms - temperature & oil pressure
- Horn - dual trumpet (12V)
- Internal bonding system with 8 gauge size wire, ABYC compliant
- Isolation transformers on the internal shore power lines with ELCI Inlet Breakers 60 Hz
- Windlass package - 44 lb. (20 kg) Davis anchor & 150' (46 m ) of 5/16" (8 mm) chain
- Molded nonskid surfaces on all wall decks - diamond pattern
- Navigation lights - USCG/COL REG approved
- Spotlight - electronically controlled, Golight Stryker
- Racor fuel filters - engines & generator

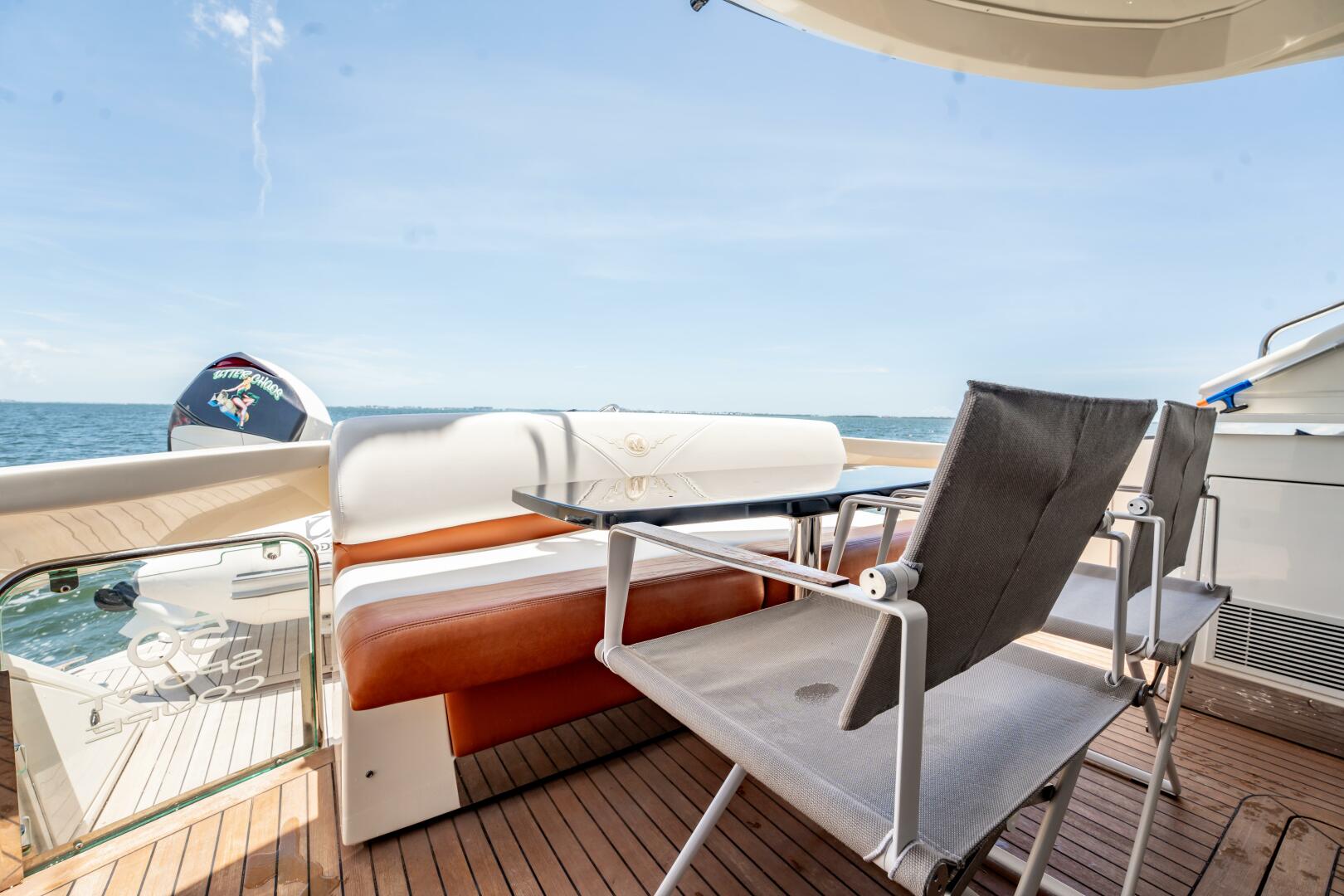

- Cockpit & Swim Platform
- Boarding ladder - 3 steps, telescoping with grab rail, concealed in swim platform
- Extending cockpit - 71 ft2 (6.6m2) approx., with transom lounge in forward position; extends to 79 ft2 (7.3 m2) approx., when lounge slides aft
- Grab rails - stainless steel, by side deck stairways & on top of transom
- Hatch - engine room access, guttered, watertight, locking stainless steel latch, gas-assist, ladder to machinery compartment, sized to permit equipment removal
- Lights - courtesy, recessed, with exterior-mounted switched
- Lights - overhead, recessed, with exterior-mounted switch, polished chrome, blue LED
- Side deck stairways (2) - integral to deck
- upgraded Stereo Fusion with JL speakers with amplifier
- Storage lockers - swim platform area port & starboard
- Storage locker - starboard aft of salon door, under side deck area, fiberglass door and interior closeout, contains main accessory battery switch; sized for deck chair storage
- Storage locker - starboard side
- Transom gate - port & starboard side, stainless steel & etched plexi-glass, secures closed, stainless steel hardware
- Wet bar - port side, standard with sink and storage

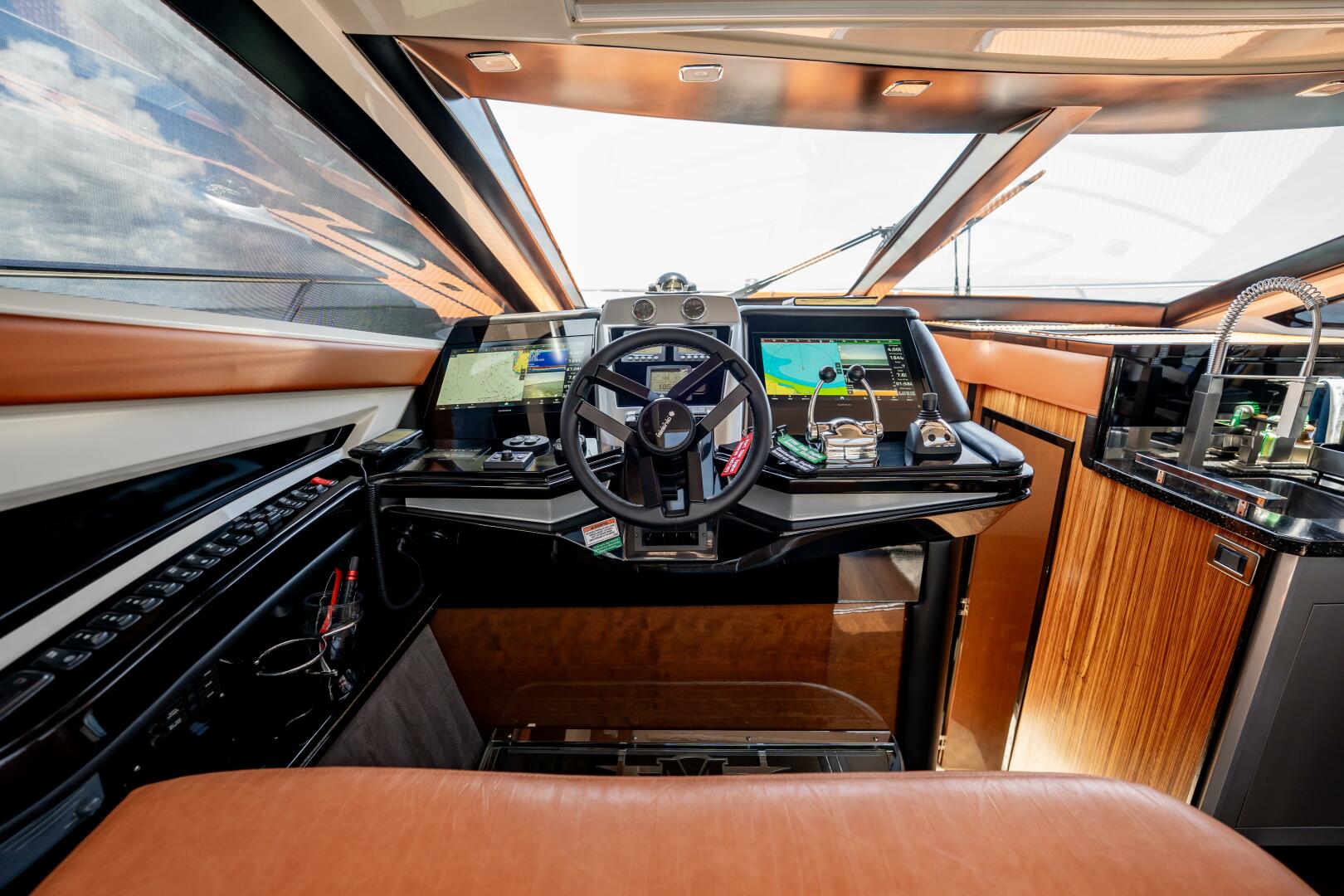

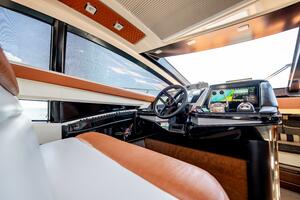

Helm:
- Access panel - provides access to wiring below helm
- Accessory space - for installing navigation equipment
- Accessory outlets (1) - 12V
- Beverage holders
- Displays (1 for each diesel engine) - digital LCD; tachometer, hour meter, engine oil pressure, engine coolant temperature engine battery voltage; transmission fluid pressure, transmission fluid temperature, rudder angle
- Fire extinguisher alarm - automatic
- Gages - analog; fuel level
- Helm seat - 6-way power, bench style, high-quality marine-grade upholstery, embroidery stitching, storage underneath
- Overhead red night reading light
- Rocker switch controls
- Spotlight control
- Tilt steering wheel pivot – Custom 2024 Gussi Italian Steering wheel
- Volvo IPS Joystick Control
- Windshield wipers/washers (2) port & starboard
- Windshield defoggers

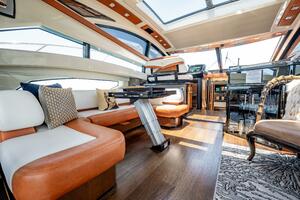

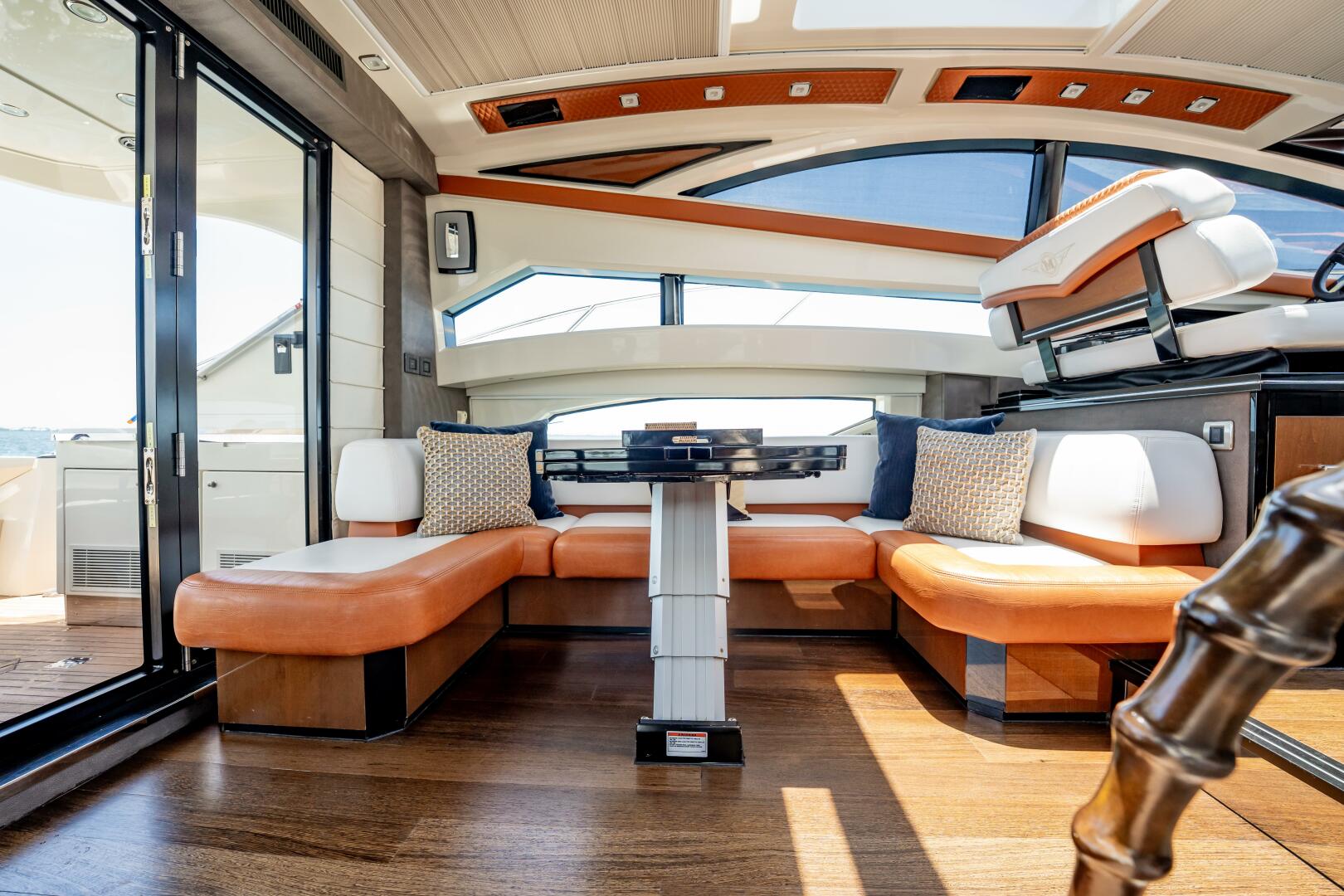

Salon:
- AC & DC distribution panel cabinets
- Air conditioning controls - (2)
- Designer decor - consisting of premium wall coverings & fabrics
- Designer chairs (2)
- Duette shades on lower salon windows - decor matched
- Electrical outlets
- Entertainment group - 32" (81 cm) Sole LCD TV with lift, stereo system, DVD/CD player, Sirius satellite radio system built to durable marine grade standards & Apple iPod dock
- STARLINK satellite internet with high-speed wireless access anywhere on the vessel
- Entrance door - hinged starboard panel & bi-fold port panel, provides for maximized opening, painted aluminum frame, handle lock & deadbolt
- Fixed tempered safety glass windows
- Flooring - dark Wenge
- Lights - overhead, with electronic dimmer control, LED, brushed stainless steel
- Lounge - color coordinated with storage under cushions
- Rocker light switches
- Stereo speakers (4) - Sonance
- Table - converts to double berth with filler cushions designed to stow under VIP stateroom berth

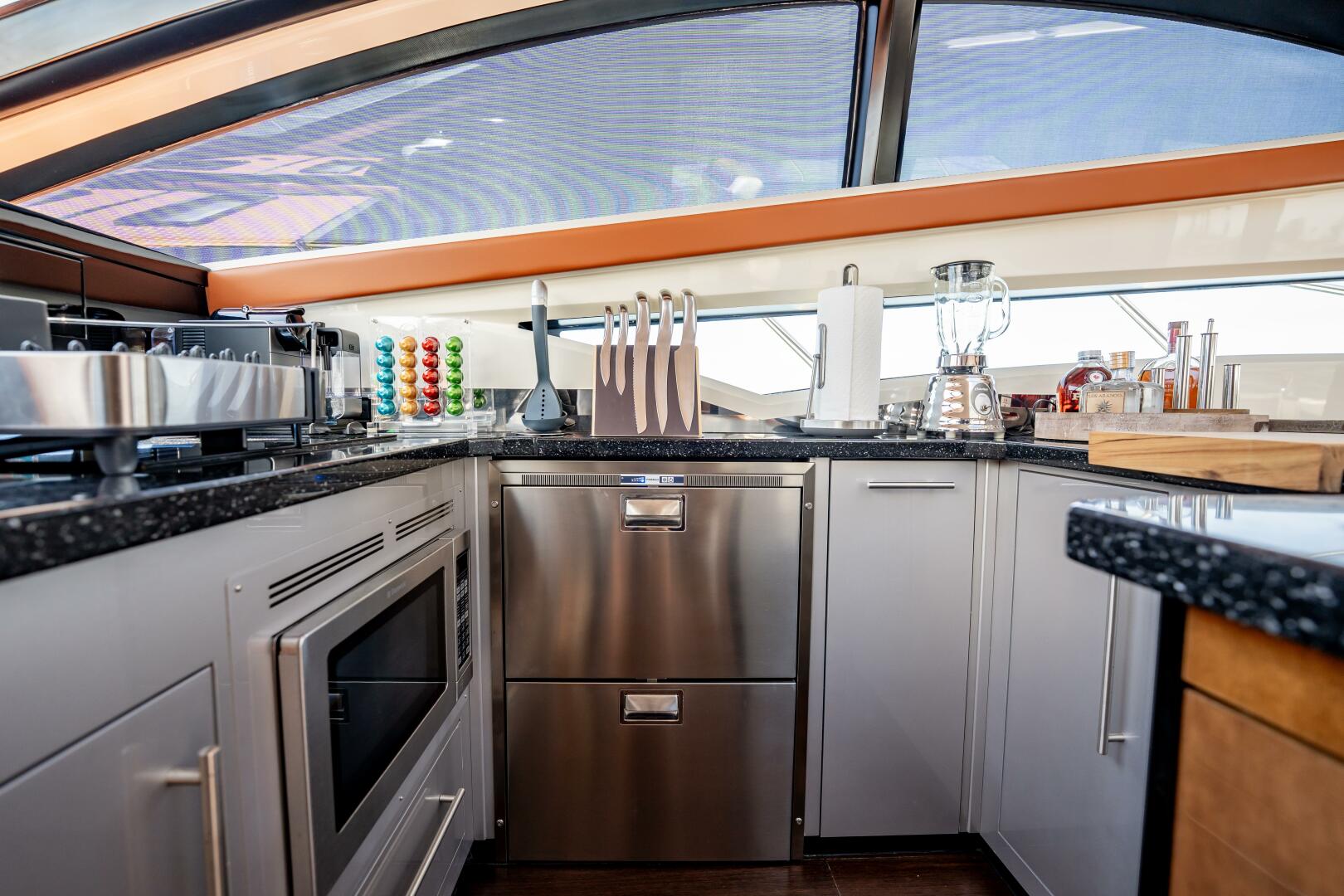

Galley:
- Countertop - Solid surface
- Designer decor - consisting of premium wall coverings & fabrics
- Electrical outlet (1)
- Flooring - dark Wenge
- Lights - overhead, recessed
- Liquor cabinet - glass shelves; built-in storage for liquor bottles & glassware, blue accent lighting
- Microwave - convection oven/grill, built-in, stainless steel finish
- Pantry cabinets - forward & aft bulkhead
- Range - electric, 2-burner, Ceran top with exhaust fan
- Refrigerator/freezer – dual drawer style - NEW
- Rocker light switches
- Sink - stainless steel, undermounted with German designer faucet
- Storage cabinet - painted front with the look of stainless steel
- Storage drawers (5) - self-closing drawer slides, painted fronts with the look of stainless steel
- Trash receptacle - built-in with slide-out hinges
Accommodations

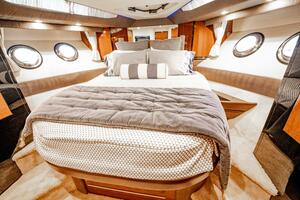

Owner’s Cabin:
- Air conditioning control
- Berth – NEW queen “liveaboard grade” pillowtop innerspring mattress, island with storage beneath, gas-assisted hinges, wood headboard and padded bolster trim coordinated with hull color
- Carpet- advanced stain protection; fade-, wear-, crush-resistant; multi-year warranties; with pad
- Deck portlights - port and starboard with decor matched sliding shades
- Designer decor - consisting of premium wall coverings and fabrics
- Electrical outlets (2)
- Entrance door - from companionway; secures open and closed, decor matched hardware
- Hanging lockers - port and starboard, full cabin height, designer stainless steel handle, automatic light
- Hull portlights - (4) round 10" (25 cm), fixed, non-opening
- Lights - halogen, overhead, recessed, with electronic dimmer control
- Lights - rope accent lighting above deck window curtains
- Lights (2) - reading
- Overhead hatch - lockable
- Rocker light switches
- Full custom Italian sheet set - fitted sheet, flat sheet, two pillow cases
- Storage drawers - (2) under berth, designer stainless steel handles
- Storage shelves - hull side
- Window treatments - pleated curtains, decor matched
- Brand new electronic SAFE in starboard side hanging closet floor
VIP Stateroom:
- Berth - queen, pillow top innerspring mattress, with storage beneath and padded bolster trim coordinated with hull color
- Carpet - advanced stain protection; fade-, wear-, crush-resistant; multi-year warranties; with pad
- Designer decor - consisting of premium wall coverings and fabrics
- Electrical outlets (2)
- Entrance door - from companionway; secures open and closed, decor matched hardware
- Fixed hull window
- Hanging locker - with 3 drawers underneath
- Hanging locker - with mirrored doors and drawer storage
- Hull portlight (1) - opening round with screen
- Light - halogen, over berth head, directable for reading
- Lights - halogen, overhead, recessed
- Nightstand - with drawer storage
- Rocker light switches
- Seat with cushion
- Skylight
- Window treatments - pleated curtains, decor matched

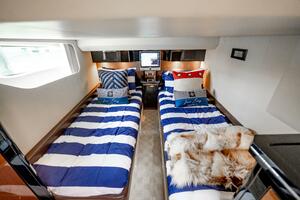

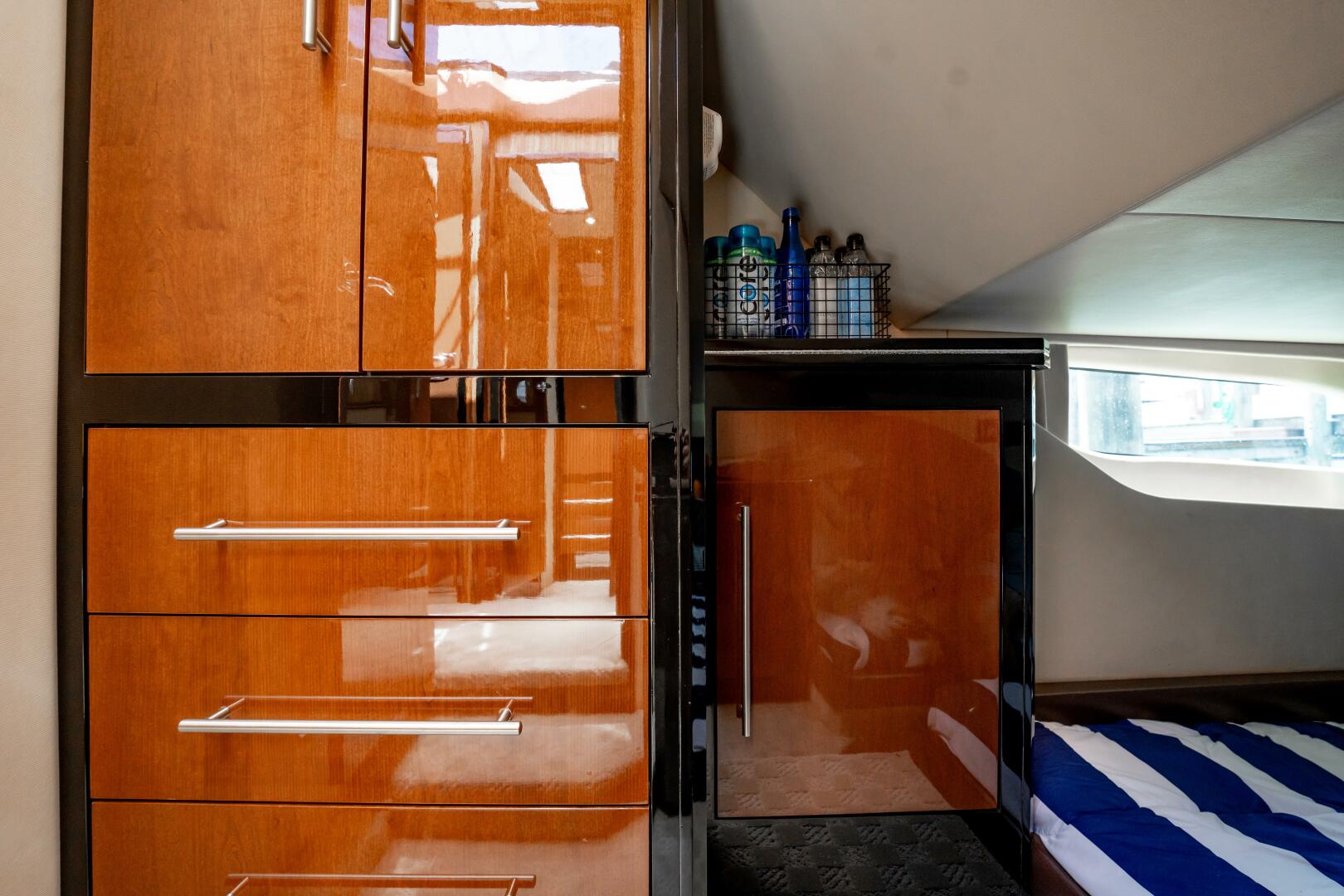

Guest Stateroom:
- Berth (2) - twin, pillow top innerspring mattress, paddled bolster trim coordinated with hull color
- Carpet - advanced stain protection; fade-, wear-, crush-resistant; multi-year warranties; with pad
- Designer decor - consisting of premium wall coverings and fabrics
- Electrical outlets (2)
- Entrance door - from companionway; secures open and closed, decor matched hardware
- Fixed hull window - (1) - opening round with screen
- Hanging locker - with three drawers underneath, automatic light
- Light - halogen, over berth head, directional for reading
- Lights (6) - halogen, overhead, recessed
- Nightstand - with storage
- Rocker light switches
- Skylight
- Window treatments - pleated curtains, decor matched

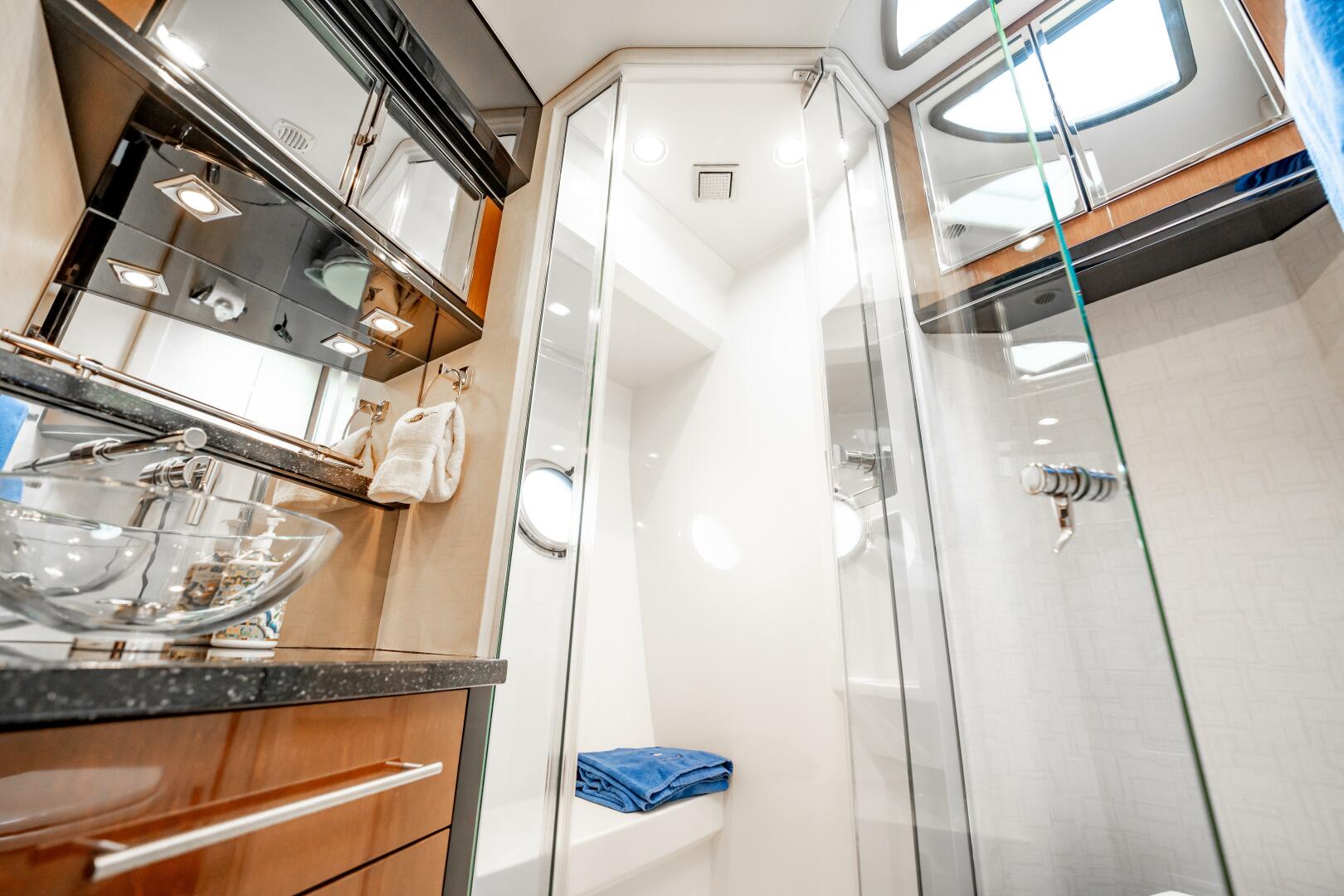

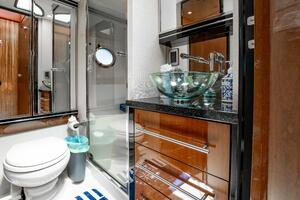

Master Head:
- Electrical outlet
- Entrance door - from Master Stateroom secures closed, integral doorstop, decor-matched hardware
- Exhaust fan
- Flooring - marble
- Hull portlight (1) - round, frosted glass with screen
- Lights halogen, overhead, recessed
- Medicine cabinet - mirrored doors
- Rocker light switches
- Skylight
- Storage cabinet over toilet with mirrored doors
- Toilet - VacuFlush, pedestal with run/sleep switch
- Toilet paper holder - wall-mounted
- Towel bars
- Vanity cabinet - countertop with vessel sink and drawers
- Shower Stall
- Light
- Nonskid sole
- Shower door - tempered glass, frameless, secures closed
- Shower head - overhead Kohler
- Shower light - halogen, overhead, recessed
- Shower seat – fiberglass
Guest Head:
- Electrical outlet
- Entrance doors - secures closed, integral doorstop, decor-matched hardware
- Exhaust fan
- Flooring - marble
- Hull portlight (1) - round, frosted glass with screen
- Lights - halogen, overhead, recessed
- Medicine cabinet - mirrored door
- Rocker light switches
- Skylight
- Storage cabinet with mirrored doors
- Toilet - VacuFlush, pedestal with run/sleep switch
- Toilet paper holder - wall-mounted
- Towel bars
- Vanity cabinet - countertop with vessel and sink drawers
- Shower Stall
- Light
- Nonskid sole
- Shower door - tempered glass, secures closed
- Shower head - overhead Kohler
- Shower light - halogen, overhead, recessed
- Shower seat - fiberglass
Mechanical Disclaimer
Engine and generator hours are as of the date of the original listing and are a representation of what the listing broker is told by the owner and/or actual reading of the engine hour meters. The broker cannot guarantee the true hours. It is the responsibility of the purchaser and/or his agent to verify engine hours, warranties implied or otherwise and major overhauls as well as all other representations noted on the listing brochure.
Disclaimer
The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.
Listing MLS by Yachtr.com
