2023 Offshore Yachts ELV

Vingilot Used Boat For Sale | ID# 2842262

Get More Info

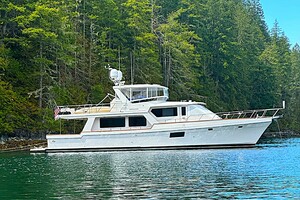

Vingilot

64' Offshore Yachts 2023

Offshore Yachts ELV 2023 For Sale in Anacortes, Washington

$3,795,000

Anacortes, Washington

Dimensions

  • Length Overall: 64'
  • Beam: 16' 10"
  • Maximum Draft: 5'
  • Dry Weight:

Tank Capacities

  • Fuel: 1000.00 gal
  • Water: 400.00 gal
  • Holding: 85.00 gal

Engine Information

  • Engine 1 : 2023 Cummins QSM11 - 715hp
  • Engine 2 : 2023 Cummins QSM11 - 715hp

General Description


Bluewater Yacht Sales is pleased to assist you in the purchase of this vessel. This boat is centrally listed by Olson Yacht Group. It is offered as a convenience by this broker/dealer to its clients and is not intended to convey direct representation of a particular vessel

Overview

PROPULSION SYSTEM

  • Twin Cummins 715 hp with ZF 305A 1.964:1 gears
  • Two 24V alternators start banks
  • 316 stainless (w/316-L rod) exhaust risers with zinc plugs connecting to FRP underwater exhaust system w/bypass pipes to Aqua Quiet mufflers
  • Seatorque M4-250 enclosed shaft system with Aquamet 22 HS shafts
  • Bronze V struts
  • Expanded ratio, computer-designed NIBRAL propellers
  • 54" trim tabs with controls at the pilothouse and flybridge
  • Hydrodynamic 316 stainless steel rudders
  • Tides rudder shaft seal and bearings
  • American Bow Thruster Trac 220/6' hydraulic stabilizer system with pto
  • American Bow Thruster 25 hp hydraulic bow/stern thruster system with pto
  • Proportional ABT thruster controls
  • 3 Station ZF Smart Command electronic controls
  • ZF Joystick Maneuvering System with i-anchor and 3 joysticks
  • Optimus EPS electronic power steering
  • Engine room start & stop panels with engine gauges

ENGINE ROOM AND BILGE

  • White aluminum perforated covering on overhead, side, fwd, aft engine room bulkheads covering multiple layers of the latest technology sound dampening & insulation
  • Floorboards covered with non-skid vinyl
  • Smooth finish polyester painted bilges
  • High-polished welded stainless engine beds bedded in chockfast
  • Three marine-grade aluminum fuel tanks, epoxy-painted, interconnected
  • Aluminum fuel tanks are insulated to minimize condensation and noise transfer
  • Fuel manifold system for supply & return management with 2" crossover for port or starboard fuel fill
  • Sight gauges (marine grade w/protective guard) at fwd bulkhead fuel tanks
  • Copper fuel system plumbing with shut-off valves at all tank supply fittings
  • Marine-grade bronze sea cocks for through-hull skin fittings, labeled
  • Groco sea strainers at all raw water intakes
  • Main seawater intakes plumbed for emergency bilge pump use
  • Full flow stainless ball valves for all piping systems
  • Dual Racor marine filter system with vacuum gauge for main engines
  • Single Racor marine filter system with vacuum gauge for generator
  • Two high-output 24V sump pumps with Rule super switches
  • Six high-output 24V bilge pumps with Ultra Systems automatic switches and check valves
  • Ultra Systems high water bilge alarm with warning lights at the pilothouse
  • High-output Whale 40 manual bilge pump
  • 4 Delta T engine air intakes to control water induction
  • Two 11" 24v DC engine room blowers
  • 24v DC LED lights in the engine room & bilges
  • Fire Boy automatic fire extinguishing system with engine shut-down system
  • CO/smoke detectors
  • Fresh water wash down faucet in the engine room
  • Trident blue silicone exhaust hose
  • Multiple layer insulation at fore & aft engine room bulkheads & overhead
  • Heavy-duty aluminum dog down engine room door
  • Labeled through hulls
  • Rise brand sealant for bulkhead penetrations at the fwd eng room and overhead
  • Rudder storage shelf

EQUIPMENT

  • Maxwell 3,500 lb windlass, dual direction, 3 station control, chain stopped & anchor roller.
  • Single 316 stainless 120lb Ultra bow anchor with 400 ft 3/8" high test grade 43 chain and chain stopper
  • Marine Air 65,000 BTU A/C system with four compressors, six air handlers
  • Emergency tiller
  • Buel dual low-profile air horns w/120v compressor, compressor outlets @ lazaret & engine room
  • Exalto stainless articulating windshield wipers with a washer system
  • 3 Tecma silent flush heads
  • Ventilation system at each head
  • 2 Sealand macerator pumps
  • 2 holding tank vents with filters
  • Deck discharge for holding tank
  • Stainless ball valve at each watertight structural bulkhead
  • Headhunter Mach V 120v fresh water pressure pump with filter and accumulator tank
  • Headhunter 24v standby water pressure pump
  • Torrid 30-gallon stainless steel 220V water heater
  • Easy access clean-outs on all tanks
  • Stainless lazarette water tanks
  • Water maker
  • Flojet saltwater washdown system with seawater strainer
  • FRP under the forward sole water tanks & holding tank
  • All high-grade fresh water plumbing with brass fittings
  • High water sensors on the fwd & master bulkheads and the laz bulkhead
  • Water/gas separator for generator exhaust
  • Asko washer & dryer (110v/220v)
  • Washer & dryer overflow drain to bilge
  • Two shower sump tanks are designed for convenient access
  • Bilge pumps set in bilge wells
  • Dockside water pressure connection
  • Central drain system minimizing through-hull fittings
  • Electric assist shocks for lazarette

ELECTRICAL SYSTEM:

  • Northern Lights 20 kW diesel generator, 24v start with sound shield & gas/water exhaust separators and E-A-R anti-vibration mounts
  • Four Lifeline 8D glassmat main engine start batteries (24v)
  • One Lifeline 4D glassmat generator start battery (24v)
  • Five Mastervolt Lithium batteries for the ship's 24V system
  • Battery crossover for main engines and generator batteries
  • ANG 12.5 KVA 50 amp isolation transformer
  • Mastervolt Mass Combi 24/3000, 120/240v 60 HZ inverter charger with interface cable and high temp shut down with remote panel at the pilothouse
  • Mastervolt battery systems charger - 24/60-3
  • Mastervolt engine start battery charger - 24/20-3
  • Battery Mate 1602 @ each main engine
  • 24v & 12v LED back-lit distribution/circuit breaker panels with amp & volt meters
  • 120v & 240v led back-lit distribution/circuit breaker panels with amp & volt meters
  • Two 50-amp Mastervolt 24V to 12V converters
  • Glendinning Cablemaster
  • Marinco Shore power 125/250v-50A inlets port & stbd side (or fore & aft)
  • ELCI breakers at shore power inlets
  • IMTRA 24v LED overhead lighting throughout the interior
  • IMTRA 24v LED overhead lighting throughout the exterior
  • 24v LED interior safety lights
  • 24v LED exterior safety lights
  • Vimar interior switches, dimmers, and outlets
  • GFI breaker protection as appropriate @ deck, galley, heads, engine room & lazarette
  • Electrolysis bonding & grounding system with two sacrificial zinc plates
  • Tinned, UL-approved, high-temperature wiring
  • LED dome lights in the bow thruster compartment
  • Hella LED navigation lights
  • Cameras located in the engine room and cockpit
  • NEMA 2000 cable installed

MAIN DECK

  • Walkaround decks with high midship bulwarks
  • Two-tone non-skid @ all decks. White non-skid @ pilothouse roof
  • Molded in multiple facet & plank lines for appearance and strength
  • Exterior 316 stainless screws, bolts & nuts, welds ground & polished
  • 1 1/4" 316 stainless steel handrails with welded joints @ forward deck & boat deck.
  • Molded foredeck seat with storage and a custom Teak table
  • Port and starboard bulwark doors
  • Manship overhead hatches with Oceanair sliding screens & shades
  • Manship 316 stainless port lights
  • 316 stainless hawse holes with cleats, bow chocks & deck cleats
  • Aluminum-reinforced exterior doors, exterior covered w/FRP & gel coated, interiors covered with matching interior wood, stainless steel door frames
  • Bow & stern flag staffs with 316 stainless sockets
  • Rode locker for optional 2nd anchor
  • Provision for 2nd anchor with dual 316 stainless channels and rollers
  • Forward deck hatches at the bow
  • Fresh and saltwater wash downs at the bow
  • Stainless latches at all exterior cabinet doors

COCKPIT & SPORT DECK

  • Cockpit engine & thruster controls, JMS joystick, rudder indicator with engine start-stop switches
  • Starboard cabinet with a lift top to cover engine controls, thruster, and JMS joystick
  • Port aft deck storage cabinet with covered sink
  • Ventilation grates for exterior cabinets
  • 316 Stainless cockpit to boat deck ladder with 316 stainless Manship hatch
  • Lazarette access hatch with electric/hydraulic lift and ladder
  • Handheld shower @ cockpit
  • Fresh water wash down @ cockpit
  • Salt water wash down @ cockpit
  • TNT hydraulic Swim platform/Tender lift
  • Rope ladder @ sport deck for emergency re-boarding
  • Dockside fresh water connector & regulator
  • Dual transom doors
  • Two LED 24V cockpit flood lights
  • Cockpit storage bins w/drains
  • Custom pop-up Quickmarine lights at the cockpit corners
  • Custom extended cockpit with built-in seating and a custom table

FLYBRIDGE AND BOAT DECK

  • New Offshore flybridge design
  • An extended boat deck and flybridge for more space
  • Manship hatch access to & from the pilothouse
  • Helm station with complete engine instrumentation, function alarms & rudder indicator
  • Stainless destroyer-type wheel
  • Venturi windshield with 316 stainless frame
  • Two Stidd Helm chairs with stainless bases
  • FRP “U” settee with storage underneath
  • Custom table with 316 stainless support post
  • Starboard cabinets with sink, stainless steel Isotherm 85 refrigerator, and Icemaker
  • FRP radar arch with down lights
  • Boat deck drained to waterline with integral drains and scuppers
  • 1 ¼” 316 stainess handrails @ boat deck w/welded s/s life lines
  • Manship s/s hatch and s/s ladder to cockpit with s/s safety rail
  • Fresh water wash down outlet
  • AFI dual air horn

PILOTHOUSE

  • Three extra-large 12mm clear-view forward windows
  • Helm station with complete engine instrumentation, function alarms & rudder indicator
  • Teak & stainless steel destroyer-type wheel
  • Pilothouse indicator panel for systems readiness
  • Maretron tank indicator sensors for fuel, water, and holding tanks 5.7" monitor
  • Back-lit AC & DC distribution/breaker panels
  • Rocker switches with indicator lights for bilge pumps, lighting & other functions.
  • Three stainless Exalto articulating windshield wipers with a washer system
  • Interior stairway to flybridge with 316 stainless steel Manship hatch
  • Port and stbd FRP doors with 316 stainless frames
  • One ventilation overhead hatch with “Oceanair” sliding screen/shade
  • Two Stidd 500-200 helm chairs upholstered in Ultraleather and matching powder-coated bases
  • Raised “L” settee with manual high-low table
  • Upper storage cabinets above the settee
  • Padded vinyl at the forward helm console counter top
  • Engineered hardwood sole
  • UV protectant varnish on all console veneers
  • Padded soft vinyl removable headliner
  • Custom starboard day head
  • U-Line 3024R 24" undercounter refrigerator
  • Solid wood compass base
  • SALON:
  • Upgraded SS large aft salon sliding doors with full-height glass panel
  • Low/large windows for sit-down visibility
  • "U" settee in salon
  • Electric high-low table with leaves
  • 50" custom fold-down LED TV
  • Solid wood crown molding surrounds the salon
  • Padded soft vinyl removable headliner
  • Secondary engine room access from galley hatch/ladder

GALLEY AND APPLIANCES:

  • Granite countertops with overhead storage cabinets
  • Single basin Franke PRX11021
  • Grohe sink faucet
  • InSinkErator 1hp stainless steel garbage disposal with top switch
  • GE full-size refrigerator/Freezer with SS doors
  • U-line refer drawer with teak face to starboard
  • Force 10 65336 220V oven/cooktop
  • GE trash compactor
  • GE stainless microwave/convection oven with cooktop exhaust
  • Drawers & cabinets fitted with push lock latches & lined with Formica
  • Padded soft vinyl removable headliner
  • Engineered hardwood sole

OWNER'S STATEROOM & HEAD:

  • Custom “full beam” master cabin
  • King-size walk-around bed with drawers & lockers under
  • Cedar-lined hanging lockers with automatic lighting
  • Custom LED fold-down TV
  • Two LED reading lights over the berth with dimmers
  • Safety escape hatch at overhead
  • Padded soft vinyl removable headliner
  • Xtra large view window port and starboard
  • Full-length mirror
  • Grohe faucets, towel bars, and towel rings
  • Shower with a frameless glass door and an integrated towel bar
  • Head ventilation blower

FORWARD GUEST STATEROOM & HEAD

  • Queen-size berth, hinged for storage and drawers below
  • Cedar-lined hanging lockers with automatic lighting
  • 24” LED TV
  • Two LED reading lights over the berth with a dimmer
  • Opening 316 stainless port lights
  • Padded soft vinyl removable headliner
  • Grohe faucets and towel rings
  • Shower with a frameless glass door and an integrated towel bar
  • Full-length mirror
  • Head ventilation blower
  • One Manship overhead ventilation/escape hatch with Oceanair sliding screen

UPGRADES

  • Twin Cummins QSM11 engines
  • 20Kw Northern Lights generator to replace the Std 12Kw
  • "Extended Stay Package" Upgrade to 5 Mastervolt MLI Duty-Extreme lithium  batteries, Mastervolt battery management system, and 80amp Delstar       24v/200A alternator
  • 2nd Mastervolt Charger
  • Extended Cockpit with built-in seating
  • Extended Salon and galley
  • Extended Pilothouse
  • Extended Boat deck
  • Custom Kayak lift at the Boat Deck
  • TNT tender lift/ Swim platform
  • Hard top with full enclosure
  • Kabola diesel heating system
  • Reverse cycle heat and air
  • (4) Stidd Helm seats (2 PH and 2 FB)
  • Day Head in the Pilothouse
  • Flybridge BBQ cabinet
  • Watermaker
  • Reverso oil change system
  • QuickKutters shaft cutters
  • SeaTorque shaft system
  • ABT Stabilizers
  • ABT hydraulic bow and stern thrusters
  • JMS joystick controls at three stations with iAnchor
  • Electric roman shades throughout


Listing MLS by Yachtr.com

This listing is courtesy of the MLS and may be centrally listed with another broker. It is offered as a convenience by this broker/dealer to its clients and is not intended to convey representation of a particular vessel.
