2005 Pedigree Cat 525 Power Cat

General Description

2005 Pedigree Cats 525 Custom Power Catamaran

Performance-Crafted, Owner-Customized, and Built for Serious Cruising

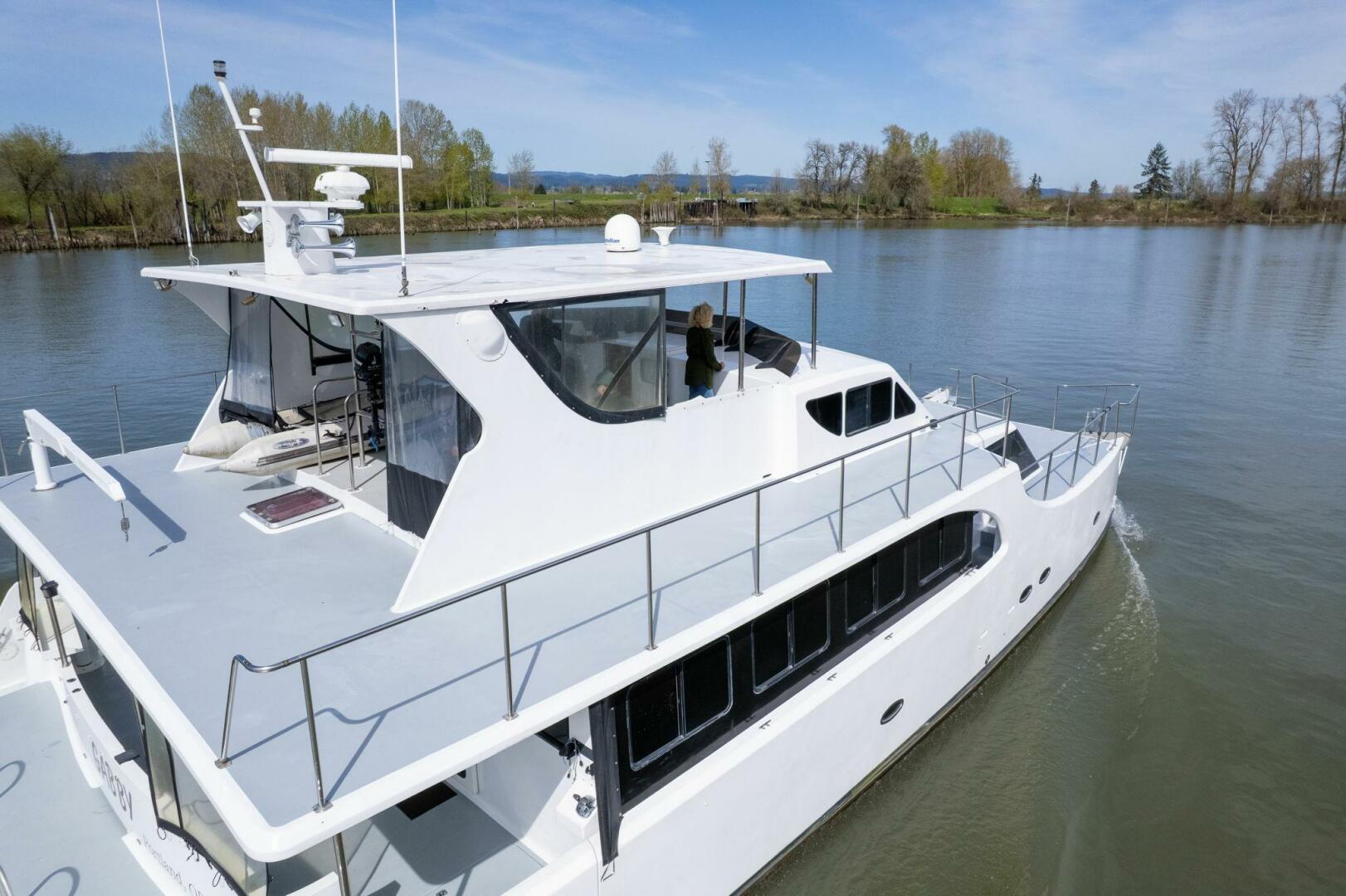

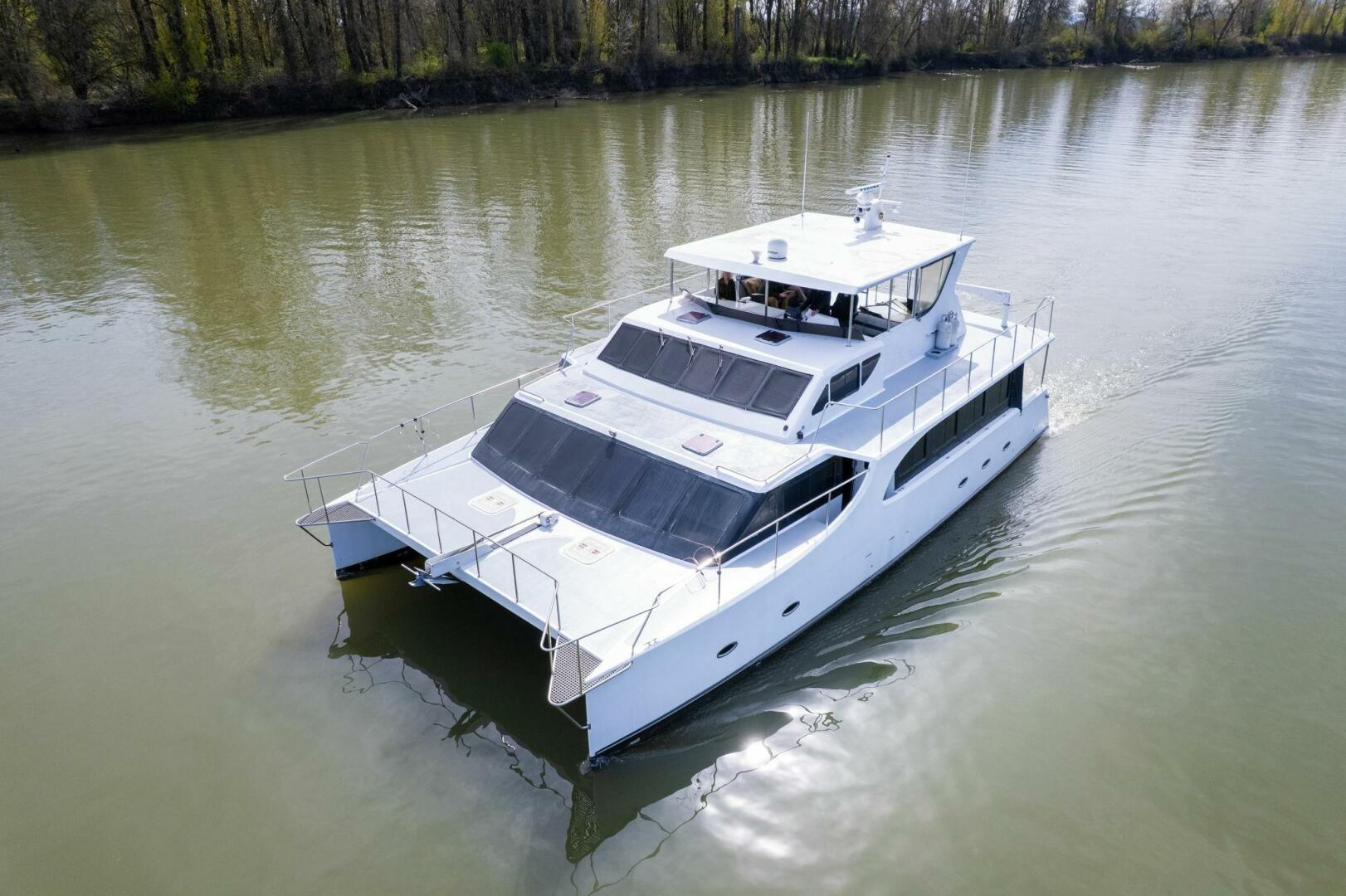

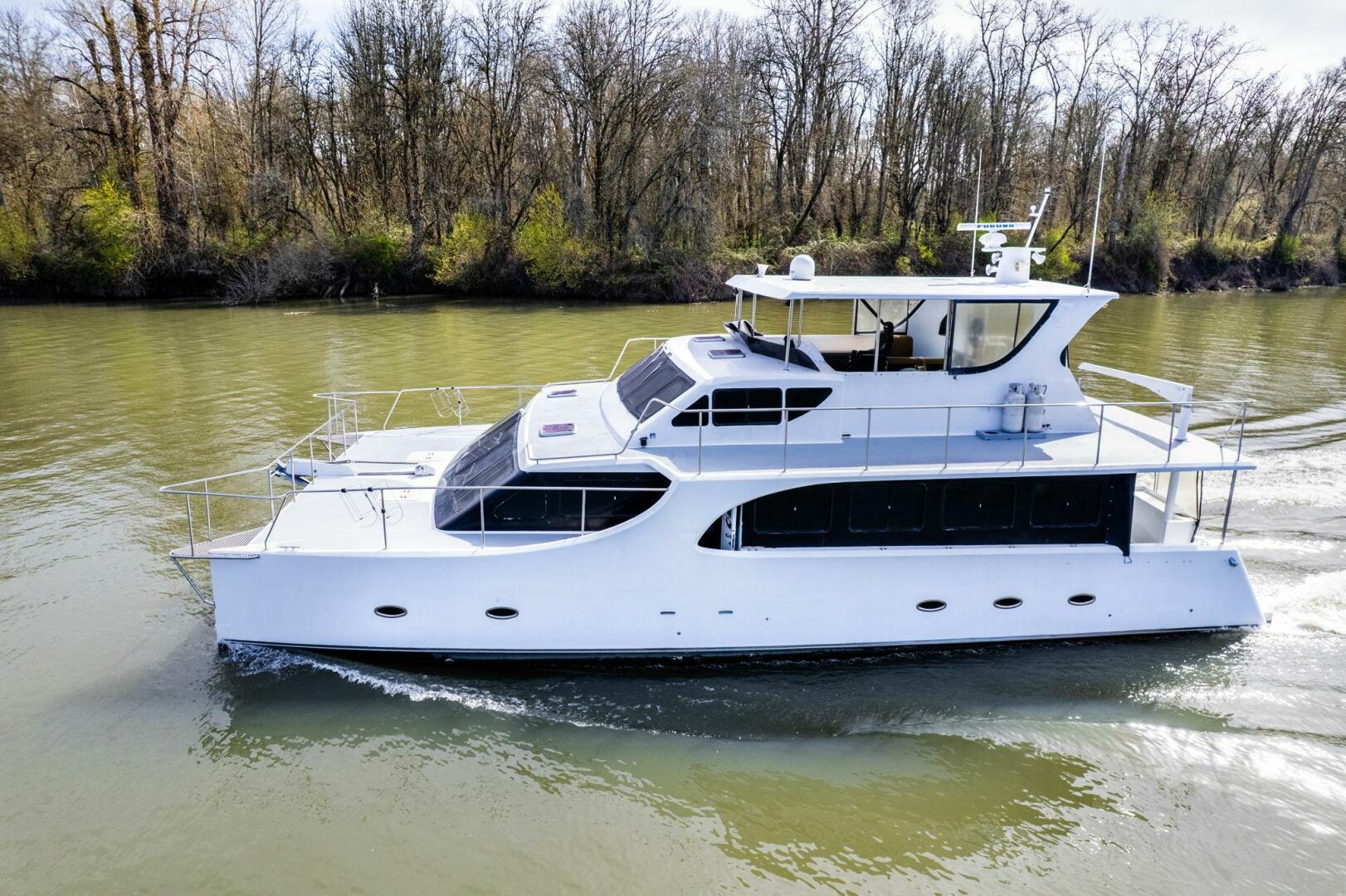

Built by Pedigree Cats and commissioned by experienced owners, GABBY is a fully custom 52.5’ power catamaran with remarkable craftsmanship, engineering, and design. Purpose-built for efficiency, safety, and luxury, this vessel was constructed to ABYC standards with Airex® foam core, Kevlar-reinforced beaching zones, carbon fiber-reinforced bulkheads, and monocoque construction for strength and rigidity.

Every inch of the vessel reflects long-range cruising practicality and upscale comfort. Her shallow draft allows for true versatility, while her custom systems and spacious interior make her ideal for a liveaboard or expedition yacht.

Last haulout 2024, new epoxy bottom paint, and anodes

Key Vessel Specifications:

• Length Overall: 52.5’
• Beam: 28’
• Draft: 4.0’
• Displacement: 16,500 lbs. (light)
• Useful Load: 10,000+ lbs.
• Fuel Capacity: 1,000 gallons (Diesel)
• Water Capacity: 400 gallons
• Holding Tank: 150 gallons
• Engines: Twin Yanmar 225 HP diesel NEW in 2011
• Cruising Speed: 14 mph
• WOT: 20 mph
• Range: 1,000+ miles @ 18 mph
• Thruster: Bow

 Mechanical & Systems:

• Generator: Onan 11.5kW 560 Hours
• Inverter/Charger: Victron Multiplus II, 3000 watts
• Shore Power: 100’ / 50 Amp cable with Glendinning Automatic Cable Reel
• Battery Banks:
• 3x House Bank (600 amps)
• 2x Engine Start
• 1x Windlass
• 1x Generator Start
• Watermaker: Village Marine Tec 1600 Gallons per day
• Heating/Cooling:
• Diesel Hydronic Karabola System (2 zones)
• Electric Mini-Split Ductless AC (2400W each, remote-controlled)

 Navigation, Security & Electronics:

• Navigation:
• Furuno Satellite System
• Garmin GPS
• Cameras: 8 onboard security cameras with monitor screen
• Entertainment: 65” LG Flatscreen TV

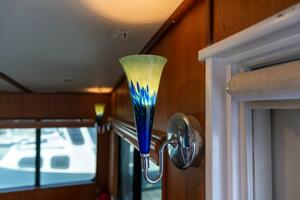

• Lighting: Full 12V LED system
• Throttle Controls: Helm, Bridge, and Cockpit stations

 Deck & Anchoring:

• Anchor: Danforth with 200' chain and windlass
• Mooring Cleats: 8 total (bow, midship, stern, and anchor points)
• Exterior Finish: Dupont Imron® polyurethane paint over epoxy primer
• Bottom: West System epoxy barrier coat with CopperPoxy antifouling (10-year protection)
• Windows: Dual-pane, solar-reflective, insulated, flush-mounted with screens

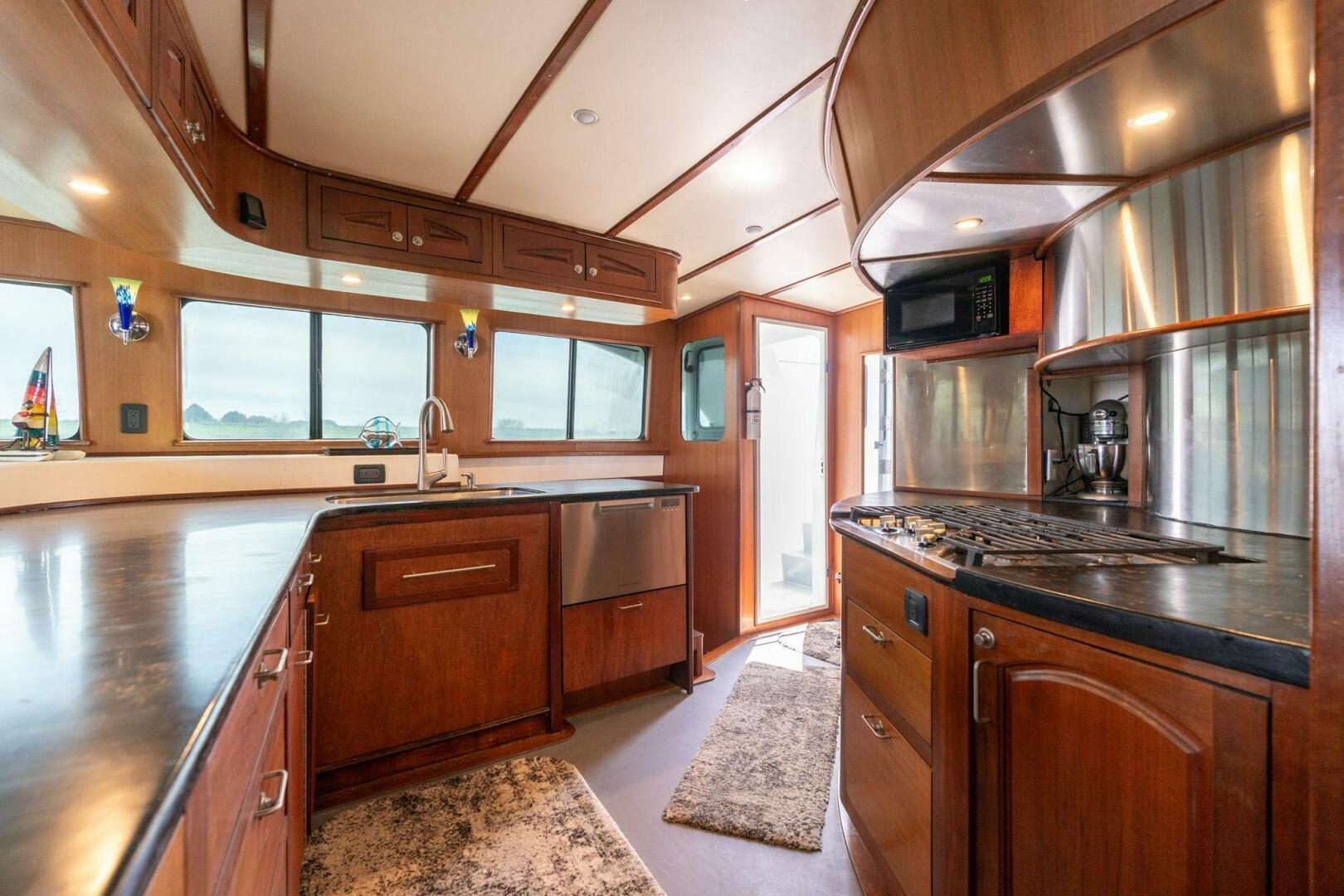

Galley & Interior Features:

• Galley Appliances:
• Fridge/Freezer: Liebherr
• Dishwasher: Fisher & Paykel drawer style
• Oven: Wolf 1800W

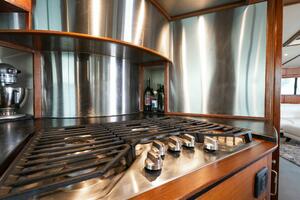

• Stove: GE 5-burner Propane
• Microwave: 800W
• Sink: 18”x30” Stainless Steel
• Cabinetry: Custom lightweight honeycomb with flush locking hardware
• Floors: Solid in galley/head, carpet in salon and staterooms
• Window Shades: Day-Nite® Pleated shades throughout
• Upholstery: Premium German leather seating

 Heads, Showers & Laundry:

• Heads: 2x Raritan smart control electric toilets
• Showers:
• 1x 3’ x 4’ dual-head walk-in
• 1x 2.5’ x 3’ with handheld shower
• Laundry: Kenmore / Foxshare combo washer/dryer

Tender:

• Tender: West Marine Zodiac with 4hp Mercury outboard

 Construction Summary:

• Airex® foam core composite hull, deck, and underwing
• E-glass DBM1708 + Kevlar in beaching zones
• Carbon fiber structural reinforcements in bulkheads
• ABYC construction standard
• Fully insulated – quiet, dry, and thermally efficient



This custom 525 Pedigree Catamaran blends performance, strength, and luxury. Whether you're preparing for bluewater adventures or looking for an ideal liveaboard, GABBY is turnkey and ready to cruise. Call the listing broker to see your next boat!
