2019 Viking Billfish
Get More Info
Sun Of A fish
38' Viking 2019
Viking Billfish 2019 For Sale in New Gretna, New Jersey
$999,000
New Gretna, New Jersey
Dimensions
- Length Overall: 38'
- Beam: 14'
- Maximum Draft: —
- Dry Weight: 30,953 lbs
Tank Capacities
- Fuel: 460.00 gal
- Water: 69.00 gal
- Holding: —
Engine Information
- Engine 1 : 2019 Cummins QSB 6.7
- Engine 2 : 2019 Cummins QSB 6.7
General Description
The 38 Billfish and 38 Open were designed and built with the same DNA as their predecessor, the 37 Billfish. As owner / operator vessels, they offer simplicity and ease of maintenance, serving as ready-to-go fishing machines equipped for inshore and offshore missions as well as versatile cruising boats with reliable inboard diesel power.
The 38 Billfish and 38 Open share the same hull, Cockpit and have a similar mechanical arrangement but differ in Command Deck and Bridge configurations. Their 109-square-foot Cockpits are equipped with a laminated mounting plate in the Deck for fighting chair, rocket launcher or table installations. Other features include in-deck insulated fish boxes port and starboard, a walk-through transom door and lift gate, a bait freezer with upper tray, a transom fish box and live well, rod holders, tackle storage and fresh and raw-water wash downs. Both boats feature two-person seats flanking the centerline walkthrough. There's refrigerated drink storage, as well as ample general storage throughout.
The 38 Billfish's Command Deck holds a Salon-like living area that includes a port-side U-shaped dinette and a fiberglass Hi - Lo table. A comfortable lounge to starboard also serves as rod storage.
Like her Convertible brethren, the 38 Billfish's Flybridge is designed with a tournament-style Center Console walk-around Helm. Like the 38 Open, the 38 Billfish has Palm Beach style controls and power-assist hydraulic steering. Seating includes a single Release Marine teak chair and lounges to port and starboard and a forward Console seat. A three-sided Costa Clear enclosure provides weather protection.
The 38 Billfish dedicates much of its space for overnight livability, with a Forward Stateroom, an L-shaped Galley and a Head with enclosed shower. The 38 Billfish is offered with island queen or crossover berth arrangements and is equipped with two hanging lockers.
A modified vinylester resin is used in the entire hull skin. End-grain balsa and closed-cell foam are used as coring materials in selected areas for optimized strength and stiffness while minimizing weight. The single integral fiberglass fuel tank, sealed to the hull with resin foam, is resin infused with balsa coring on all sides for stiffness. The hull-to-deck joint is mechanically fastened every three inches and fiberglassed inside.
For ease of maintenance, each engine and other critical machinery is located beneath electrically-actuated hatches in the Command Deck area. The Billfish is designed and built with many of the same mechanical systems, components and technologies found on larger Vikings. Examples include the Delta-T Engine Room ventilation system and a fire suppression system that's automatically or manually operated and tied into the main engine and generator ignitions.
Running gear includes Class-S pitch tolerance propellers with dynamic balancing and bronze struts, seacocks and rudders. The Engine Room, Lazarette and forward bilges are painted with Snow White Awlgrip for increased visibility and ease of maintenance. A large centerline hatch exposes the house and starting batteries, the 9kW generator, and the optional Seakeeper SK 6 gyro stabilizer. Both the 38 Billfish and 38 Open are powered with twin Cummins QSB6.7 diesels with 550 mhp
Bluewater Yacht Sales is pleased to assist you in the purchase of this vessel. This boat is centrally listed by Brielle Yacht Sales. It is offered as a convenience by this broker/dealer to its clients and is not intended to convey direct representation of a particular vessel
COMMAND DECK
Overhead lights
Drink refrigerator
Costa Clear aft Enclosure
Custom Flexiteak Flooring
Center Engine Room day hatch
Command Deck air conditioning
Fiberglass Three-sided enclosure
Lighted Compass, flush-mounted on Centerline
Engine display supplied by engine manufacturer
Lower Station with controls and Cummins joystick
Top mounted electronic controls with station select and keypad
Digital depth finder / temperature gauge and Icom Command Mic
Port side U-shaped lounge seating with bolstered White vinyl cushions and fiberglass Hi - Lo table, electrically actuated for engine access
FLYBRIDGE
Trim tabs
Radar pod
Center rigger
Engine start / stop
Trumpet-style Air horns
Custom Synthetic Flooring
Power assist hydraulic steering
Teak finish fiberglass Helm Pod
(2) Tricolor overhead lights at Helm
Flush-mounted, lighted compass at Helm
Release Teak ladder-back Helm chair
Instrumentation based on engine package
Fiberglass hardtop with molded-in LED spreader lights
Fire system control with automatic and manual discharge and override system located at Console
MASTER STATEROOM
Rod locker
Juno Teak
Flooring, vinyl Amtico
Gloss finish throughout
Starboard upper storage cabinetry
Lighting, 24v, overhead recessed in headliner
Headliner, Majilite, 1/8" foam & tricot backing, throughout
Hanging lockers (2), maple lined, with drawer storage below
Stereo system with speakers, CD / DVD player and flat-screen TV
Hatch, Bomar, foredeck hatch with Ocean Air screen and shade system
Bedspread - Quilted, designer style with pillows and shams (2), fitted sheet set
Bed, island double, with innerspring mattress, drawers in face, storage underneath
Air conditioning with reverse cycle heat and temperature control (services whole interior)
HEAD
Exhaust fan
Shower light
Amtico vinyl flooring
Towel bars and rings
Lower vanity with storage
Satin nickel shower fixtures
120v GFCI Protected Receptacle
Air conditioning / heat with vent in soffit
24v Lighting, recessed in soffit and headliner
Corian countertop Sandalwood with bone sink (color)
Upper medicine cabinet with mirrored doors and storage
Stall shower, fiberglass, and drain to automatic sump pump in bilge
Freshwater electric head with holding tank and overboard discharge
GALLEY
Headliner
Juno Teak
Exhaust fan
Satin nickel faucet
Amtico vinyl flooring
Overhead LED lights
Water tank level gauge
Electric, two-burner recessed stove
Polished Corian countertop w/ stainless sink
Aluminum Cabin door, access to Command Deck
Storage cabinets in upper Galley, with varnished doors
Main electrical service panel, AC / DC, backlit for easy viewing
Microwave oven / Convection oven located in upper Galley cabinet
Storage cabinets and drawers in lower Galley, finished maple interior
Refrigerator / Freezer, under counter drawer style with built-in ice maker, New 2023
ELECTRONICS
Starlink (2024)3) Simrad 12" MFDs with Plotter/Radar/Sounder
SeaKeeper Display
Fusion MS-NRX300
(2) Shakespeare Galaxy 5018
(2) Icom IC-M506 with remote Mics
Sirius XM Satellite fish Mapping
New AIS Module (2024)

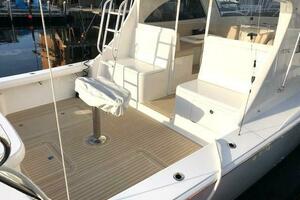

DECK / COCKPIT
CRM-50 Cord reel
Cockpit bait freezer
Custom synthetic Deck
(2) 24v 30-amp. Outlets
(2) 12v DC 30-amp. Outlets
Rupp Outriggers with spreaders
Release Marine Rocket launcher
Transom swim step at transom door
Tricolor LED lighting under coaming
Live well in molded transom fish box
Gaskets for all lids, doors and hatches
Rounded Cockpit coaming for comfort
Stainless steel cleats and hawse pipes
Walk-through transom door with lift gate
Lazarette hatch for inspection of aft bilge
Stainless steel flush-mounted Rod holders
Seat cushions on freezer and tackle locker
Tri-color LED lighting under Flybridge overhang
Self-bailing Cockpit with large Cockpit scuppers
Stainless steel gas springs on Deck hatches and lids
Fresh water wash down with hose bib located under forward gunwale
Stereo speakers powered by interior stereo, same zone as Command Deck
Dockside water connection with pressure reducing valve under forward gunwale
Sea water wash down with pump in Engine Room and supply under forward gunwale
Dockside electric connection - 50-amp. / 220v electric, located under forward gunwale
Fish boxes, insulated, port and starboard, with hatches and drains plumbed to automatic sump pump outWinter Cockpit and Bridge Covers
Release Rocket Launcher
ENGINE ROOM / MECHANICAL
Seakeeper 6Bronze struts
Seastar Optimus Steering system
(2) Y-valve emergency bilge pumps
Quick Recovery Electric water heater
Hour meters on main engines and generator
Twin 550 hp. Diesel I/B Cummins QSB 6.7L's
External sea strainers, wedge type, for main engines
Trim tabs, electric, with LED indicators at both Helms
Generator muffler, lift muffler with gas / water separator
Fuel and oil lines, flexible, steel reinforced USCG approved
Main engine mufflers, double lift fiberglass with surge protection
Deck pump-out fitting and direct overboard pump-out for holding tank
Rudders, bronze, with composite rudder bearing and dripless thru-Hull
5-Port Oil exchange system, main engines, transmissions and generator
Twin diesel engines with Marine grade reduction gears and trolling valves
Fresh water supply in Engine Room for general maintenance and cleaning
Internal sea strainers, basket type, awlgrip White - Generator and air conditioning
PEX Plumbing, fresh water system plumbing with manifold system shut-off in Engine Room
Air conditioning - Direct expansion single zone with reverse cycle heat for interior climate control
Seacocks, bronze, ball-type sea valves and strainers for all thru-hulls below the water line, awlgrip White
Bilge pumps linked into monitoring system and connected to float switches for automatic and manual operation
D/C pressurized fresh water system with Cockpit fresh water fill and dockside supply inlet with pressure reducing valve
Fire suppression system, automatically or manually operated and tied into main engine and generator ignition systems with override
Racor fuel / water separators for main engines and generator clear bowl type, top loading for easier maintenance - Includes vacuum gauge for fuel filter restriction, awlgrip White
"Delta T" Engine Room ventilation system with supply and discharge fans for proper fresh air supply and water intrusion suppression discharge fans for proper fresh air supply and water intrusion suppression
ELECTRICAL
9kW Diesel Generator
110v Outlet in Engine Room
Anchor light / Navigation lights
24v DC Ship's service throughout
Bonded electrical system with ground plate
Dimmers, on interior lighting in select areas
Engine Room lights, DC with switch at Helm
Battery charger, dual output with thermal cutoff
120v Duplex with GFCI Receptacles throughout
24v LED Lighting recessed in ceiling throughout
Instrument panel backlights - All electrical panels
Battery parallel system for main engines and generator start
24v / 12v Power supply with breakers on Flybridge for electronics
Voltage stabilizer isolation transformer for more consistent, cleaner voltage
Battery distribution panel with battery cut-off and charging system breakers
(2) Batteries, Independent 24v banks mounted in fiberglass storage boxes (2)
Color-coded, labeled and numbered wiring system with corresponding drawings
Master electrical control panel located in Salon with 24v and 120v circuit breakers, individual switching for shore, or generator supply and gauges for electrical supply, voltmeter, amp meter, and frequency
Disclaimer
The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.
